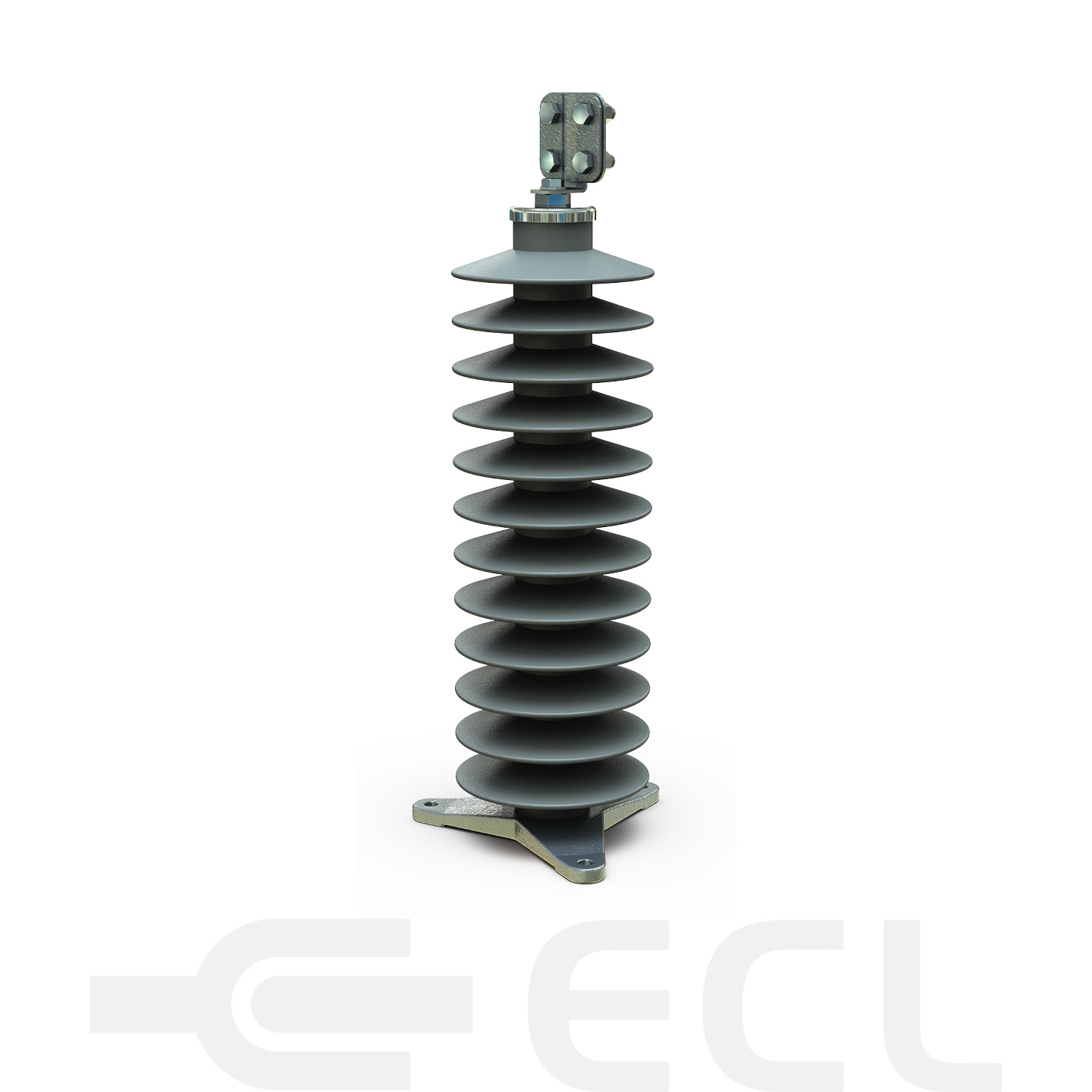

ZSP Station Class
The type “ZSP” Station Class arresters offer the benefits of polymer housings for system voltages up to 198 kV. The arresters are approximately 25% the weight of the porcelain equivalent. Handling and installation become much easier tasks. The risk of damage to the housing is reduced compared to porcelain.
Features:
- The design consists of a number of metal oxide valve elements contained within a fibreglass winding and then inserted into the polymer housing
- ZSP arresters are shipped as single units for all ratings: 3 kV through 198 kV
- There is no need to combine sections, even for the 198 kV duty cycle rating
- The metal oxide valve elements combine excellent protective characteristics with steady state performance to maximise protection over many years of service
Performance
- ZSP are available in duty cycle ratings of 3 kV through 198 kV (2.55 kV through 158 kV MCOV) and are designed for system line to line voltages of 2.4 through 230 kV
- The arrester designs are tested in accordance with the latest industry standards for metal oxide arresters
- The “ZSP” arresters consistently withstand the following minimum design tests.
- High Current-Short Duration: 100 kA crest
- Transmission Line Discharge: Exceeds ANSI/IEEE and IEC class 2 standard requirements
- Nominal discharge current per IEC: 10 kA
- Line Discharge Class per IEC: Class 2 Minimum
- Energy Capability: 6.1 kJ/kV
- MCOV Fault Withstand Capability: 80kA rms sym
- Working cantilever strength:10,000 in. -lbs. REA Listed
- Other voltages available and different configurations available
For special lugs or other imperial sizes please
contact us
to discuss your requirement.
Part Number | Voltage Rating (Ur) (kV rms) | MCOV (Uc) (kVrms) | TOV (1 s kV rms) | TOV (10 s kV rms) | Equivalent F.O.W. kV (Crest) | Switching Surge kV (crest) | Discharge Voltage (1.5kA) | Discharge Voltage (2.5kA) | Discharge Voltage (3kA) | Discharge Voltage (5kA) | Discharge Voltage (10kA) | Discharge Voltage (20kA) | Discharge Voltage (40kA) | |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
6 | 5.10 | 7.81 | 6.96 | 18.30 | 14.48 | 15.11 | 15.52 | 15.73 | 16.25 | 17.20 | 18.30 | 20.33 |
![]() |
|
9 | 7.65 | 11.71 | 10.44 | 26.60 | 21.05 | 21.96 | 22.56 | 22.86 | 23.63 | 25.00 | 26.60 | 29.55 |
![]() |
|
10 | 8.40 | 12.86 | 11.46 | 29.15 | 23.07 | 24.06 | 24.72 | 25.06 | 25.89 | 27.40 | 29.15 | 32.39 |
![]() |
|
12 | 10.20 | 15.62 | 13.92 | 33.75 | 28.29 | 29.51 | 30.32 | 30.73 | 31.75 | 33.60 | 35.74 | 39.72 |
![]() |
|
15 | 12.70 | 19.44 | 17.33 | 43.73 | 34.61 | 36.09 | 37.08 | 37.59 | 38.84 | 41.10 | 43.72 | 48.58 |
![]() |
|
18 | 15.30 | 23.43 | 20.88 | 53.09 | 42.02 | 43.82 | 45.02 | 45.63 | 47.16 | 49.90 | 53.08 | 58.98 |
![]() |
|
21 | 17.00 | 26.03 | 23.20 | 58.30 | 46.14 | 48.13 | 49.45 | 50.11 | 51.79 | 54.80 | 58.30 | 64.77 |
![]() |
|
24 | 19.50 | 29.86 | 26.61 | 67.66 | 53.55 | 55.85 | 57.39 | 58.16 | 60.10 | 63.60 | 67.66 | 75.18 |
![]() |
|
27 | 22.00 | 33.69 | 30.02 | 76.81 | 60.79 | 63.41 | 65.15 | 66.03 | 68.23 | 72.20 | 76.81 | 85.34 |
![]() |
|
30 | 24.40 | 37.36 | 33.30 | 84.79 | 67.11 | 69.99 | 71.91 | 72.89 | 75.32 | 79.90 | 84.78 | 94.21 |
![]() |
|
33 | 26.70 | 40.88 | 36.44 | 92.67 | 73.34 | 76.49 | 78.59 | 79.65 | 82.31 | 87.10 | 92.66 | 102.95 |
![]() |
|
36 | 29.00 | 44.41 | 39.57 | 101.95 | 80.66 | 84.13 | 86.44 | 87.61 | 90.53 | 95.80 | 101.91 | 113.24 |
![]() |
|
39 | 31.50 | 48.23 | 42.99 | 110.01 | 87.06 | 90.81 | 93.30 | 94.56 | 97.71 | 103.40 | 110.00 | 122.22 |
![]() |
|
42 | 34.00 | 52.06 | 46.40 | 123.09 | 97.42 | 101.61 | 104.40 | 105.81 | 109.34 | 115.70 | 123.08 | 136.76 |
![]() |
|
45 | 36.50 | 55.89 | 49.81 | 128.41 | 101.63 | 106.00 | 108.91 | 110.36 | 114.06 | 120.70 | 128.40 | 142.97 |
![]() |
|
48 | 39.00 | 59.72 | 53.22 | 135.01 | 106.85 | 111.44 | 114.50 | 116.05 | 119.92 | 126.90 | 135.00 | 150.00 |
![]() |
|
60 | 48.00 | 73.50 | 65.50 | 169.59 | 134.21 | 139.99 | 143.83 | 145.77 | 150.63 | 159.40 | 169.57 | 188.41 |
![]() |
|
66 | 52.50 | 80.39 | 71.64 | 185.23 | 146.59 | 152.89 | 157.09 | 159.21 | 164.52 | 174.10 | 185.21 | 205.79 |
![]() |
|
72 | 57.00 | 87.29 | 77.78 | 203.85 | 161.33 | 168.26 | 172.88 | 175.22 | 181.06 | 191.60 | 203.82 | 226.47 |
![]() |
|
90 | 70.00 | 107.19 | 95.52 | 246.08 | 194.75 | 203.13 | 208.70 | 211.52 | 218.58 | 231.30 | 246.06 | 273.40 |
![]() |
|
96 | 76.00 | 116.38 | 103.71 | 263.42 | 208.48 | 217.44 | 223.41 | 226.43 | 233.96 | 247.60 | 263.40 | 292.66 |
![]() |
|
108 | 84.00 | 128.63 | 114.63 | 288.52 | 228.35 | 238.17 | 244.70 | 248.01 | 256.28 | 271.20 | 288.50 | 320.56 |
![]() |
|
120 | 98.00 | 150.07 | 133.73 | 339.07 | 268.35 | 278.88 | 287.56 | 291.45 | 301.17 | 318.70 | 339.03 | 376.70 |
![]() |
|
132 | 106.00 | 162.33 | 144.65 | 365.56 | 289.31 | 304.75 | 310.03 | 314.22 | 324.70 | 343.60 | 365.52 | 406.14 |
![]() |
|
144 | 115.00 | 176.11 | 156.93 | 405.03 | 320.55 | 334.33 | 343.51 | 348.15 | 359.76 | 380.70 | 404.99 | 449.99 |
![]() |
|
150 | 121.00 | 185.30 | 165.12 | 432.80 | 342.53 | 357.25 | 367.06 | 372.02 | 384.43 | 406.80 | 432.75 | 480.84 |
![]() |
|
168 | 131.00 | 200.61 | 178.77 | 473.46 | 374.94 | 391.06 | 401.79 | 407.23 | 420.81 | 445.30 | 473.71 | 526.34 |
![]() |
|
172 | 140.00 | 214.39 | 191.05 | 484.61 | 383.53 | 400.02 | 411.00 | 416.55 | 430.45 | 455.50 | 484.56 | 538.40 |
![]() |
|
180 | 144.00 | 220.52 | 196.51 | 496.95 | 393.30 | 410.21 | 421.46 | 427.16 | 441.41 | 467.10 | 496.90 | 552.11 |
![]() |
|
192 | 152.00 | 232.77 | 207.42 | 528.44 | 418.22 | 436.20 | 448.17 | 454.23 | 469.38 | 496.70 | 528.39 | 587.10 |
![]() |
|
198 | 160.00 | 245.02 | 218.34 | 557.17 | 440.96 | 459.91 | 472.53 | 478.92 | 494.90 | 523.70 | 557.11 | 619.01 |
![]() |
|
210 | 170.00 | 260.34 | 231.99 | 584.94 | 462.93 | 482.83 | 496.08 | 502.79 | 519.56 | 549.80 | 584.88 | 649.86 |
![]() |
