Y Clevis Tongues

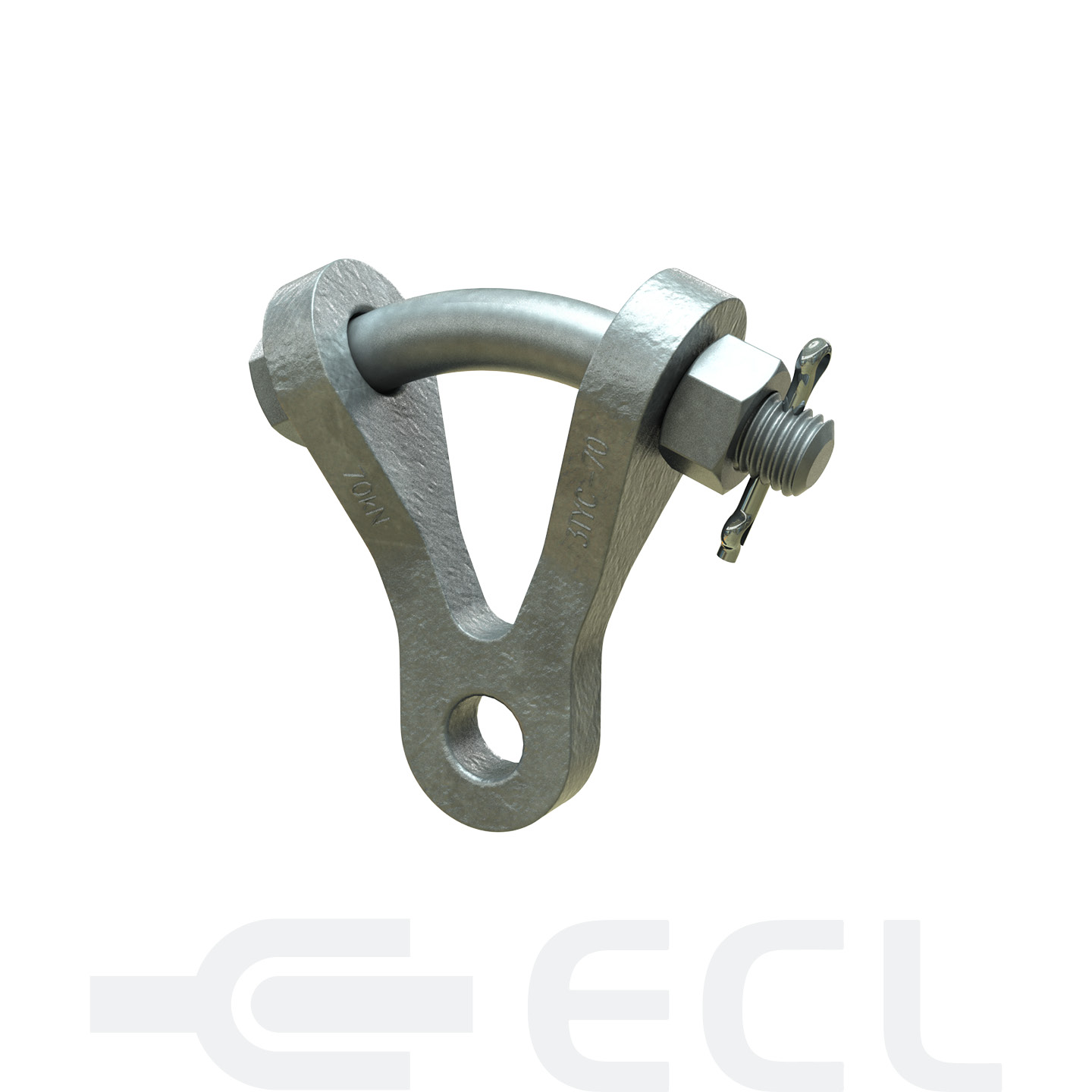

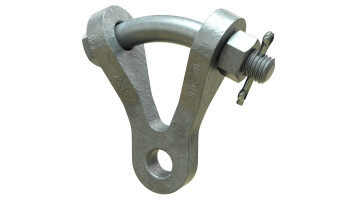

Y Clevis Tongues Y-shaped design ensures a secure fit and facilitates easy alignment.
Material:
- Galvanised Forged Steel
- Split Pin: Stainless Steel
For special lugs or other imperial sizes please
contact us
to discuss your requirement.

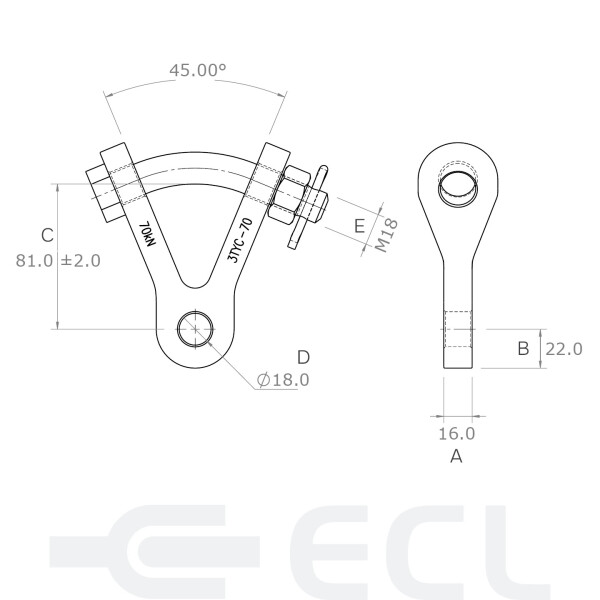

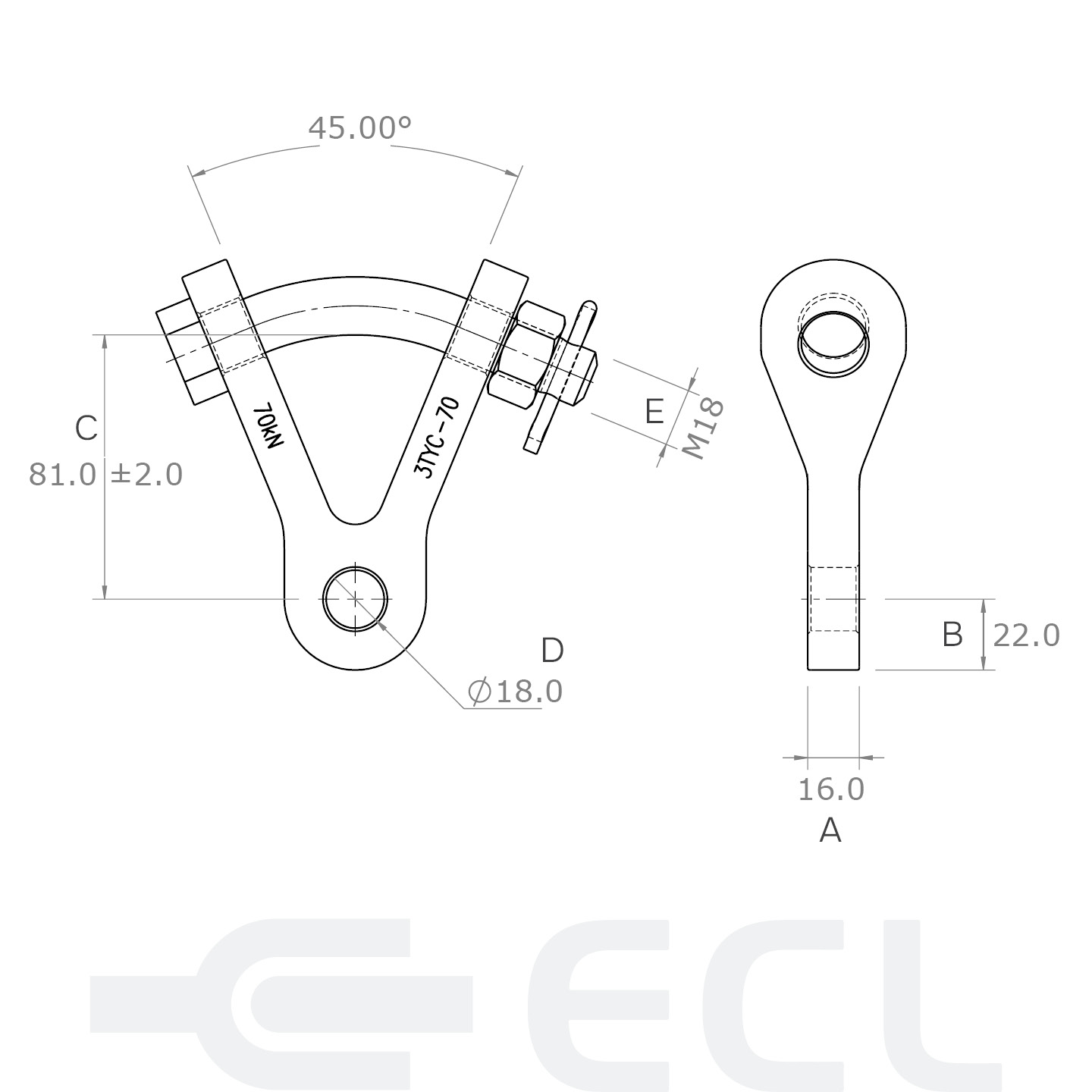

Dimensions mm | |||||||
---|---|---|---|---|---|---|---|
Part Number | MFL kN | Bolt E | Hole D | A | B | C | |
|
70 | M16 | 18 | 17 | 22 | 65 |
![]() |
|
70 | M18 | 18 | 16 | 22 | 81 |
![]() |
|
120 | M20 | 18 | 16 | 22 | 90 |
![]() |
|
160 | M20 | 22 | 20 | 24 | 65 |
![]() |
|
160 | M20 | 22 | 43 | 23 | 75 |
![]() |
