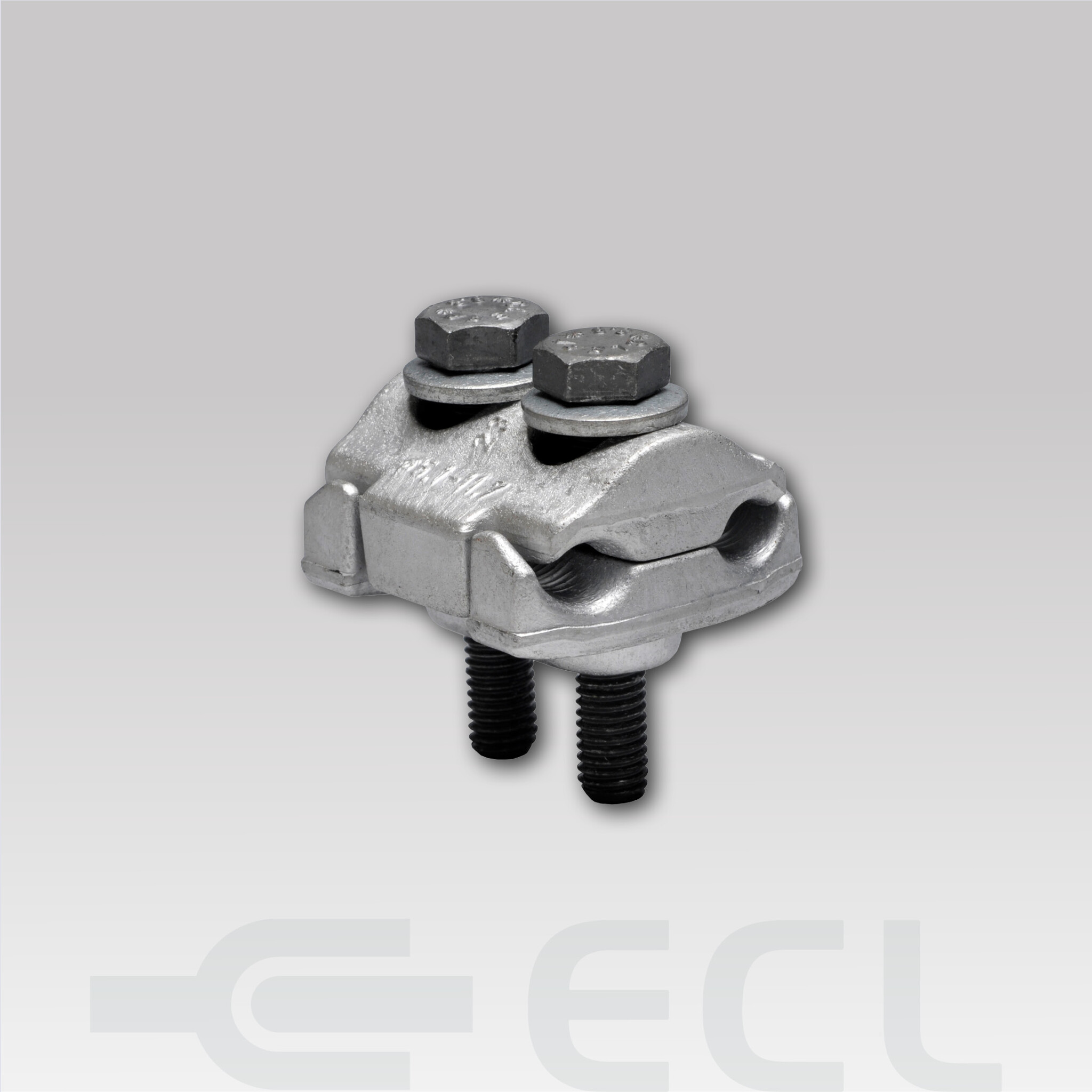

Universal Overhead Line Clamp
For clamping of dead ends. Tap off conductors, auxiliary conductors Al and ACSR
Materials:
Body: High strength aluminium alloy, drop forged.
Bolts: Class 8.8 hot dip galvanized
For clamping of dead ends. Tap off conductors, auxiliary conductors Al and ACSR
Materials:
Body: High strength aluminium alloy, drop forged.
Bolts: Class 8.8 hot dip galvanized
Part Number | Bolts | Conductor Diameter (mm) AL-ACSR | Conductor Cross Section (mm²) AL | Conductor Cross Section (mm²) ACSR | |
---|---|---|---|---|---|
|
2 x M8 | 5.1-11.7 | 16-70 | 25/4-70/12 |
|
|
2 x M10 | 9.0-16 | 50-150 | 50/8- 120/20 |
|
