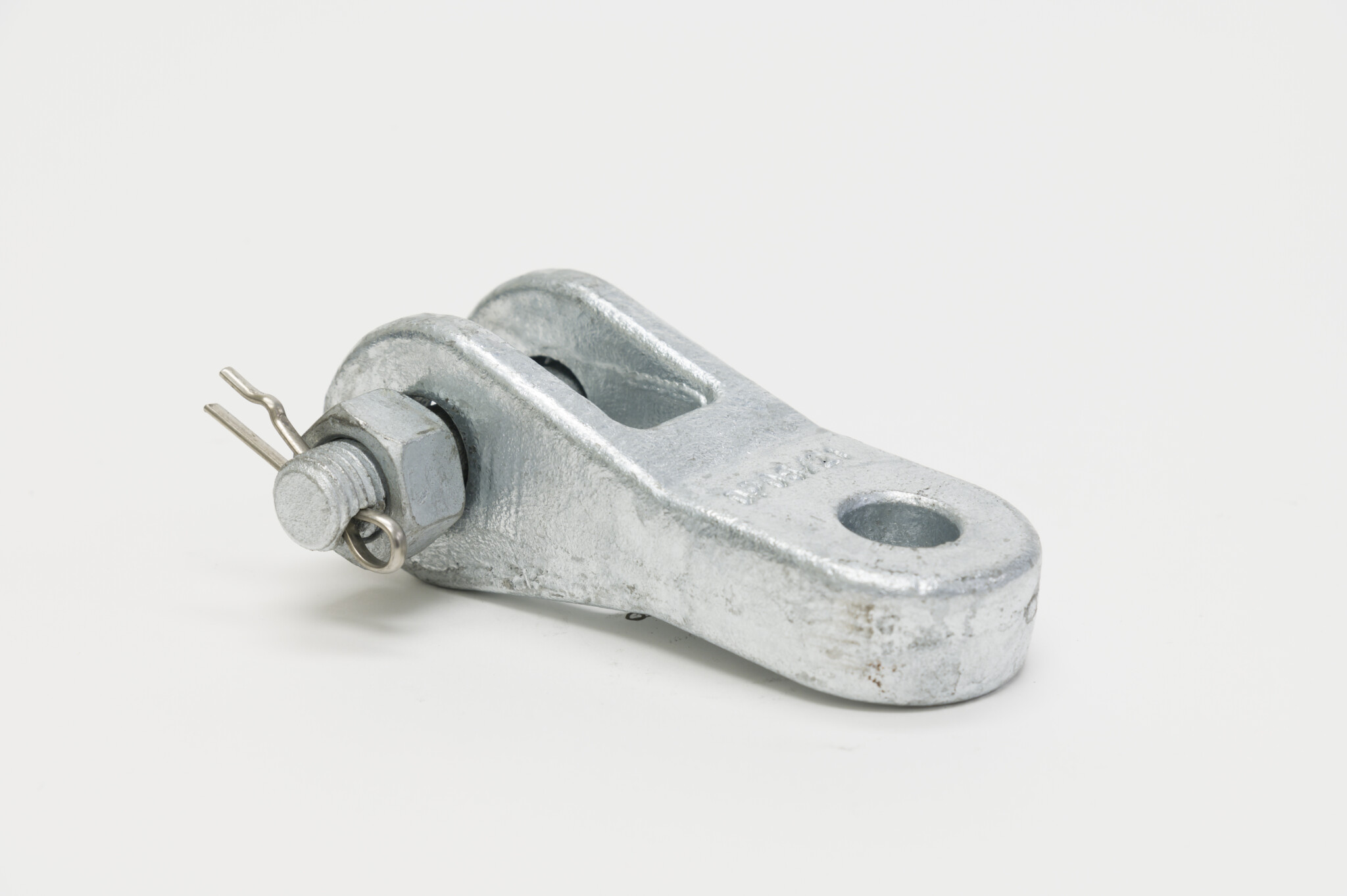

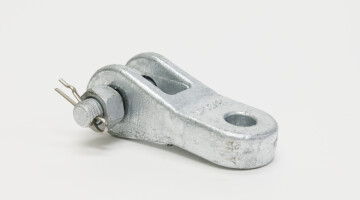

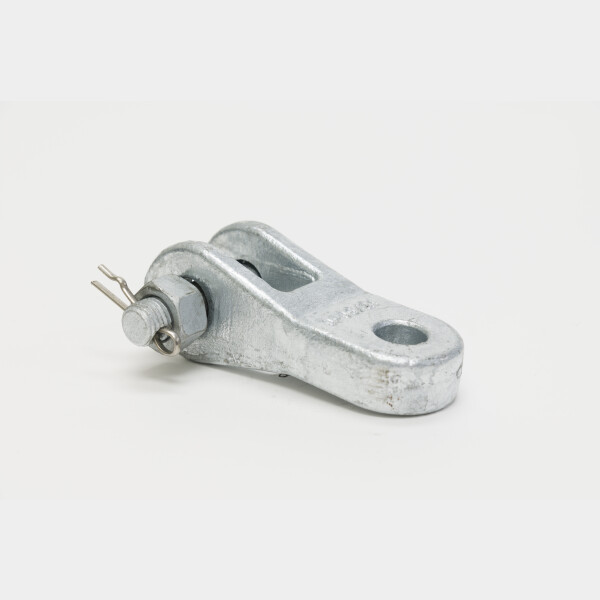

- Twisted Clevis Tongues
For special lugs or other imperial sizes please
contact us
to discuss your requirement.
| Part Number | Description | Bolt | Clevis | Min. Failing Load | Material | |
|---|---|---|---|---|---|---|
|
|
Twisted Clevis Tongue (20 Tongue, 18 Hole) | M16 | 20 | 70kN | Forged |
|
|
|
Twisted Clevis Tongue (30 Tongue, 18 Hole) | M16 | 20 | 70kN | Forged |
|
|
|
Twisted Clevis Tongue (43 Tongue, 18 Hole) | M16 | 20 | 70kN | Forged |
|
|
|
Twisted Clevis Tongue (16 Tongue, 18 Hole) | M16 | 20 | 70kN | Forged |
|
|
|
Twisted Clevis Tongue (16 Tongue, 22 Hole) | M20 | 24 | 70kN | Forged |
|
|
|
Twisted Clevis Tongue (20 Tongue, 22 Hole) | M20 | 24 | 160kN | Forged |
|
|
|
Twisted Clevis Tongue (30 Tongue, 22 Hole) | M20 | 24 | 160kN | Forged |
|
|
|
Twisted Clevis Tongue (16 Tongue, 18 Hole) | M20 | 24 | 70kN | Forged |
|
|
|
Twisted Clevis-Clevis | M20 (Both) | 24 (Both) | 160kN | Forged |
|
|
