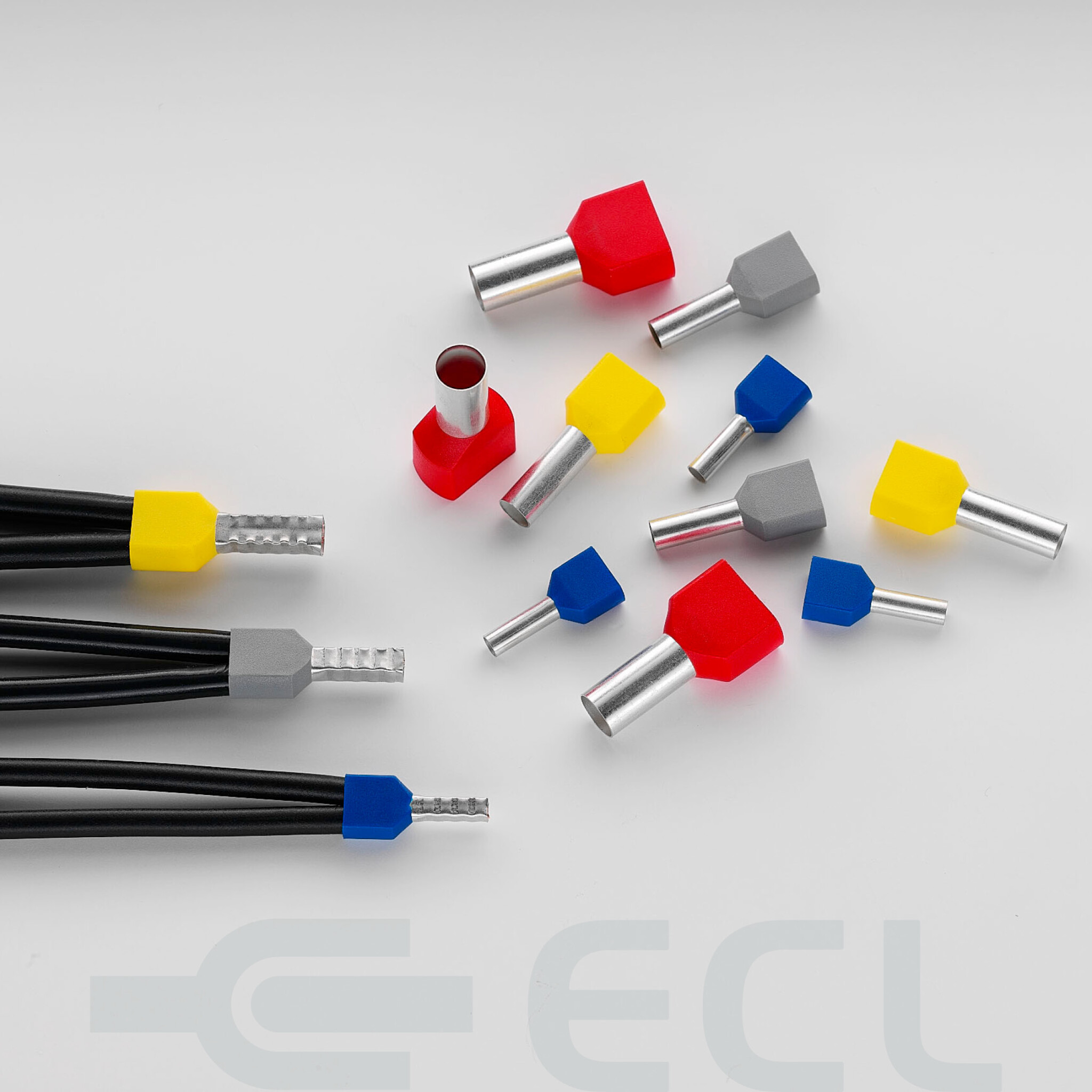

Twin End Sleeves - Insulated, Loose
Designed to take two cables at once in the same terminal. Ideal for “neutral” loop between devices.
For special lugs or other imperial sizes please
contact us
to discuss your requirement.
| Part Number | Pack Quantity | Nominal Conductor Area | Dimensions (mm) D2 | Dimensions (mm) D1 | Dimensions (mm) D2 | Colour | Dimensions (mm) D3 | Dimensions (mm) L2 | |
|---|---|---|---|---|---|---|---|---|---|
|
|
100 | 2 x 0.5mm | 15mm | 1.5mm | 2.3mm | White | 4.7mm | 8mm |
|
|
|
100 | 2 x 0.75mm | 15mm | 1.8mm | 2.6mm | Grey | 5mm | 8mm |
|
|
|
100 | 2 x 1.0mm | 15mm | 2.05mm | 3mm | Red | 5.4mm | 8mm |
|
|
|
100 | 2 x 1.5mm | 16mm | 2.3mm | 3.5mm | Black | 6.6mm | 8mm |
|
|
|
100 | 2 x 1.5mm | 20mm | 2.3mm | 3.5mm | Black | 6.6mm | 12mm |
|
|
|
100 | 2 x 2.5mm | 18.5mm | 2.8mm | 4mm | Blue | 7.8mm | 10mm |
|
|
|
100 | 2 x 2.5mm | 28.5mm | 2.8mm | 4mm | Blue | 7.8mm | 18mm |
|
|
|
50 | 2 x 4.0mm | 23mm | 3.7mm | 4.9mm | Grey | 8.8mm | 12mm |
|
|
|
50 | 2 x 6.0mm | 26mm | 4.8mm | 5.8mm | Yellow | 10mm | 14mm |
|
|
