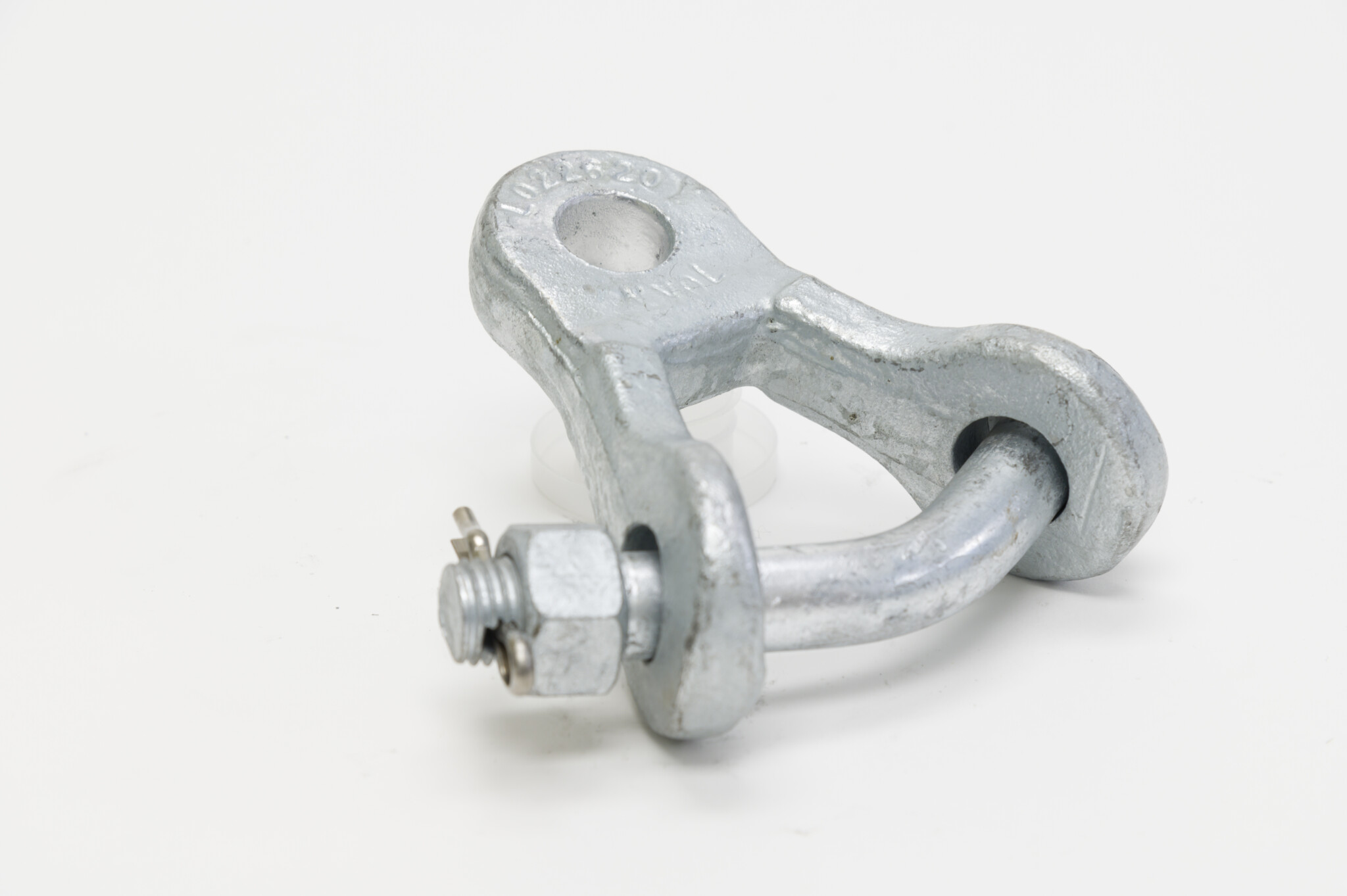

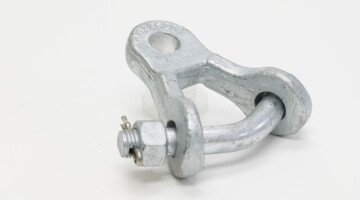

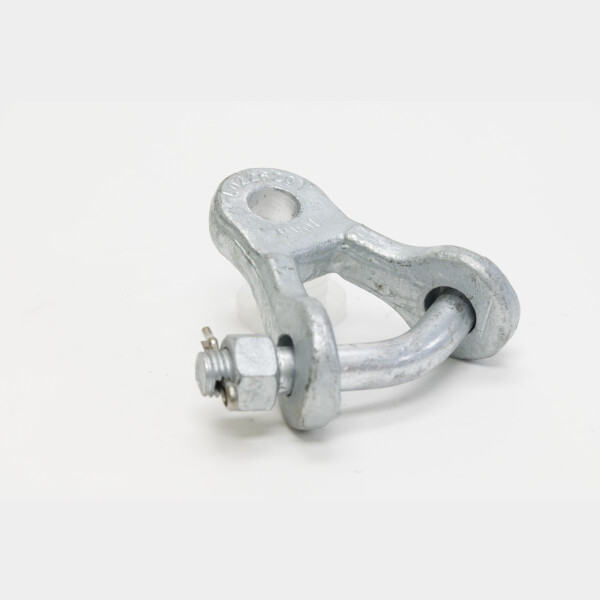

Clevis Tongues
| Part Number | Description | Clevis | Min. Failing Load | Bolt | |
|---|---|---|---|---|---|
|
|
Y-Clevis Tongue (16 Tongue, 18 Hole) | - | 70kN | M16 | |
|
|
Y-Clevis Tongue (20 Tongue, 18 Hole) | - | 70kN | M16 | |
|
|
Y-Clevis Tongue (30 Tongue, 18 Hole) | - | 120kN | M20 | |
|
|
Y-Clevis Tongue (20 Tongue, 22 Hole) | - | 160kN | M20 | |
|
|
Y-Clevis Tongue (44 Tongue, 22 Hole) | - | 160kN | M20 | |
|
|
Y-Clevis Tongue (67 Tongue, 22 Hole) | - | 160kN | M20 | |
|
|
Clevis Tongue (16 Tongue, 18 Hole) | 24 | 70kN | M20 | |
|
|
Clevis Tongue (16 Tongue, 18 Hole) | 20 | 70kN | M16 | |
|
|
Clevis Tongue (30 Tongue, 18 Hole) | 24 | 120kN | M20 | |
|
|
Clevis Tongue (20 Tongue, 22 Hole) | 24 | 160kN | M20 | |
|
|
Clevis Tongue (30 Tongue, 22 Hole) | 24 | 160kN | M20 | |
|
