TerraConn™ Bare Earthing Tail
TerraConn™ is an innovative earthing point system designed to enhance the safety and efficiency of electrical grounding in various commercial and industrial environments.

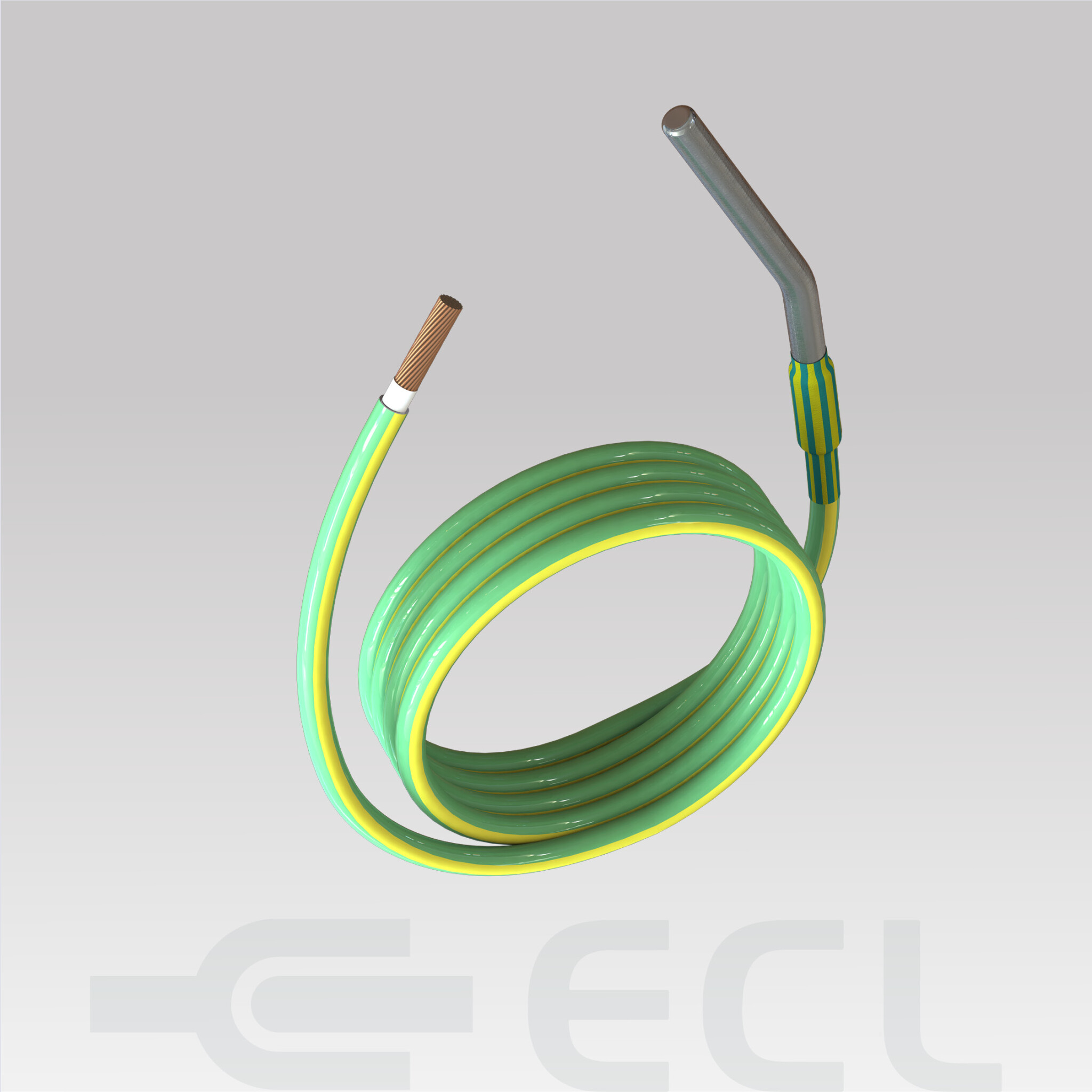

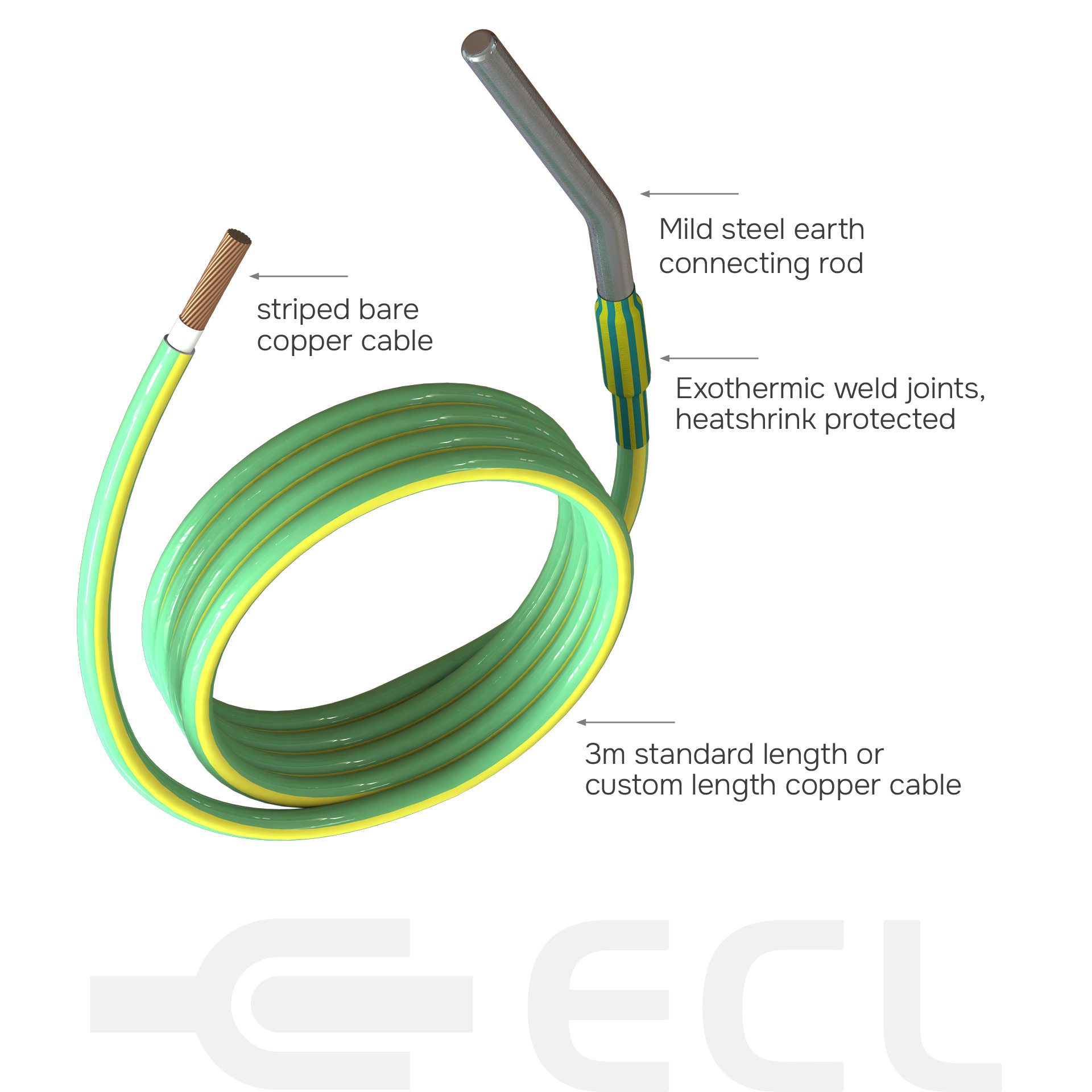

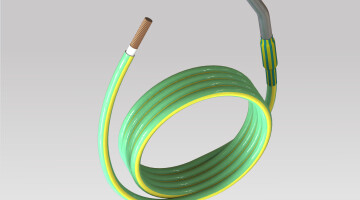

Bare Earthing Tail: Bare copper cable, with mild steel earth connecting rod exothermically welded to cable. Without earthing plate.
Larger conductor sizes are available on request, please contact the ECL team.
Contact the ECL team to request a spec sheet
For special lugs or other imperial sizes please
contact us
to discuss your requirement.
Part Number | Cable Size mm2 | Mains Cable mm2 | Rod Diameter mm2 | |
---|---|---|---|---|
|
16 | 4 - 50 | 10 |
![]() |
|
35 | 70 - 120 | 10 |
![]() |
|
50 | 120 - 150 | 16 |
![]() |
|
70 | 150 - 180 | 16 |
![]() |
|
95 | 185 - 240 | 16 |
![]() |
|
120 | 240 - 630 | 16 |
![]() |
