TerraConn™ Earthing System
TerraConn™ is an innovative earthing point system designed to enhance the safety and efficiency of electrical grounding in various commercial and industrial environments.

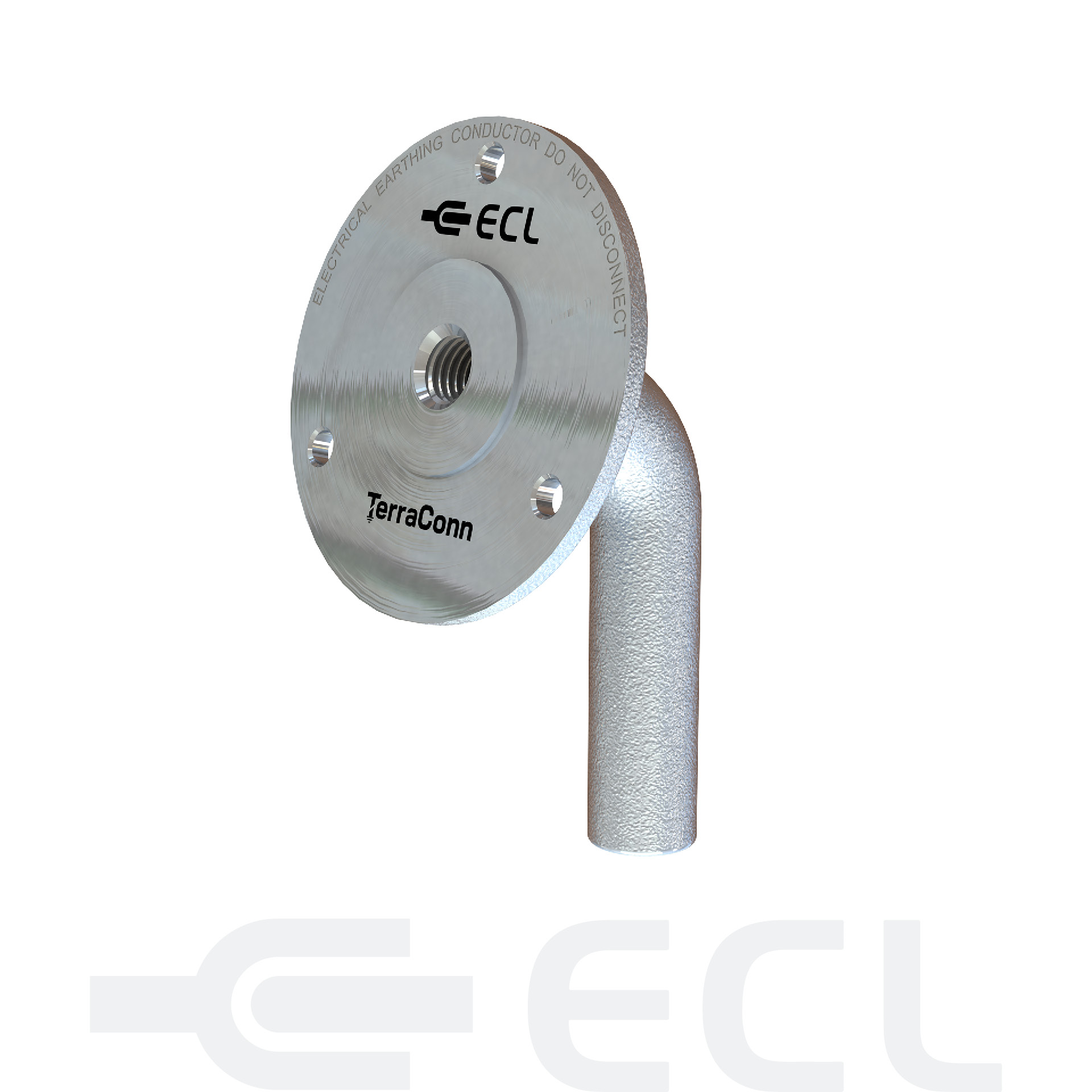

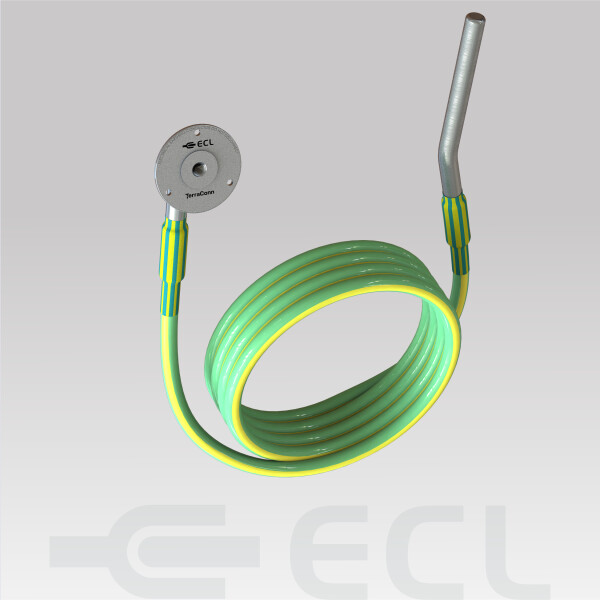

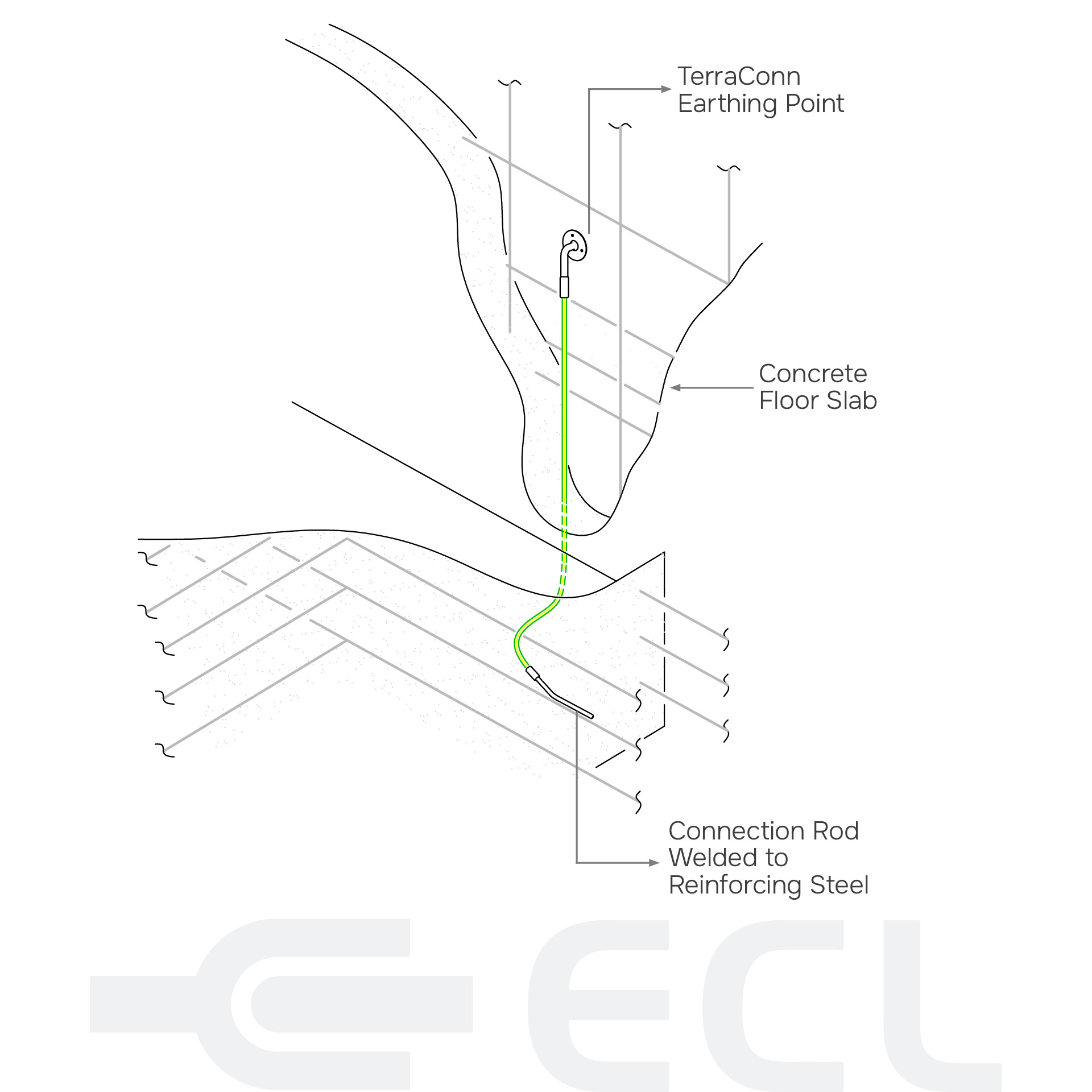

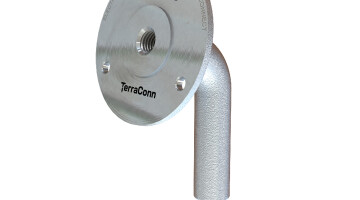

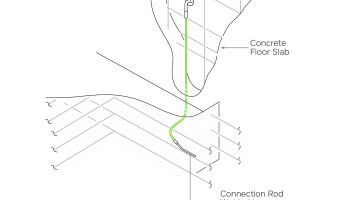

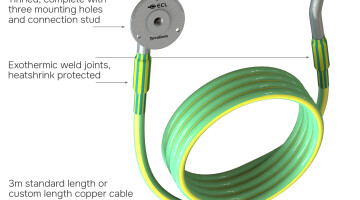

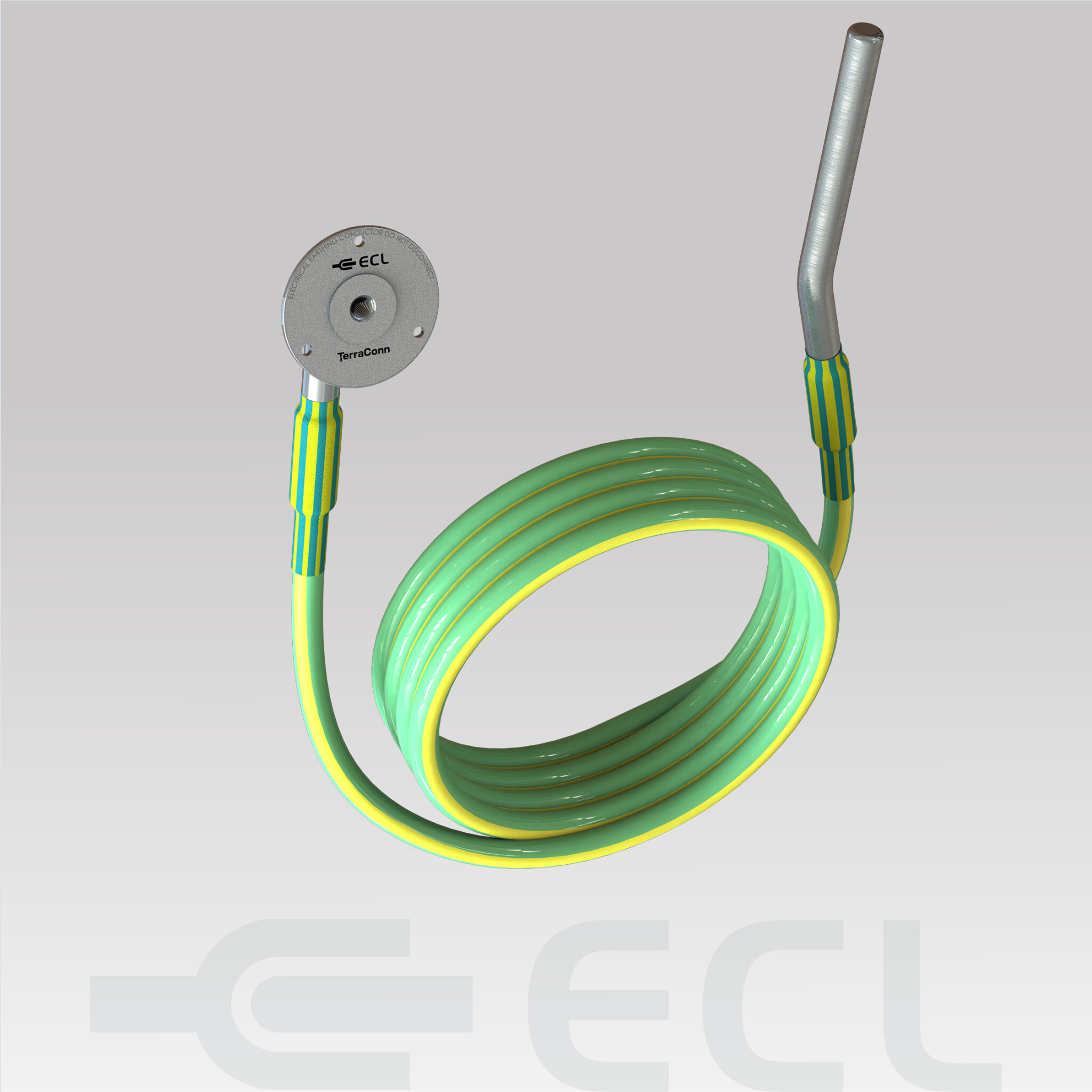

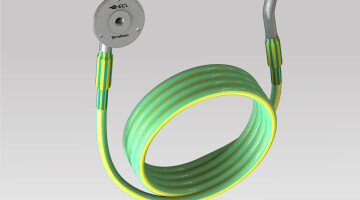

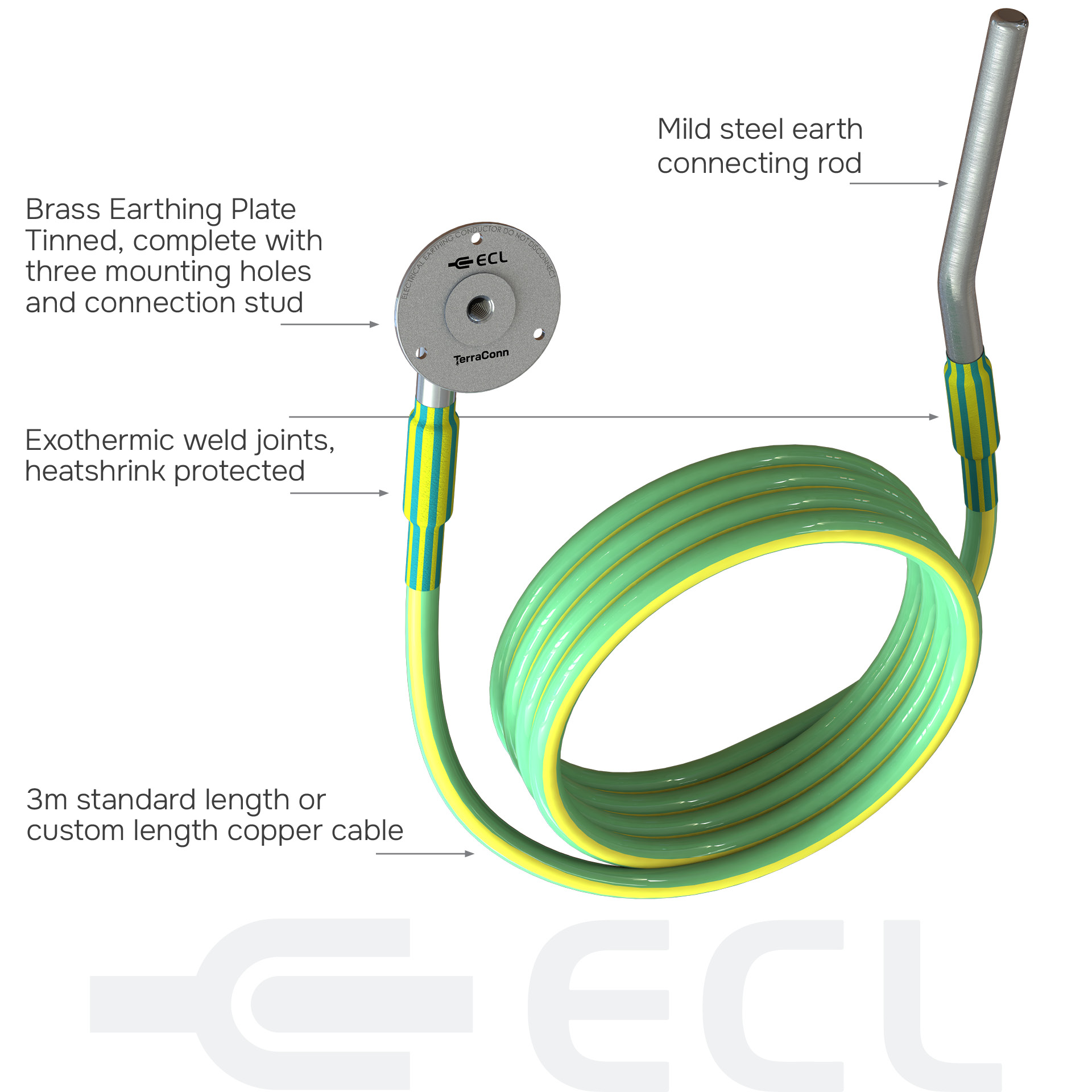

Complete Earthing System: Tinned brass earthing plate, exothermically welded to copper cable and earth connecting rod.
Larger conductor sizes are available on request, please contact the ECL team.
Contact the ECL team to request a spec sheet
| Part Number | Cable Size mm2 | Mains Cable mm2 | Rod Diameter mm2 | Terminal Thread Size | Terminal Depth mm | |
|---|---|---|---|---|---|---|
|
|
16 | 4 - 50 | 10 | M8 | 16 | |
|
|
35 | 70 - 120 | 10 | M8 | 16 | |
|
|
50 | 120 - 150 | 16 | M10 | 20 | |
|
|
70 | 150 - 180 | 16 | M10 | 20 | |
|
|
95 | 185 - 240 | 16 | M10 | 20 | |
|
|
120 | 240 - 630 | 16 | M10 | 20 | |
|
