Taper-Tech® Flameproof Ex d Enviro Compression Gland - for Unarmoured Cable

Taper-Tech® Flameproof Ex d Enviro Compression Gland - for Unarmoured Cable

Key Features:

Ultra tough corrosion resistant encapsulated brass cable gland
Fully certified to SABS (MS-XPL/18.0668X) & IECEx (ICS 20.0006X) standards
Unique Taper-Tech® bush design
IP66/68 (350m underwater continuously)
Resistant to corrosive environments and oil & grease resistant
Tough engineering plastic will not crack when tightening

Technical Details:

SABS:	Ex db I/IIC Mb Gb, Ex eb I/IIC Mb Gb
IECEx:	Ex nR IIC Gc, Ex ta IIIC Da
Suitable for use in:	Zone 1, Zone 2, Zone 20, Zone 21, Zone 22
Operating Temp.:	-20°C to 95°C

Contact the ECL team

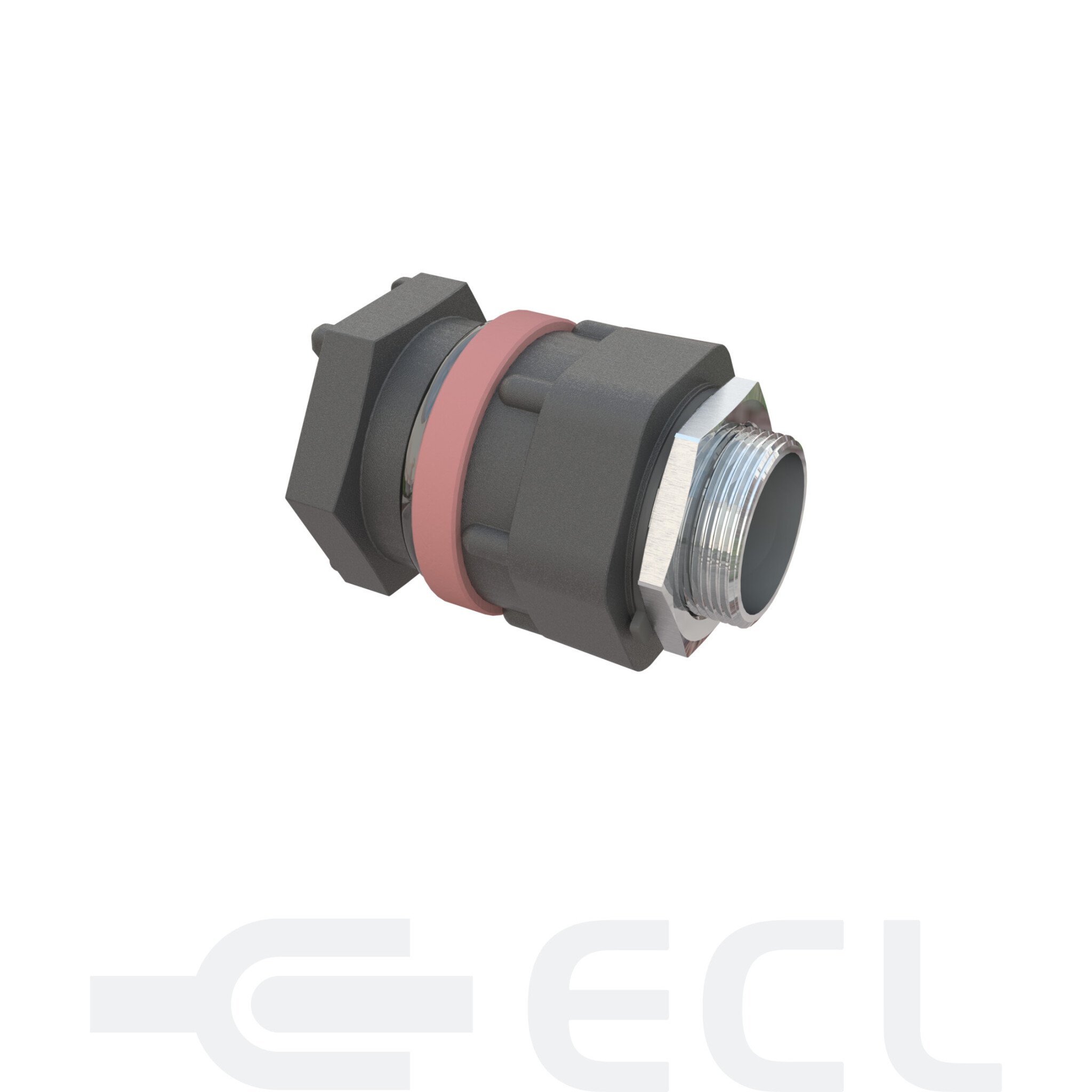

Taper Tech Flameproof Ex d Enviro Compression Gland for Unarmoured Cable

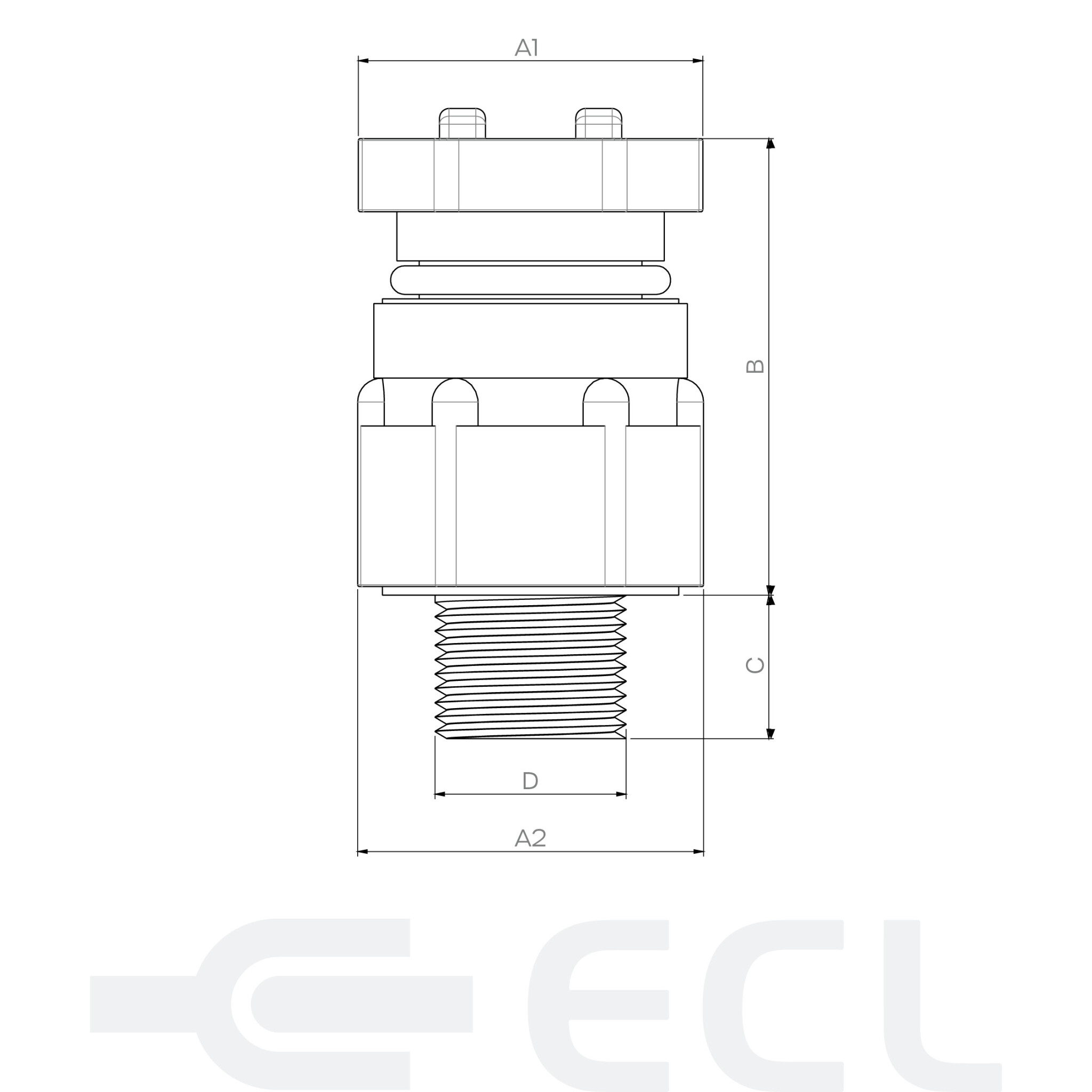

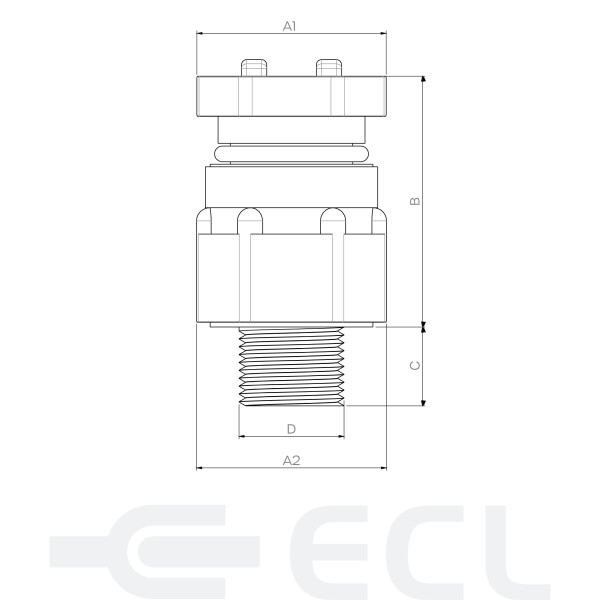

Taper Tech Flameproof Ex d Enviro Compression Gland for Unarmoured Cable dimensions

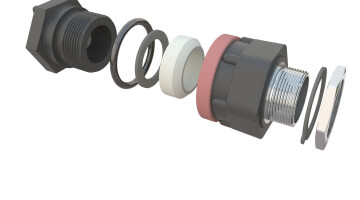

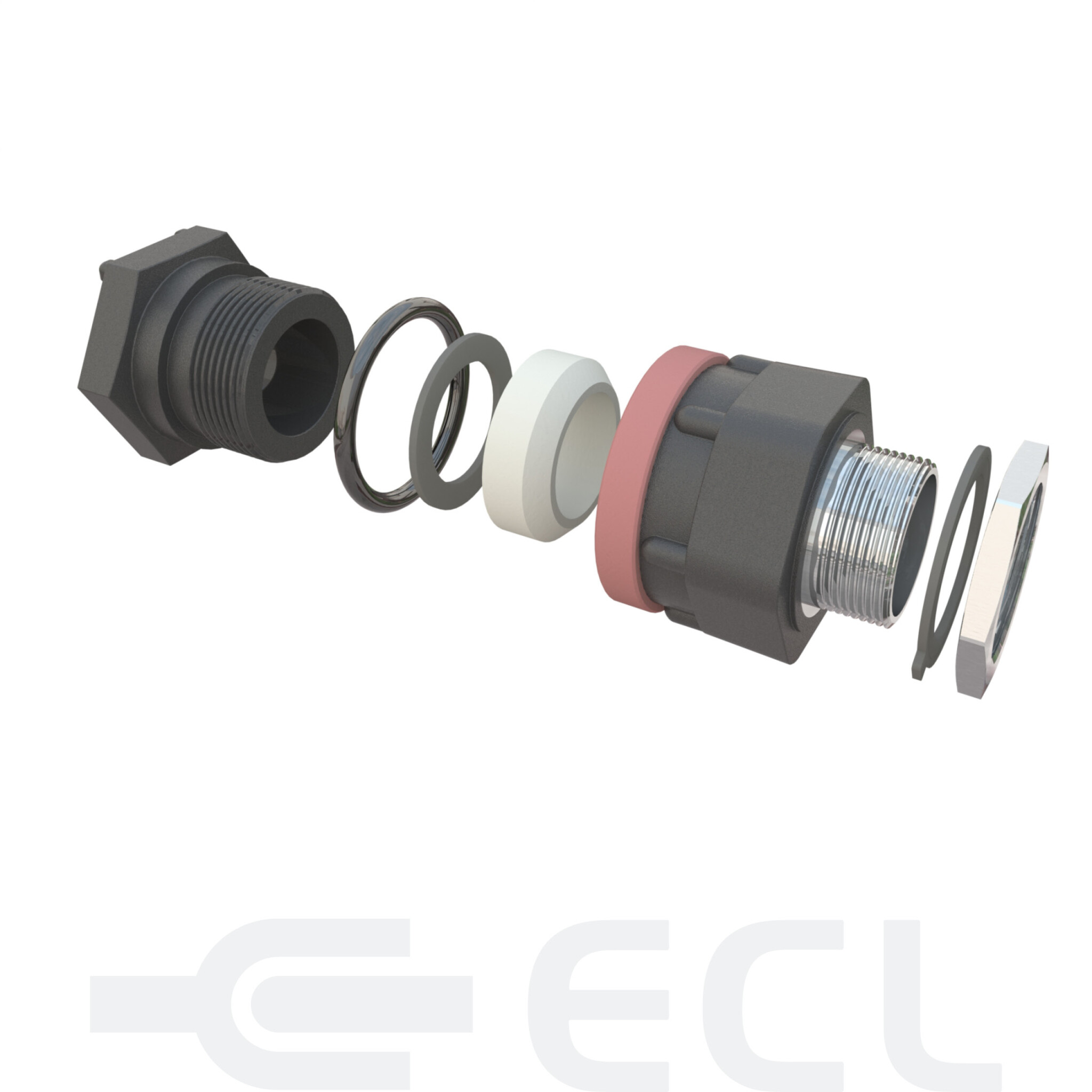

Taper Tech Flameproof Ex d Enviro Compression Gland for Unarmoured Cable expanded

Taper Tech Flameproof Ex d Enviro Compression Gland for Unarmoured Cable standards

					Diameter A2		Diameter A1
Part Number	Thread Size D	Cable Diameter min-max mm	Thread Length mm C	Length mm B	Body A/F A2	Body A/C	Nut A/F	Nut A/C
	M16	3.0-8.5	15	46	27.7	32	29.2	32	- + Part Number Thread Size D: Cable Diameter min-max mm: Thread Length mm C: Length mm B: Body A/F A2: Body A/C: Nut A/F: Nut A/C: - +
	M20	3.0-8.5	15	46	27.7	32	29.2	32	- + Part Number Thread Size D: Cable Diameter min-max mm: Thread Length mm C: Length mm B: Body A/F A2: Body A/C: Nut A/F: Nut A/C: - +
	M20	8.0-12.6	15	51	27.7	32	29.2	32	- + Part Number Thread Size D: Cable Diameter min-max mm: Thread Length mm C: Length mm B: Body A/F A2: Body A/C: Nut A/F: Nut A/C: - +
	M20	11.5-15.7	15	51	31.5	36.4	32	37	- + Part Number Thread Size D: Cable Diameter min-max mm: Thread Length mm C: Length mm B: Body A/F A2: Body A/C: Nut A/F: Nut A/C: - +
	M25	15.7-20.4	15	59	40	46.2	41.2	47.5	- + Part Number Thread Size D: Cable Diameter min-max mm: Thread Length mm C: Length mm B: Body A/F A2: Body A/C: Nut A/F: Nut A/C: - +
	M32	20.4-26.3	15	66	48.5	56	50	57.5	- + Part Number Thread Size D: Cable Diameter min-max mm: Thread Length mm C: Length mm B: Body A/F A2: Body A/C: Nut A/F: Nut A/C: - +
	M40	26.3-34.7	18	66	57.3	66.2	59	67.5	- + Part Number Thread Size D: Cable Diameter min-max mm: Thread Length mm C: Length mm B: Body A/F A2: Body A/C: Nut A/F: Nut A/C: - +
	M50	34.7-43.3	19	102	74.4	86	77.5	87	- + Part Number Thread Size D: Cable Diameter min-max mm: Thread Length mm C: Length mm B: Body A/F A2: Body A/C: Nut A/F: Nut A/C: - +
	M63	43.3-55.9	19	112	88	101.6	86	98.8	- + Part Number Thread Size D: Cable Diameter min-max mm: Thread Length mm C: Length mm B: Body A/F A2: Body A/C: Nut A/F: Nut A/C: - +
	M75	55.9-67.5	25	132	96	110.9	97	108	- + Part Number Thread Size D: Cable Diameter min-max mm: Thread Length mm C: Length mm B: Body A/F A2: Body A/C: Nut A/F: Nut A/C: - +
