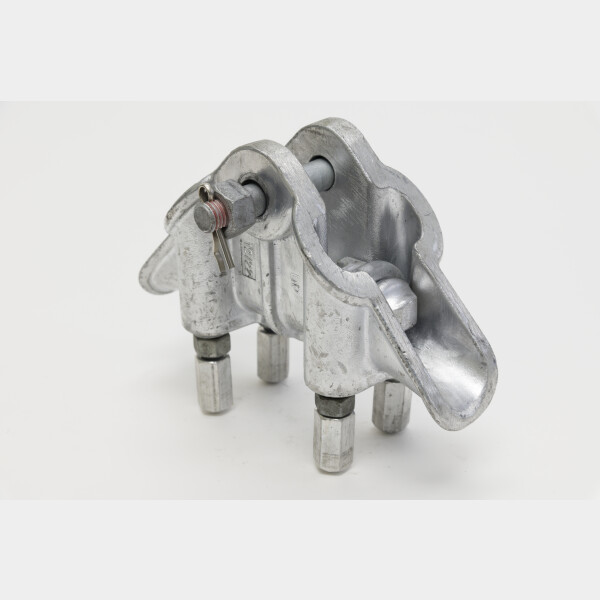

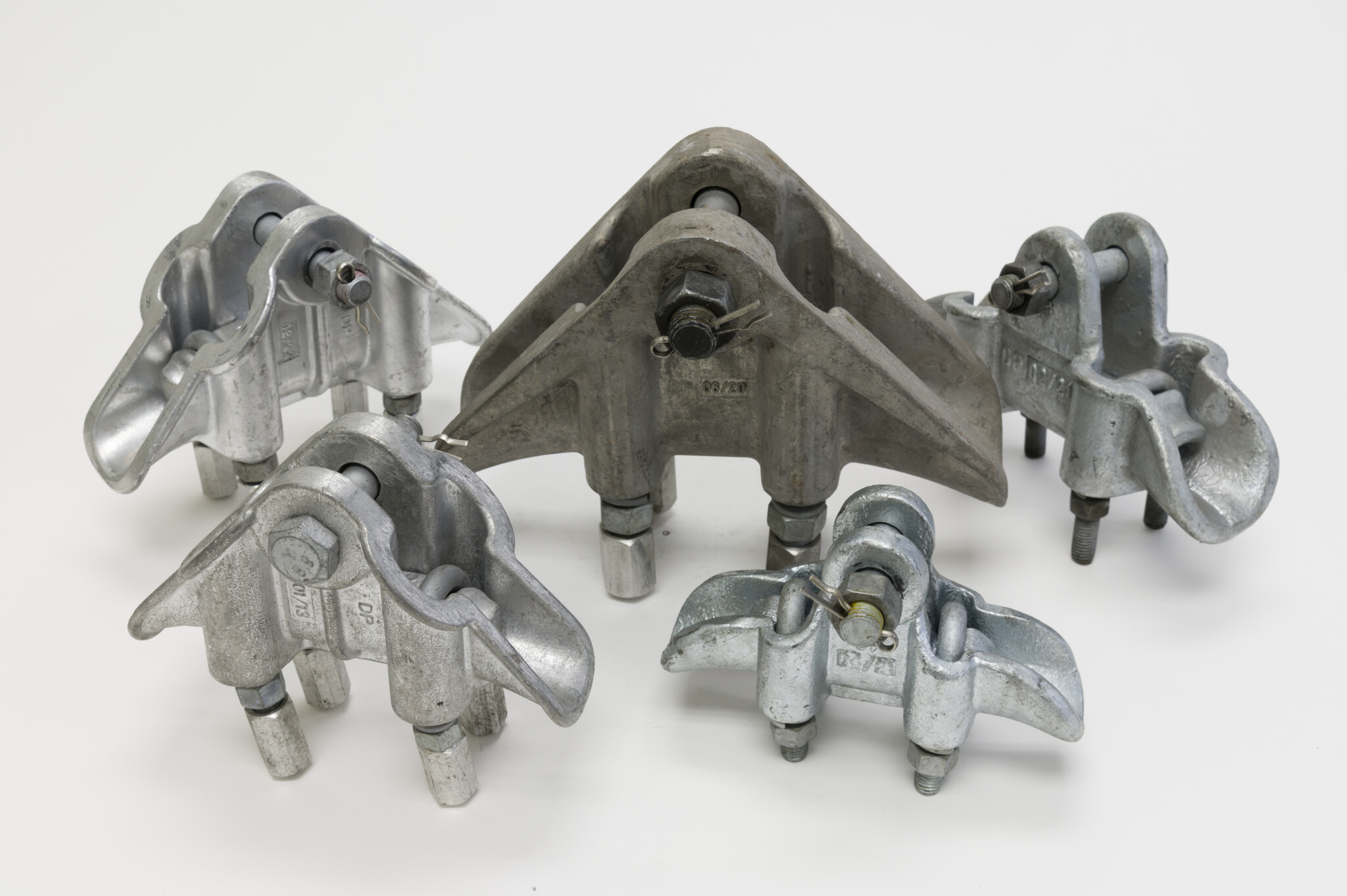

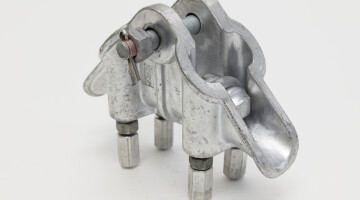

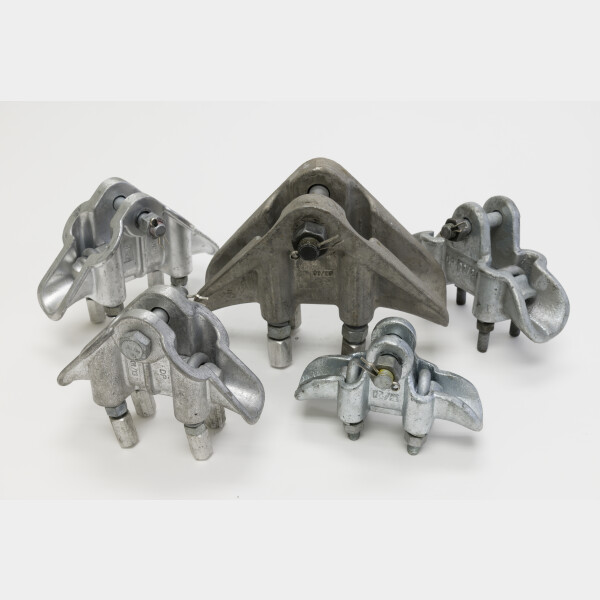

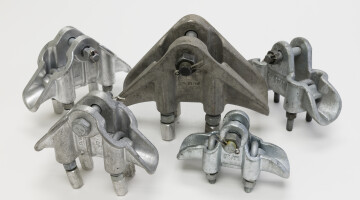

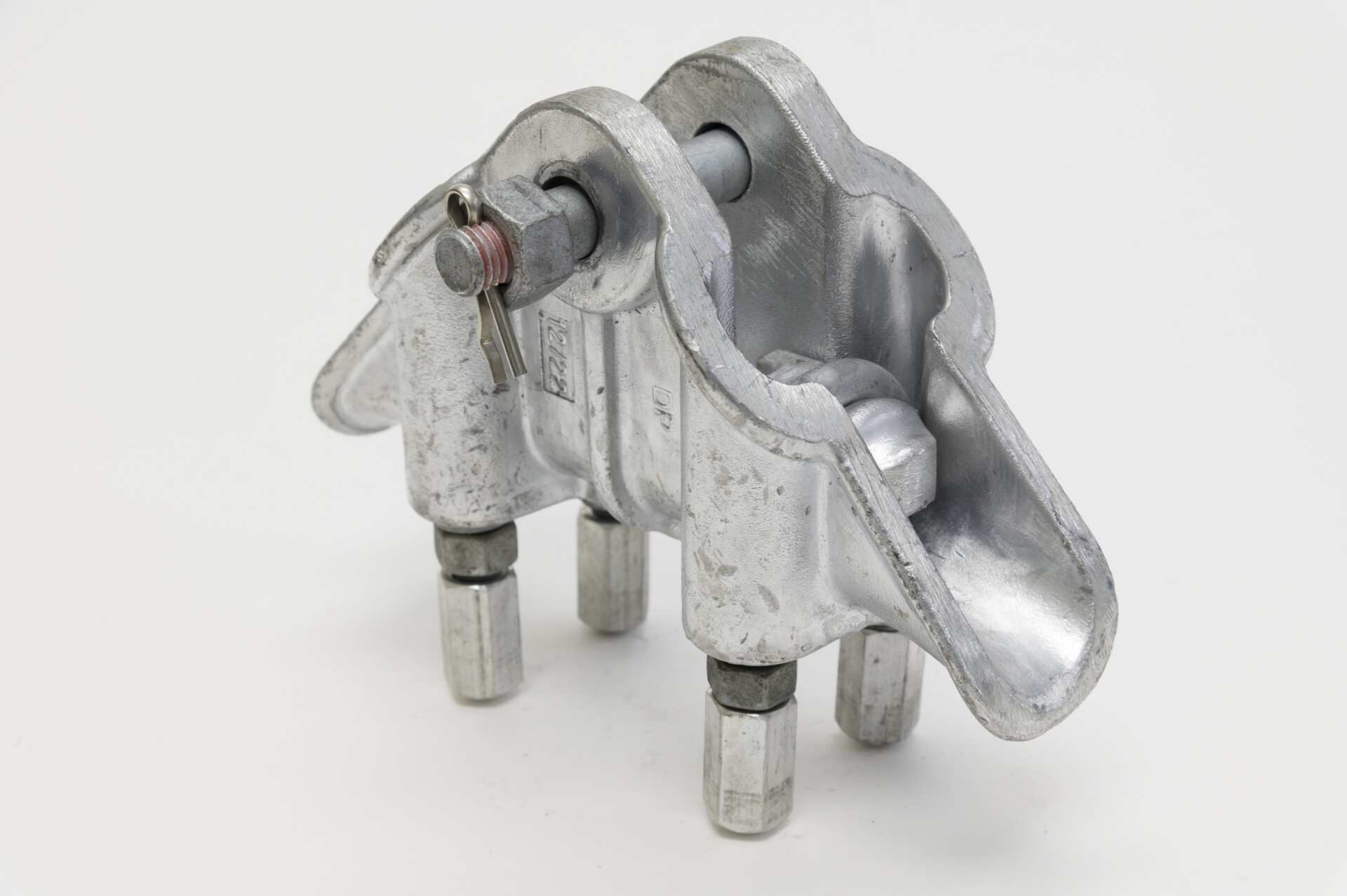

Suspension Clamps
MPS Suspension Clamps are designed for use with AAC, AAAC and ACSR in suspension applications for deviation angles of up to 20o.
We offer a wide variety of suspension clamps for your power and utility needs including; angled, corona free, formula type, standard, trunnion and vertical bundle assembly suspension clamps.
For special lugs or other imperial sizes please
contact us
to discuss your requirement.
| Part Number | Description | Min. Failing Load | Bolt | Material | Conductor OD Range | Clevis | |
|---|---|---|---|---|---|---|---|
|
|
Suspension Clamp | 70kN | M16 | Iron | 20mm |
|
|
|
|
Suspension Clamp | 120kN | M16 | Iron | 33mm |
|
|
|
|
Suspension Clamp | 70kN | M16 | Al Alloy | 20-30mm |
|
|
|
|
Suspension Clamp | 70kN | M16 | Al Alloy | 11-20mm |
|
|
|
|
Suspension Clamp | 160kN | M20 | Al Alloy | 30-45mm |
|
|
|
|
Suspension Clamp | 160kN | M20 | Al Alloy | 46-55mm |
|
|
|
|
Suspension Clamp | 70kN | M16 | Al Alloy |
|
||
|
