Stainless Steel Cable Glands Unarmoured A2

Used in the dairy, wine, chemical industries and in arduous marine environments. Designed for a range of unarmoured cables. Manufactured from 316 Stainless Steel, these glands have an environmental protection rating to IP66. Locknuts sold separately.

Technical Details:

Material:	Stainless Steel 316
IP Rating:	IP66
Operating Temp:	Standard Seals (Nitrile): -20°C to 80°C

Contact the ECL team

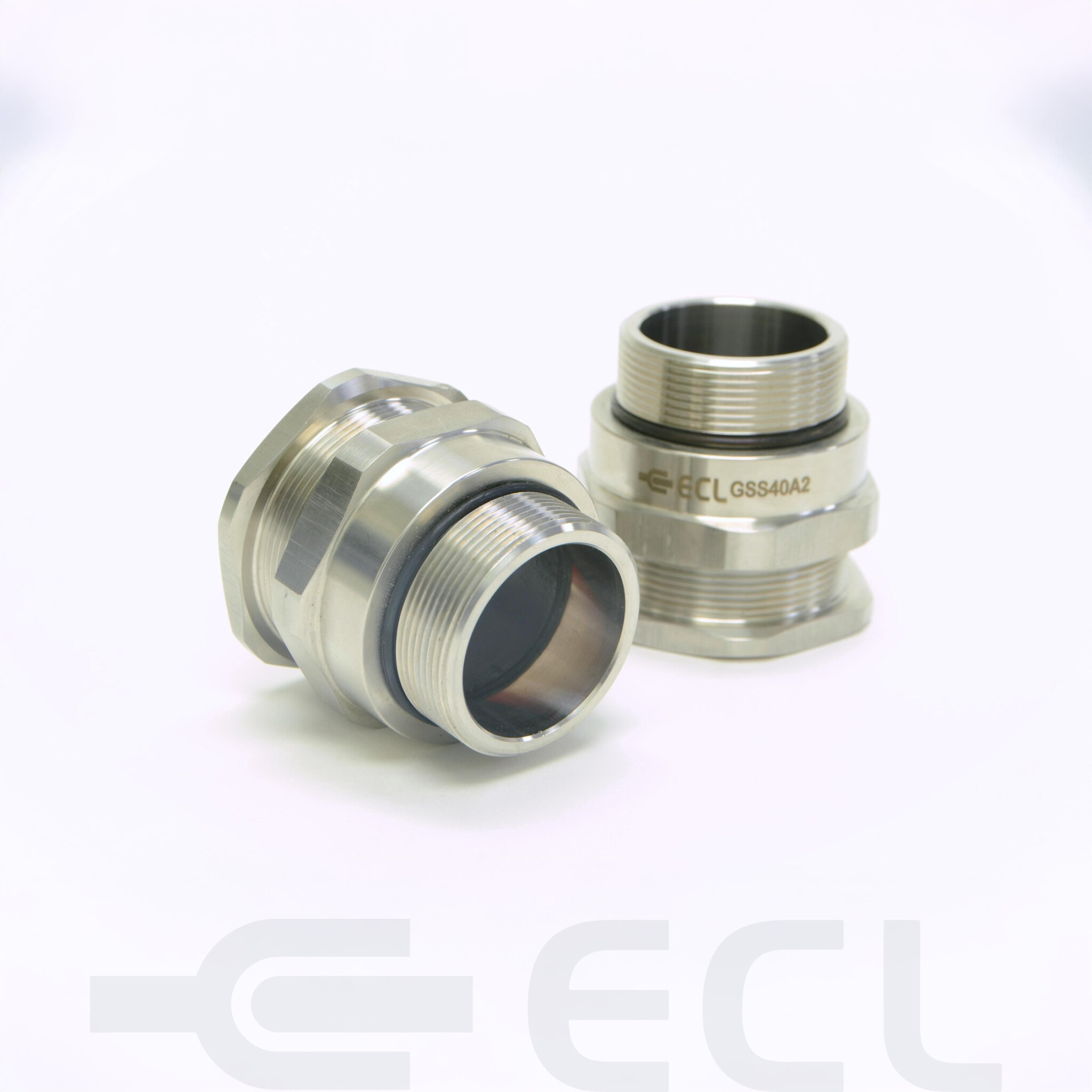

Stainless Steel Cable Glands Unarmoured A2 1

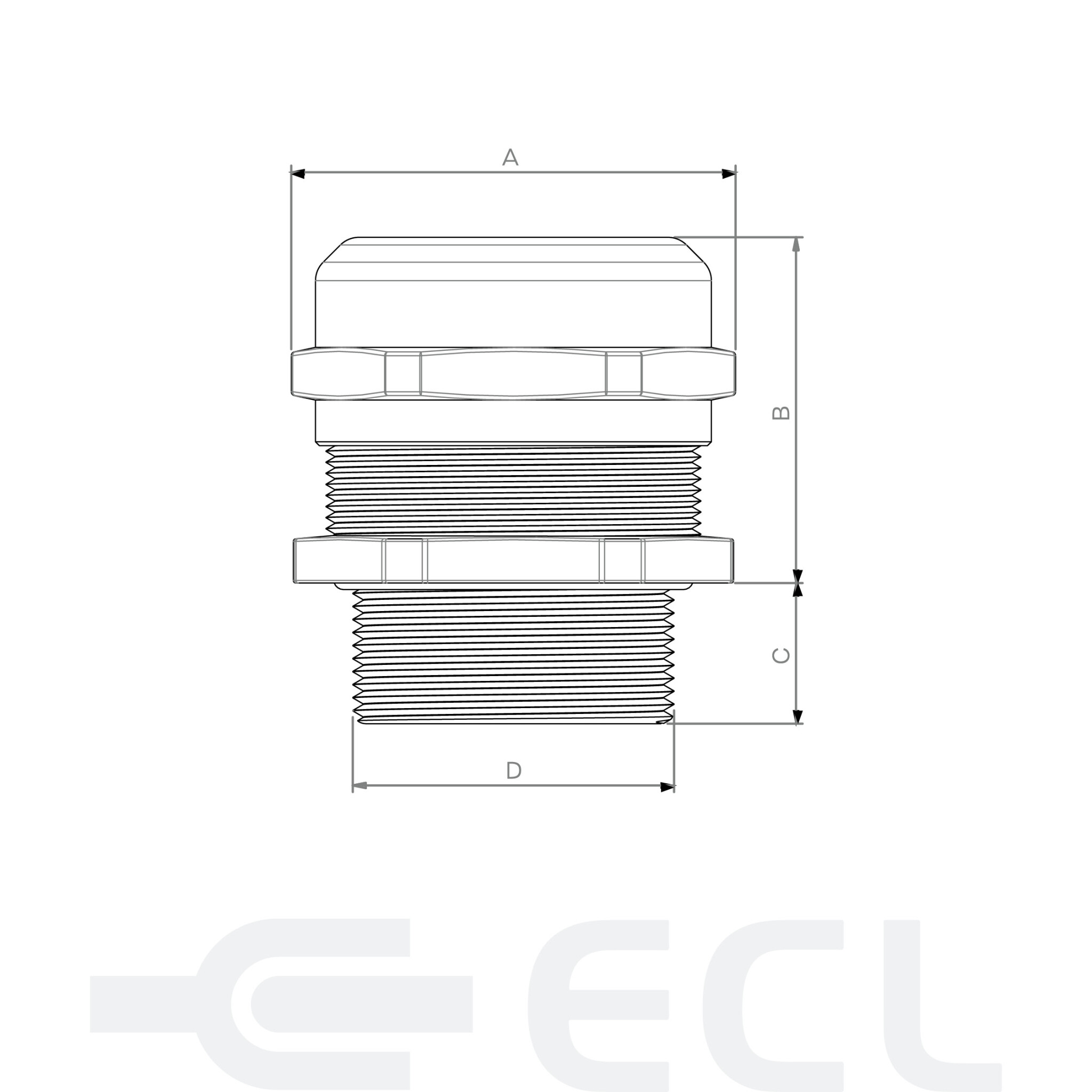

Stainless Steel Cable Glands Unarmoured dimensions v2

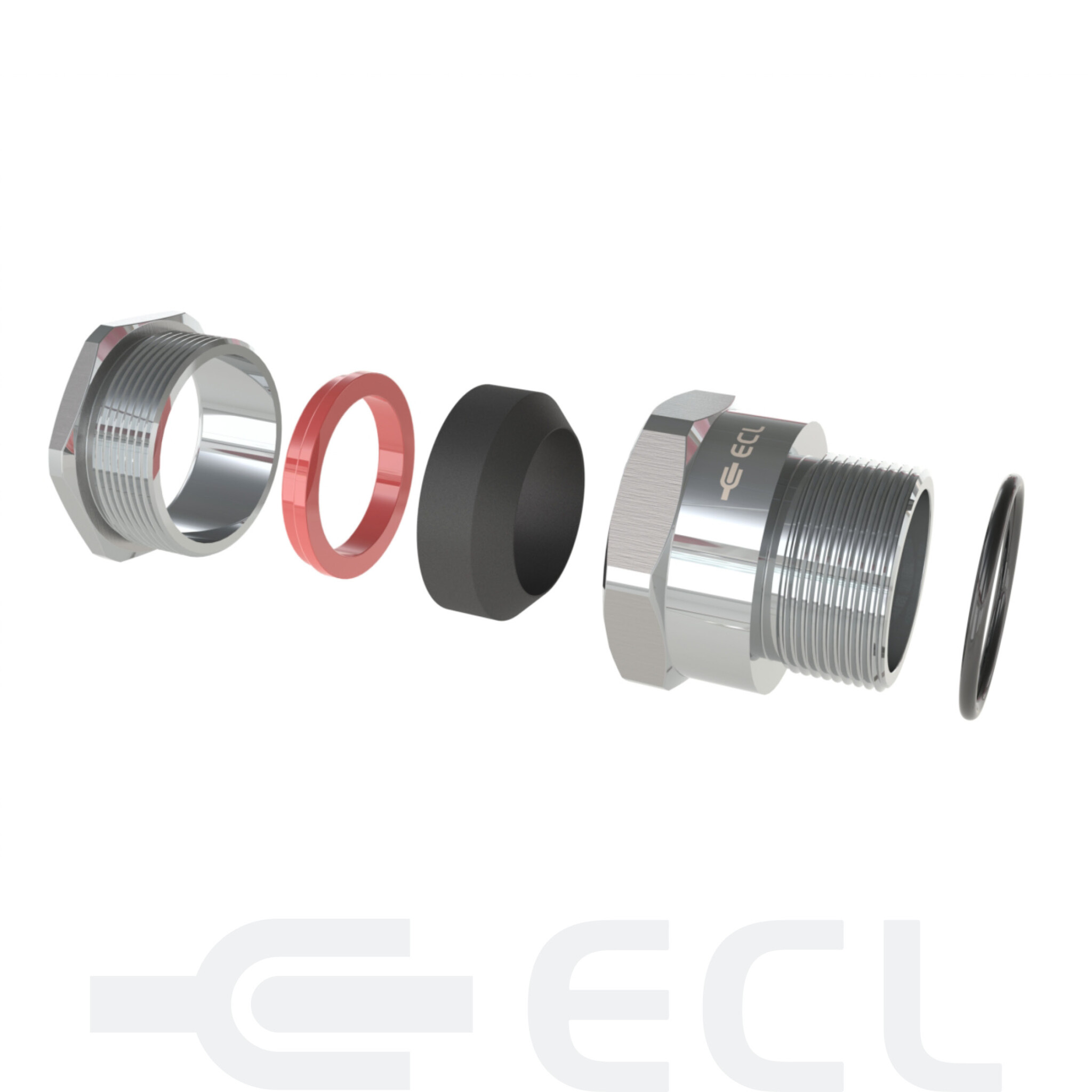

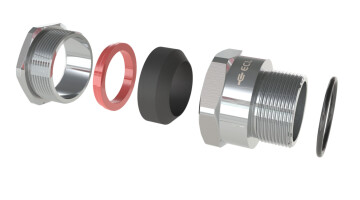

Stainless Steel Cable Glands Unarmoured A2 expanded

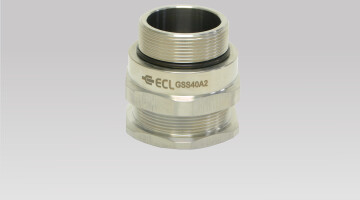

Stainless Steel Cable Glands Unarmoured A2

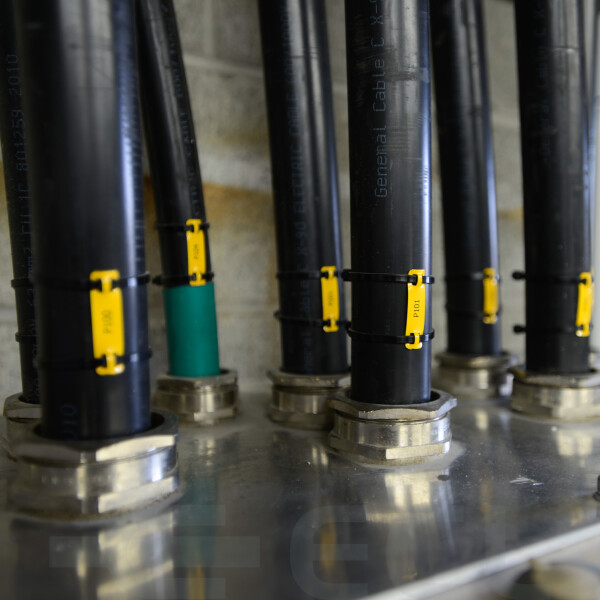

Stainless Steel Cable Glands Unarmoured A2 insitu v2

Part Number	Cable Gland Size	Thread Size D	Thread Length C	Cable Diameter min-max	Dia Across Flats mm A	Dia Across Flats mm A	Dia across corners mm A	Dia across corners mm A
	20SS	M20	15	3.2-8.7mm	24.5	24.5	27	27	- + Part Number Cable Gland Size: Thread Size D: Thread Length C: Cable Diameter min-max: Dia Across Flats mm A: Dia Across Flats mm A: Dia across corners mm A: Dia across corners mm A: - +
	20S	M20	15	6.2-11.7mm	24.5	24.5	27	27	- + Part Number Cable Gland Size: Thread Size D: Thread Length C: Cable Diameter min-max: Dia Across Flats mm A: Dia Across Flats mm A: Dia across corners mm A: Dia across corners mm A: - +
	20	M20	15	6.5-14mm	27	27	30	30	- + Part Number Cable Gland Size: Thread Size D: Thread Length C: Cable Diameter min-max: Dia Across Flats mm A: Dia Across Flats mm A: Dia across corners mm A: Dia across corners mm A: - +
	25	M25	15	11.2-20mm	36	36	40	40	- + Part Number Cable Gland Size: Thread Size D: Thread Length C: Cable Diameter min-max: Dia Across Flats mm A: Dia Across Flats mm A: Dia across corners mm A: Dia across corners mm A: - +
	32	M32	15	17.1-26.3mm	41	41	45	45	- + Part Number Cable Gland Size: Thread Size D: Thread Length C: Cable Diameter min-max: Dia Across Flats mm A: Dia Across Flats mm A: Dia across corners mm A: Dia across corners mm A: - +
	40	M40	15	23.5-32.2mm	50	50	55	55	- + Part Number Cable Gland Size: Thread Size D: Thread Length C: Cable Diameter min-max: Dia Across Flats mm A: Dia Across Flats mm A: Dia across corners mm A: Dia across corners mm A: - +
	50S	M50	15	31-38.2mm	55	55	60	60	- + Part Number Cable Gland Size: Thread Size D: Thread Length C: Cable Diameter min-max: Dia Across Flats mm A: Dia Across Flats mm A: Dia across corners mm A: Dia across corners mm A: - +
	50	M50	15	35.6-44mm	60	60	66	66	- + Part Number Cable Gland Size: Thread Size D: Thread Length C: Cable Diameter min-max: Dia Across Flats mm A: Dia Across Flats mm A: Dia across corners mm A: Dia across corners mm A: - +
	63S	M63	15	41.5-49.9mm	70	70	77	77	- + Part Number Cable Gland Size: Thread Size D: Thread Length C: Cable Diameter min-max: Dia Across Flats mm A: Dia Across Flats mm A: Dia across corners mm A: Dia across corners mm A: - +
	63	M63	15	47.3-55.9mm	75	75	82	82	- + Part Number Cable Gland Size: Thread Size D: Thread Length C: Cable Diameter min-max: Dia Across Flats mm A: Dia Across Flats mm A: Dia across corners mm A: Dia across corners mm A: - +
	75S	M75	15	54-61.9mm	84	84	92	92	- + Part Number Cable Gland Size: Thread Size D: Thread Length C: Cable Diameter min-max: Dia Across Flats mm A: Dia Across Flats mm A: Dia across corners mm A: Dia across corners mm A: - +
	75	M75	15	61.2-67.9mm	84	84	92	92	- + Part Number Cable Gland Size: Thread Size D: Thread Length C: Cable Diameter min-max: Dia Across Flats mm A: Dia Across Flats mm A: Dia across corners mm A: Dia across corners mm A: - +
	90	M90	24	66.6-79.9mm	108	108	118	118	- + Part Number Cable Gland Size: Thread Size D: Thread Length C: Cable Diameter min-max: Dia Across Flats mm A: Dia Across Flats mm A: Dia across corners mm A: Dia across corners mm A: - +
	100	M100	24	76-91mm	115	115	125	125	- + Part Number Cable Gland Size: Thread Size D: Thread Length C: Cable Diameter min-max: Dia Across Flats mm A: Dia Across Flats mm A: Dia across corners mm A: Dia across corners mm A: - +
