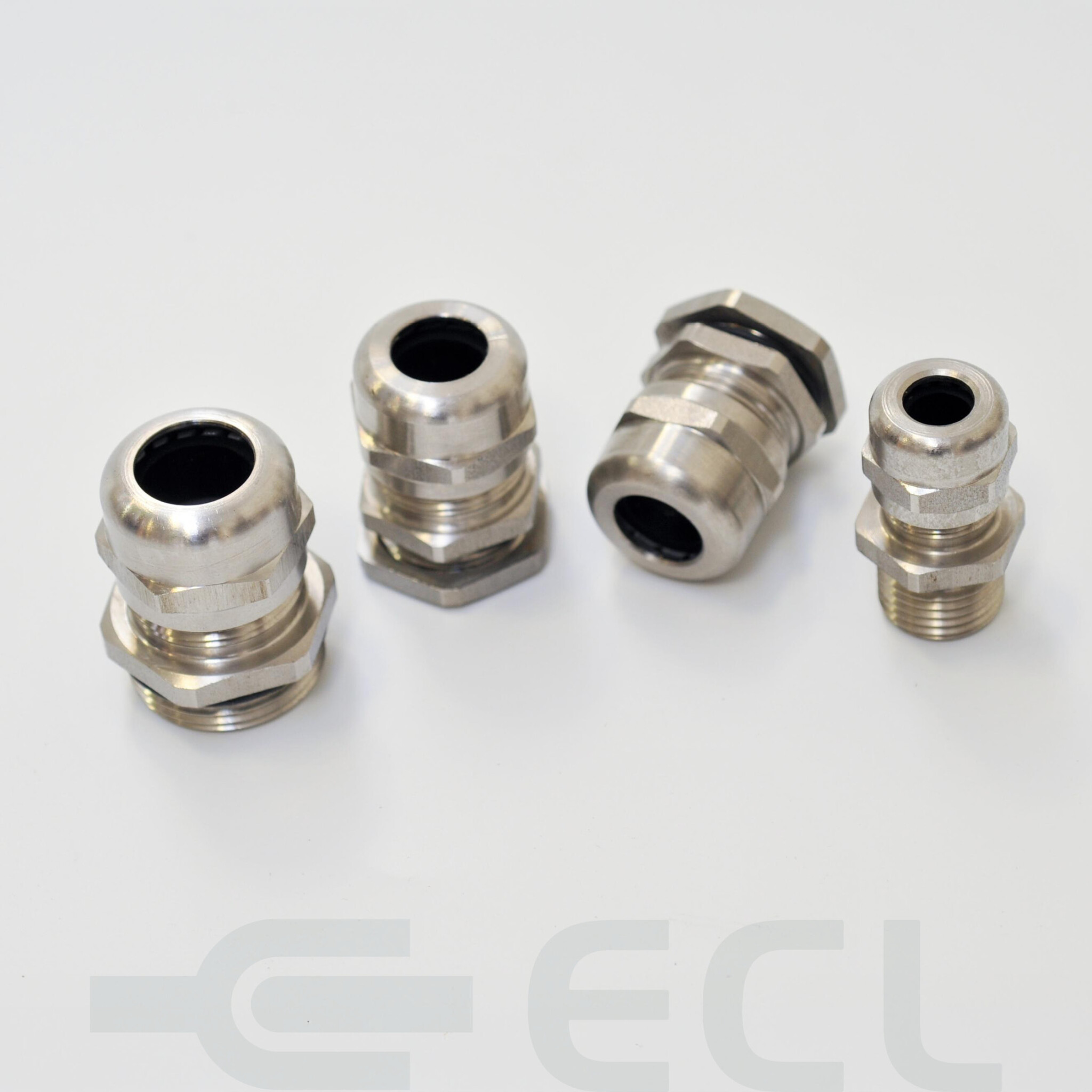

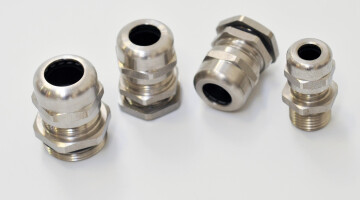

Stainless Steel Cable Glands Unarmoured

Used in the dairy, wine, chemical industries and in arduous marine environments. Manufactured from 316 Stainless Steel, these glands have an environmental protection rating to IP68. Locknuts sold separately.

In compliance with DIN EN 62444.

Technical Details:

Material:	Body, Cap: Stainless Steel 316 Seal: CR (Chloroprene) Clamping Insert: PA 6 (Polyamide 6) O-Ring: NBR
Ingress Protection Rating:	IP68 - 5 Bar, 30 min
Flammability:	V2 according to UL94
Operating Temp:	Permanent: -20°C to 100°C Intermittent: -40°C - 150°C

Contact the ECL team

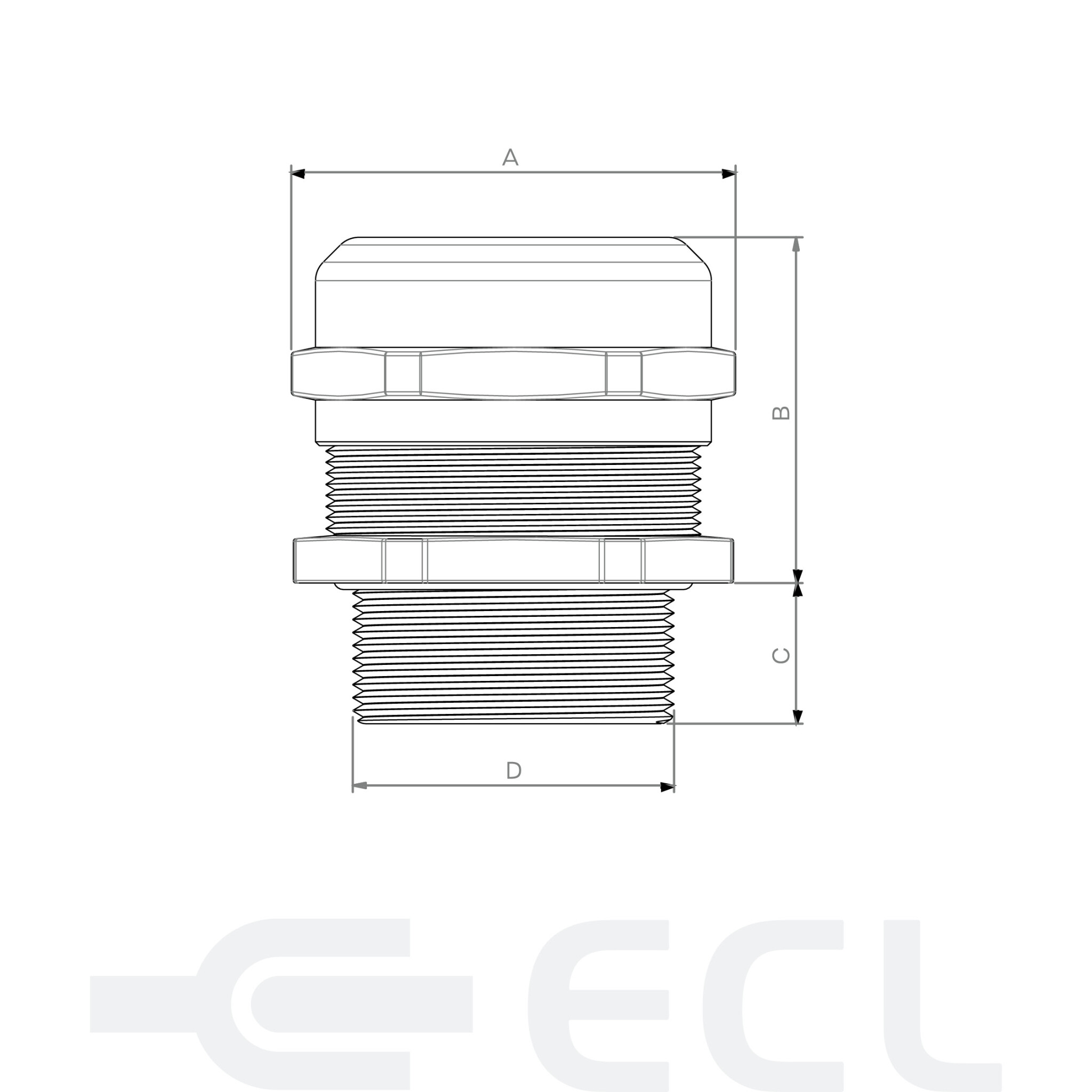

Stainless Steel Cable Glands Unarmoured dimensions

Part Number	Thread Size D	Thread Length mm C	Length mm B	Dia across Corners mm A	Dia across Corners mm A	Dia across Flats mm A	Dia across Flats mm A	Cable Range (min-max)	Locknut Part Number
	M12	6.0mm	24	15.5	15.5	14	14	3-6.5mm	GSSL12	- + Part Number Thread Size D: Thread Length mm C: Length mm B: Dia across Corners mm A: Dia across Corners mm A: Dia across Flats mm A: Dia across Flats mm A: Cable Range (min-max): Locknut Part Number: - +
	M16	12.0mm	30.5	24.5	24.5	22	22	5-10mm	GSSL16	- + Part Number Thread Size D: Thread Length mm C: Length mm B: Dia across Corners mm A: Dia across Corners mm A: Dia across Flats mm A: Dia across Flats mm A: Cable Range (min-max): Locknut Part Number: - +
	M20	8.0mm	26.5	24.5	24.5	22	22	6-12mm	GSSL20	- + Part Number Thread Size D: Thread Length mm C: Length mm B: Dia across Corners mm A: Dia across Corners mm A: Dia across Flats mm A: Dia across Flats mm A: Cable Range (min-max): Locknut Part Number: - +
	M25	12.0mm	32.5	30	30	27	27	11-17mm	GSSL25	- + Part Number Thread Size D: Thread Length mm C: Length mm B: Dia across Corners mm A: Dia across Corners mm A: Dia across Flats mm A: Dia across Flats mm A: Cable Range (min-max): Locknut Part Number: - +
	M32	15.0mm	35	39.8	39.8	36	36	15-21mm	GSSL32	- + Part Number Thread Size D: Thread Length mm C: Length mm B: Dia across Corners mm A: Dia across Corners mm A: Dia across Flats mm A: Dia across Flats mm A: Cable Range (min-max): Locknut Part Number: - +
	M40	15.0mm	45.5	51.5	51.5	46	46	19-28mm	GSSL40	- + Part Number Thread Size D: Thread Length mm C: Length mm B: Dia across Corners mm A: Dia across Corners mm A: Dia across Flats mm A: Dia across Flats mm A: Cable Range (min-max): Locknut Part Number: - +
	M50	15.0mm	54	66.5	66.5	60	60	27-38mm	GSSL50	- + Part Number Thread Size D: Thread Length mm C: Length mm B: Dia across Corners mm A: Dia across Corners mm A: Dia across Flats mm A: Dia across Flats mm A: Cable Range (min-max): Locknut Part Number: - +
	M63	18.0mm	53	83	83	75	75	37-53mm	GSSL63	- + Part Number Thread Size D: Thread Length mm C: Length mm B: Dia across Corners mm A: Dia across Corners mm A: Dia across Flats mm A: Dia across Flats mm A: Cable Range (min-max): Locknut Part Number: - +
	M75	Available on request, please contact the ECL team								- + Part Number Thread Size D: Thread Length mm C: Length mm B: Dia across Corners mm A: Dia across Corners mm A: Dia across Flats mm A: Dia across Flats mm A: Cable Range (min-max): Locknut Part Number: - +
	M90	Available on request, please contact the ECL team								- + Part Number Thread Size D: Thread Length mm C: Length mm B: Dia across Corners mm A: Dia across Corners mm A: Dia across Flats mm A: Dia across Flats mm A: Cable Range (min-max): Locknut Part Number: - +
		Larger sizes available on request, please contact our ECL team								- + Part Number Thread Size D: Thread Length mm C: Length mm B: Dia across Corners mm A: Dia across Corners mm A: Dia across Flats mm A: Dia across Flats mm A: Cable Range (min-max): Locknut Part Number: - +
