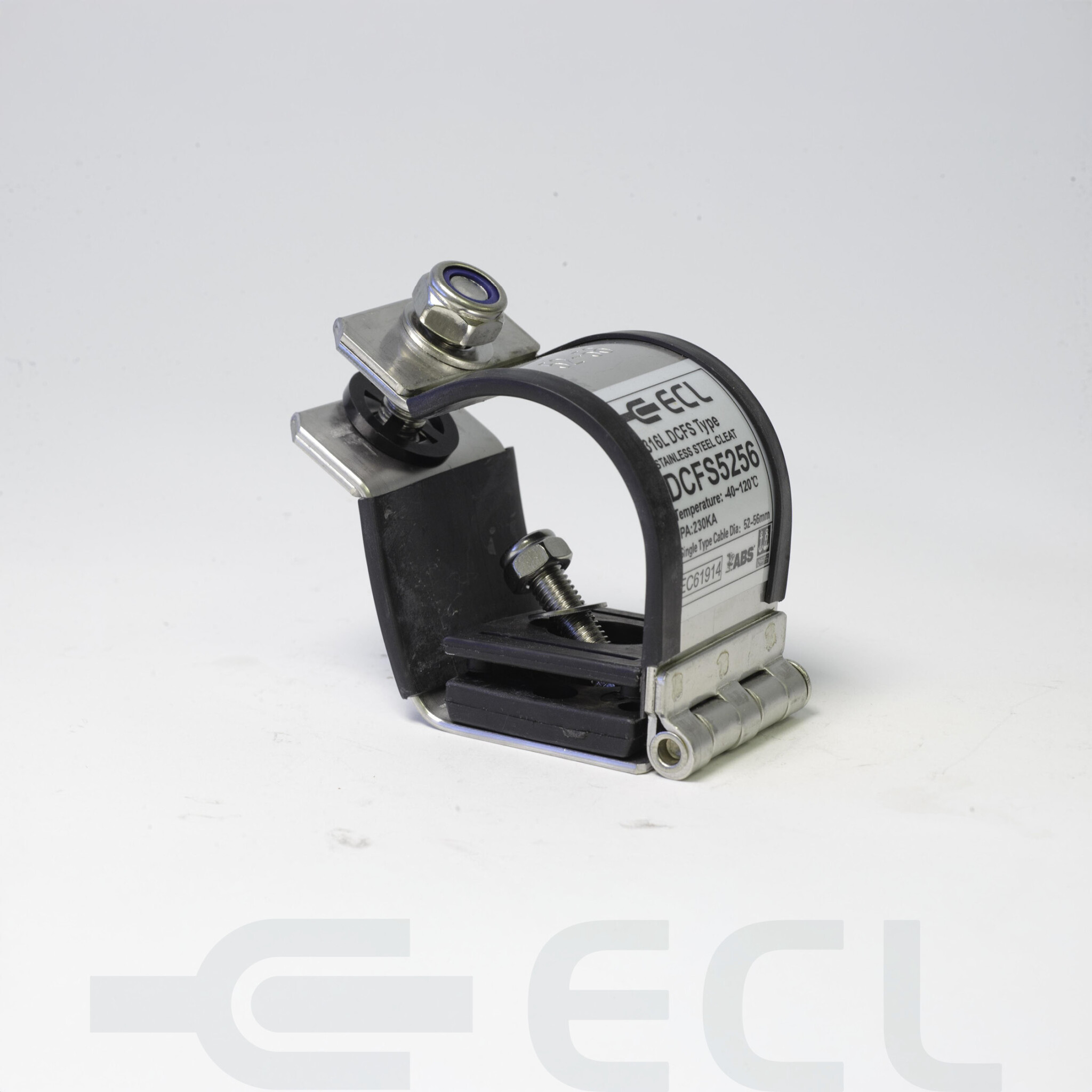

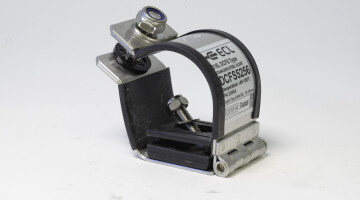

Single Clamps

Designed for the harshest environments, manufactured from 316 grade stainless steel. They are available in multiple sizes ranges. The clamp can be supplied with a Low Smoke Halogen Free cable pad to both position the cable and provide padding.

ECL Stainless Steel Clamps are designed to be fixed using a single centre mounted bolt. Designed to the IEC Standard 61914 and Type tested and certified to DNV approval.

Frame: Marine Grade 316 Stainless Steel
Clamp Hardware: Stainless Steel 316 Grade bolt and nut
Cleat Material: Composite
Clamp Pad: Low Smoke Halogen free
Mounting Bolt: Stainless Steel, provided with the clamp.
Temp rating: -40°C to +120°C
Approval: DNV, ABS
