Spacer Dampers
MPS range of Spacer Dampers has been designed specifically to provide best possible control for both Aeolian Vibration, and Sub-conductor Oscillation for bundled conductors used in HV transmission lines.
Additionally, these dampers were designed to meet the mechanical and electrical requirements for the HV lines, and the shape of the clamps have been designed to be corona free even at the highest voltages.
The MPS Spacer Damper design features a high efficiency elastomeric hinge that has been designed to provide the maximum energy dissipation while still providing excellent resistance to fatigue.
MacLean Power Spacer Dampers are available for twin, triple, quad and 6 conductor bundle arrangements and are suitable for use on all conductor constructions including ACSR, AAC, AAAC, AAAC 1120 and high temperature versions of the MacLean Power spacer dampers are available for use on high temperature conductors.
Part Number | Description | Suitable For | |
---|---|---|---|
|

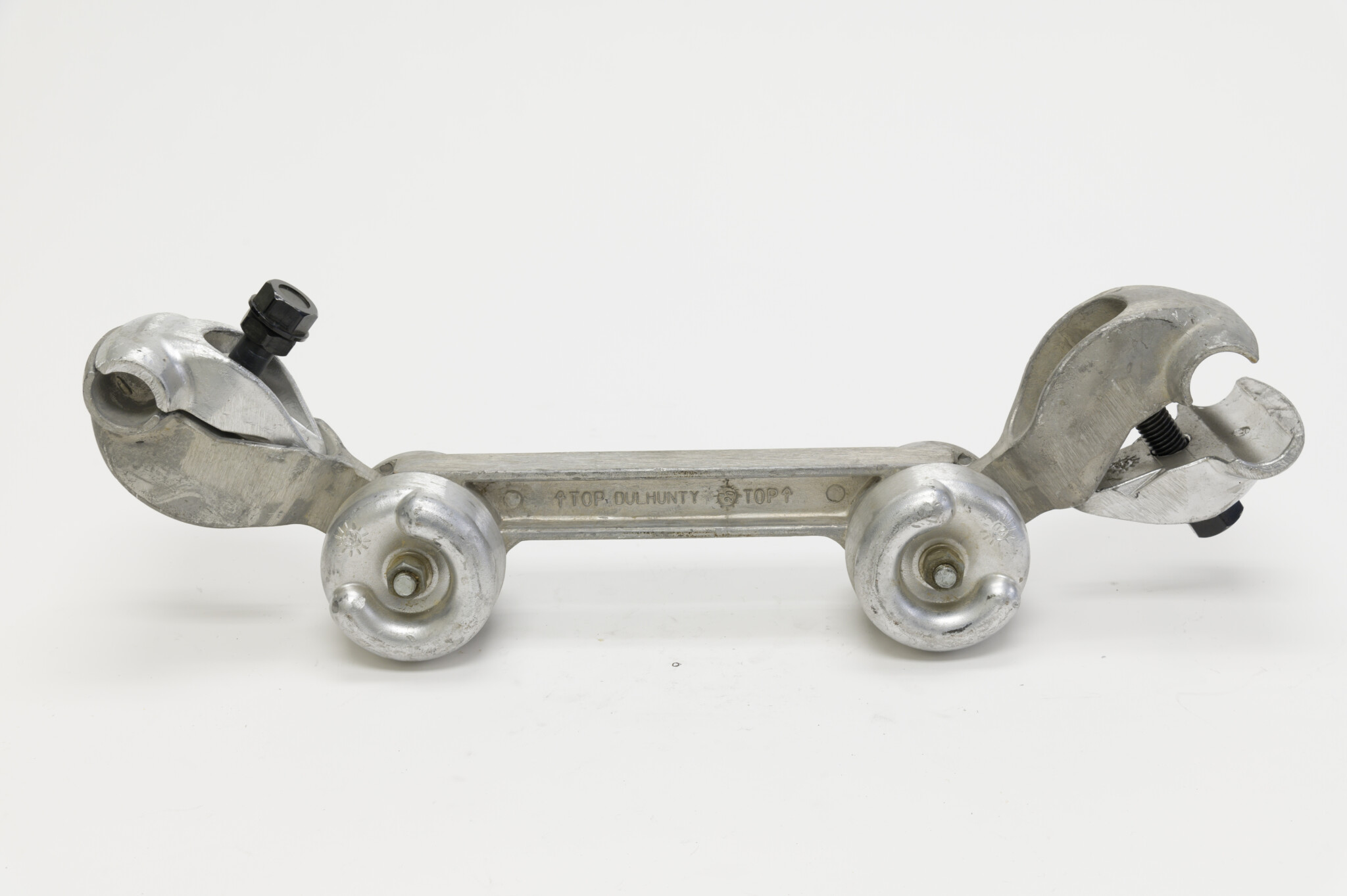

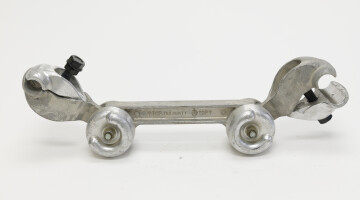

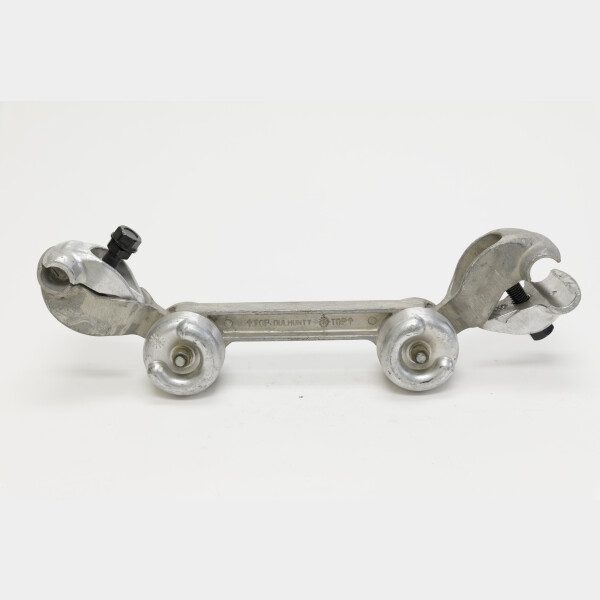

Twin Spacer Damper (460mm) | ACSR Wolf |
|
|
Twin Spacer Damper (460mm) | ACSR Pheasant |
|
|
Twin Spacer Damper (460mm) | AAAC Nobelium |
|
|
Twin Spacer Damper (460mm) | AAAC Sulfur |
|
|
Twin Spacer Damper (460mm) | ACSR Chukar |
|
|
Twin Spacer Damper (460mm) | AAAC Neon |
|
|
Twin Spacer Damper (460mm) | ACSR Moa |
|
|
Twin Spacer Damper (460mm) | ACSR Goat |
|
|
Twin Spacer Damper (460mm) | ACSR Zebra |
|
|
Triple Spacer Damper (460mm) | AAAC Sulfur |
|
|
Triple Spacer Damper (460mm) | ACSR Moa |
|
