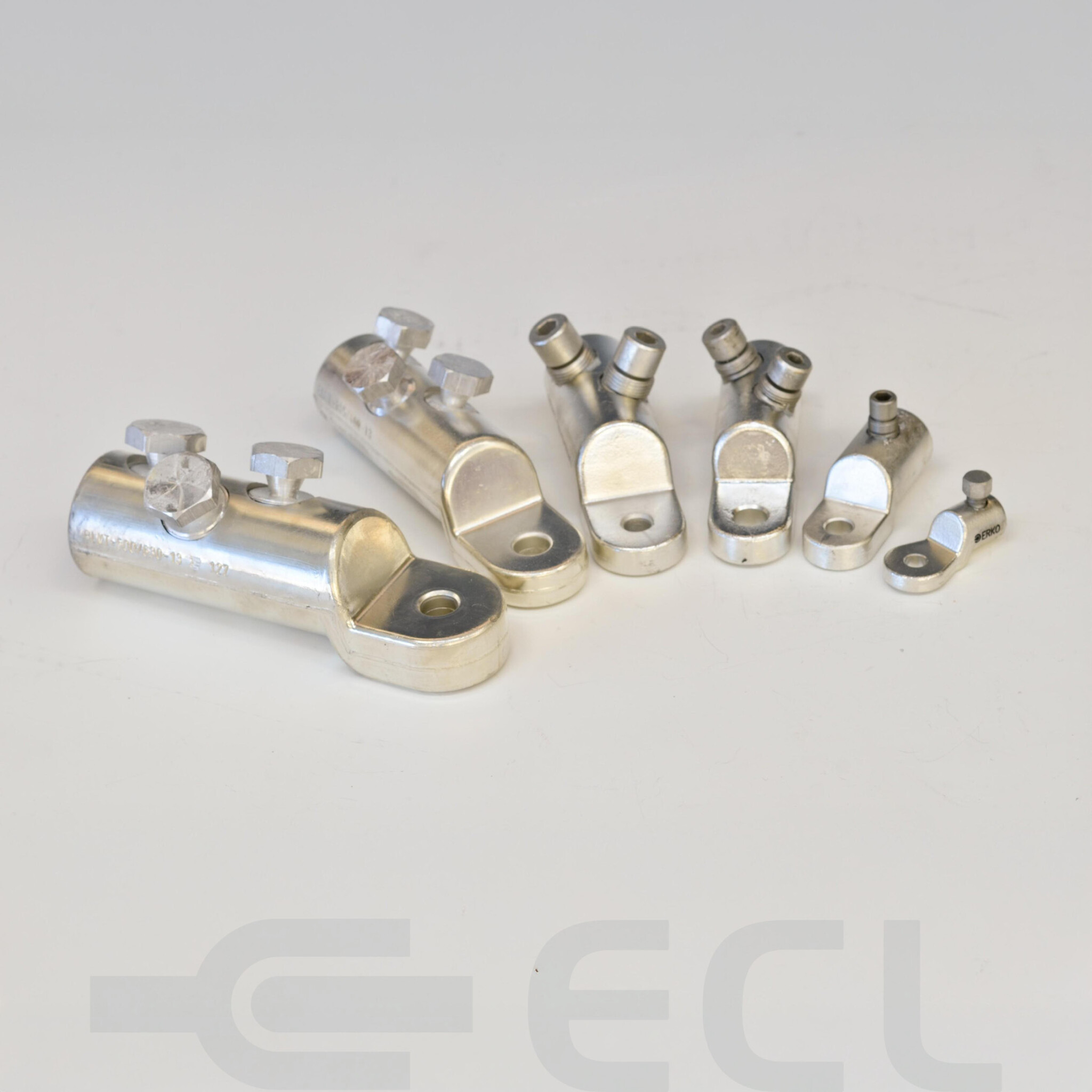

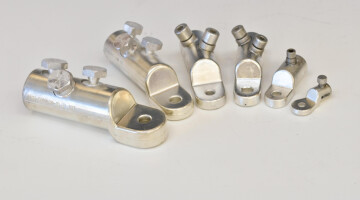

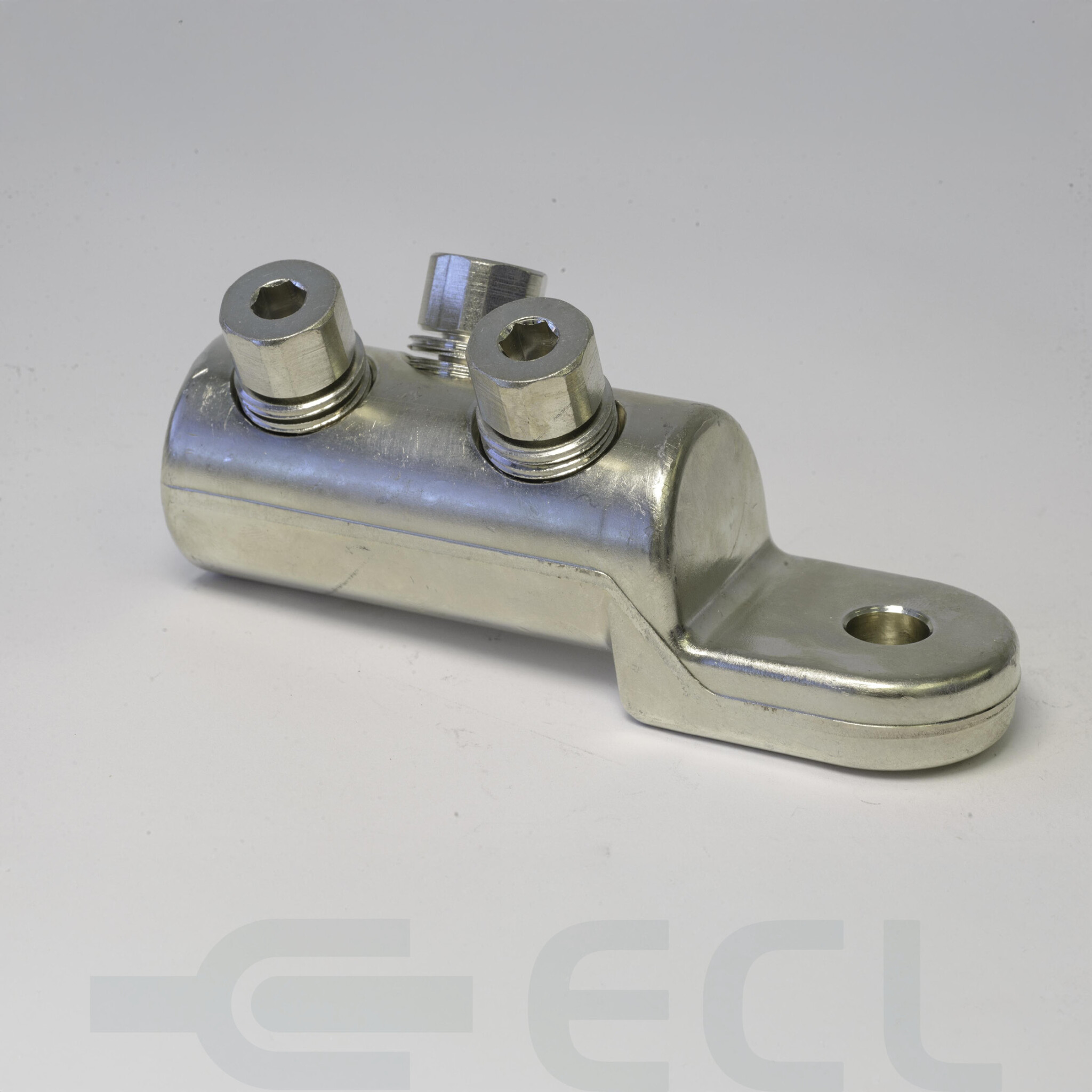

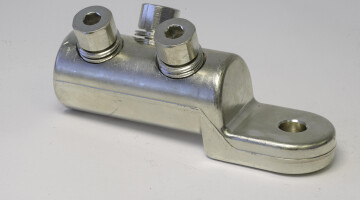

Shearhead Connector Lugs 36kV
Shear off screw lugs are an alternative to traditional crimping methods. These work using shear off head screws enabling
universal and rapid installation.
Manufactured and certified in Europe, our shearbolts have been used and proven in the New Zealand market for over 15 years.
For special lugs or other imperial sizes please
contact us
to discuss your requirement.

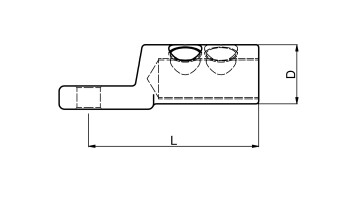

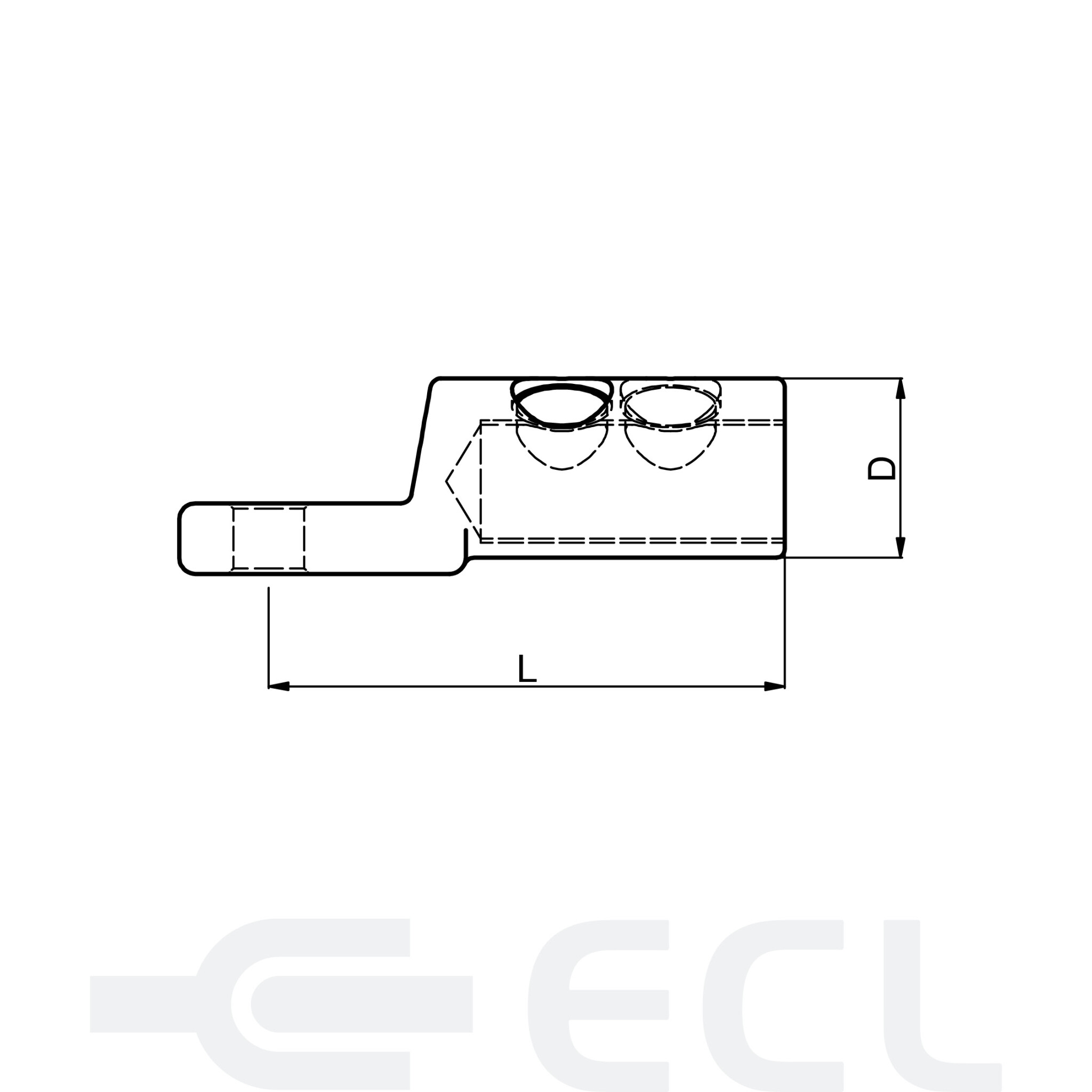

| Part Number | Stud Size (mm) | Dimensions (mm) D | Dimensions A | Dimensions (mm) L | Dimensions (mm) D1 | Dimensions (mm) D2 | Palm Width (mm) | Nominal Cable Size (mm²) | |
|---|---|---|---|---|---|---|---|---|---|
|
|
M12 | 24 | 32 | 60 | 12.5 | 13 | 30 | 16-95 |
|
|
|
M12 | 30 | 35 | 79 | 15.5 | 13 | 30 | 50-150 |
|
|
|
M16 | 30 | 35 | 79 | 15.5 | 17 | 30 | 50-150 |
|
|
|
M12 | 33 | 56 | 95 | 20 | 13 | 33.5 | 95-240 |
|
|
|
M16 | 33 | 56 | 95 | 20 | 17 | 33.5 | 95-240 |
|
|
|
M12 | 38 | 67 | 100 | 25 | 13 | 37.5 | 120-300 |
|
|
|
M16 | 38 | 67 | 100 | 25 | 17 | 37.5 | 120-300 |
|
|
|
M12 | 42 | 80 | 137 | 25.5 | 13 | 40.2 | 185-400 |
|
|
|
M16 | 42 | 80 | 137 | 25.5 | 17 | 40.2 | 185-400 |
|
|
|
M12 | 95 | 150 | 13 | 50.3 | 400-630 |
|
||
|
|
M16 | 95 | 150 | 17 | 50.3 | 400-630 |
|
||
|
