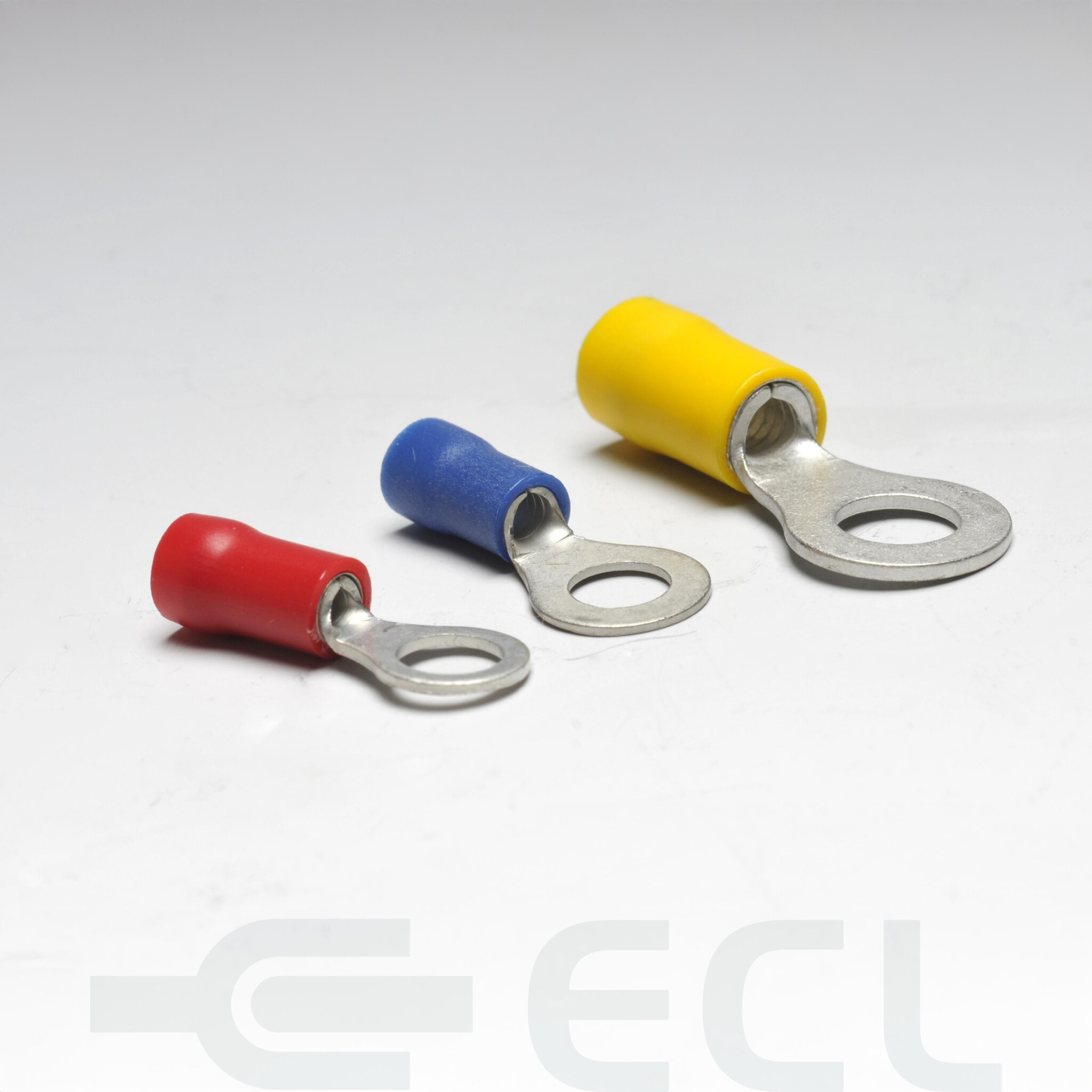

Ring Terminals
Certified to relevant international standards.
These terminals are offered in both small and large packs. Bulk packs are also available on request.
Contact the ECL team
| Part Number | Conductor Size | Ring Size | Colour | Pack Size | |
|---|---|---|---|---|---|
|
|
0.5-1.5mm² | 3mm | Red | 100 | |
|
|
0.5-1.5mm² | 4mm | Red | 100 | |
|
|
0.5-1.5mm² | 5mm | Red | 100 | |
|
|
0.5-1.5mm² | 6mm | Red | 100 | |
|
|
0.5-1.5mm² | 8mm | Red | 100 | |
|
|
0.5-1.5mm² | 10mm | Red | 100 | |
|
|
1.5-2.5mm² | 3mm | Blue | 100 | |
|
|
1.5-2.5mm² | 4mm | Blue | 100 | |
|
|
1.5-2.5mm² | 5mm | Blue | 100 | |
|
|
1.5-2.5mm² | 6mm | Blue | 100 | |
|
|
1.5-2.5mm² | 8mm | Blue | 100 | |
|
|
1.5-2.5mm² | 10mm | Blue | 100 | |
|
|
2.5-6.0mm² | 3mm | Yellow | 50 | |
|
|
2.5-6.0mm² | 4mm | Yellow | 50 | |
|
|
2.5-6.0mm² | 5mm | Yellow | 50 | |
|
|
2.5-6.0mm² | 6mm | Yellow | 50 | |
|
|
2.5-6.0mm² | 8mm | Yellow | 50 | |
|
|
2.5-6.0mm² | 10mm | Yellow | 50 | |
|
