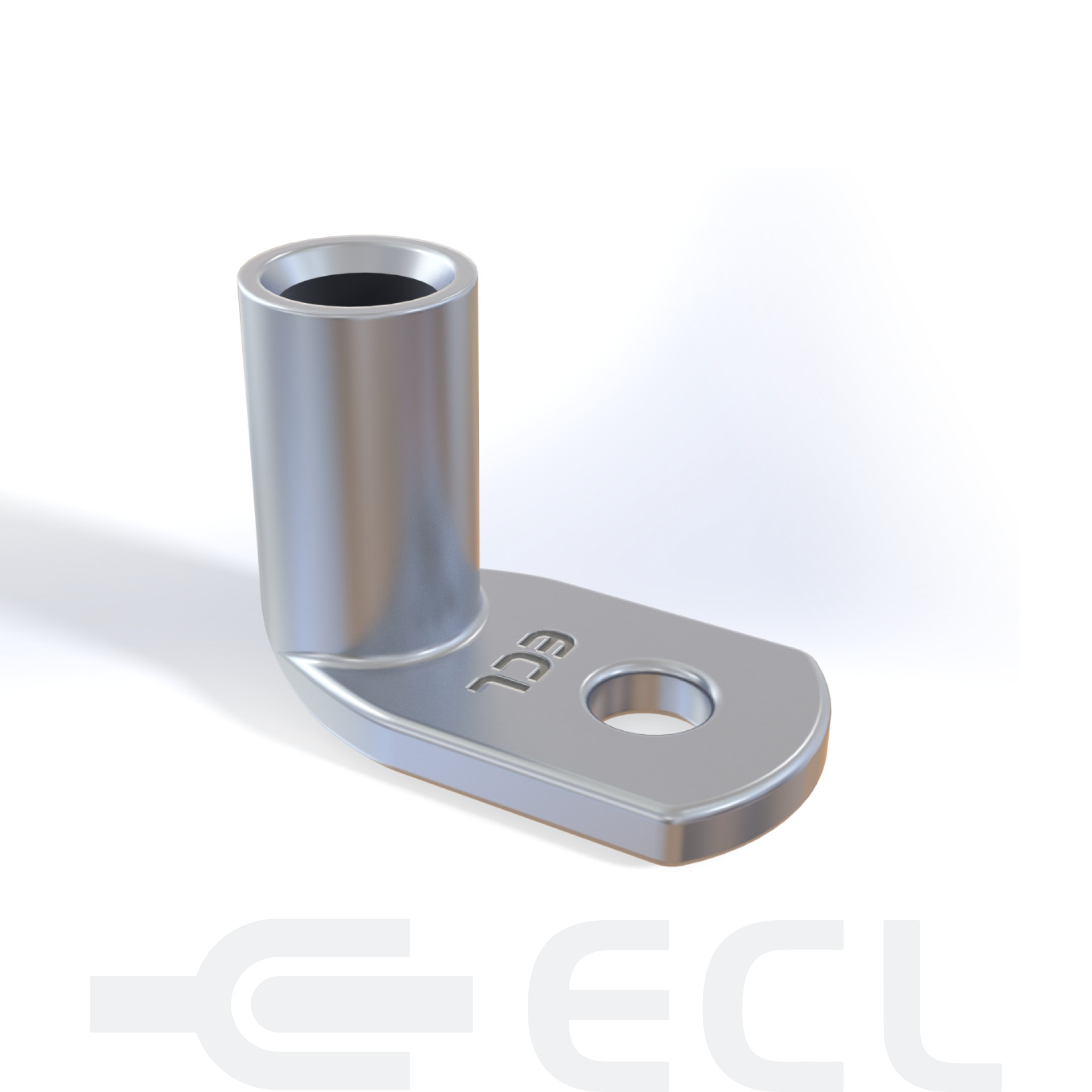

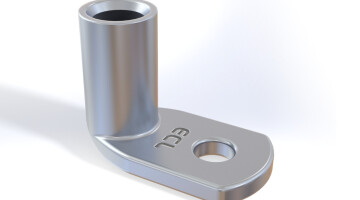

Copper Right Angle Lugs

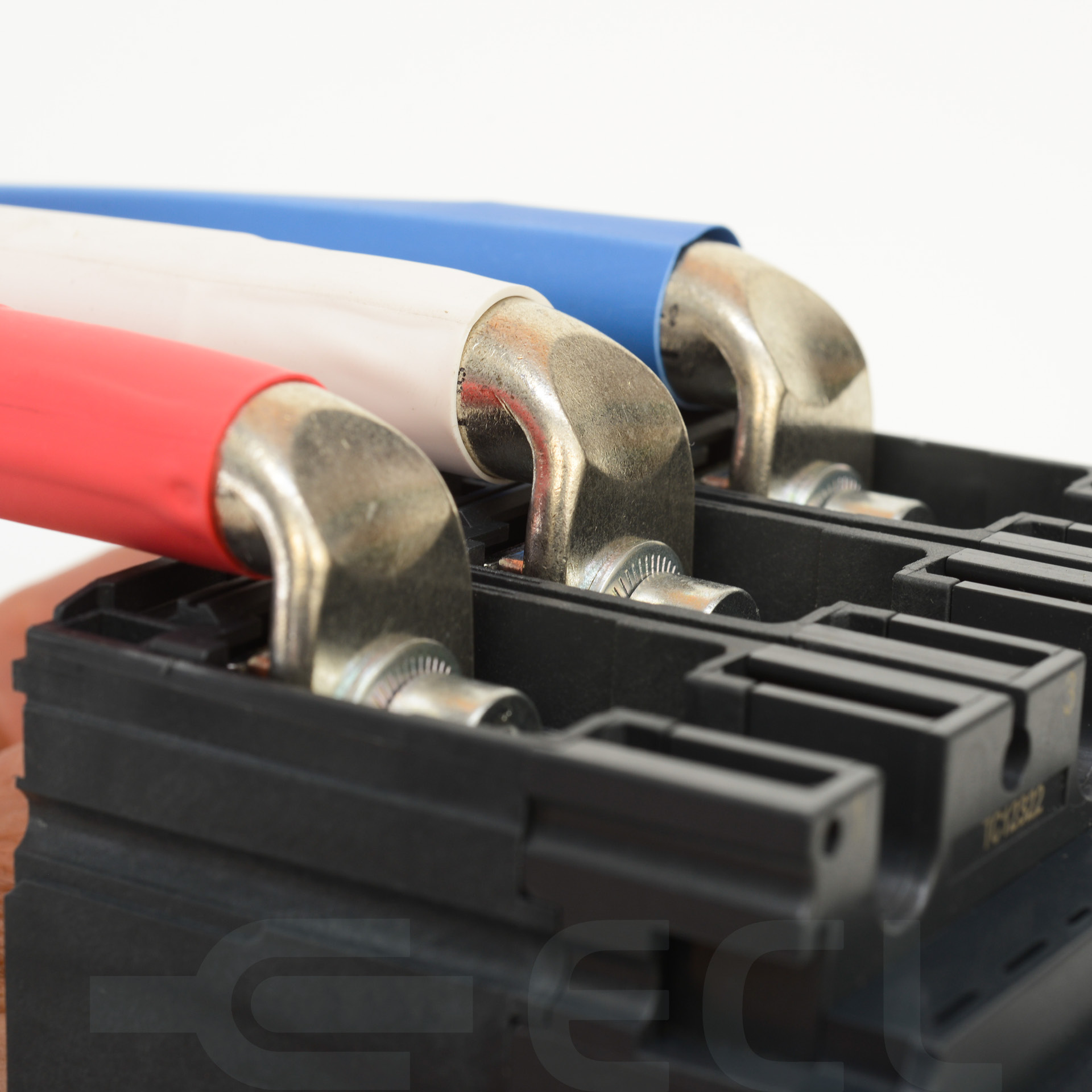

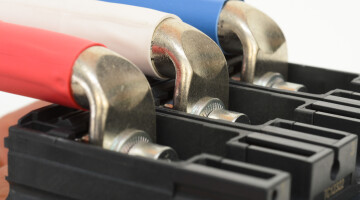

ECL Right Angle Copper Lugs are used for applications with limited connection space. Manufactured from high conductivity copper tube and electro-tinned.
- Larger sizes available on request.
- 45° angle lugs are also available, please speak to the ECL team about this variant.
Contact the ECL team

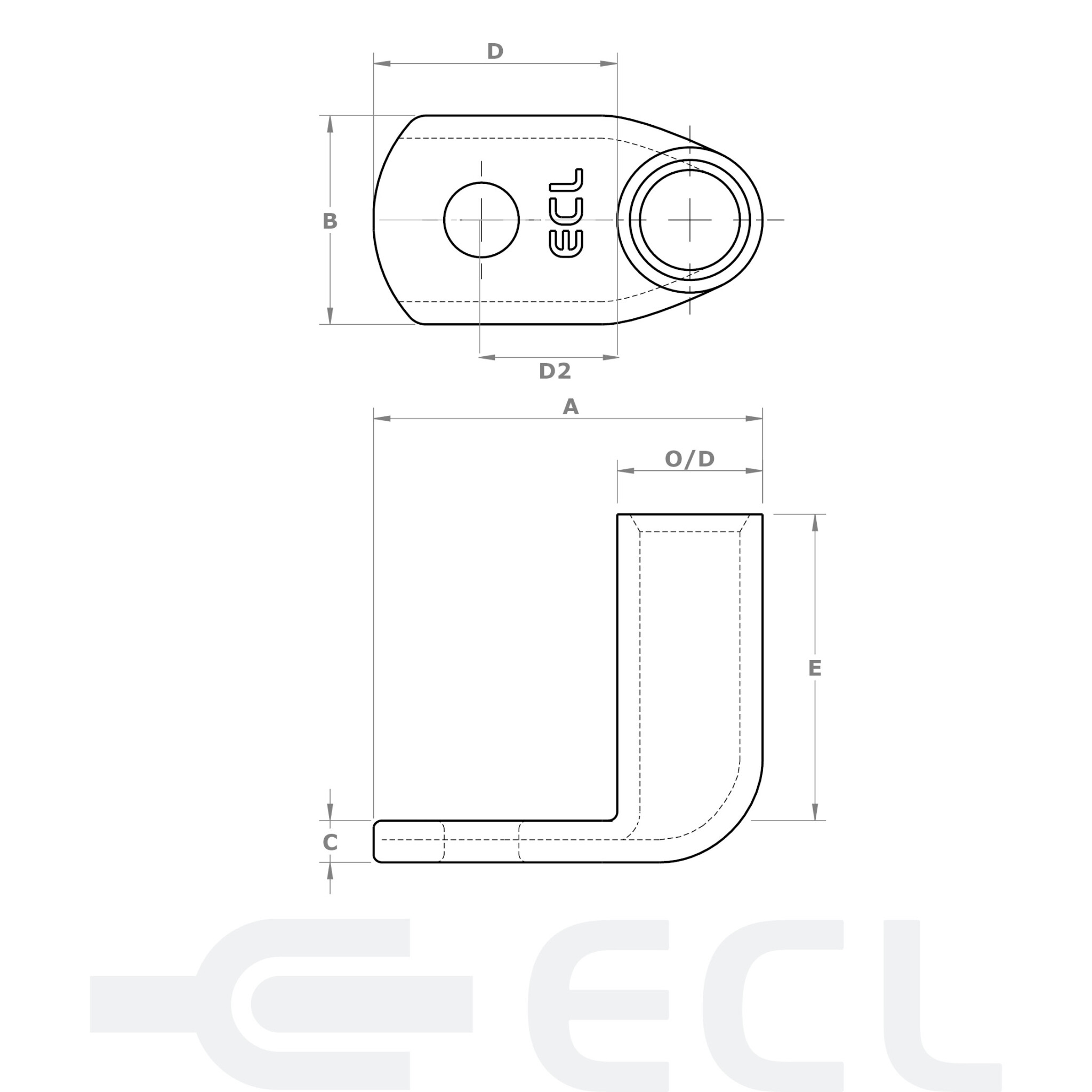

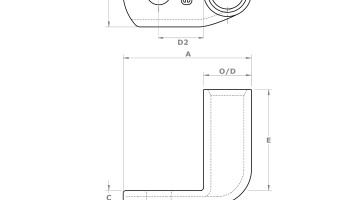

| Dimensions | Crimp Die Info | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| Part Number | Cable Size | Stud Size mm | A | B | D | D2 | E | A/F mm | |
|
|
10mm² | 5 | 30 | 12 | 17 | 8.5 | 10 | 5.7 | |
|
|
10mm² | 6 | 30 | 12 | 17 | 11 | 10 | 5.7 | |
|
|
10mm² | 8 | 30 | 13 | 17 | 13 | 10 | 5.7 | |
|
