UXMAXX PX Series 5mm Crossarm

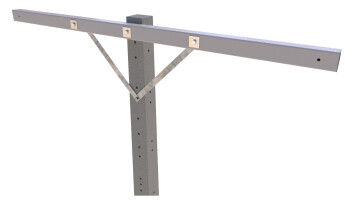

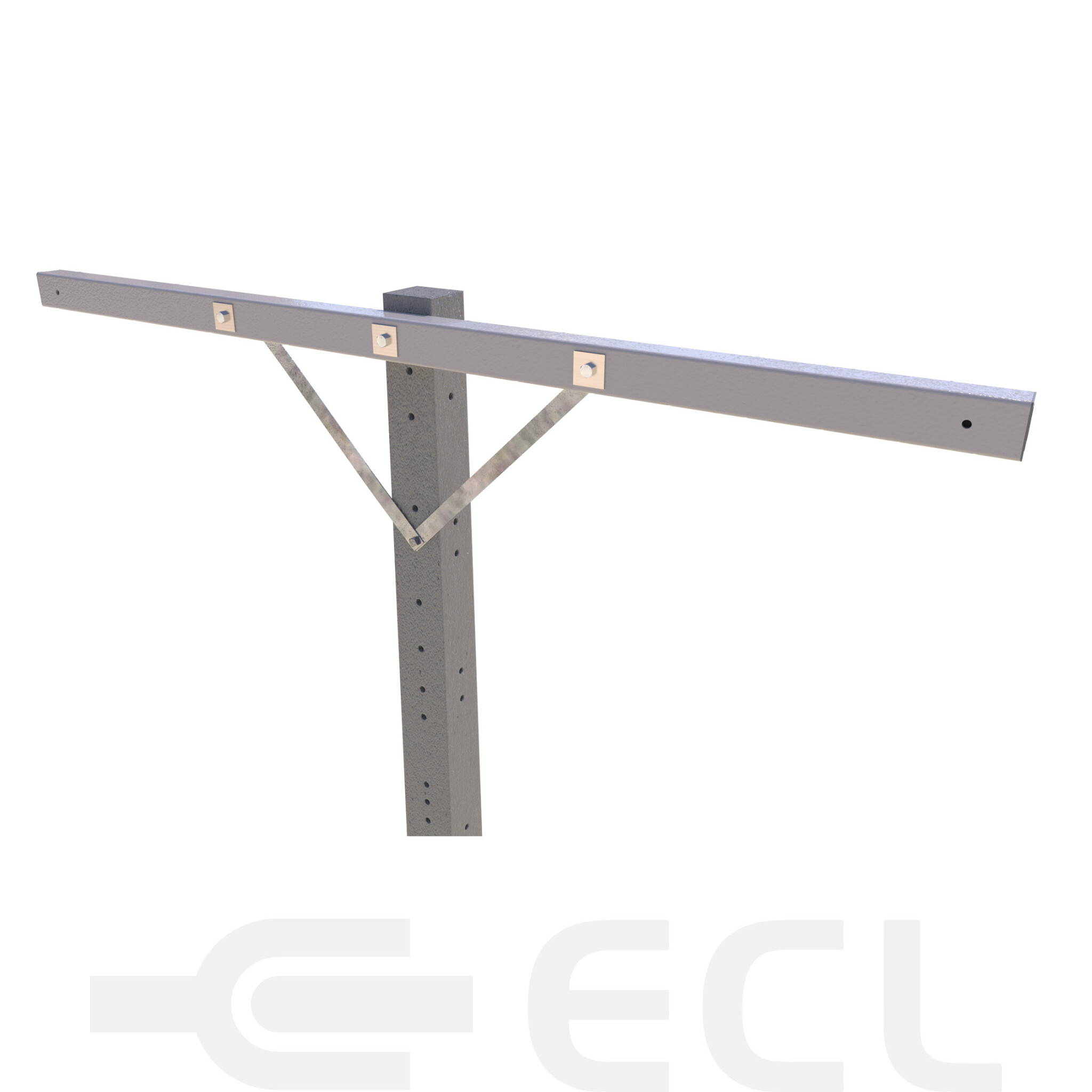

UVMAXX Braced arms offer a 1:1 replacement with existing wood offerings. Arms will assemble to the pole with traditional braces. They can be used for either tangent or deadend applications and use traditional hardware. The UVMAXX Braced crossarms are set apart by taking advantage of the same UVMAXX UV and Fire resiliency system that brace less arms do.

• 50% weight reduction over wood alternatives
• 80+ year life expectancy
• UL94 V-0 flame retardancy rating
• Foam Filled for pest control
• Field Drillable
• Environmentally friendly

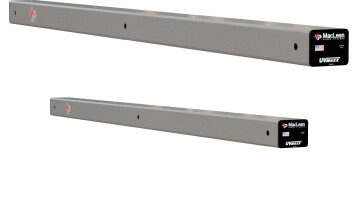

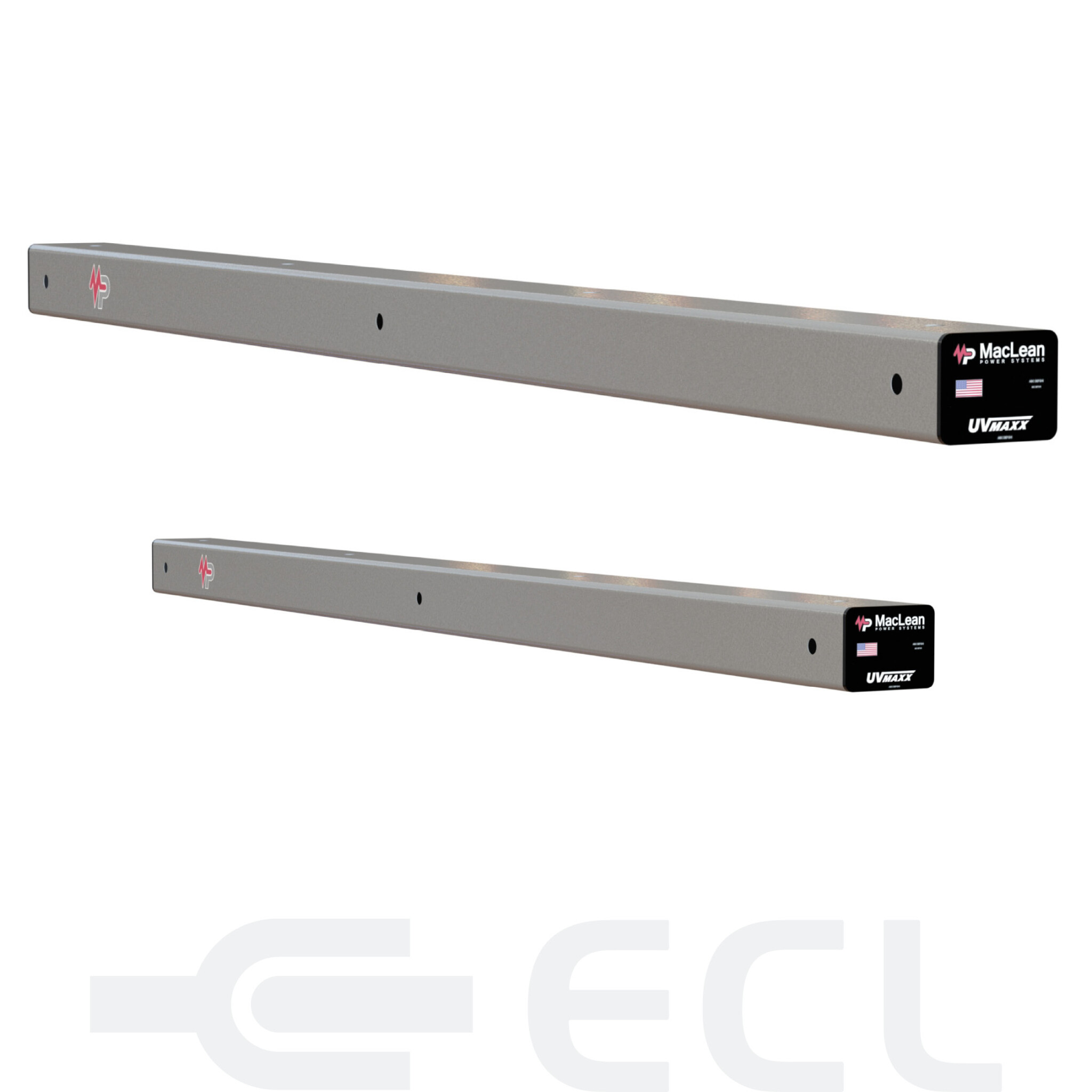

The PX Series has a 5mm wall thickness and is identified with a black end cap.

UVMAXX Braced arms come in traditional 3.625” x 4.625” profiles as well as 4” x 6”. RUS listed varieties will come predrilled to TYPE 03, TYPE 04, or TYPE 05. Custom Hole patterns and lengths are also available.

Note: Available in custom hole patterns and lengths, contact the ECL team for more information.

Click here to request the UVMAXX Crossarm technical document.
