Polymer Cutouts

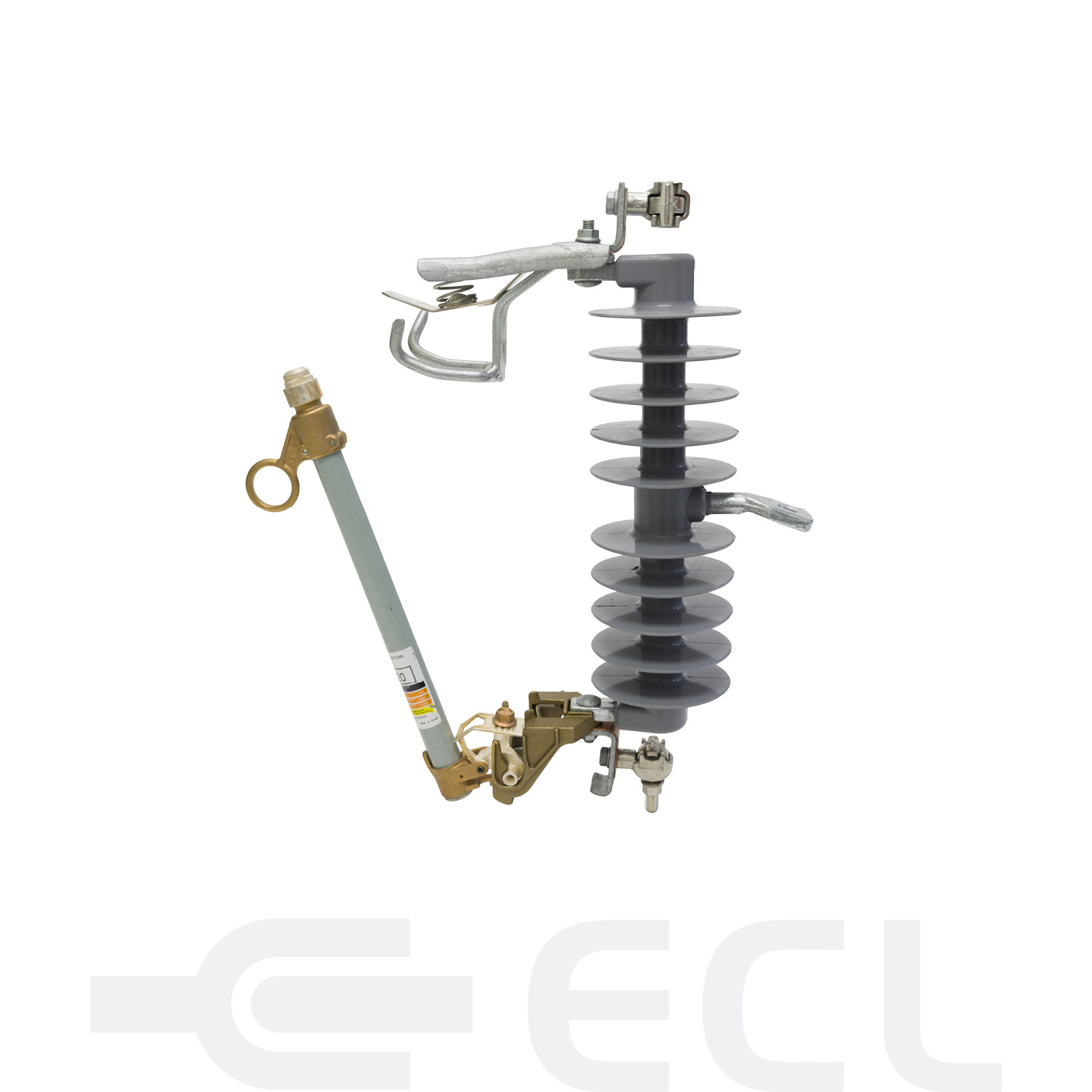

ECL offers MacLean Cutouts that are designed for use on overhead distribution systems to provide over-current protection and a visible indication of fuse operation. Over-current protection safeguards an electric system from excessive currents produced by abnormal conditions such as line and equipment overloads, faults or equipment failures.
- Assembled and distributed from York, SC USA
- MPS offers stainless steel options for coastal environments
- Synthetic fuse tube standard
- All copper current path prevents corrosion and promotes low resistance current transfer
- Meets IEEE 2016 Standard
Features:
- E-Glass fibreglass core for mechanical strength
- One-piece crimped-on end fittings & robust center-bracket
- MPS’s silicone polymer has been proven in high-voltage applications with transmission insulators
- Over-mold polymer housing onto end fittings provides superior sealing against moisture ingress
- Polymer body and shed pattern meets IEC TS 60815 guidelines for severe contamination environments
- Heavy-duty top contact with dimple prevents over-closure
- Non-expendable fuse-tube cap construction eliminates extra expense of fuse-tube cap replacement
Options:
- Brackets- NEMA and Extended Versions
- Conductor Connectors- Parallel Groove or
Eye-bolt designs - Stainless steel hardware components for extra corrosion and contamination protection
- Blade designs for switching applications
For Product Ratings & Common Cutouts for NZ, refer ECL Utility catalogue.
For special lugs or other imperial sizes please
contact us
to discuss your requirement.
Part Number | Nominal Rating kV | Max. Rating kV | BIL Rating | Cont. Rating (Amps, RMS) | Interrupting/ Momentary (Asym.) Rating (Amp, RMS) | Approx. Fuse Tube Length mm | Leakage Distance to Ground mm | |
---|---|---|---|---|---|---|---|---|
|
14.4 | 15 | 110 | 100 | 10,000 | - | - |
![]() |
|
14.4 | 15 | 110 | 100 | 10,000 | 287 | 376 |
![]() |
|
14.4 | 15 | 110 | 100 | 10,000 | - | - |
![]() |
|
14.4 | 15 | 110 | 100 | 16,000 | - | - |
![]() |
|
14.4 | 15 | 110 | 100 | 16,000 | 287 | 376 |
![]() |
|
14.4 | 15 | 110 | 100 | 16,000 | - | - |
![]() |
|
14.4 | 15 | 110 | 200 | 12,000 | 287 | 376 |
![]() |
|
14.4 | 15 | 110 | 200 | 12,000 | - | - |
![]() |
|
14.4 | 15 | 110 | 300 | Solid Blade | 287 | 376 |
![]() |
|
14.4 | 15 | 110 | 300 | Solid Blade | - | - |
![]() |
|
25 | 27 | 150 | 100 | 8,000 | 376 | 483 |
![]() |
|
25 | 27 | 150 | 100 | 8,000 | - | - |
![]() |
|
25 | 27 | 150 | 100 | 12,000 | 376 | 483 |
![]() |
|
25 | 27 | 150 | 100 | 12,000 | - | - |
![]() |
|
25 | 27 | 150 | 200 | 10,000 | 376 | 483 |
![]() |
|
25 | 27 | 150 | 200 | 10,000 | - | - |
![]() |
|
25 | 27 | 150 | 300 | Solid Blade | 376 | 483 |
![]() |
|
25 | 27 | 150 | 300 | Solid Blade | - | - |
![]() |
|
25 | 27 | 150 | 300 | Solid Blade | 368 | 571.5 |
![]() |
