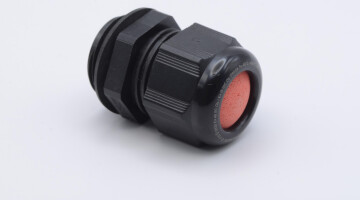

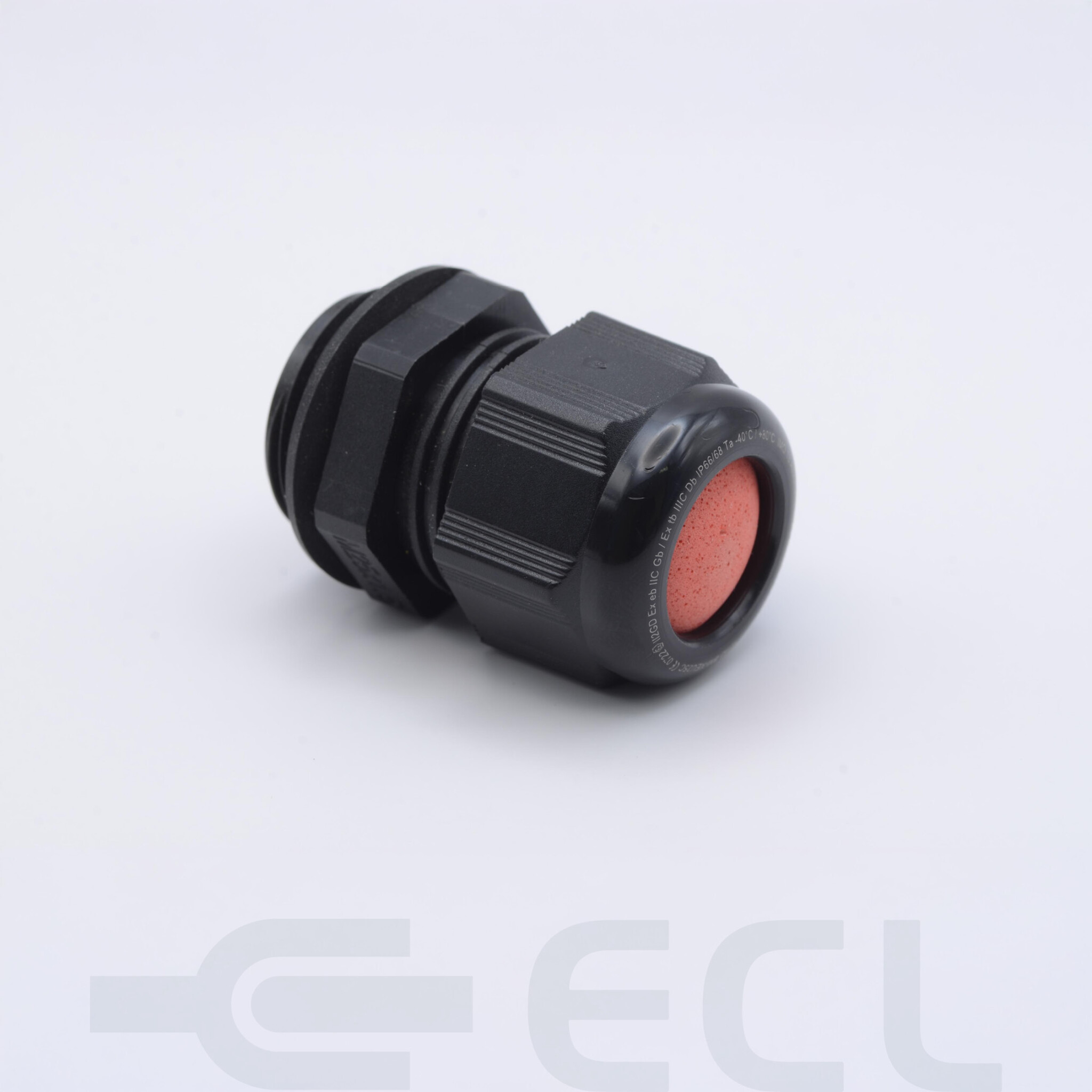

Nylon Ex e Gas & Dust Rated Cable Glands
Polyamide Glands for Ex e Applications
Key Features:
- For applications in explosive environments
- For Group II & III (Gas & Dust) - Ex e only
- High quality strain relief and sealing, reliable performance for standard hazardous area applications
| Material: |
Body, Cap: PA 6 (Polyamide 6) Seal: CR (Chloroprene) |
| Ingress Protection Rating: | IP68 - 5 Bar, 30 min IP66 |
| Operating Temp. CR: | -40°C to 70°C |
| Equipment for: |
Gas & Dust potentially explosive atmospheres Cable glands should be also used for intrinsically safe circuits Ex i |
| Suitable for us in: |
Group II, Group III Zone 1, Zone 2, Zone 21, Zone 22 Gas Group IIC, Gas Group IIIC |
| Cable Type: | Non Armoured |
| Equipment Marking: |
Ex II 2GD Ex eb IIC Gb Ex tb IIIC Db |
Contact the ECL team

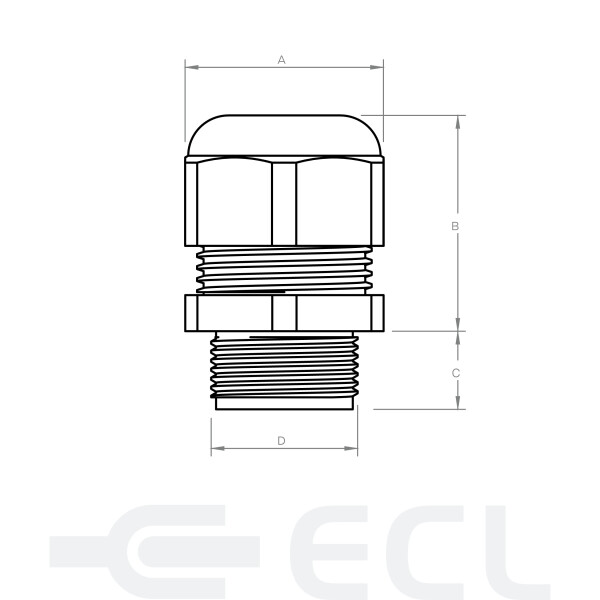

| Part Number | Thread Size D | Thread Length mm C | Length mm B | Cable Diameter min-max mm | Dia Across Flats mm A | Dia Across Corners mm A | |
|---|---|---|---|---|---|---|---|
|
|
M20 | 10 | 32.2 | 45422 | 22 | 27 | |
|
|
M25 | 10 | 37.7 | 45613 | 29 | 37.7 | |
|
|
M32 | 10 | 42.3 | 15-21 | 36 | 41 | |
|
|
M40 | 15 | 47.4 | 19-28 | 46 | 52.4 | |
|
|
M50 | 18 | 54.8 | 30-38 | 60 | 67.8 | |
|
|
M63 | 18 | 54.9 | 34-44 | 65 | 72.4 | |
|
