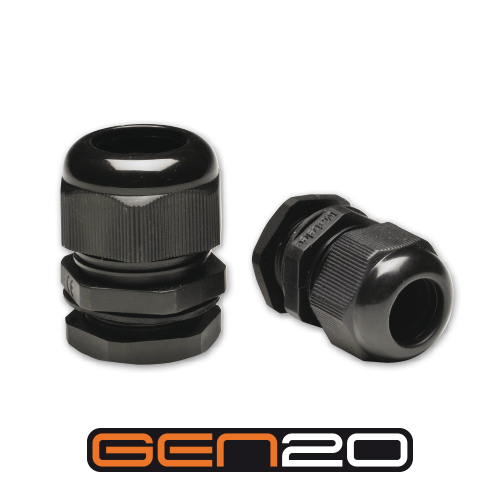

Nylon Cable Glands - Metric
Electrical Connections Cable Glands are unique. Originally marketed as the ‘ultimate’ gland, our glands have been the preferred choice by end users for many years.
Finished in black nylon, these glands have the following special features:
- Rated to IP68
- Supplied with sealing washer and locknut
- Large size range
- Continuous operating withstand temperature -40º to 100ºC
- Short term withstand temperature rating 200ºC
- Superior cable retention due to locking mechanism. Ideal in vibration prone
environment such as the marine industry
Contact the ECL team
For special lugs or other imperial sizes please
contact us
to discuss your requirement.
Part Number | Thread Size | Colour | Cable Diameter Min-Max (mm) | Pack Quantity | |
---|---|---|---|---|---|
|
M12 | Black | 3-6mm | 100 |
|
|
M12 | Grey | 3-6mm | 100 |
|
|
M16 | Black | 4-10mm | 50 |
|
|
M16 | Grey | 4-10mm | 50 |
|
|
M20 | Black | 7-13mm | 40 |
|
|
M20 | Grey | 7-13mm | 40 |
|
|
M25 | Black | 11-18mm | 20 |
|
|
M25 | Grey | 11-18mm | 20 |
|
|
M32 | Black | 15-24mm | 15 |
|
|
M40 | Black | 19-31mm | 6 |
|
|
M50 | Black | 27-38mm | 3 |
|
|
M63 | Black | 34-43mm | 2 |
|
