IP68 Cable Glands - Metric

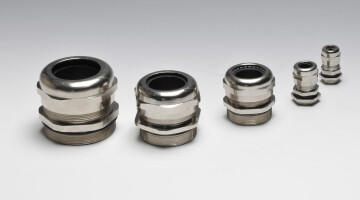

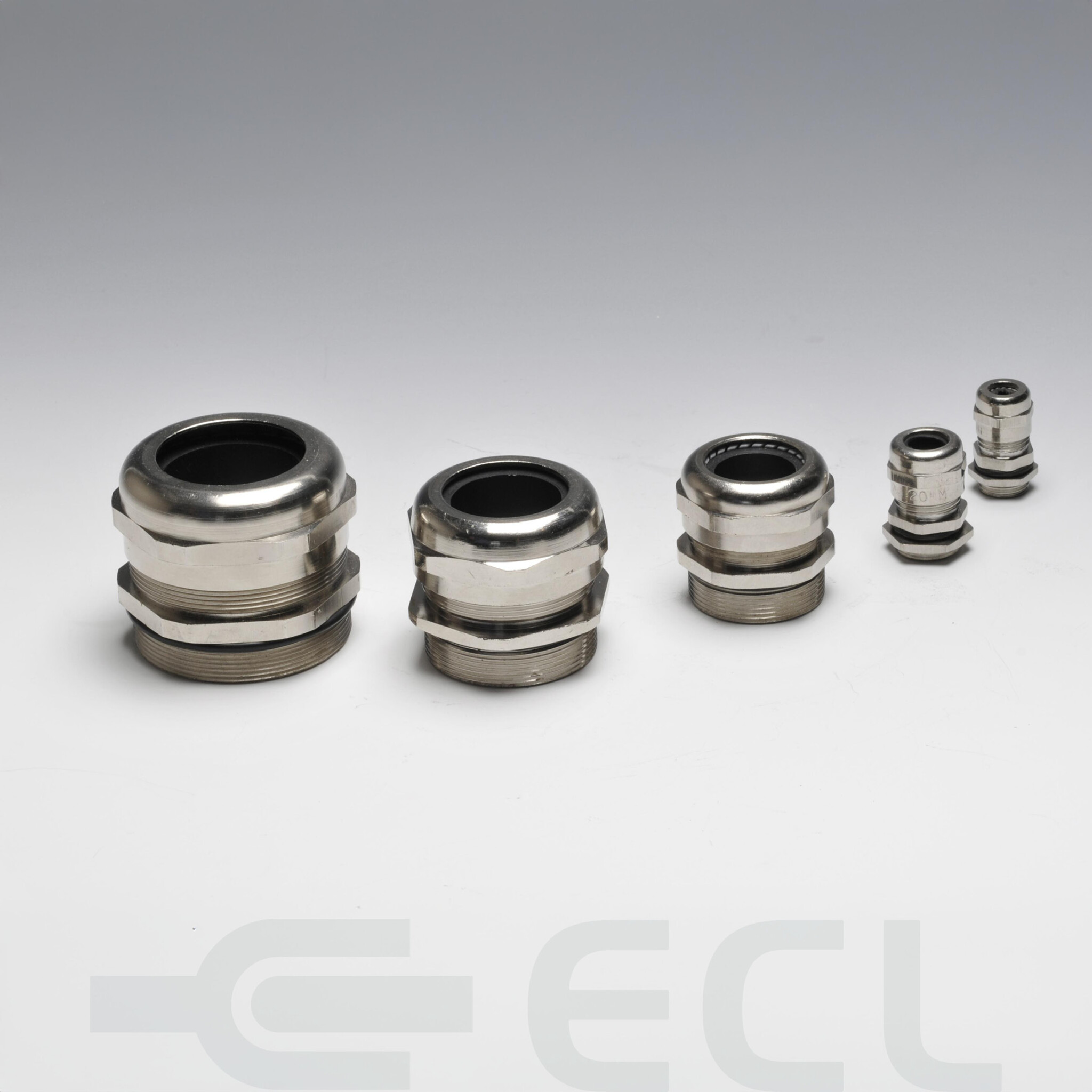

Used for PVC, XLPE, and flexible cables to protect against the ingress of dust and moisture. Manufactured from nickel plated brass, with a temperature rating of -20 ºC to 120ºC and tested to IP68. Superior cable grip and enhanced strain relief. Extended cable diameter range reduces inventory. Locknuts are sold separately.
Technical Details:
| Material: | Brass Nickel Plated |
| Ingress Protection Rating: | IP68 |
| Operating Temp: | -20°C to +120°C |
Contact the ECL team

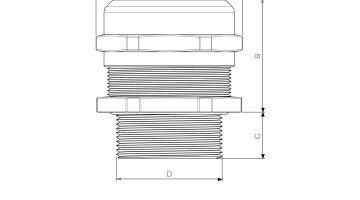

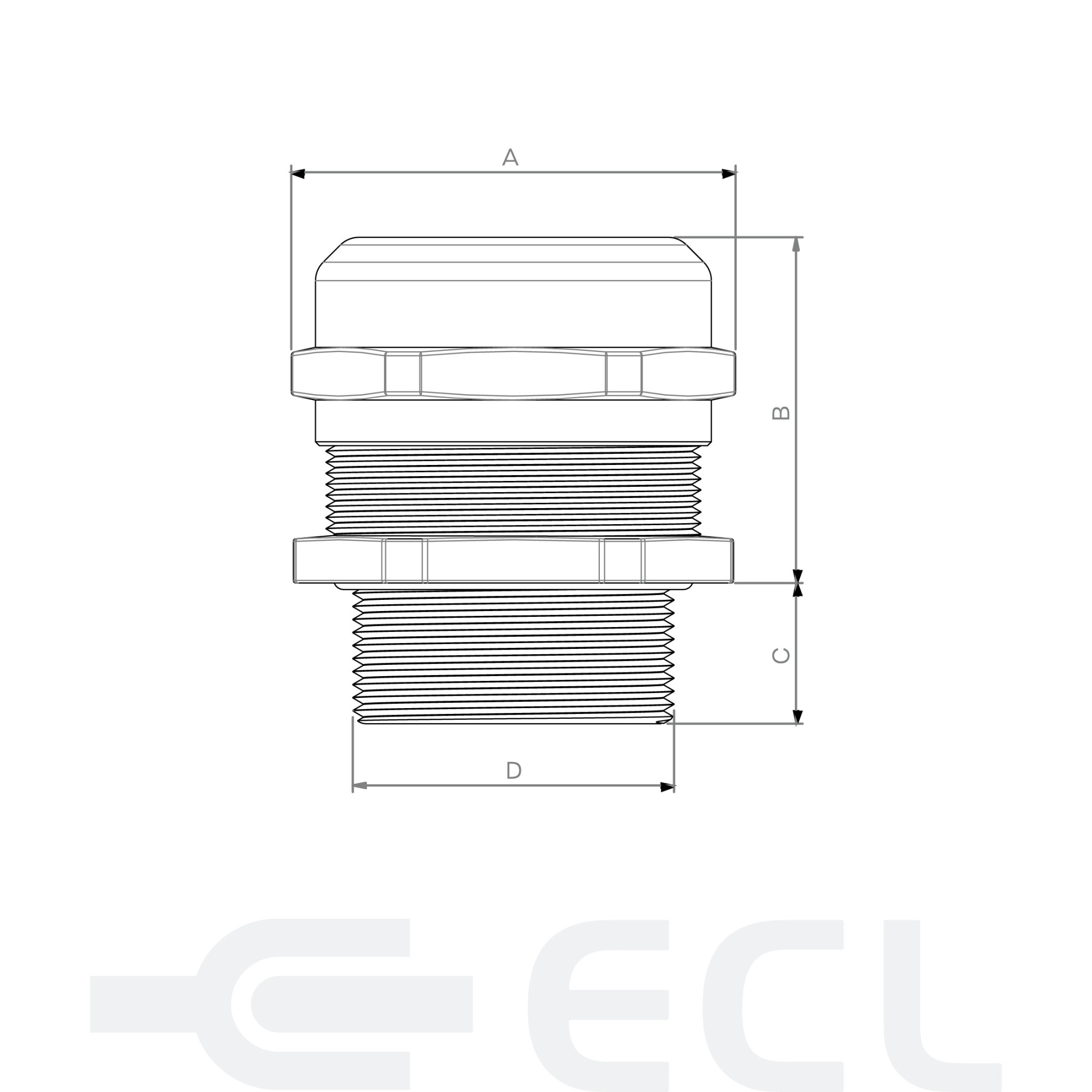

| Part Number | Thread Size D | Thread Length mm (C) | Cable Diameter min-max | Dia Across Flats mm (A) | Dia Across Corners mm (A) | Dia Across Corners mm (A) | |
|---|---|---|---|---|---|---|---|
|
|
M12 | 5 | 3-6.5mm | 14 | 15.5 | 15.5 | |
|
|
M16 | 8 | 4-8mm | 18 | 19.5 | 19.5 | |
|
|
M20 | 7 | 6-12mm | 22 | 24.5 | 24.5 | |
|
|
M25 | 8 | 13-18mm | 31 | 34 | 34 | |
|
|
M32 | 9.5 | 18-25mm | 40 | 44.5 | 44.5 | |
|
|
M40 | 10 | 25-32mm | 50 | 55 | 55 | |
|
|
M50 | 13 | 32-38mm | 55 | 60 | 60 | |
|
|
M63 | 10.5 | 37-44mm | 65 | 70.5 | 70.5 | |
|
