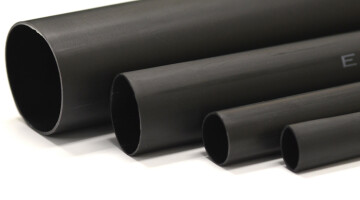

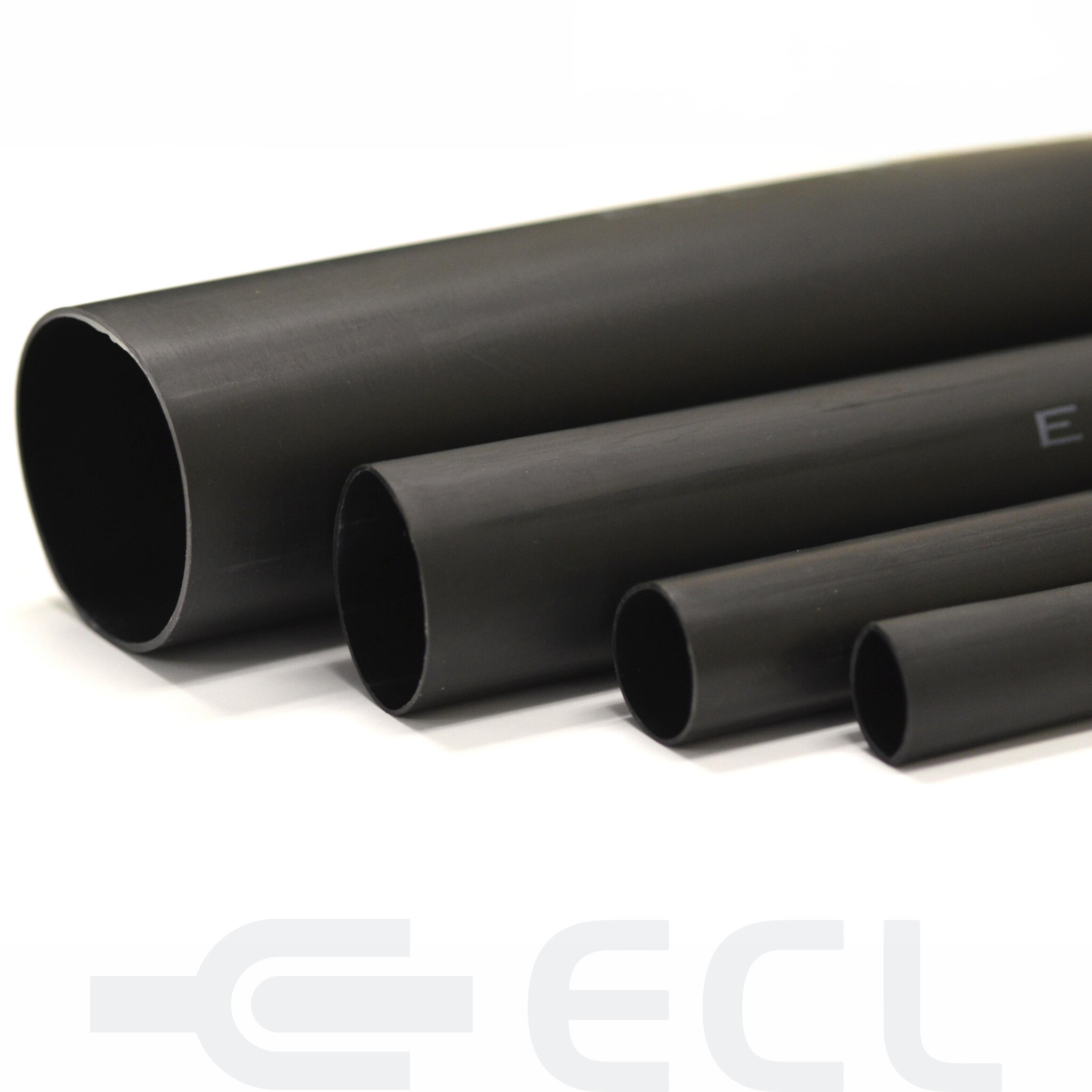

Heavy Wall Glue Lined Heatshrink
Our Heavy Wall Glue Lined Heatshrink tubing provides maximum reliability for insulation of cable joints. Manufactured with adhesive lining.
Features:
- Operating temperature: -55°C to 110°C
- Minimum full shrinkage temperature: 125°C
- Single wall or double wall with glue optional
- Halogen-free environmental protection
- High strength, resistance to mechanical damage
- Shrink ratio: 3:1 & 4:1
- Colour: black, other colours can be customised
Contact the ECL team
For special lugs or other imperial sizes please
contact us
to discuss your requirement.
Part Number | Size mm | Maximum Internal Diameter mm | Internal Diameter Recovered mm | |
---|---|---|---|---|
|
9 | 9 | 3 |
|
|
13 | 13 | 4 |
|
|
16 | 16 | 5 |
|
|
22 | 20 | 6 |
|
|
33 | 33 | 9 |
|
|
45 | 45 | 13 |
|
|
55 | 55 | 16 |
|
|
75 | 75 | 22 |
|
|
85 | 85 | 25 |
|
|
100 | 100 | 30 |
|
|
115 | 115 | 34 |
|
|
140 | 140 | 42 |
|
|
160 | 160 | 50 |
|
