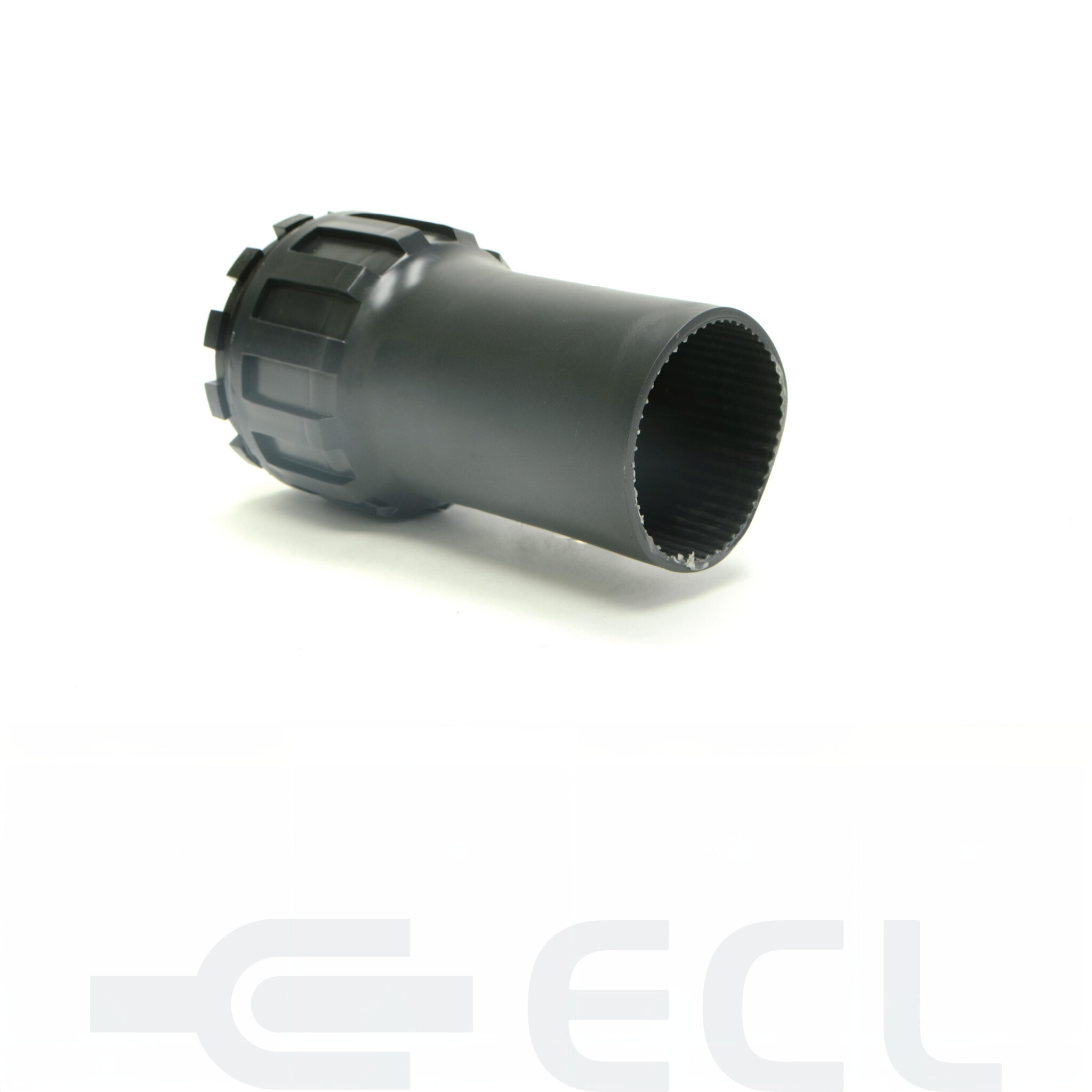

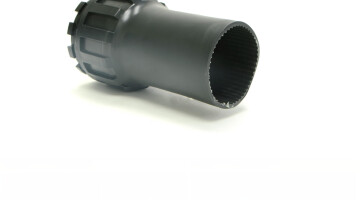

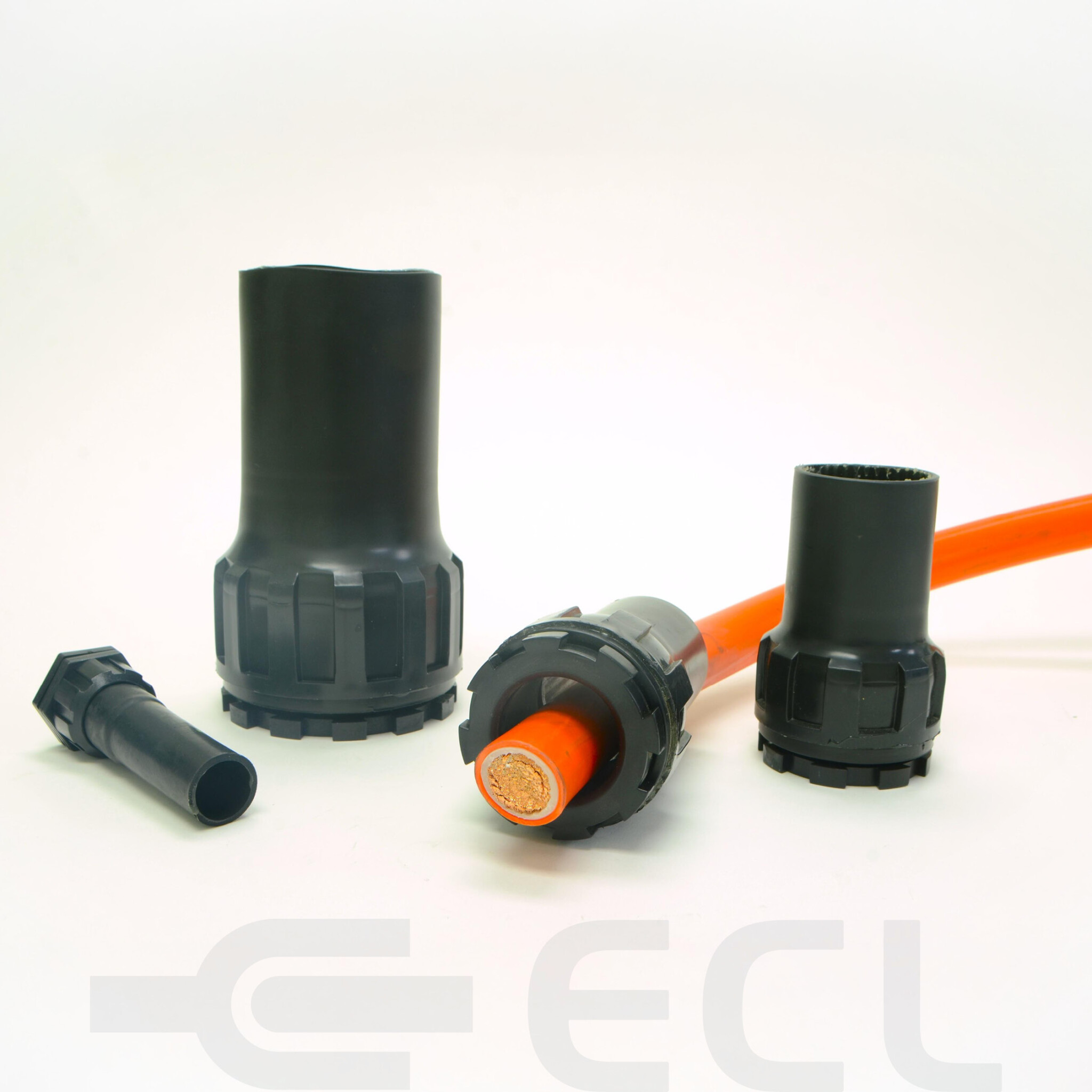

Heat Shrink Cable Glands
GHSC series of heat shrinkable cable glands were developed to provide a cost effective method of providing a weatherproof seal on a variety of cables. The glands are manufactured in accordance with MIL specifications and provide a flame retardant adhesive lined body along with a male threaded entry part to enable fixture to the gland plate.
Contact the ECL team
For special lugs or other imperial sizes please
contact us
to discuss your requirement.
Part Number | Pack Quantity | Entry Hole Size | Cable O/D Max | Gland Plate Thickness Max | Overall Length (Recovered) | Entry Hole Size | |
---|---|---|---|---|---|---|---|
|
1 | 4mm | 12mm | 6mm | 95mm | 26mm |
|
|
1 | 7mm | 17mm | 6mm | 95mm | 26mm |
|
|
1 | 13mm | 26mm | 6mm | 100mm | 35mm |
|
|
1 | 19mm | 38mm | 6mm | 130mm | 51mm |
|
|
1 | 19mm | 53mm | 10mm | 170mm | 60mm |
|
|
1 | 36mm | 70mm | 6mm | 200mm | 88mm |
|
