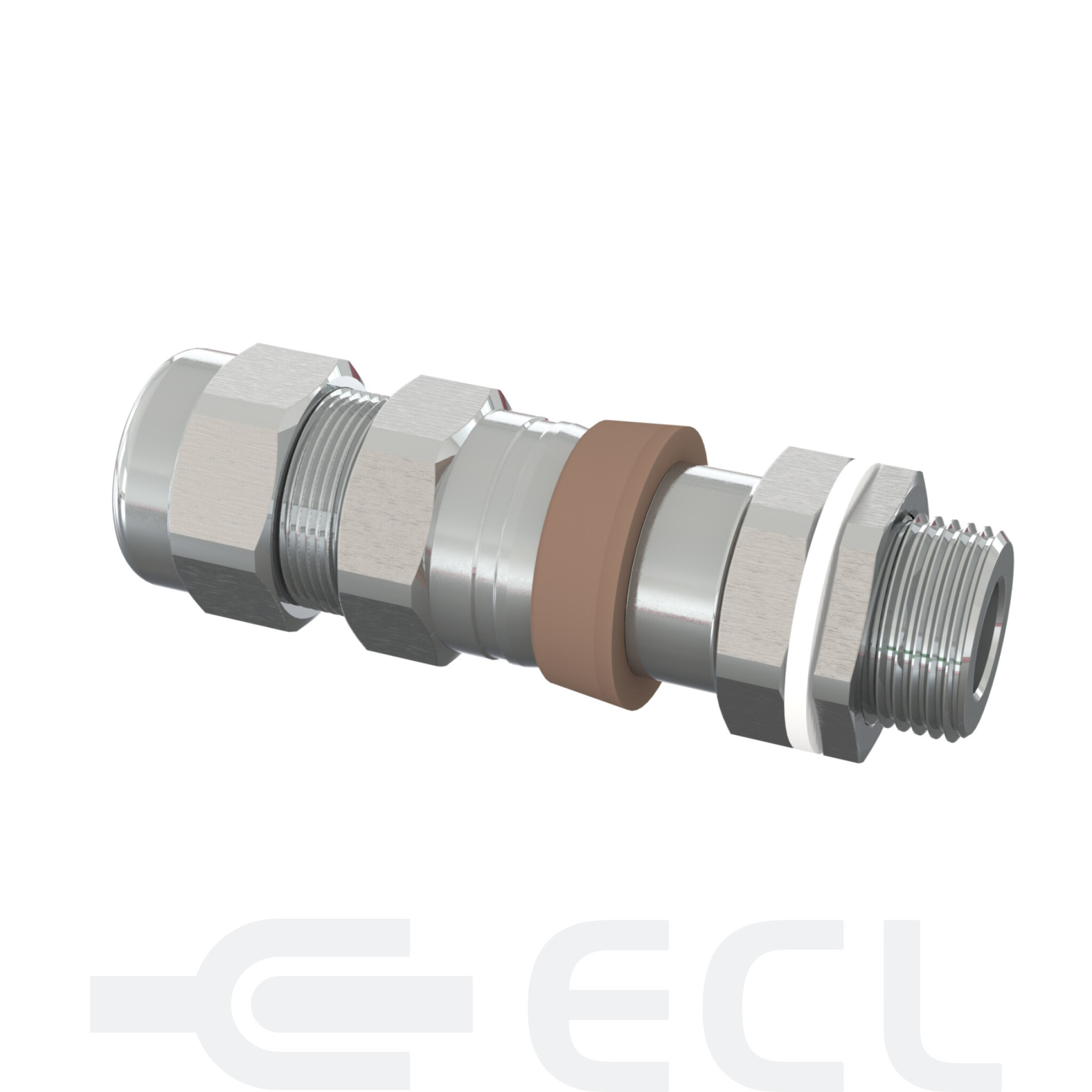

Flameproof Armoured Barrier Cable Glands

ECL flameproof barrier glands for armoured and unarmoured cable.

Technical Details:

Cable Type:	Wire Braid Armour, Steel Tape Armour or Screened Flexible Wire Braid
Sealing Area:	Inner Compound Barrier & Cable Outer Sheath
Indoor and Outdoor use:	Dual certified Ex d & Ex e
Operating Temp.:	-60°C to 100°C
Materials:	Brass, Brass Nickel Plated, Stainless Steel 316
Suitable for use in: (According to BS, IEC & Cenelec)	Zone 1, Zone 2, Zone 20, Zone 21, Zone 22
Ingress Protection:	IP66/67
Certificate No:	Baseefa11ATEX0004X & IECEx BAS11.0001X

Contact the ECL team

Part Number	Cable Diameter min-max mm	Max D	Max ID	Max No. Cores	SWA Min/ Max	Thread Size D	Thread Length C	Dia Across Corners mm A	Dia Across Flats mm A
	45485	8.9	10	6	0/0.7	20	15	26.8	24	- + Part Number Cable Diameter min-max mm: Max D: Max ID: Max No. Cores: SWA Min/ Max: Thread Size D: Thread Length C: Dia Across Corners mm A: Dia Across Flats mm A: - +
	45612	8.9	10	6	0/0.7	20	15	26.8	24	- + Part Number Cable Diameter min-max mm: Max D: Max ID: Max No. Cores: SWA Min/ Max: Thread Size D: Thread Length C: Dia Across Corners mm A: Dia Across Flats mm A: - +
	14.3-20	11	12.5	10	0/0.7	20	15	33.5	30	- + Part Number Cable Diameter min-max mm: Max D: Max ID: Max No. Cores: SWA Min/ Max: Thread Size D: Thread Length C: Dia Across Corners mm A: Dia Across Flats mm A: - +
	18.5-26	16.5	18.3	21	0/0.7	25	15	40.5	36	- + Part Number Cable Diameter min-max mm: Max D: Max ID: Max No. Cores: SWA Min/ Max: Thread Size D: Thread Length C: Dia Across Corners mm A: Dia Across Flats mm A: - +
	24-33	22	24.5	42	0/0.7	32	15	51.2	45.8	- + Part Number Cable Diameter min-max mm: Max D: Max ID: Max No. Cores: SWA Min/ Max: Thread Size D: Thread Length C: Dia Across Corners mm A: Dia Across Flats mm A: - +
	28-35	26.5	29.5	60	0/0.7	40	15	61.5	55	- + Part Number Cable Diameter min-max mm: Max D: Max ID: Max No. Cores: SWA Min/ Max: Thread Size D: Thread Length C: Dia Across Corners mm A: Dia Across Flats mm A: - +
	30-41	26.5	29.5	60	0/0.7	40	15	61.5	55	- + Part Number Cable Diameter min-max mm: Max D: Max ID: Max No. Cores: SWA Min/ Max: Thread Size D: Thread Length C: Dia Across Corners mm A: Dia Across Flats mm A: - +
	36-45	37	41.7	80	0/1.0	50	15	72.8	65	- + Part Number Cable Diameter min-max mm: Max D: Max ID: Max No. Cores: SWA Min/ Max: Thread Size D: Thread Length C: Dia Across Corners mm A: Dia Across Flats mm A: - +
	42-52.6	37	41.7	80	0/1.0	50	15	72.8	65	- + Part Number Cable Diameter min-max mm: Max D: Max ID: Max No. Cores: SWA Min/ Max: Thread Size D: Thread Length C: Dia Across Corners mm A: Dia Across Flats mm A: - +
	46-56	47.8	53.5	100	0/1.0	63	15	89.5	80	- + Part Number Cable Diameter min-max mm: Max D: Max ID: Max No. Cores: SWA Min/ Max: Thread Size D: Thread Length C: Dia Across Corners mm A: Dia Across Flats mm A: - +
	52-65.5	47.8	53.5	100	0/1.0	63	15	89.5	80	- + Part Number Cable Diameter min-max mm: Max D: Max ID: Max No. Cores: SWA Min/ Max: Thread Size D: Thread Length C: Dia Across Corners mm A: Dia Across Flats mm A: - +
	57-67	59	65.3	140	0/1.0	75	15	104.5	95	- + Part Number Cable Diameter min-max mm: Max D: Max ID: Max No. Cores: SWA Min/ Max: Thread Size D: Thread Length C: Dia Across Corners mm A: Dia Across Flats mm A: - +
	64-78.3	59	65.3	140	0/1.0	75	15	104.5	95	- + Part Number Cable Diameter min-max mm: Max D: Max ID: Max No. Cores: SWA Min/ Max: Thread Size D: Thread Length C: Dia Across Corners mm A: Dia Across Flats mm A: - +
	75-89.5	71	75	180	0/1.0	90	20	123	115	- + Part Number Cable Diameter min-max mm: Max D: Max ID: Max No. Cores: SWA Min/ Max: Thread Size D: Thread Length C: Dia Across Corners mm A: Dia Across Flats mm A: - +
