FGO Flameproof Non-Armoured Cable Glands - Brass Nickel Plated

FGO Flameproof Non-Armoured Cable Glands - Brass Nickel Plated

High end flameproof cable gland for the most arduous situations. Suitable for non-armoured cables in hazardous areas with type of protection Ex e, Ex d or type of protection Ex t.

Key Features:

For applications in explosive environments
For Group II & III (Gas & Dust) - Ex-d and Ex-e
Can be used with intrinsically safe circuits
High quality strain relief and sealing, reliable performance for standard hazardous area applications

Technical Detail:

Material:	Body: Brass Nickel Plated Inner Part: Brass Nickel plated Seal: CR (Chloroprene) O-Ring: CR (Chloroprene)
Ingress Protection Rating:	IP68 - 5 Bar, 30 min IP66
Operating Temp. CR:	Ex d/tb: -40°C to 80°C Ex e/tb: -40°C to 80°C
Equipment for:	Gas & Dust potentially explosive atmospheres
Suitable for us in:	Group II, Group III, Gas Group IIC, Dust Group IIIC ZONE 1, ZONE 2, ZONE 21, ZONE 22
Equipment Marking:	Ex II 2GD Ex db IIC Gb Ex eb IIC Gb Ex tb IIIC Db

Contact the ECL team

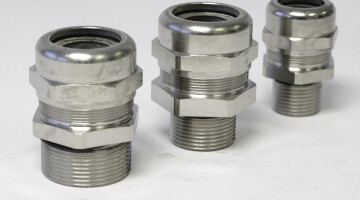

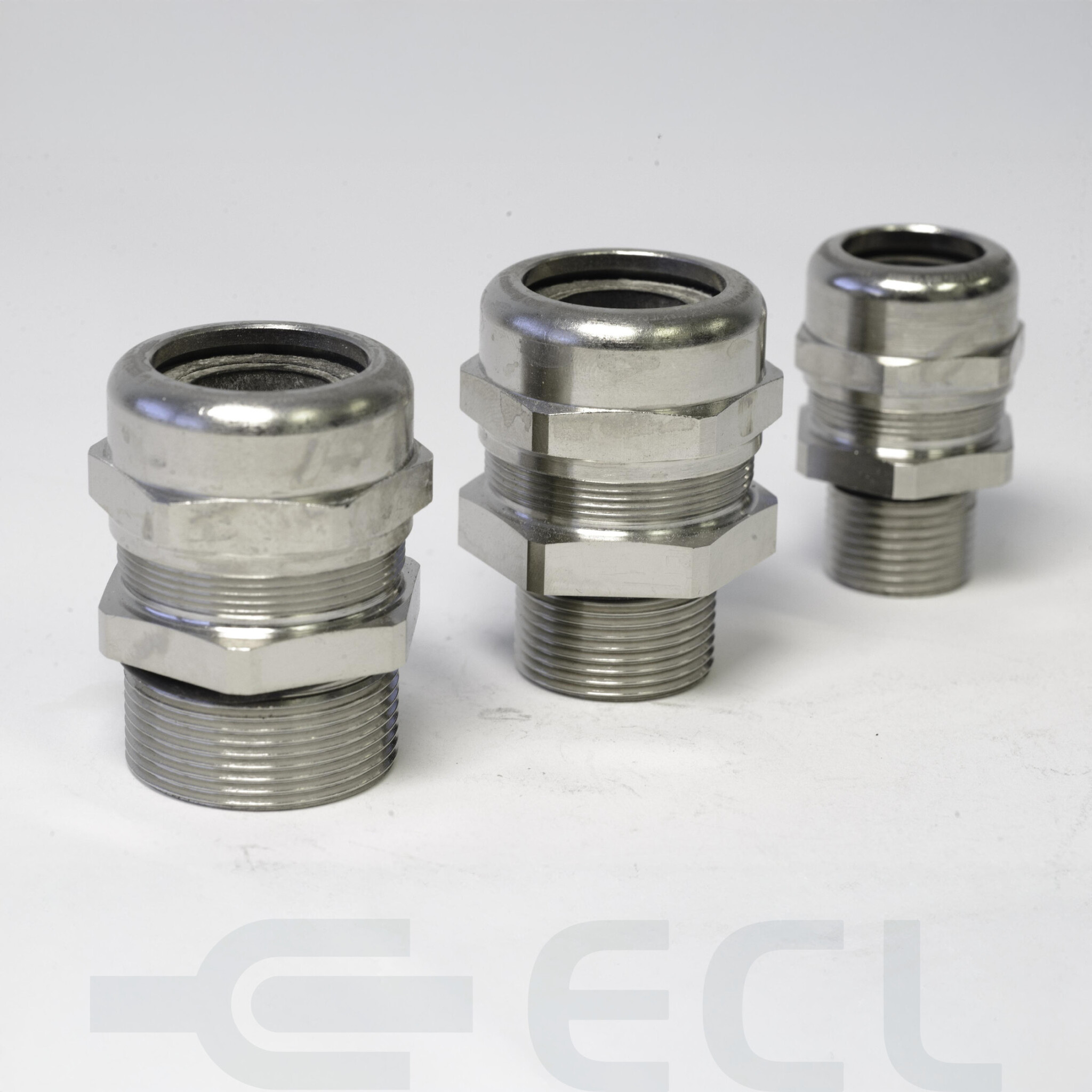

FGO Flameproof Non Armoured Cable Glands

FGO Flameproof Non Armoured Cable Glands dimensions

FGO Flameproof Non Armoured Cable Glands standards

	Brass Nickel Plated
Part Number	Thread Size D	Thread Length mm C	Cable Outside Dia min-max	Length mm B	Dia Across Flats mm A	Dia Across Corners mm A
	M16	16	45363	33	22	24.5	- + Part Number Thread Size D: Thread Length mm C: Cable Outside Dia min-max: Length mm B: Dia Across Flats mm A: Dia Across Corners mm A: - +
	M20	16	45394	29	22	24.5	- + Part Number Thread Size D: Thread Length mm C: Cable Outside Dia min-max: Length mm B: Dia Across Flats mm A: Dia Across Corners mm A: - +
	M20	16	45581	32	28	31	- + Part Number Thread Size D: Thread Length mm C: Cable Outside Dia min-max: Length mm B: Dia Across Flats mm A: Dia Across Corners mm A: - +
	M25	16	14-20	36	35	35	- + Part Number Thread Size D: Thread Length mm C: Cable Outside Dia min-max: Length mm B: Dia Across Flats mm A: Dia Across Corners mm A: - +
	M32	16	14-24	35	35	39	- + Part Number Thread Size D: Thread Length mm C: Cable Outside Dia min-max: Length mm B: Dia Across Flats mm A: Dia Across Corners mm A: - +
	M40	18	26-34	45.5	50	56	- + Part Number Thread Size D: Thread Length mm C: Cable Outside Dia min-max: Length mm B: Dia Across Flats mm A: Dia Across Corners mm A: - +
	M50	18	35-44	45	64	70	- + Part Number Thread Size D: Thread Length mm C: Cable Outside Dia min-max: Length mm B: Dia Across Flats mm A: Dia Across Corners mm A: - +
	M63	18	46-56	54	80	89	- + Part Number Thread Size D: Thread Length mm C: Cable Outside Dia min-max: Length mm B: Dia Across Flats mm A: Dia Across Corners mm A: - +
	M75	20	60-69	57	95	105	- + Part Number Thread Size D: Thread Length mm C: Cable Outside Dia min-max: Length mm B: Dia Across Flats mm A: Dia Across Corners mm A: - +
	Specs available on request, please contact the ECL team						- + Part Number Thread Size D: Thread Length mm C: Cable Outside Dia min-max: Length mm B: Dia Across Flats mm A: Dia Across Corners mm A: - +
	Larger sizes and sizes not shown, available on request, please contact the ECL team						- + Part Number Thread Size D: Thread Length mm C: Cable Outside Dia min-max: Length mm B: Dia Across Flats mm A: Dia Across Corners mm A: - +
