Enviroglands® Ex e - For SWA and Braided Cable

Enviroglands® Ex e - For SWA and Braided Cable

Key Features:

Ultra tough corrosion resistant encapsulated brass cable gland
Cable gland is fully certified to SANS EN/ATEX & IECEx Standards
IP66/68 (2m underwater continuously)
Resistant to corrosive environments and oil & grease resistant
Tough engineering plastic will not crack when tightening

SABS:	Ex eb IIC Gb, Ex nR IIC Gc, Ex ta IIIC Da IP66/68
IECEx:	Ex e II , Ex tD A21 IP68
ATEX:	II 2 G D (EEx e II)
Suitable for use in:	Zone 1, Zone 2, Zone 20, Zone 21, Zone 22
Operating Temp.:	-20°C to 95°C

Contact the ECL team

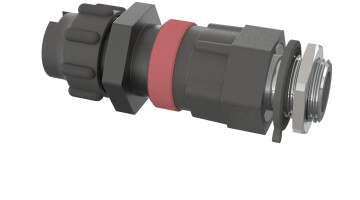

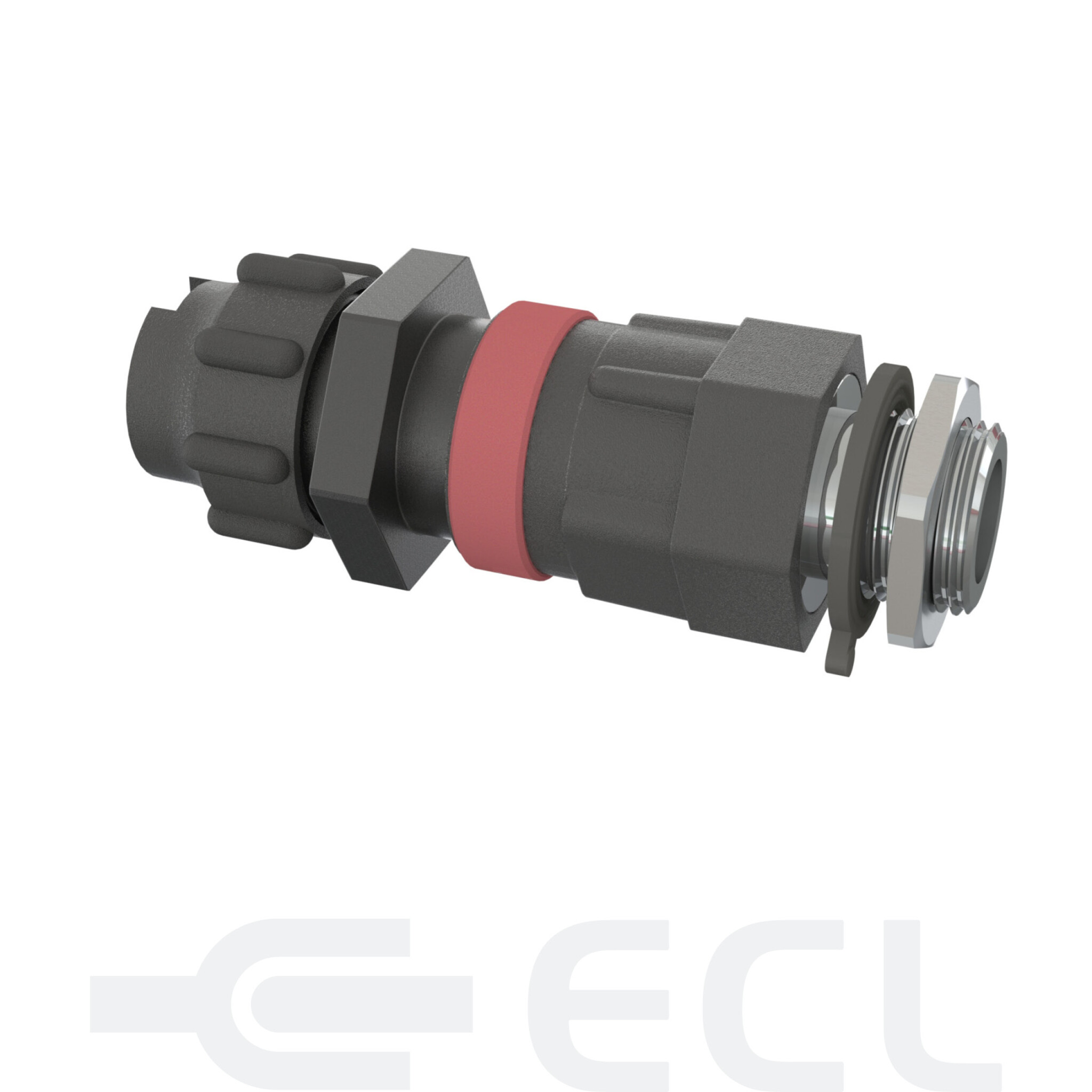

Enviroglands Ex e For SWA and Braided Cable v3

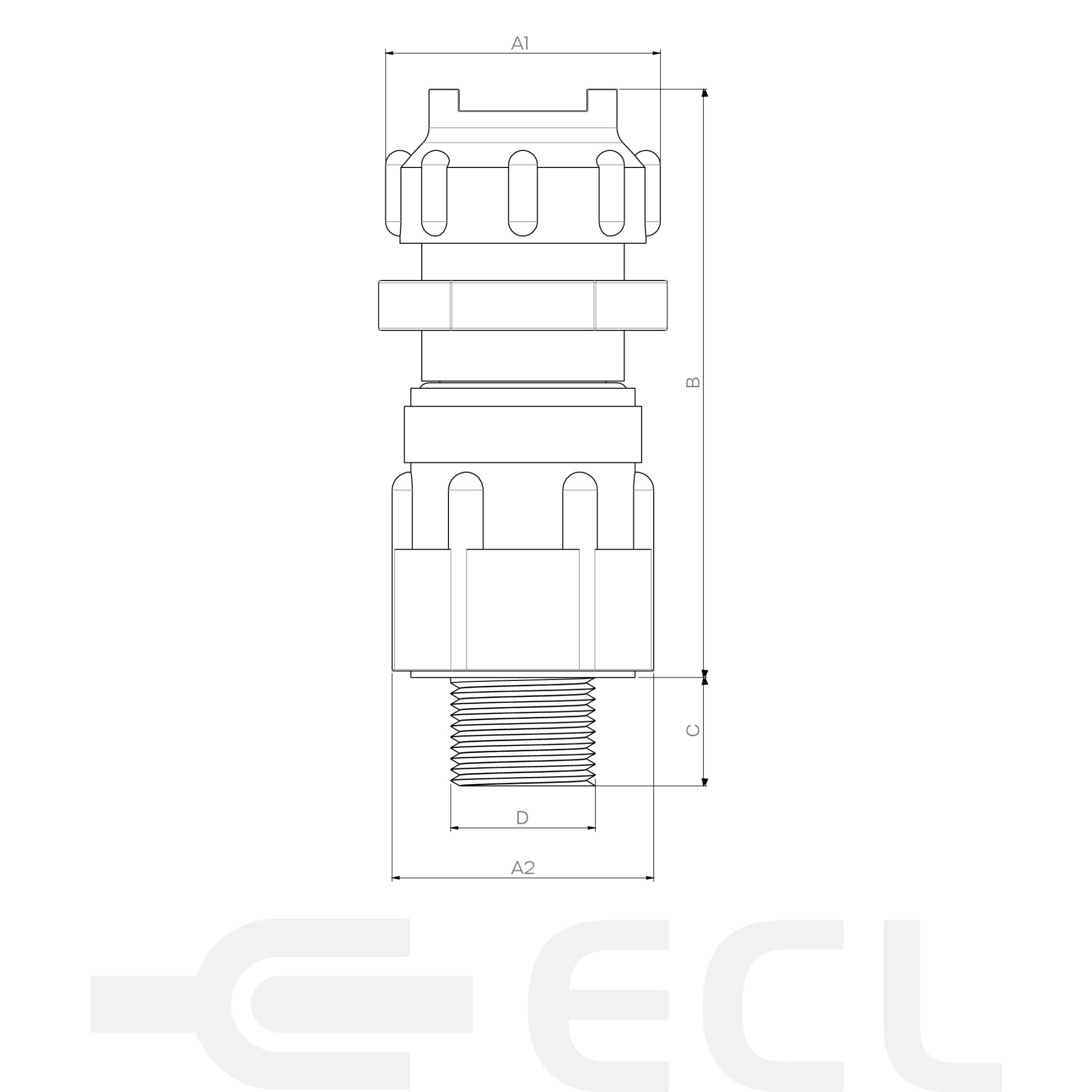

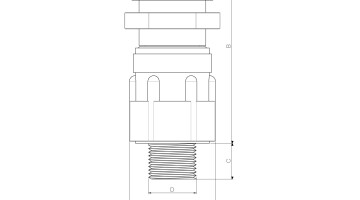

Enviroglands Ex e For SWA and Braided Cable dimensions

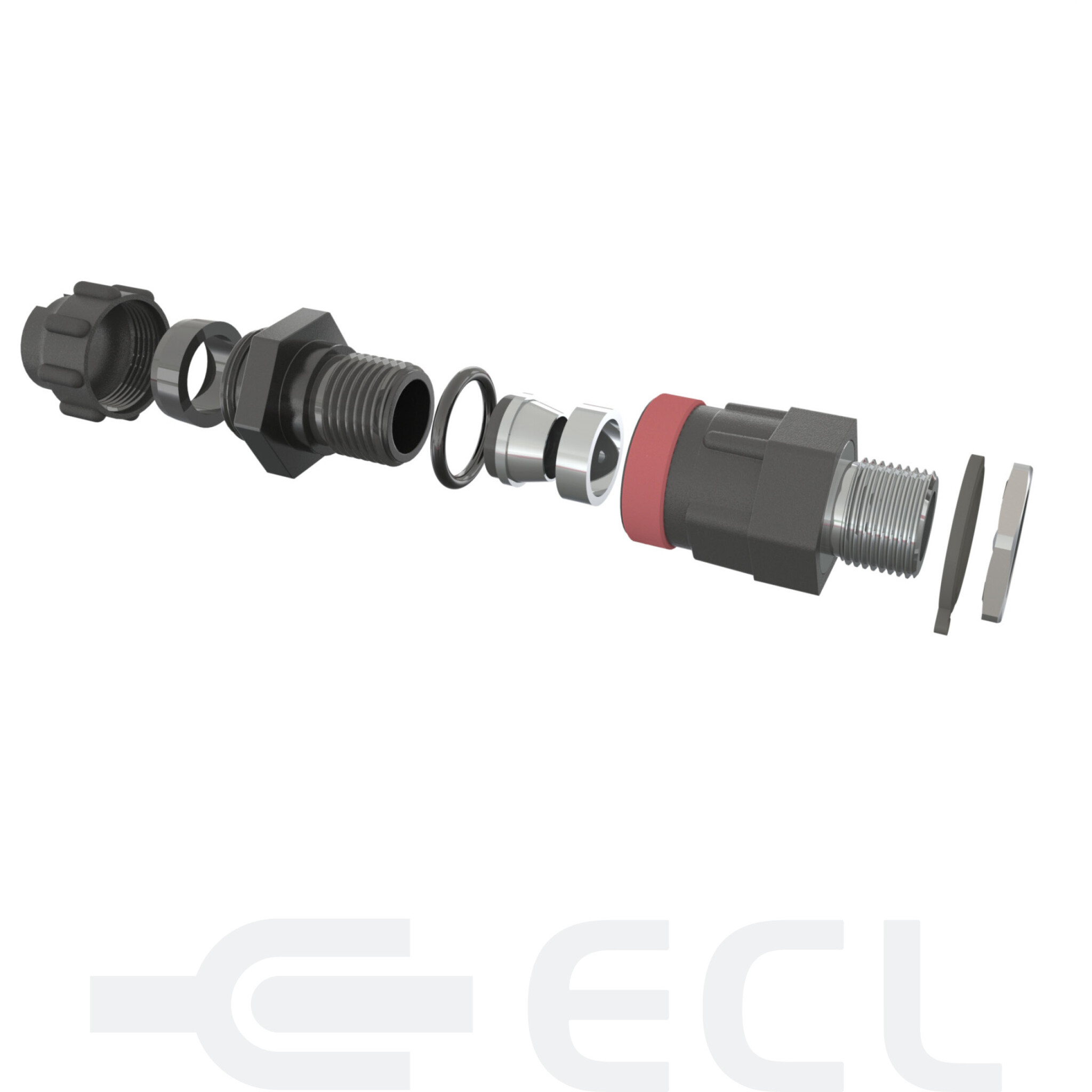

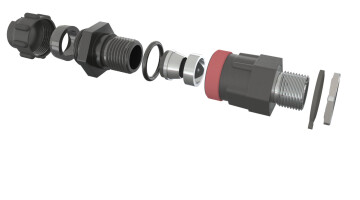

Enviroglands Ex e For SWA and Braided Cable expanded

		Cable Dia mm		Cable Bedding Dia mm				Diameter A2		Diameter A1
Part Number	Thread Size D	Min	Max	Min	Max	Thread Length mm C	Length mm B	Body A/F	Body A/C	Nut A/F	Nut A/C
	M16	10	16	6.5	8.5	16	75.7	27.7	32	29.2	32	- + Part Number Thread Size D: Min: Max: Min: Max: Thread Length mm C: Length mm B: Body A/F: Body A/C: Nut A/F: Nut A/C: - +
	M20	10	16	6.5	8.5	16	75.7	27.7	32	29.2	32	- + Part Number Thread Size D: Min: Max: Min: Max: Thread Length mm C: Length mm B: Body A/F: Body A/C: Nut A/F: Nut A/C: - +
	M20	12.6	18.6	8.5	12.6	16	75.7	27.7	32	29.2	32	- + Part Number Thread Size D: Min: Max: Min: Max: Thread Length mm C: Length mm B: Body A/F: Body A/C: Nut A/F: Nut A/C: - +
	M20	15.4	22	12.6	15.7	16	81	31.5	36.4	32	37	- + Part Number Thread Size D: Min: Max: Min: Max: Thread Length mm C: Length mm B: Body A/F: Body A/C: Nut A/F: Nut A/C: - +
	M25	22	27.3	15.7	20.4	16	90.3	40	46.2	41.2	47.5	- + Part Number Thread Size D: Min: Max: Min: Max: Thread Length mm C: Length mm B: Body A/F: Body A/C: Nut A/F: Nut A/C: - +
	M32	24.3	33.5	20.4	26.3	16.5	96.5	48.5	56	50	57.5	- + Part Number Thread Size D: Min: Max: Min: Max: Thread Length mm C: Length mm B: Body A/F: Body A/C: Nut A/F: Nut A/C: - +
	M40	33.5	43.2	26.3	34.7	21	103	57.3	66.2	59	67.5	- + Part Number Thread Size D: Min: Max: Min: Max: Thread Length mm C: Length mm B: Body A/F: Body A/C: Nut A/F: Nut A/C: - +
	M50	43.2	53.5	34.7	43.3	22	124	74.4	86	77.5	87	- + Part Number Thread Size D: Min: Max: Min: Max: Thread Length mm C: Length mm B: Body A/F: Body A/C: Nut A/F: Nut A/C: - +
	M63	53.5	67.2	43.3	55.8	27	121	88	101.6	86	98.8	- + Part Number Thread Size D: Min: Max: Min: Max: Thread Length mm C: Length mm B: Body A/F: Body A/C: Nut A/F: Nut A/C: - +
	M75	67.2	79	55.8	67.5	27	132	96	110.9	97	108	- + Part Number Thread Size D: Min: Max: Min: Max: Thread Length mm C: Length mm B: Body A/F: Body A/C: Nut A/F: Nut A/C: - +
