End Sleeves - Uninsulated, Loose

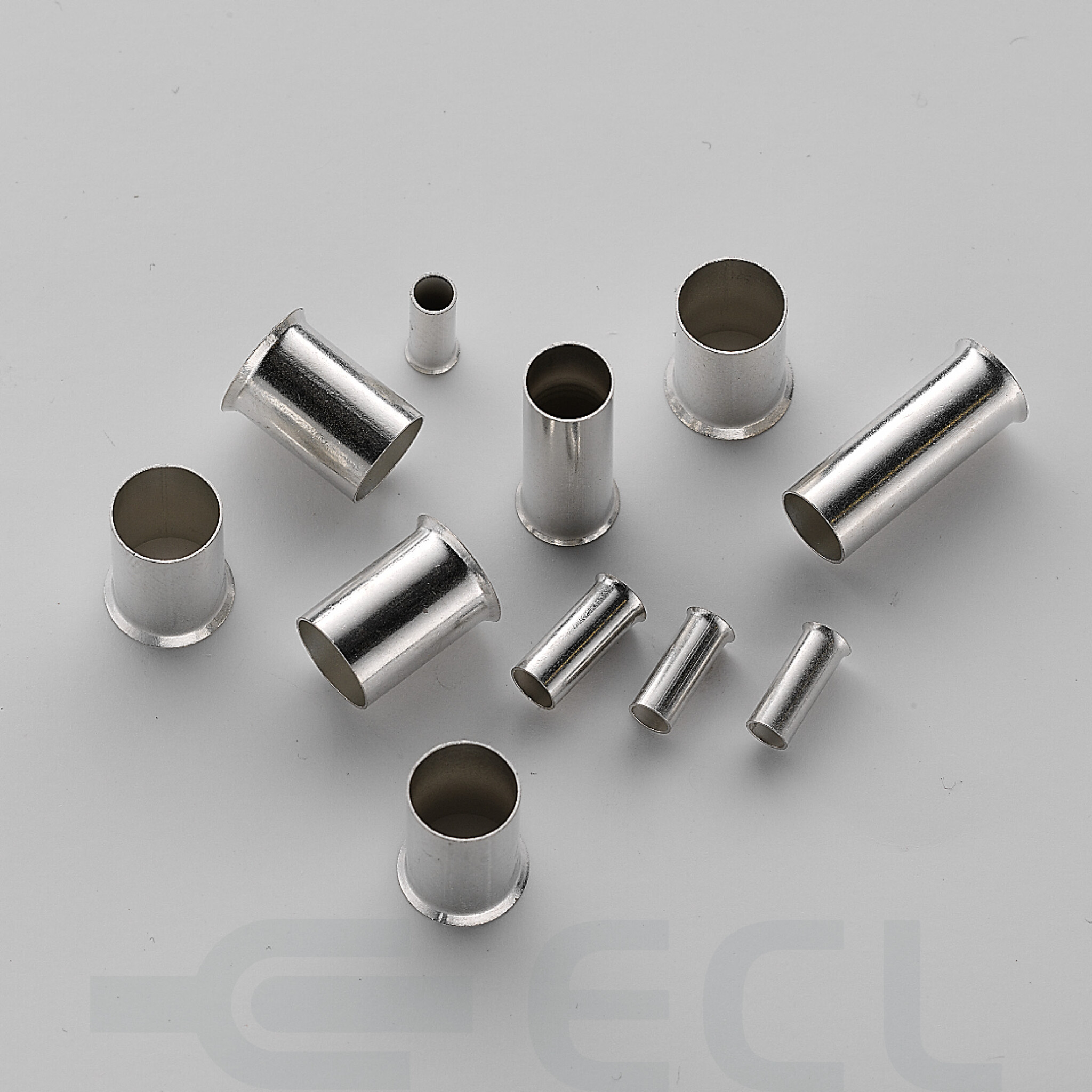

Designed as a termination for fine stranded cable these tin plated copper sleeves provide encapsulation for the stranding and a secure clamping point for modern device terminals.
- Special lengths available on request
For special lugs or other imperial sizes please
contact us
to discuss your requirement.
Part Number | Pack Quantity | Nominal Conductor Area | Dimensions (mm) L | Dimensions (mm) D1. | Dimensions (mm) D2. | Dimensions (mm) D2 | Dimensions (mm) D1 | |
---|---|---|---|---|---|---|---|---|
|
1000 | 0.5mm | 6mm | 1mm | 2mm | - | - |
|
|
1000 | 0.75mm | 6mm | 1.5mm | - | 2.3mm | - |
|
|
1000 | 1.0mm | 6mm | 1.7mm | - | 2.5mm | - |
|
|
1000 | 1.5mm | 7mm | 2mm | - | 2.8mm | 1.7mm |
|
|
1000 | 1.5mm | 10mm | 2mm | - | 2.8mm | 1.7mm |
|
|
1000 | 2.5mm | 12mm | 2.5mm | - | 3.4mm | 2.2mm |
|
|
1000 | 2.5mm | 20mm | 2.5mm | - | 3.4mm | 2.2mm |
|
|
500 | 4.0mm | 12mm | 3.2mm | - | 4mm | 2.8mm |
|
|
500 | 6.0mm | 12mm | 3.7mm | - | 4.7mm | 3.5mm |
|
|
500 | 10.0mm | 12mm | 4.9mm | - | 5.8mm | 4.5mm |
|
|
500 | 10.0mm | 15mm | 4.9mm | - | 5.8mm | 4.5mm |
|
|
500 | 10.0mm | 18mm | 4.9mm | - | 5.8mm | 4.5mm |
|
|
100 | 16.0mm | 12mm | 6.2mm | - | 7.5mm | 5.8mm |
|
|
100 | 16.0mm | 15mm | 6.2mm | - | 7.5mm | 5.8mm |
|
|
100 | 16.0mm | 18mm | 6.2mm | - | 7.5mm | 5.8mm |
|
|
100 | 25.0mm | 18mm | 7.7mm | - | 9.5mm | 7.3mm |
|
|
50 | 35.0mm | 18mm | 8.7mm | - | 11mm | 8.3mm |
|
|
50 | 50.0mm | 25mm | 10.9mm | - | 13mm | 10.3mm |
|
|
50 | 50.0mm | 32mm | 10.9mm | - | 13mm | 10.3mm |
|
|
50 | 70.0mm | 25mm | 14.3mm | - | 15.3mm | 13.5mm |
|
|
50 | 95.0mm | 32mm | 15.5mm | - | 16.5mm | 14.7mm |
|
|
25 | 120.0mm | 32mm | 17.6mm | - | 18.6mm | 16.7mm |
|
|
25 | 150.0mm | 32mm | 20.5mm | - | 21.5mm | 19.5mm |
|
|
25 | 185.0mm | 32mm | 20.5mm | - | 21.5mm | 19.5mm |
|
