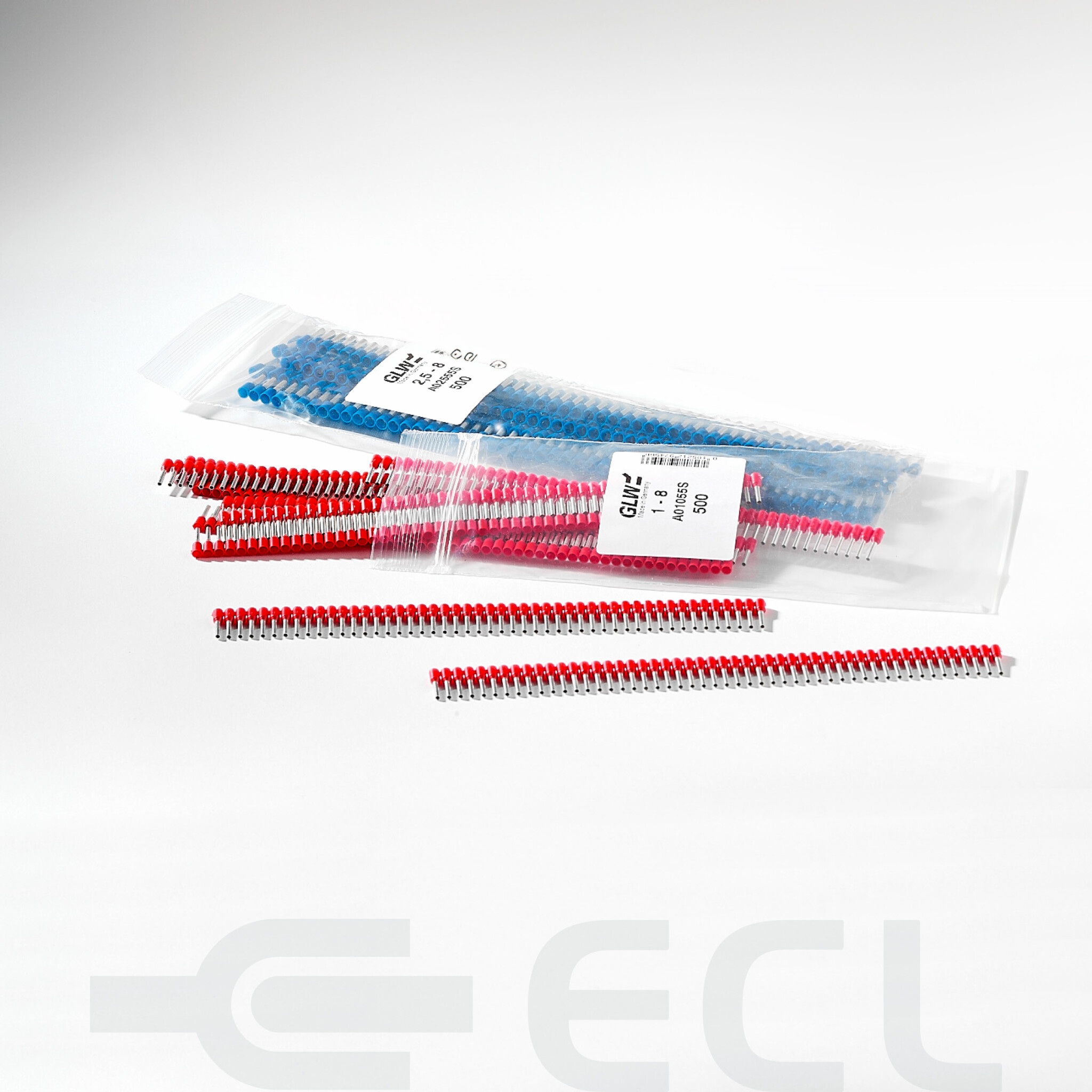

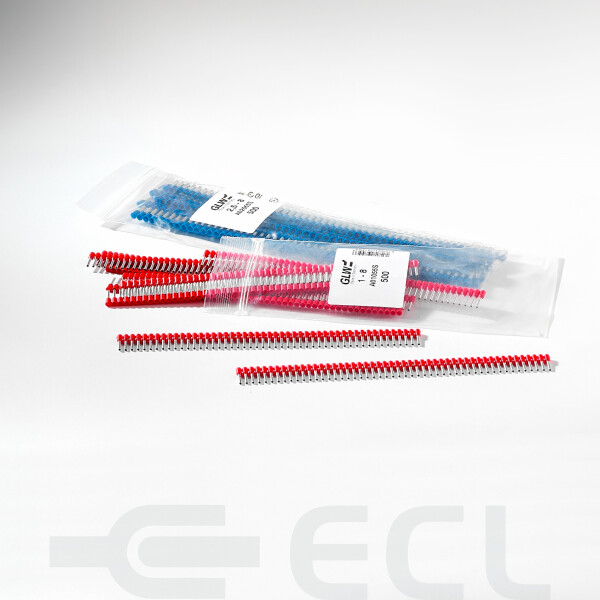

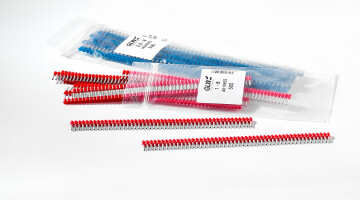

End Sleeves Insulated - Strip Form
Ideal for panel/switchboard builders regularly using ferrules.
Contact the ECL team

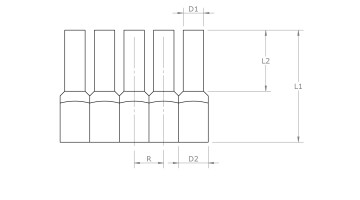

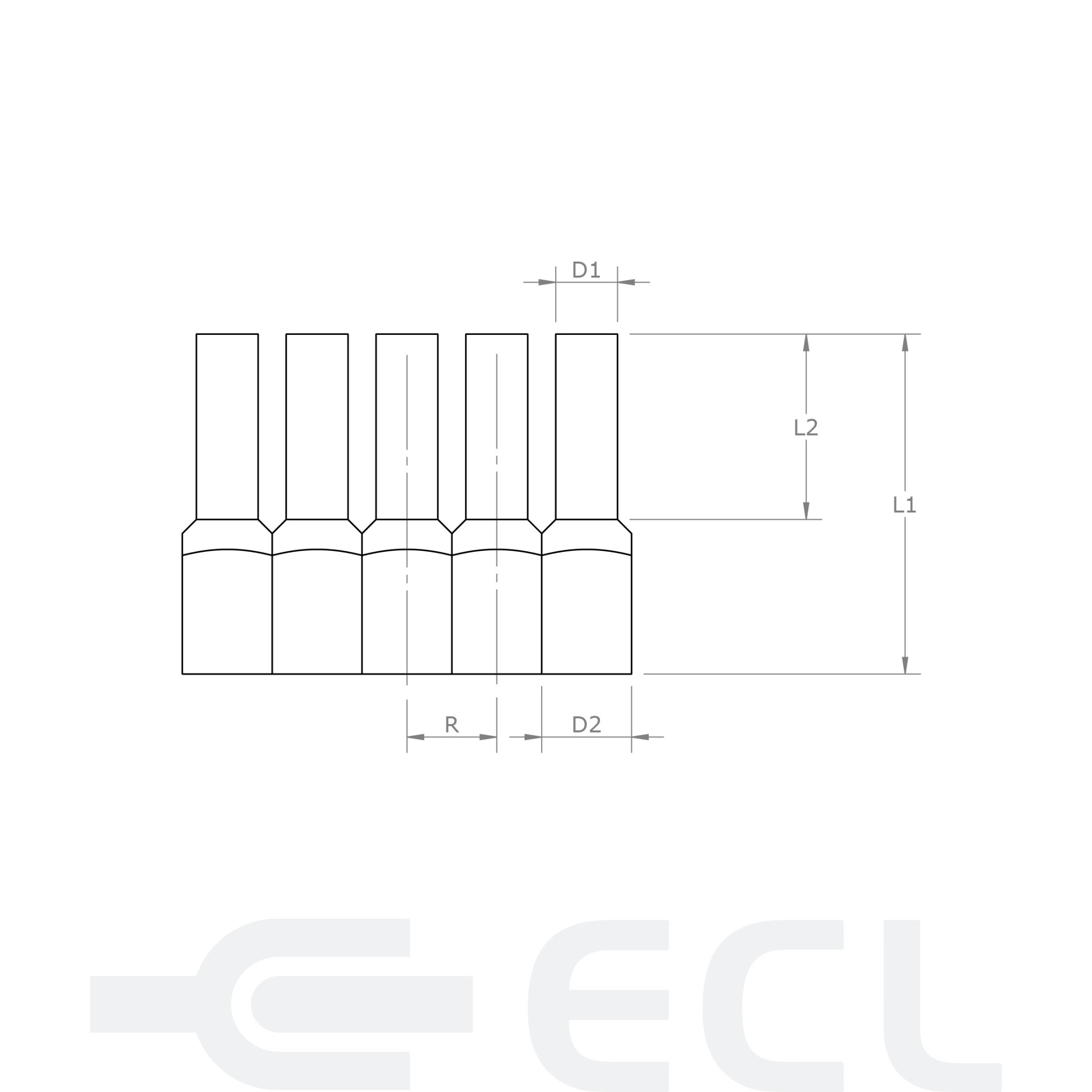

| Dimensions | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| Part Number | Nominal Conductor | Colour | Pack Size | L1 | L2 | D1 | D2 | R | |
|
|
0.5mm² | White | 10 x 50 | 14.5 | 8 | 1.1 | 2.6 | 3.5 | |
|
|
0.75mm² | Grey | 10 x 50 | 14.5 | 8 | 1.3 | 2.7 | 3.6 | |
|
|
1.0mm² | Red | 10 x 50 | 14.5 | 8 | 1.5 | 3 | 3.9 | |
|
|
1.5mm² | Black | 10 x 50 | 14.5 | 8 | 1.8 | 3.2 | 4.2 | |
|
|
2.5mm² | Blue | 10 x 50 | 14.5 | 8 | 2.3 | 4.1 | 5 | |
|
