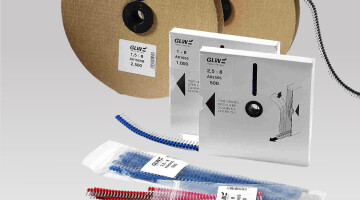

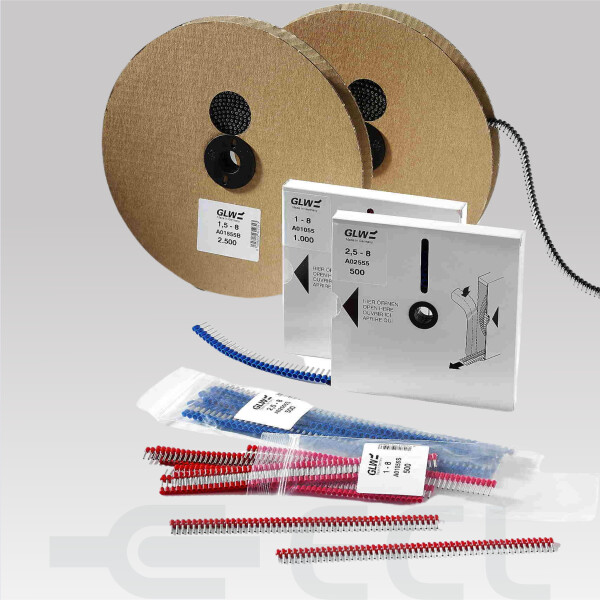

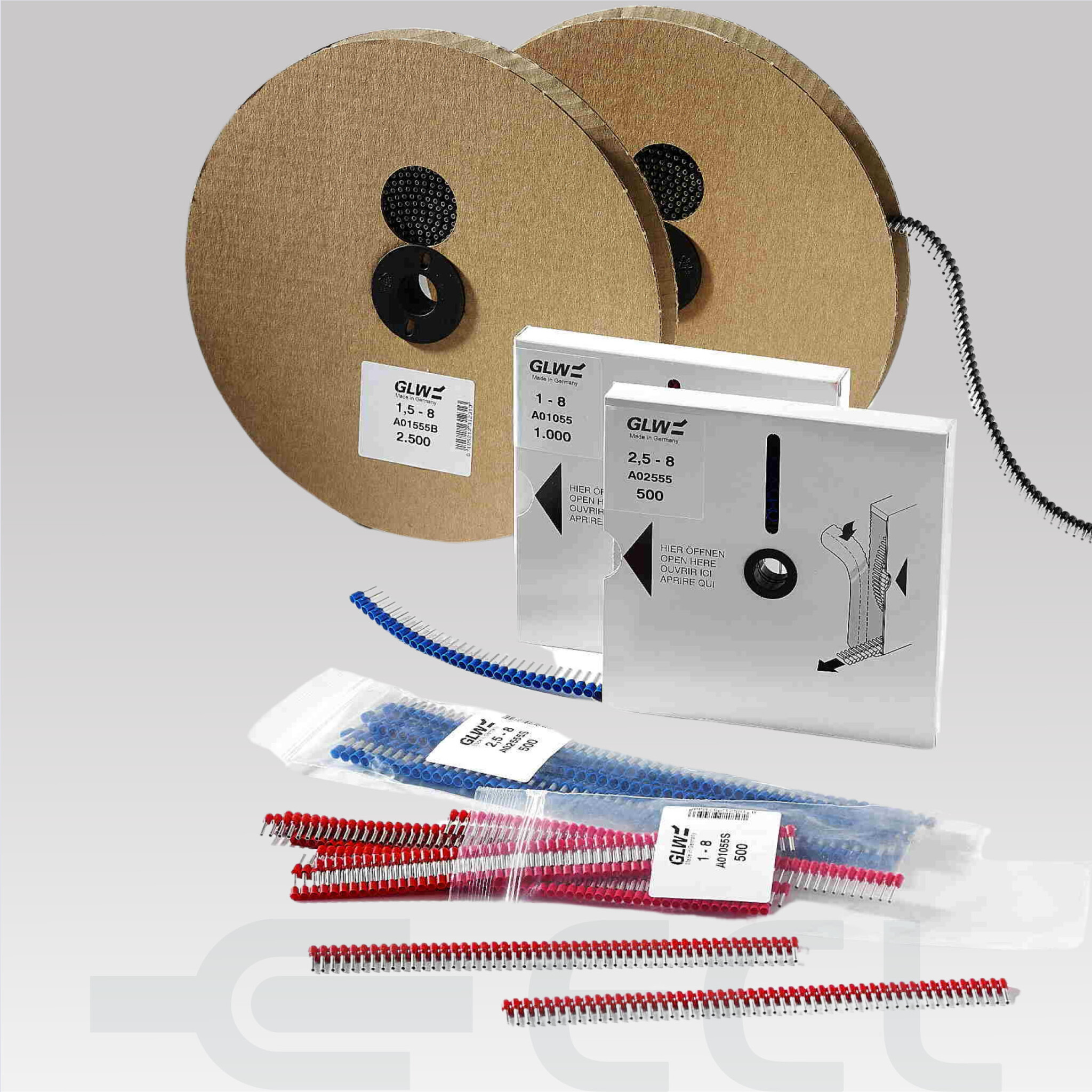

End Sleeves Insulated - Roll Form
For high use applications such as OEMs and large panel builders.
Designed to be used with GLW stripping and crimping machines.
Dispenser size 150 x 150 x 18mm
Contact the ECL team
For special lugs or other imperial sizes please
contact us
to discuss your requirement.

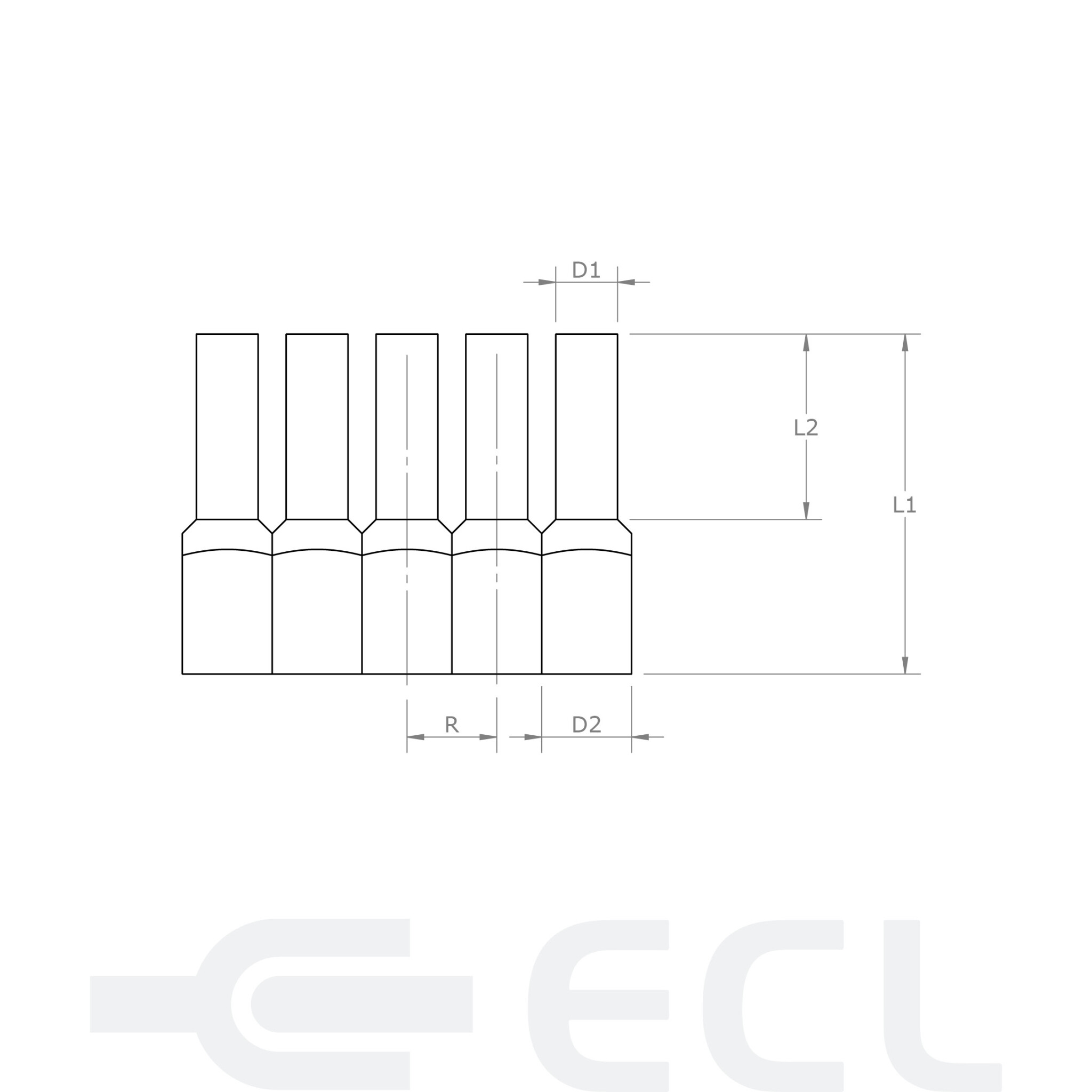

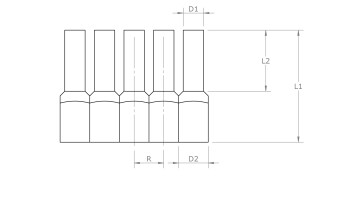

Dimensions | |||||||||
---|---|---|---|---|---|---|---|---|---|
Part Number | Nominal Conductor | Colour | Pack Size | L1 | L2 | D1 | D2 | R | |
|
0.5mm² | White | 1000 | 14.5 | 8 | 1.1 | 2.6 | 3.5 |
|
|
0.75mm² | Grey | 1000 | 14.5 | 8 | 1.3 | 2.7 | 3.6 |
|
|
1.0mm² | Red | 1000 | 14.5 | 8 | 1.5 | 3 | 3.9 |
|
|
1.5mm² | Black | 1000 | 14.5 | 8 | 1.8 | 3.2 | 4.2 |
|
|
2.5mm² | Blue | 1000 | 14.5 | 8 | 2.3 | 4.1 | 5 |
|
