EMC (VSD) Cable Glands - Brass Nickel Plated

EMC (VSD) Cable Glands - Brass Nickel Plated

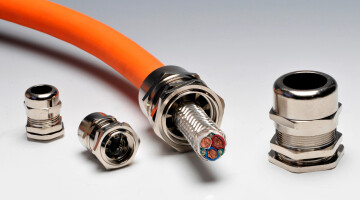

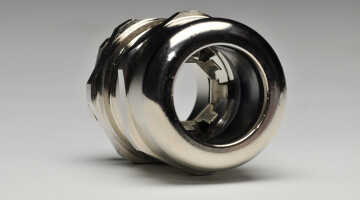

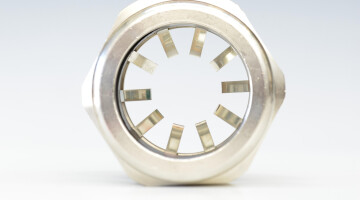

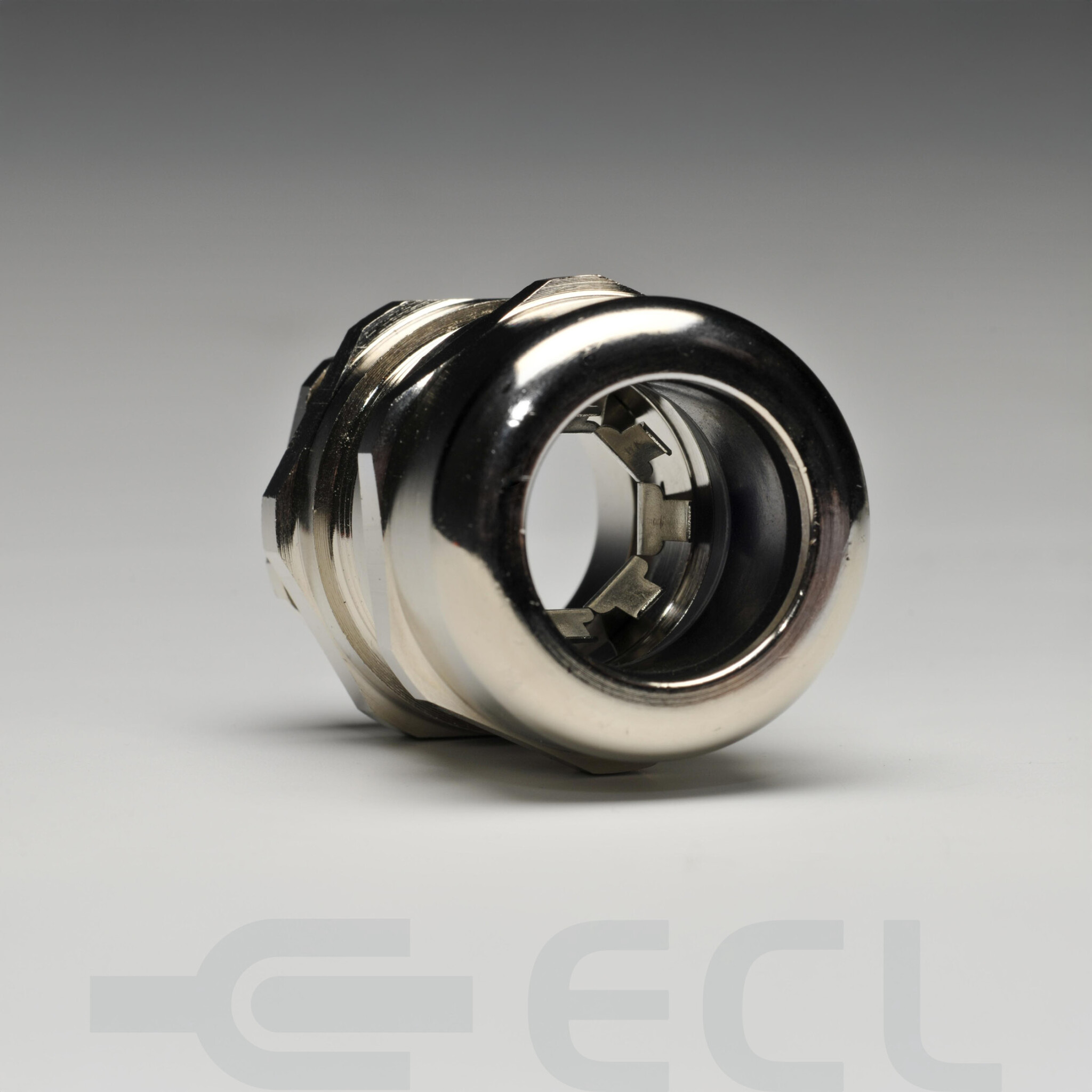

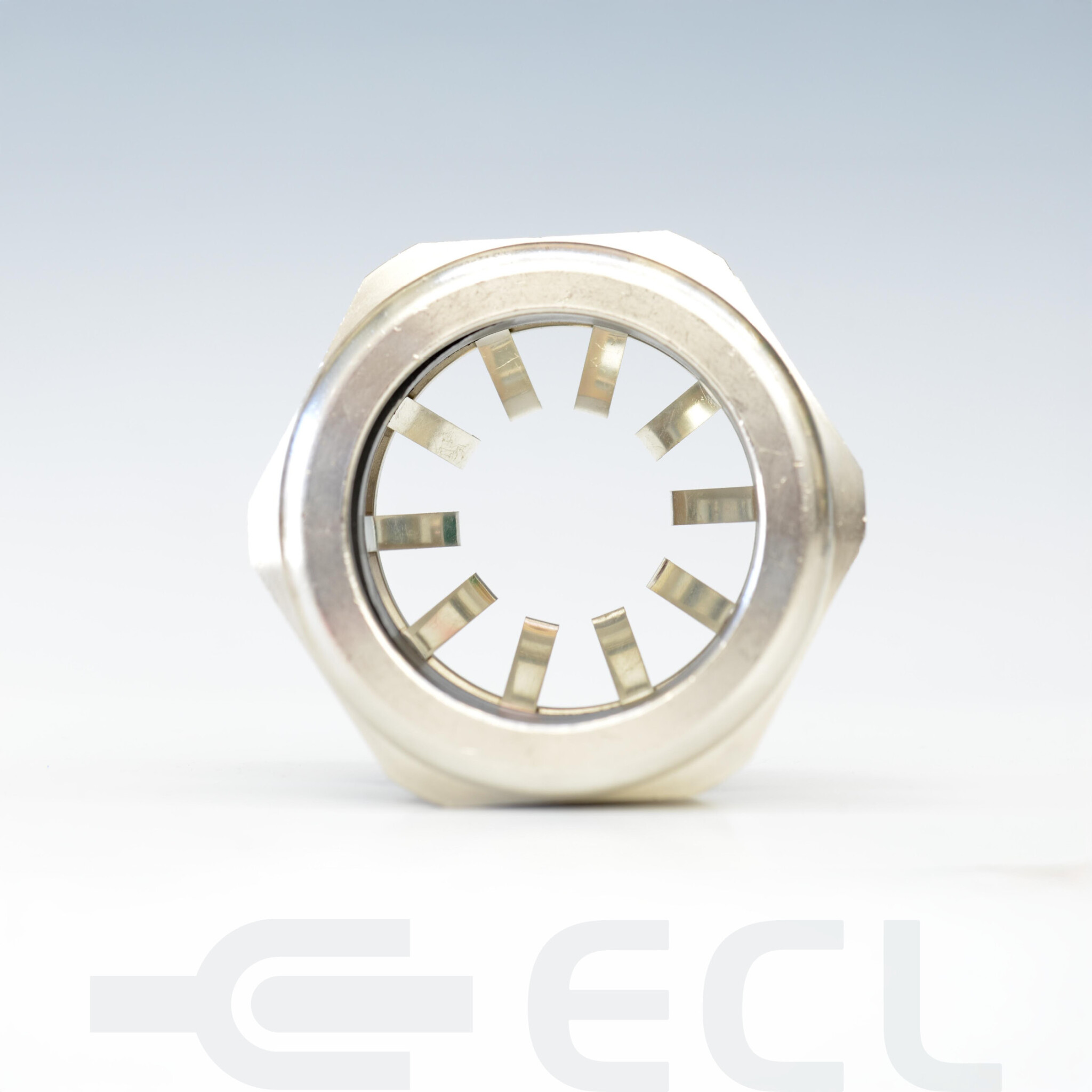

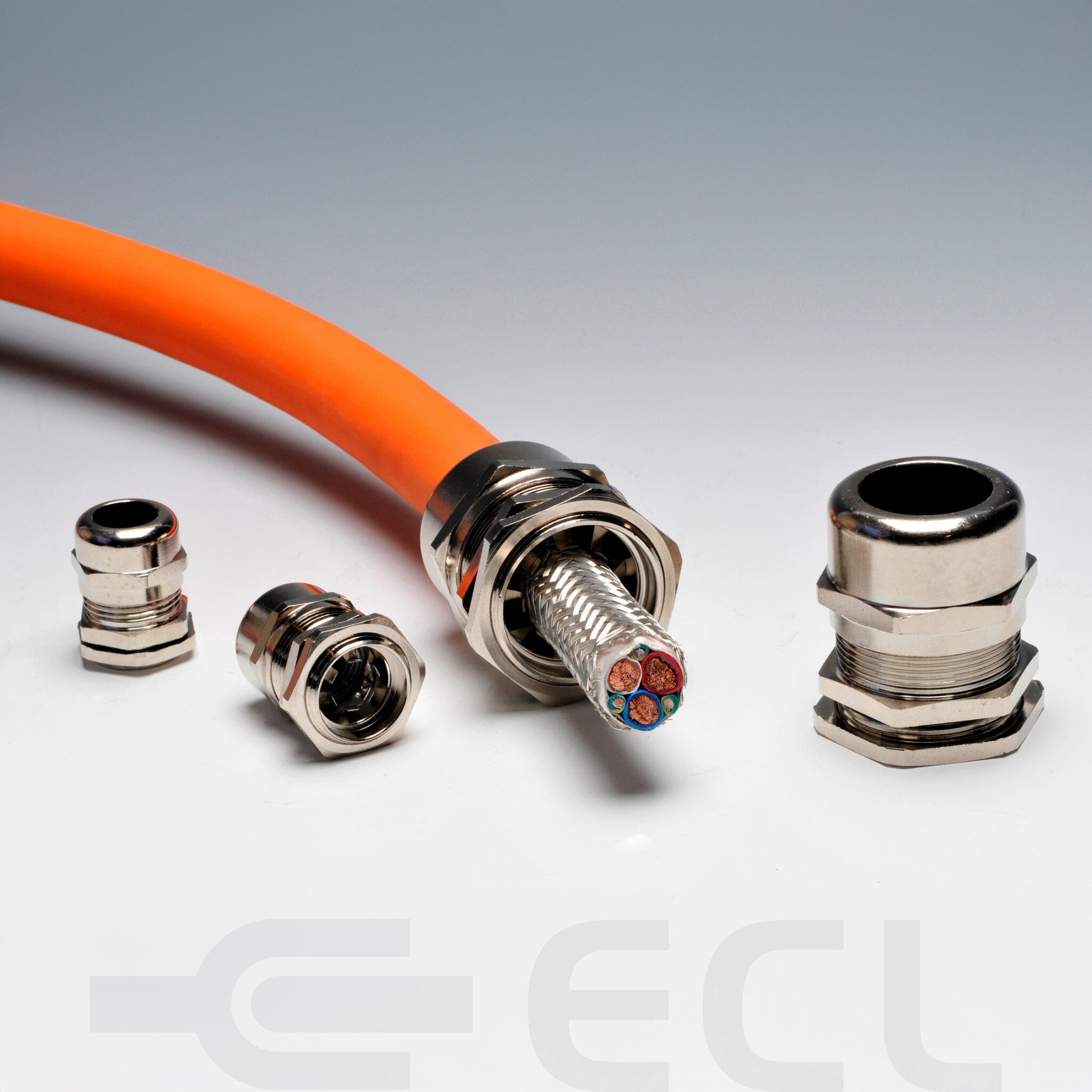

Used for variable speed drives. Special features include the patented 360-degree contact system inside the gland allowing all degrees of freedom necessary to install a cable easily. In addition to this the G4 gland offers exceptional shielding and derivation test values.

Technical Details:

Material:	Body: Brass Nickel Plated Seal: CR (Chloroprene) Clamping Insert: PA 6 (Polyamide 6) Contact Spring: Special Copper Alloy O-Ring: NBR
Ingress Protection Rating:	IP68 - 5 Bar, 30 min
Flammability:	V2 according to UL94
Operating Temp:	Permanent: -20°C to 100°C Intermittent: -40°C to 150°C

Contact the ECL team

EMC VSD Cable Glands Brass Nickel Plated

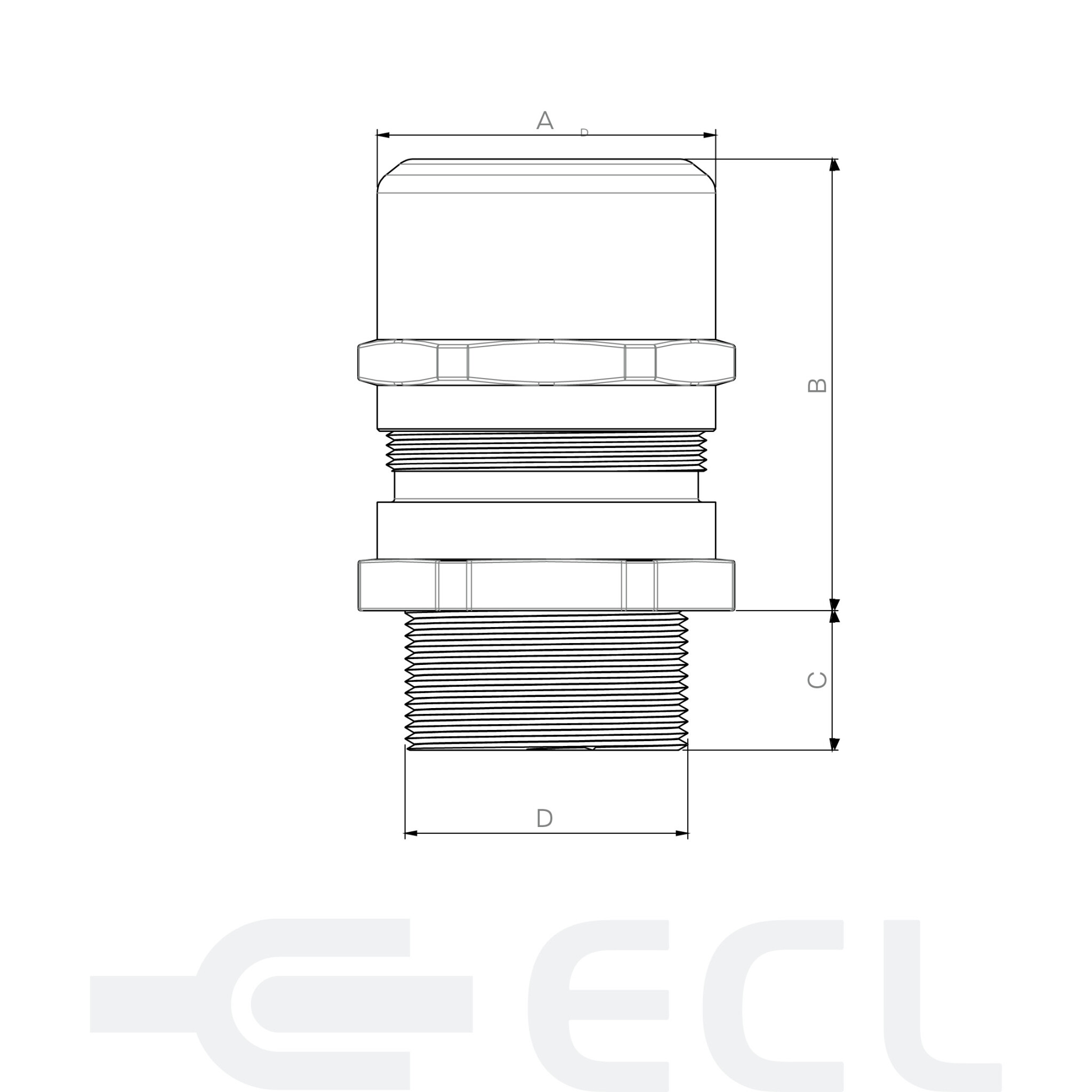

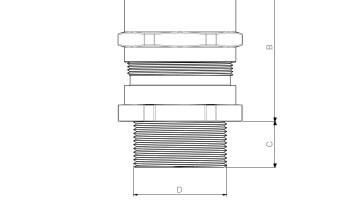

Part Number	Thread Size D	Thread Length mm C	Length mm B	Cable Outside Dia min-max mm	Shield Diameter Range mm	Shield Diameter Range mm	Dia Across Corners mm A	Dia Across Corners mm A	Dia Across Flats mm A
	M16	12	35	45422	3.5-8	3.5-8	22	22	20	- + Part Number Thread Size D: Thread Length mm C: Length mm B: Cable Outside Dia min-max mm: Shield Diameter Range mm: Shield Diameter Range mm: Dia Across Corners mm A: Dia Across Corners mm A: Dia Across Flats mm A: - +
	M20	12	41.5	7.5-14	5.5-11.5	5.5-11.5	26.8	26.8	24	- + Part Number Thread Size D: Thread Length mm C: Length mm B: Cable Outside Dia min-max mm: Shield Diameter Range mm: Shield Diameter Range mm: Dia Across Corners mm A: Dia Across Corners mm A: Dia Across Flats mm A: - +
	M25	12	44.5	45583	7-14	7-14	33	33	30	- + Part Number Thread Size D: Thread Length mm C: Length mm B: Cable Outside Dia min-max mm: Shield Diameter Range mm: Shield Diameter Range mm: Dia Across Corners mm A: Dia Across Corners mm A: Dia Across Flats mm A: - +
	M32	15	55	16-25	12-20	12-20	44.5	44.5	40	- + Part Number Thread Size D: Thread Length mm C: Length mm B: Cable Outside Dia min-max mm: Shield Diameter Range mm: Shield Diameter Range mm: Dia Across Corners mm A: Dia Across Corners mm A: Dia Across Flats mm A: - +
	M40	15	62.5	22-32	18-27	18-27	55.5	55.5	50	- + Part Number Thread Size D: Thread Length mm C: Length mm B: Cable Outside Dia min-max mm: Shield Diameter Range mm: Shield Diameter Range mm: Dia Across Corners mm A: Dia Across Corners mm A: Dia Across Flats mm A: - +
	M50	15	74	30-38	26-34	26-34	64	64	58	- + Part Number Thread Size D: Thread Length mm C: Length mm B: Cable Outside Dia min-max mm: Shield Diameter Range mm: Shield Diameter Range mm: Dia Across Corners mm A: Dia Across Corners mm A: Dia Across Flats mm A: - +
	M63S	15	60	34-44	30-40	30-40	75	75	64	- + Part Number Thread Size D: Thread Length mm C: Length mm B: Cable Outside Dia min-max mm: Shield Diameter Range mm: Shield Diameter Range mm: Dia Across Corners mm A: Dia Across Corners mm A: Dia Across Flats mm A: - +
	M63L	15	75	37-53	33-49	33-49	83	83	75	- + Part Number Thread Size D: Thread Length mm C: Length mm B: Cable Outside Dia min-max mm: Shield Diameter Range mm: Shield Diameter Range mm: Dia Across Corners mm A: Dia Across Corners mm A: Dia Across Flats mm A: - +
	M75S	20	54	53-64	45-60	45-60	100	100	90	- + Part Number Thread Size D: Thread Length mm C: Length mm B: Cable Outside Dia min-max mm: Shield Diameter Range mm: Shield Diameter Range mm: Dia Across Corners mm A: Dia Across Corners mm A: Dia Across Flats mm A: - +
	M75L	20	52	60-67	45-60	45-60	100	100	90	- + Part Number Thread Size D: Thread Length mm C: Length mm B: Cable Outside Dia min-max mm: Shield Diameter Range mm: Shield Diameter Range mm: Dia Across Corners mm A: Dia Across Corners mm A: Dia Across Flats mm A: - +
