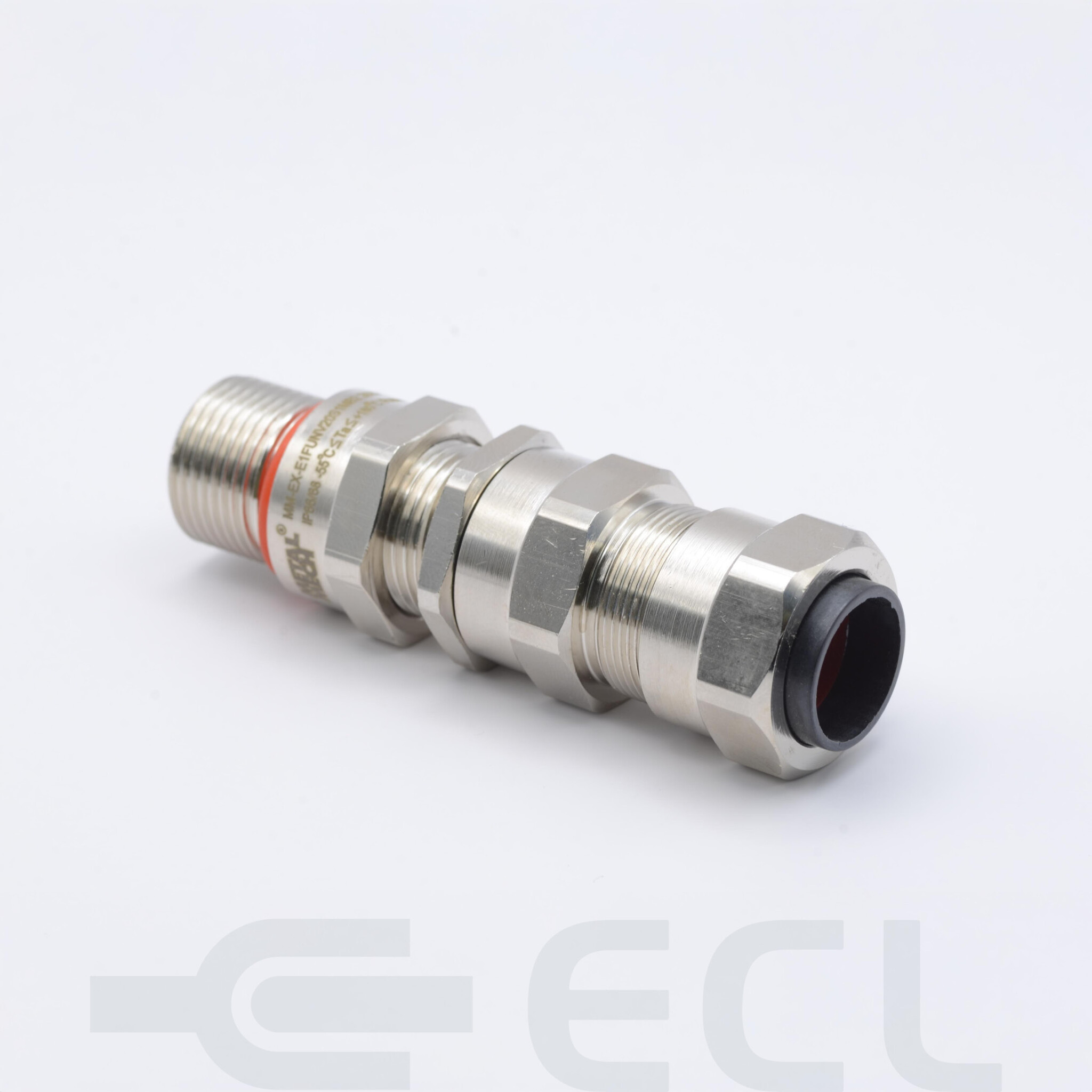

E1FW Flameproof Armoured Cable Glands

For use in Zone 1 and Zone 2 areas. Manufactured from nickel plated brass for industrial applications. Provides a flameproof (Type D) seal on the cable inner bedding. Allows mechanical cable retention and earth continuity via the cable armour termination. Reversible armour cone and clamping ring arrangement facilitates remote make off and enables the cable to be disconnected from the equipment. Stepped cone is suitable for SWA cables. Grooved cone is suitable for all other approved armoured cables.

Technical Details:

Gland Material:	Brass
IP Rating:	IP66 / IP68 for 2 hours at 1.5m
Sealing Ring:	Double Compression Sealing (Sealing on both outer and inner sheath)
Operating Temp.:	Standard Seals (Nitrile): -20°C to 80°C on Request (Silicone): -60°C to 180°C
Finish:	Nickel Plated Brass. Options also available in stainless steel
Accessories:	PVC S/ LSF Shroud, Lock Nut, Earth Tag, Serrated Washer, Adaptor / Reducer.
IECEx Certificate No:	IECEx PRE 20.0124X
ATEX Certificate No:	Presafe 20 ATEX 48906X
EAC Certificate No:	RU C-IN.AA71.B.00212/20
Protection Type:	Ex d, Ex e, Ex t

Contact the ECL team

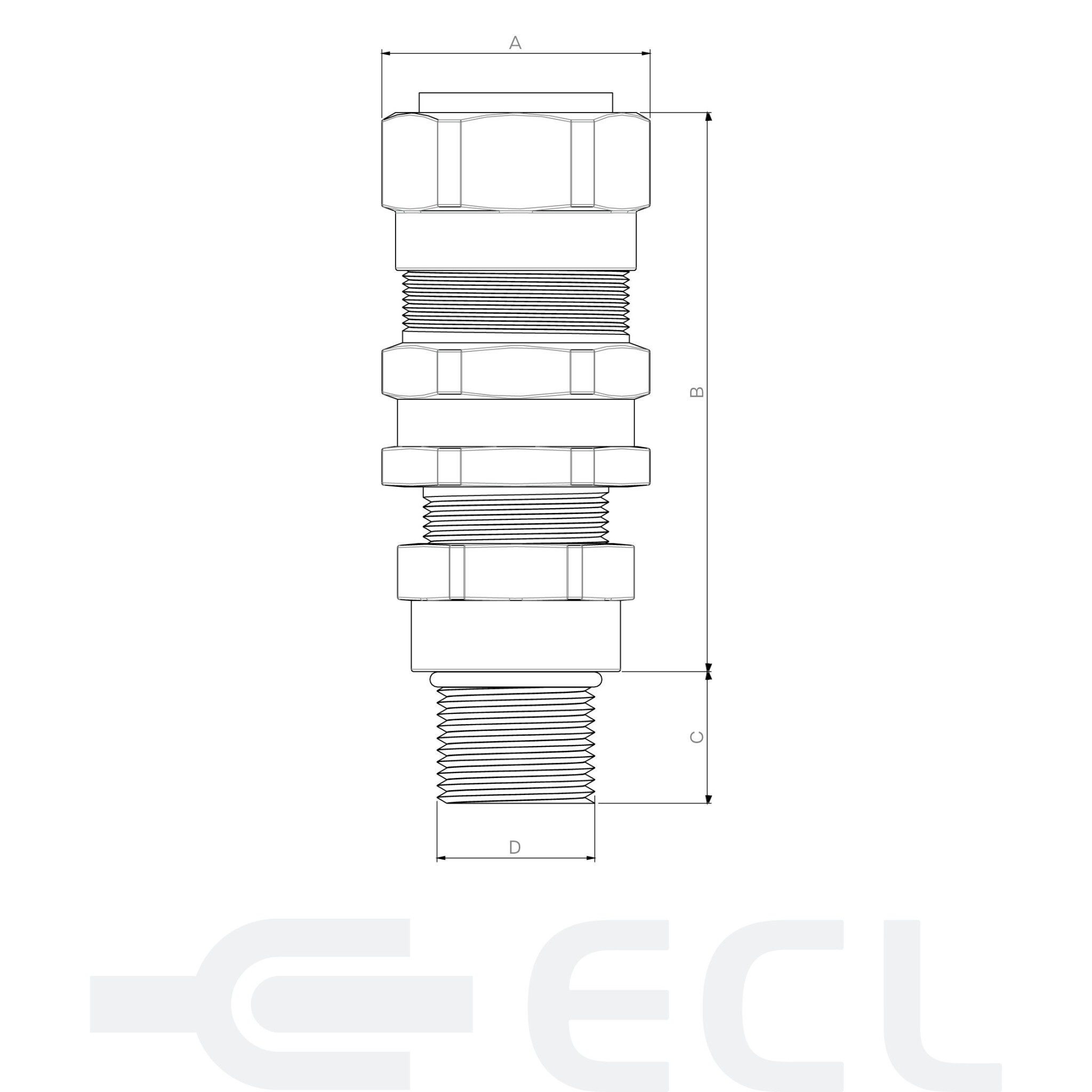

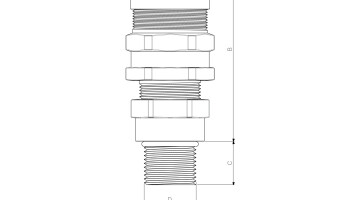

E1FW Flameproof Armoured Cable Glands dimensions

E1FW Flameproof Armoured Cable Glands standards

		Grooved Cone		Stepped Cone		Gland Dimensions
Part Number	Cable Diameter min-max mm	Max	Min	Max	Min	Thread Size D	Thread Length C	Dia Across Corners mm A	Dia Across Flats mm A
	6.2-13.1	0.3	1	0.8	1.25	20	17	25	27.5	- + Part Number Cable Diameter min-max mm: Max: Min: Max: Min: Thread Size D: Thread Length C: Dia Across Corners mm A: Dia Across Flats mm A: - +
	9.6-15.5	0.3	1	0.8	1.25	20	17	25	27.5	- + Part Number Cable Diameter min-max mm: Max: Min: Max: Min: Thread Size D: Thread Length C: Dia Across Corners mm A: Dia Across Flats mm A: - +
	12.5-20.9	0.4	1	0.8	1.25	20	17	31	34	- + Part Number Cable Diameter min-max mm: Max: Min: Max: Min: Thread Size D: Thread Length C: Dia Across Corners mm A: Dia Across Flats mm A: - +
	18.3-25.6	0.4	1.2	1.25	1.6	25	17	38	42	- + Part Number Cable Diameter min-max mm: Max: Min: Max: Min: Thread Size D: Thread Length C: Dia Across Corners mm A: Dia Across Flats mm A: - +
	23.7-33.4	0.4	1.2	1.6	2	32	17	46	51	- + Part Number Cable Diameter min-max mm: Max: Min: Max: Min: Thread Size D: Thread Length C: Dia Across Corners mm A: Dia Across Flats mm A: - +
	28-39.5	0.4	1.6	1.6	2	40	17	55	60	- + Part Number Cable Diameter min-max mm: Max: Min: Max: Min: Thread Size D: Thread Length C: Dia Across Corners mm A: Dia Across Flats mm A: - +
	35.2-46	0.4	1.6	2	2.5	50	17	61	66.5	- + Part Number Cable Diameter min-max mm: Max: Min: Max: Min: Thread Size D: Thread Length C: Dia Across Corners mm A: Dia Across Flats mm A: - +
	40.5-52.4	0.6	1.6	2	2.5	50	17	70	76	- + Part Number Cable Diameter min-max mm: Max: Min: Max: Min: Thread Size D: Thread Length C: Dia Across Corners mm A: Dia Across Flats mm A: - +
	45.6-58.5	0.6	1.6	2	2.5	63	17	75	83	- + Part Number Cable Diameter min-max mm: Max: Min: Max: Min: Thread Size D: Thread Length C: Dia Across Corners mm A: Dia Across Flats mm A: - +
	54.6-64.5	0.6	1.6	2	2.5	63	17	80	89	- + Part Number Cable Diameter min-max mm: Max: Min: Max: Min: Thread Size D: Thread Length C: Dia Across Corners mm A: Dia Across Flats mm A: - +
	59-70.4	0.6	1.6	2	2.5	75	17	91	98.5	- + Part Number Cable Diameter min-max mm: Max: Min: Max: Min: Thread Size D: Thread Length C: Dia Across Corners mm A: Dia Across Flats mm A: - +
	66.7-76.3	0.6	1.6	2.5	3	75	17	99.5	109	- + Part Number Cable Diameter min-max mm: Max: Min: Max: Min: Thread Size D: Thread Length C: Dia Across Corners mm A: Dia Across Flats mm A: - +
	76.2-87.2	0.8	1.6	3.15	4	90	24	114.5	124	- + Part Number Cable Diameter min-max mm: Max: Min: Max: Min: Thread Size D: Thread Length C: Dia Across Corners mm A: Dia Across Flats mm A: - +
