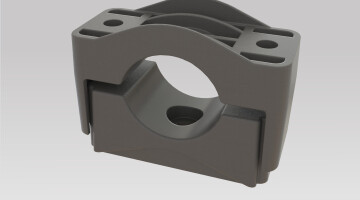

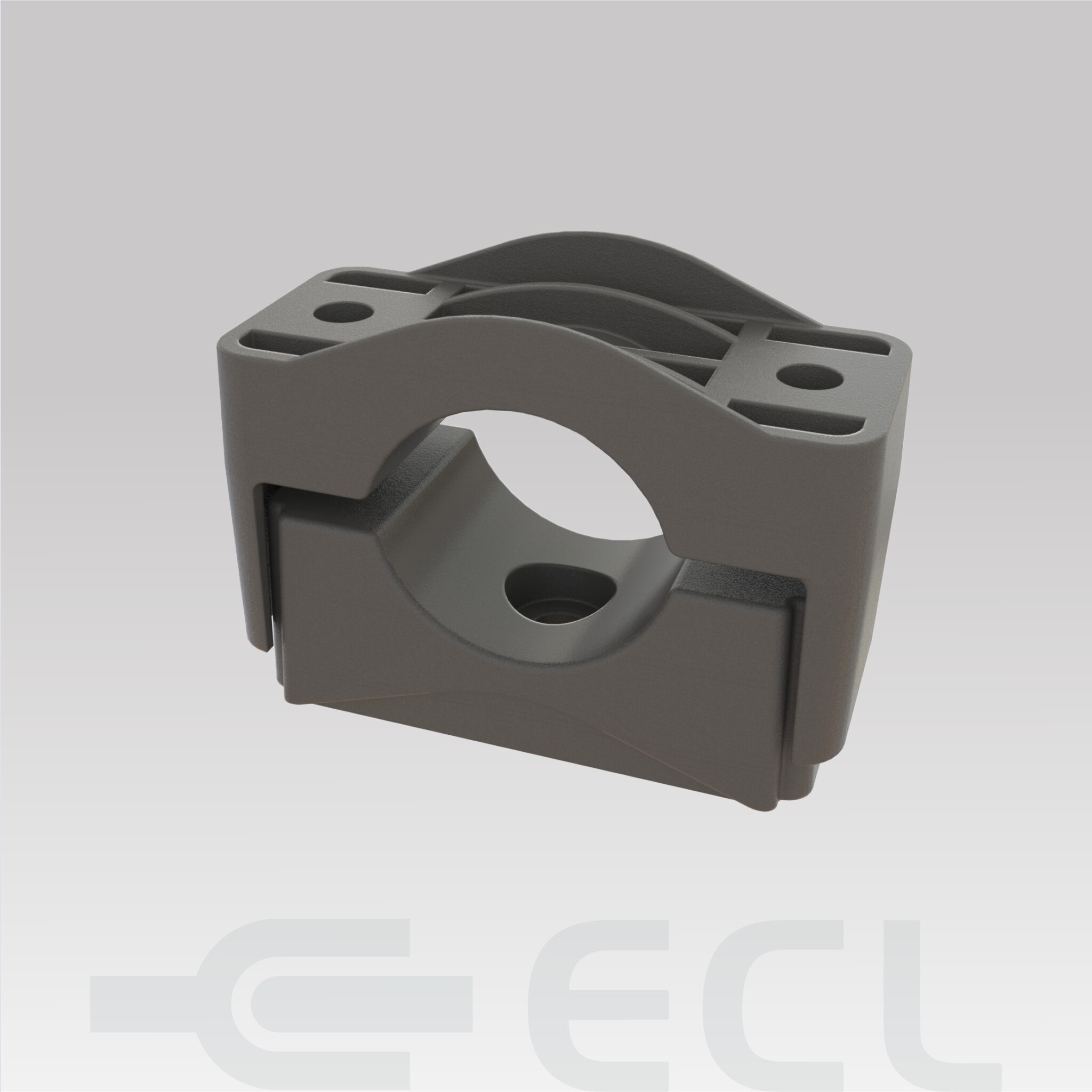

Dutchclamp Cable Clamps - SEG Types

Dutchclamp® SEG Cable Clamps are specially designed for short circuit resistant fastening of single or multi-core medium and high voltage cables. SEG Types are available in 2 models and suitable for cables with a diameter from 26mm to 50mm (SEG 26-50) and 50mm to 80mm (SEG 50-80).

Features:

• Resistant to oils, fats, aggressive chemicals, frost, heat, UV, ozone, salt, moisture, and acids
• Stackable
• Provided with an extra centre hole for mounting with 1 bolt
• Self-extinguishing V-0 (UL94), Halogen free.
• Temperature range from -40°C to 125°C. (225°C momentarily)
• Coloured black
• No magnetism/conductivity
• Custom mounting available
• Fastening materials can be supplied to size
• No oxidation/corrosion
• No sharp angles
• Recyclable
• Lifetime warranty
• Certified in accordance with NEN-EN-IEC 61914:2009

Click here for Clamp Inserts which are compatible with SEG Types Dutchclamps.
