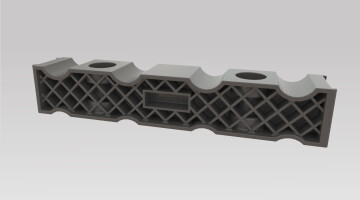

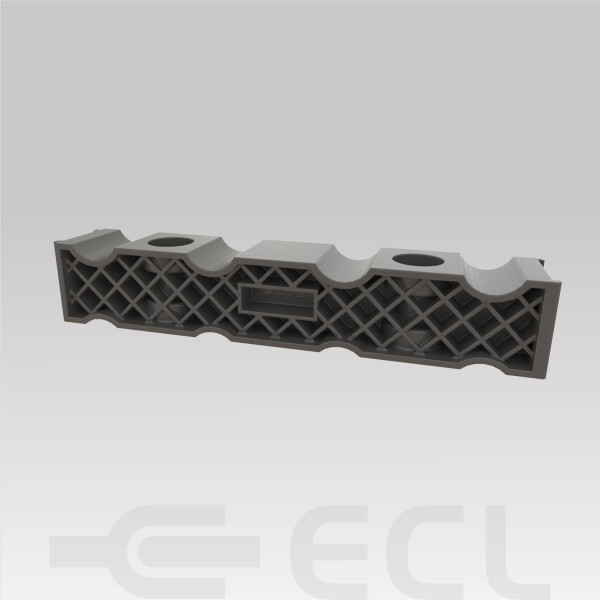

Dutchclamp Cable Clamps - IM Types

Dutchclamp® IM Cable Blocks are specially designed for short circuit resistant and safe fastening of single or multi-core medium and high voltage cables. IM types are available in 3 models and suitable for cables with a diameter from 12mm to 32mm and 32mm to 48mm. They can be coupled to each other laterally by means of a dovetail joint and are stackable.

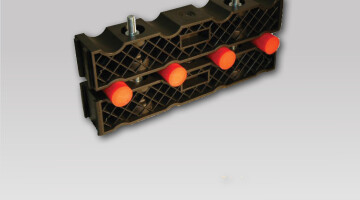

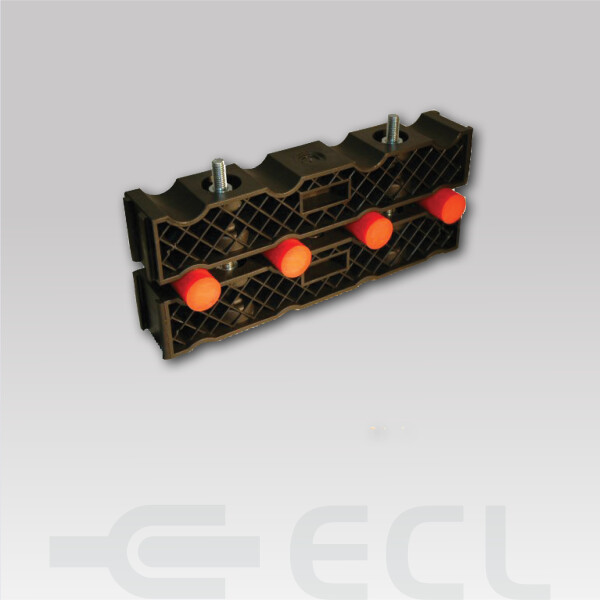

IM Type sold in pairs.

Features:

• Resistant to short-circuit currents/forces
• Resistant to oils, fats, aggressive chemicals, frost, heat, UV, ozone, salt, moisture, and acids
• Self-extinguishing V-0 (UL94), Halogen free
• Temperature range from -40°C to 125°C. (225°C momentarily)
• Coloured black
• No magnetism/conductivity
• Custom mounting available
• Fastening materials can be supplied to size
• No oxidation/corrosion
• No sharp angles
• Recyclable
• Stackable
• Lifetime warranty
• Certified in accordance with NEN-EN-IEC 61914:2009
