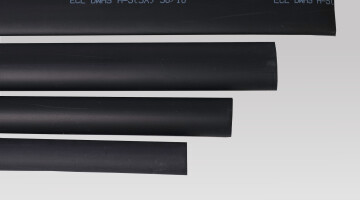

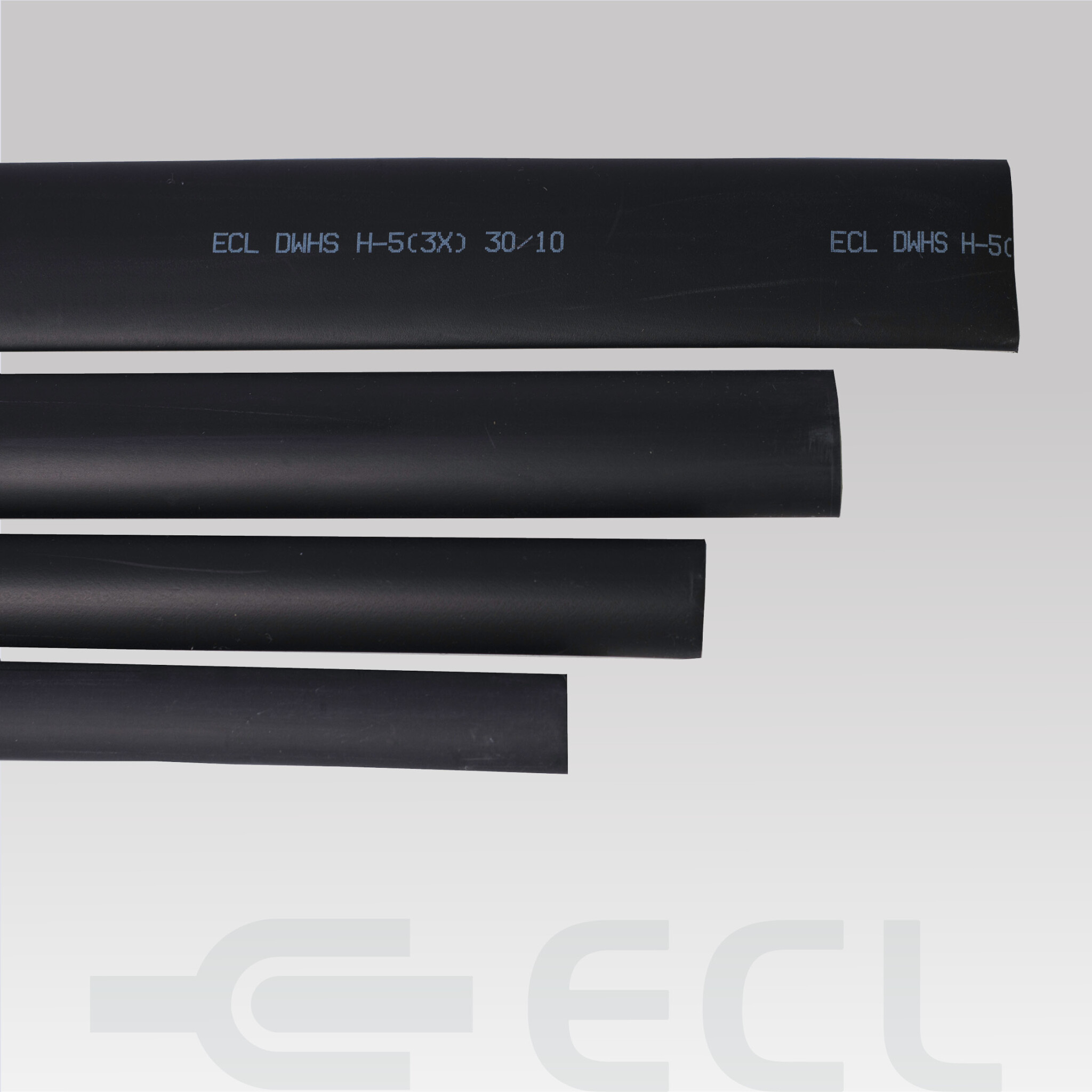

Dual Wall Glue Lined Heatshrink
DWHS is a cross linked polyolefin tubing with an adhesive lining.
Features:
- 3:1 shrink ratio
- Longitudinal shrink ratio: ≤+8%
- Out jacket flame retardant, inner adhesive self-extinguished
- Super sealing against water, moisture or other contaminants
- Continuous operating temperature: -55°C to 125°C
- Shrink temperature: 120°C
Contact the ECL team
| Part Number | Size mm | Maximum Internal Diameter mm | Internal Diameter Recovered mm | |
|---|---|---|---|---|
|
|
3 | 3 | 1 | |
|
|
4.8 | 5 | 2 | |
|
|
6 | 6 | 2 | |
|
|
9 | 9 | 3 | |
|
|
12 | 12 | 4 | |
|
|
19 | 19 | 6 | |
|
|
24 | 24 | 8 | |
|
|
30 | 30 | 10 | |
|
|
40 | 40 | 13 | |
|
|
50 | 50 | 19 | |
|
