CW Armoured Cable Glands Stainless Steel

CW Armoured Cable Glands Stainless Steel

For use with steel wire armoured (SWA) cable. Manufactured from 316 Stainless Steel, they are suitable for both indoor and outdoor applications. Glands are supplied complete with locknut.

Technical Details:

Material:	Brass Nickel Plated
Sealing Method:	Double Compression Sealing

Contact the ECL team

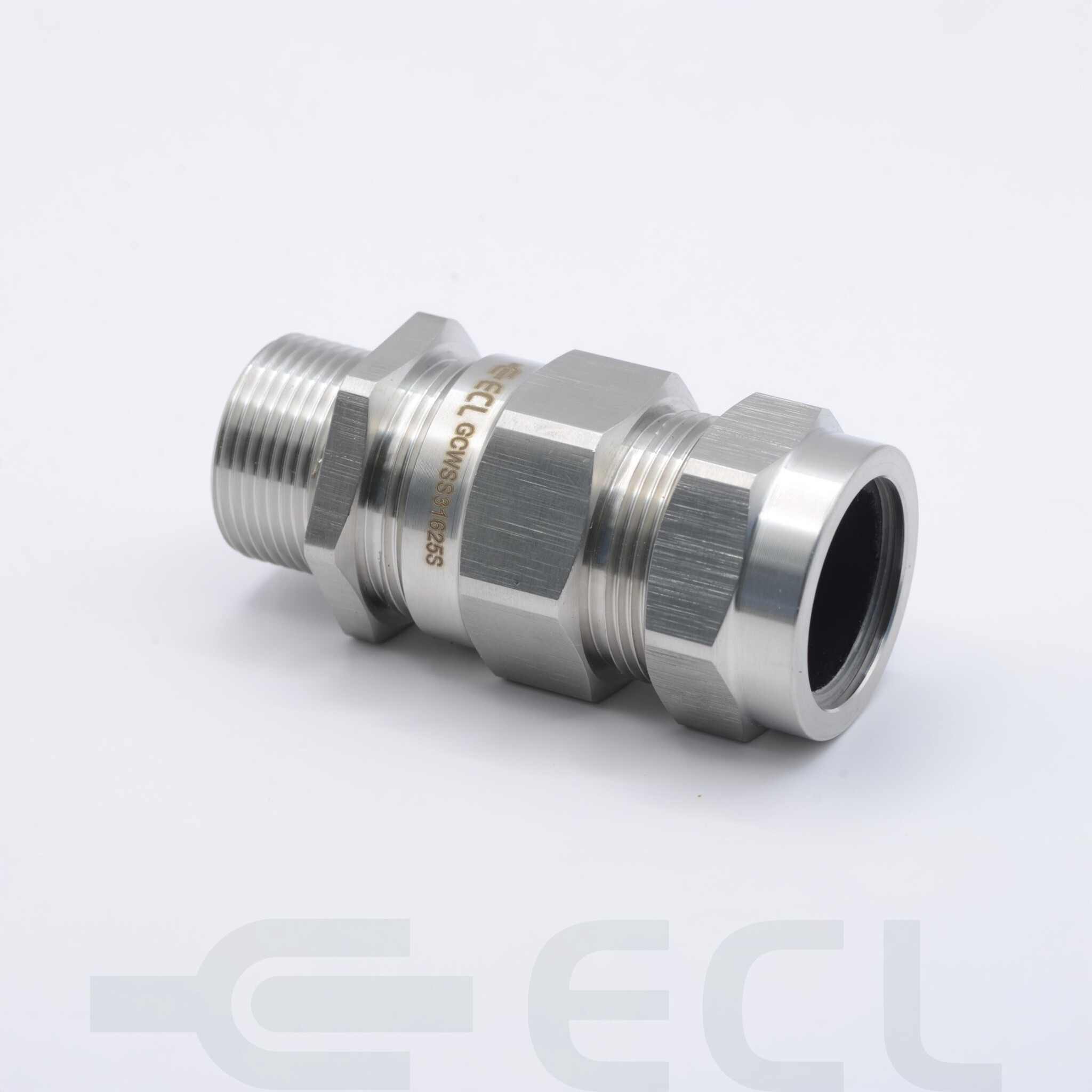

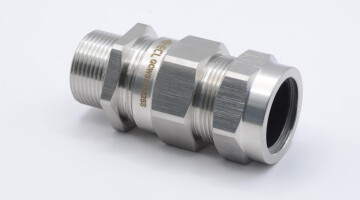

CW Armoured Cable Glands Stainless Steel

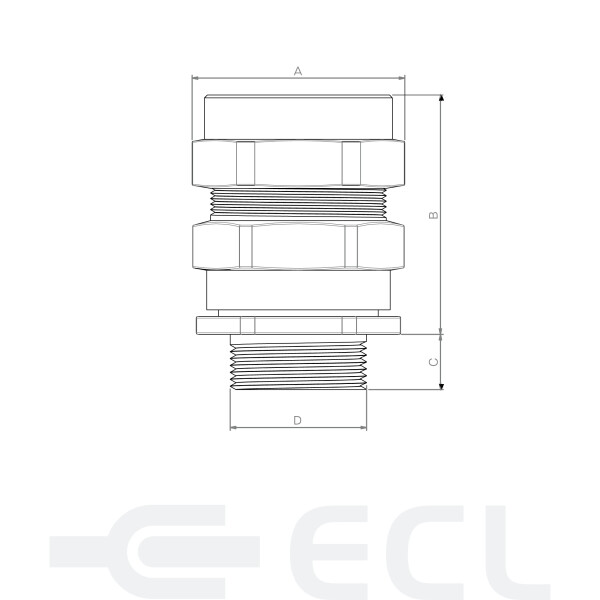

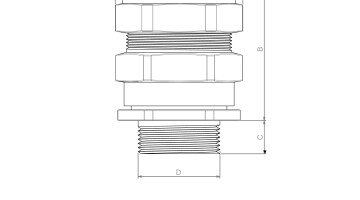

CW Armoured Cable Glands dimensions v2

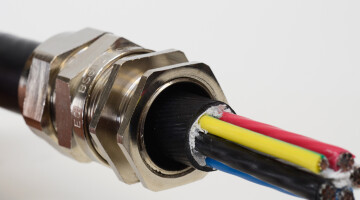

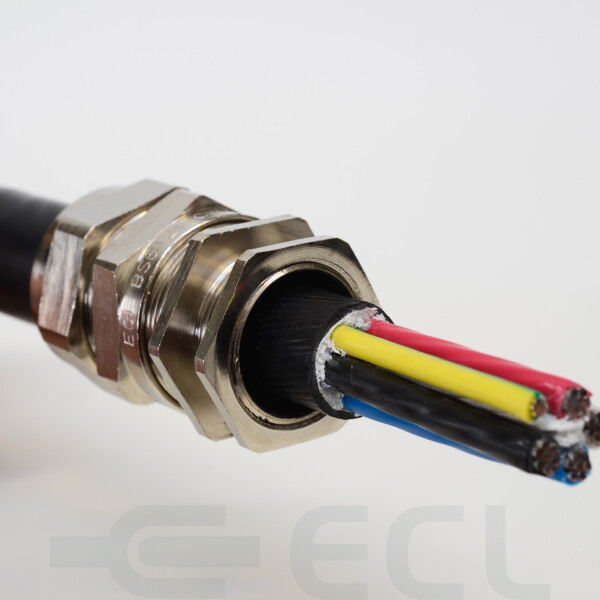

CW Armoured Cable Glands Stainless Steel insitu

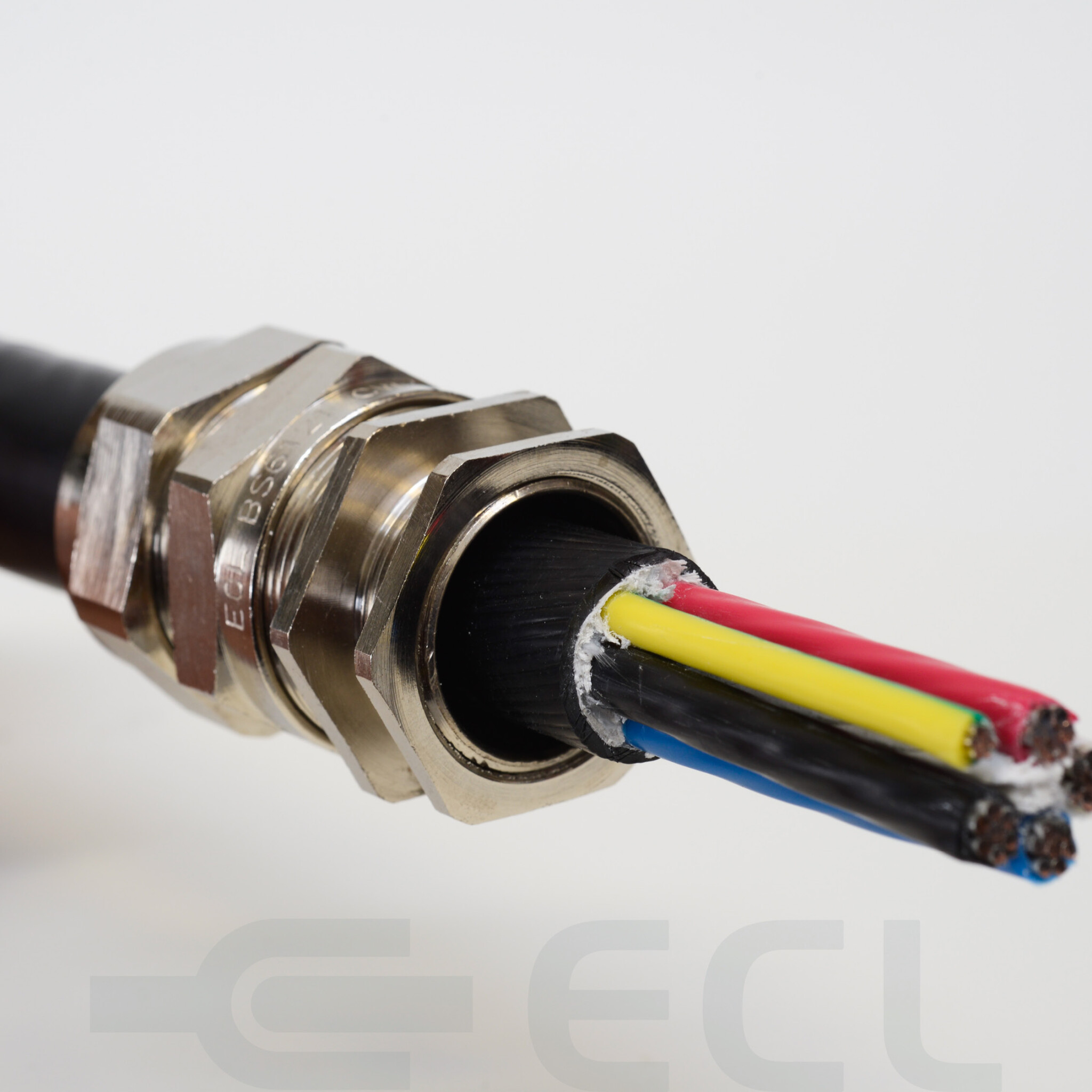

CW Armoured Cable Glands Stainless Steel insitu2

Part Number	Thread Size D	Thread Length mm C	Cable Dia min-max mm	Cable Dia Under Armour mm	Dia Across Corners mm A	Dia Across Corners mm A	Dia Across Flats mm A	Dia Across Flats mm A
	M20	10	11.8-15.4	8.8-11.6	26	26	24	24	- + Part Number Thread Size D: Thread Length mm C: Cable Dia min-max mm: Cable Dia Under Armour mm: Dia Across Corners mm A: Dia Across Corners mm A: Dia Across Flats mm A: Dia Across Flats mm A: - +
	M20	10	11.8-15.4	8.8-11.6	26	26	24	24	- + Part Number Thread Size D: Thread Length mm C: Cable Dia min-max mm: Cable Dia Under Armour mm: Dia Across Corners mm A: Dia Across Corners mm A: Dia Across Flats mm A: Dia Across Flats mm A: - +
	M20	10	15-20.3	11-13.9	30	30	27	27	- + Part Number Thread Size D: Thread Length mm C: Cable Dia min-max mm: Cable Dia Under Armour mm: Dia Across Corners mm A: Dia Across Corners mm A: Dia Across Flats mm A: Dia Across Flats mm A: - +
	M25	10	18.2-23.5	13.3-16.8	35.5	35.5	32	32	- + Part Number Thread Size D: Thread Length mm C: Cable Dia min-max mm: Cable Dia Under Armour mm: Dia Across Corners mm A: Dia Across Corners mm A: Dia Across Flats mm A: Dia Across Flats mm A: - +
	M25	10	21.5-27	16.5-20	39.5	39.5	36	36	- + Part Number Thread Size D: Thread Length mm C: Cable Dia min-max mm: Cable Dia Under Armour mm: Dia Across Corners mm A: Dia Across Corners mm A: Dia Across Flats mm A: Dia Across Flats mm A: - +
	M32	10	26.3-31.8	20-23.5	46	46	41	41	- + Part Number Thread Size D: Thread Length mm C: Cable Dia min-max mm: Cable Dia Under Armour mm: Dia Across Corners mm A: Dia Across Corners mm A: Dia Across Flats mm A: Dia Across Flats mm A: - +
	M32	10	28.3-33.8	23.2-26.7	51	51	45	45	- + Part Number Thread Size D: Thread Length mm C: Cable Dia min-max mm: Cable Dia Under Armour mm: Dia Across Corners mm A: Dia Across Corners mm A: Dia Across Flats mm A: Dia Across Flats mm A: - +
	M40	15	32.7-39.4	26-30.5	56	56	51	51	- + Part Number Thread Size D: Thread Length mm C: Cable Dia min-max mm: Cable Dia Under Armour mm: Dia Across Corners mm A: Dia Across Corners mm A: Dia Across Flats mm A: Dia Across Flats mm A: - +
	M40	15	33.8-40.5	29.2-33.7	57.5	57.5	52	52	- + Part Number Thread Size D: Thread Length mm C: Cable Dia min-max mm: Cable Dia Under Armour mm: Dia Across Corners mm A: Dia Across Corners mm A: Dia Across Flats mm A: Dia Across Flats mm A: - +
	M50	15	40-46.7	33-39.5	65	65	59	59	- + Part Number Thread Size D: Thread Length mm C: Cable Dia min-max mm: Cable Dia Under Armour mm: Dia Across Corners mm A: Dia Across Corners mm A: Dia Across Flats mm A: Dia Across Flats mm A: - +
	M50	15	45.8-52.8	38-44.5	73	73	65.5	65.5	- + Part Number Thread Size D: Thread Length mm C: Cable Dia min-max mm: Cable Dia Under Armour mm: Dia Across Corners mm A: Dia Across Corners mm A: Dia Across Flats mm A: Dia Across Flats mm A: - +
	M63	15	52.3-60.5	44-50.5	83	83	75	75	- + Part Number Thread Size D: Thread Length mm C: Cable Dia min-max mm: Cable Dia Under Armour mm: Dia Across Corners mm A: Dia Across Corners mm A: Dia Across Flats mm A: Dia Across Flats mm A: - +
	M63	15	58.6-66.8	49.5-56	89	89	80	80	- + Part Number Thread Size D: Thread Length mm C: Cable Dia min-max mm: Cable Dia Under Armour mm: Dia Across Corners mm A: Dia Across Corners mm A: Dia Across Flats mm A: Dia Across Flats mm A: - +
	M75	15	63.5-72.5	55.5-62	97	97	87	87	- + Part Number Thread Size D: Thread Length mm C: Cable Dia min-max mm: Cable Dia Under Armour mm: Dia Across Corners mm A: Dia Across Corners mm A: Dia Across Flats mm A: Dia Across Flats mm A: - +
	M75	15	69-78.5	61.5-68	108	108	97	97	- + Part Number Thread Size D: Thread Length mm C: Cable Dia min-max mm: Cable Dia Under Armour mm: Dia Across Corners mm A: Dia Across Corners mm A: Dia Across Flats mm A: Dia Across Flats mm A: - +
	M90	20	78.5-91	67-78.5	114.5	114.5	104	104	- + Part Number Thread Size D: Thread Length mm C: Cable Dia min-max mm: Cable Dia Under Armour mm: Dia Across Corners mm A: Dia Across Corners mm A: Dia Across Flats mm A: Dia Across Flats mm A: - +
	*Cable diameters may vary between manufacturers, please double check the cable specifications before ordering								- + Part Number Thread Size D: Thread Length mm C: Cable Dia min-max mm: Cable Dia Under Armour mm: Dia Across Corners mm A: Dia Across Corners mm A: Dia Across Flats mm A: Dia Across Flats mm A: - +
