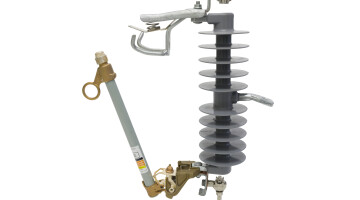

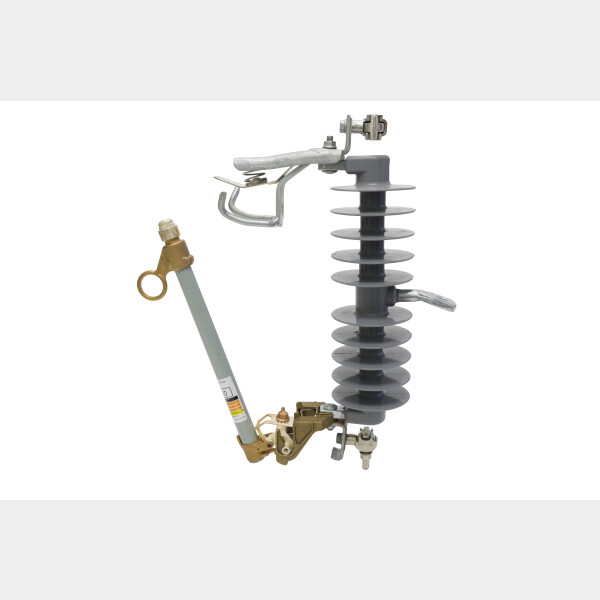

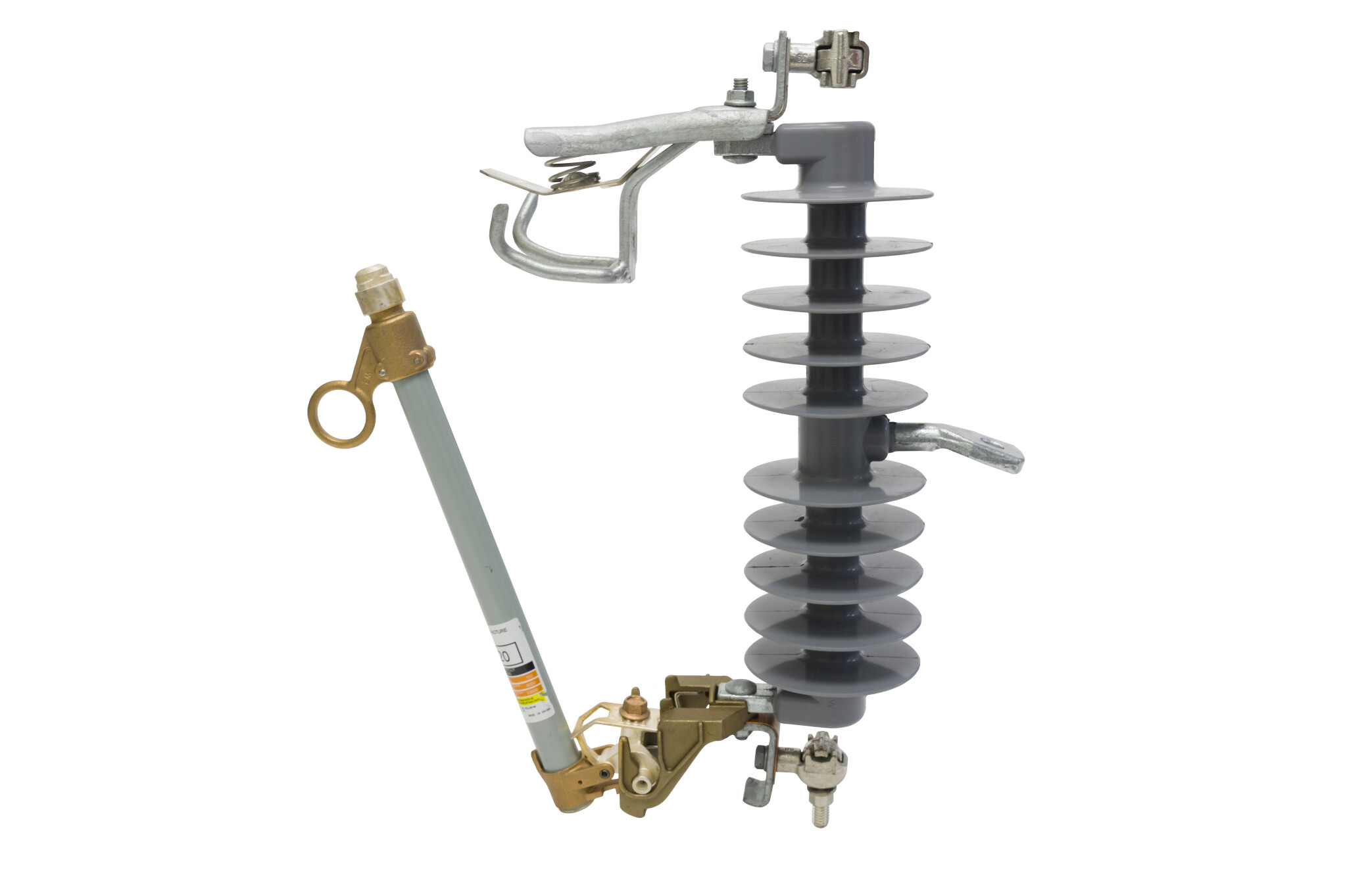

Cutout Fuses - DDOs

MPS cutouts are designed for use on power and utility overhead distribution systems to provide over-current protection and a visible indication of fuse operation. Over-current protection safeguards an electric system from excessive currents product by abnormal conditions such as line or equipment overloads, faults or equipment failures.

• Polymer cutouts are a lightweight and durable alternative to porcelain cutouts
• Great for use in coastal regions due to salt spray
• Fiberglass core for superior mechanical strength
• One-piece crimped-on end fittings & robust center-bracket
• Proven in high-voltage applications with transmission insulators
• Over-mold polymer housing onto end fittings provides superior sealing against moisture ingress
• Polymer body and shed pattern meets IEC TS 60815 guidelines for severe contamination environments
• Heavy-duty top contact with dimple prevents over-closure
• Non-expendable fuse-tube cap construction eliminates extra expense of fuse-tube cap replacement
