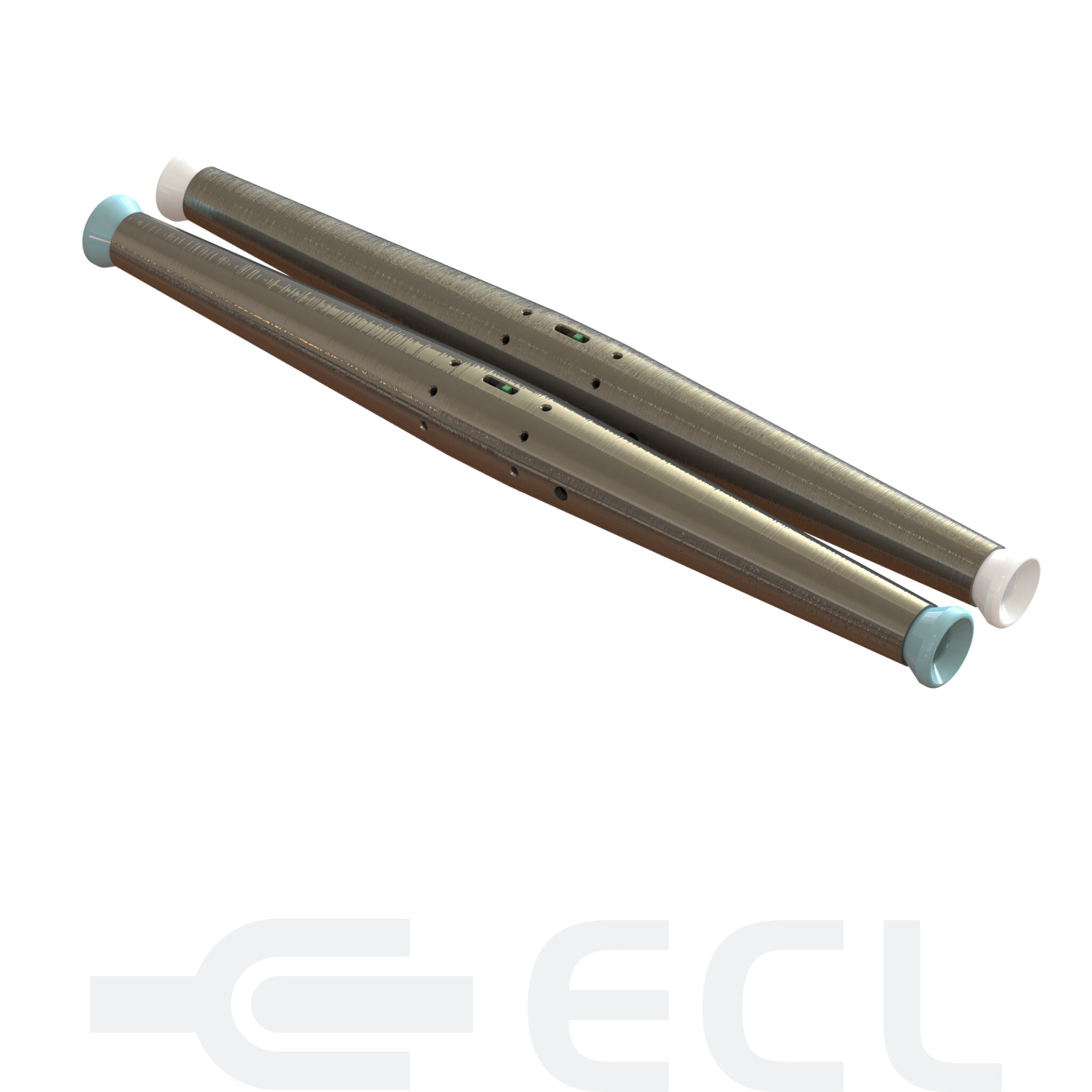

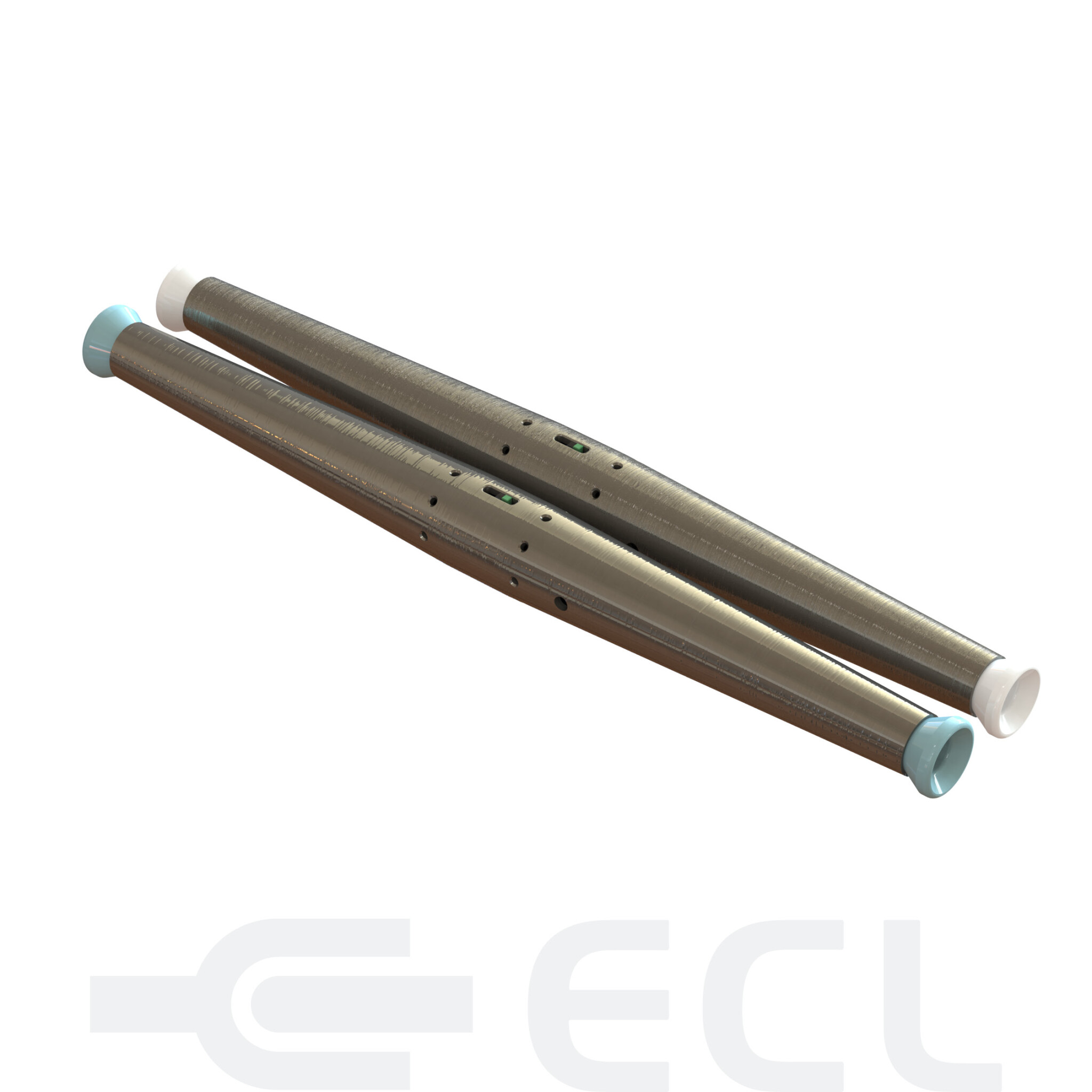

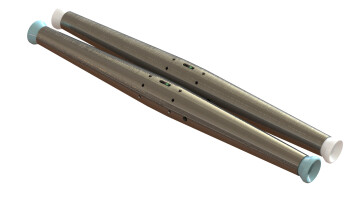

CRS - Corrosion Resistant Splice

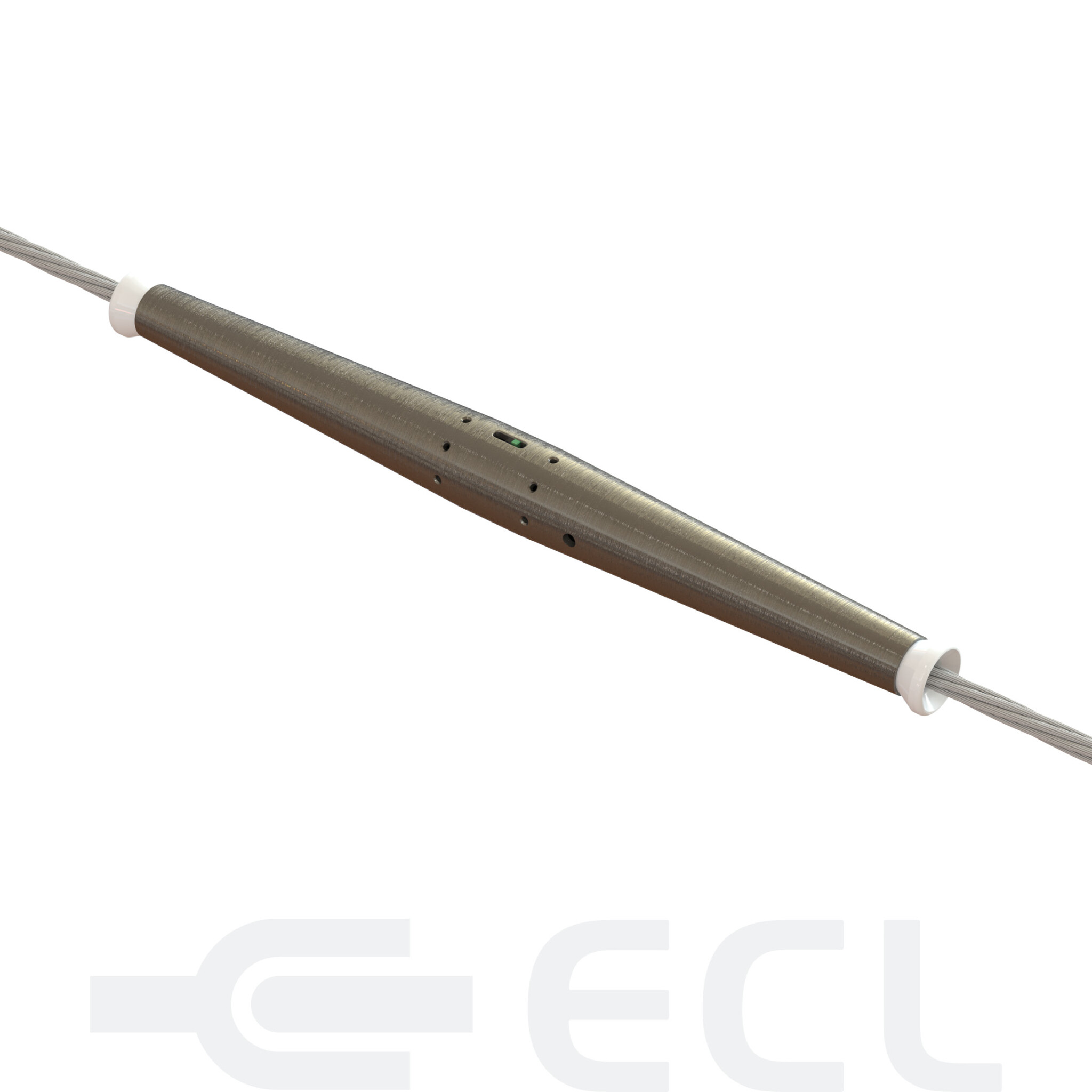

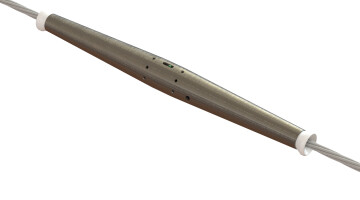

Corrosion Resistant Splice automatic splices are used on ACSR, AAC, AAAC conductor.

Features:

• New advanced synthetic inhibitor with wide temperature range for improved and superior corrosion protection in severe environments

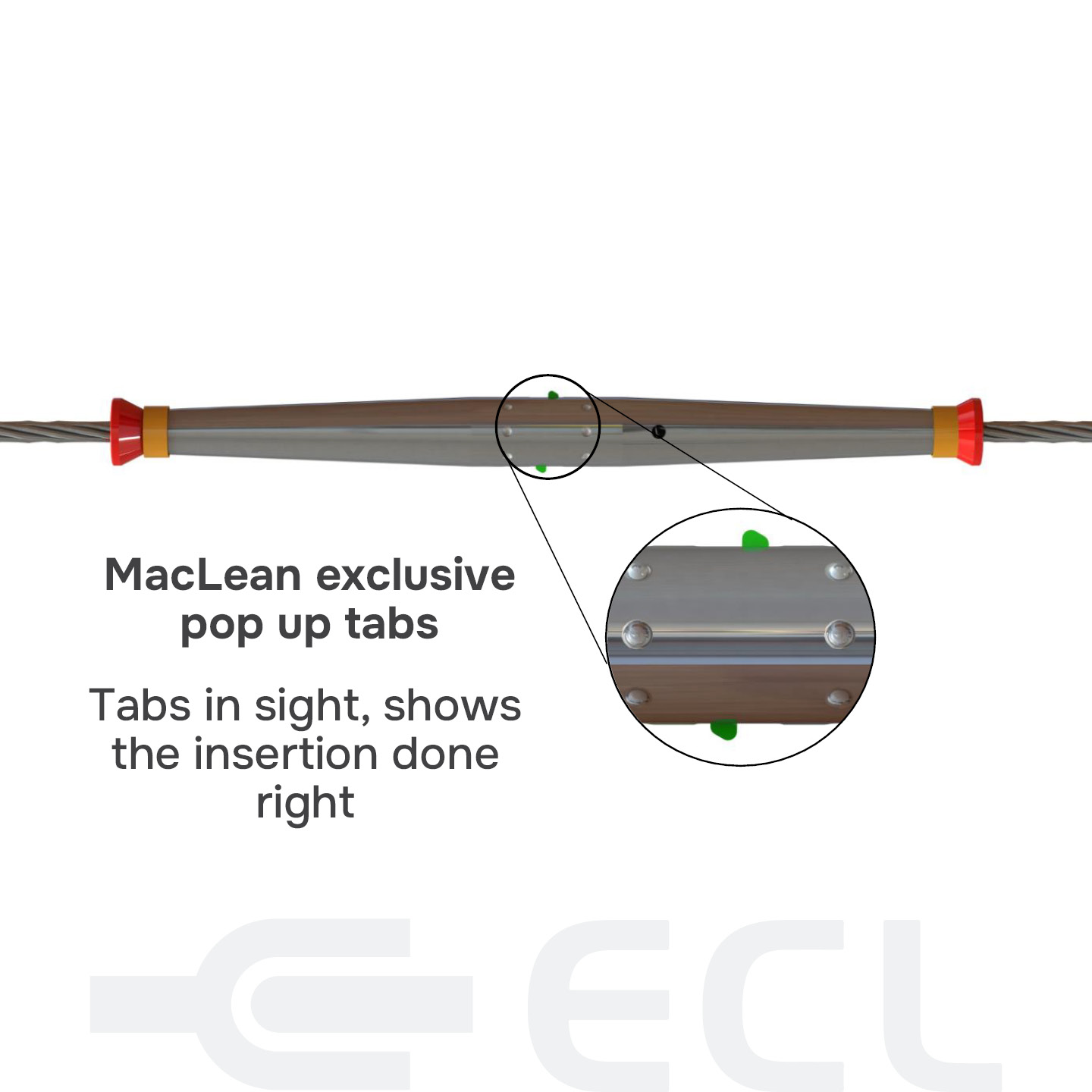

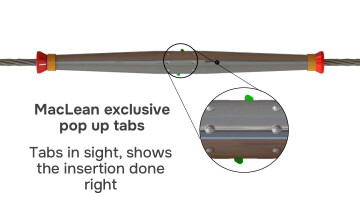

• Pop up tab to verify proper insertion
• Ventilation holes to allow moisture to escape and for air cooling
• Stainless steel spring & aluminum pilot cup to improve corrosion performance
• Field proven: over 2 million units already sold worldwide
• Suitable for any environment: coastal, industrial, urban or rural
  Simple, but robust, design for a fast and reliable connection
• Rated to hold a minimum of 95% of RBS of the conductor used
• ANSI C119.4 Full Tension Class A connector

• A minimum tension of 15% of the rated breaking strength of the conductor is recommended for a superior electrical connection

Note: The following Named Conductors do not have an applicable matching splice: Ladybird, Kutu, Chromium, Fluorine, Ferret, Moka, Raccoon, Nobelium
