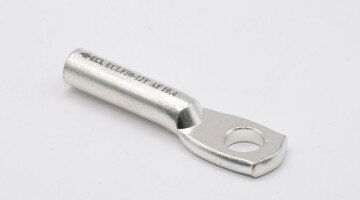

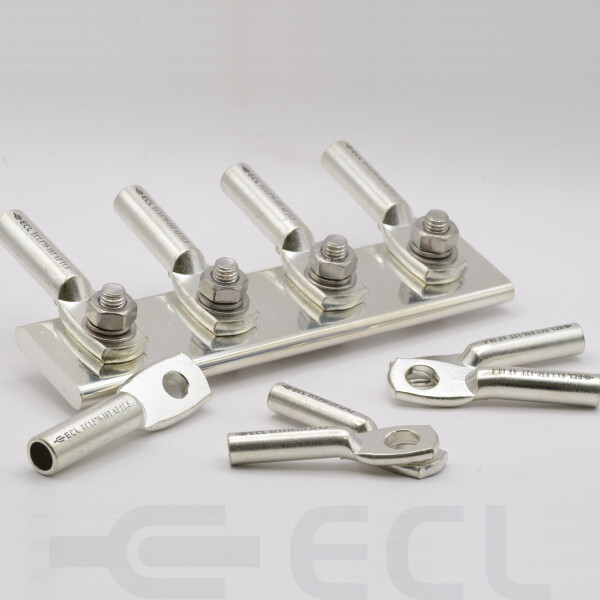

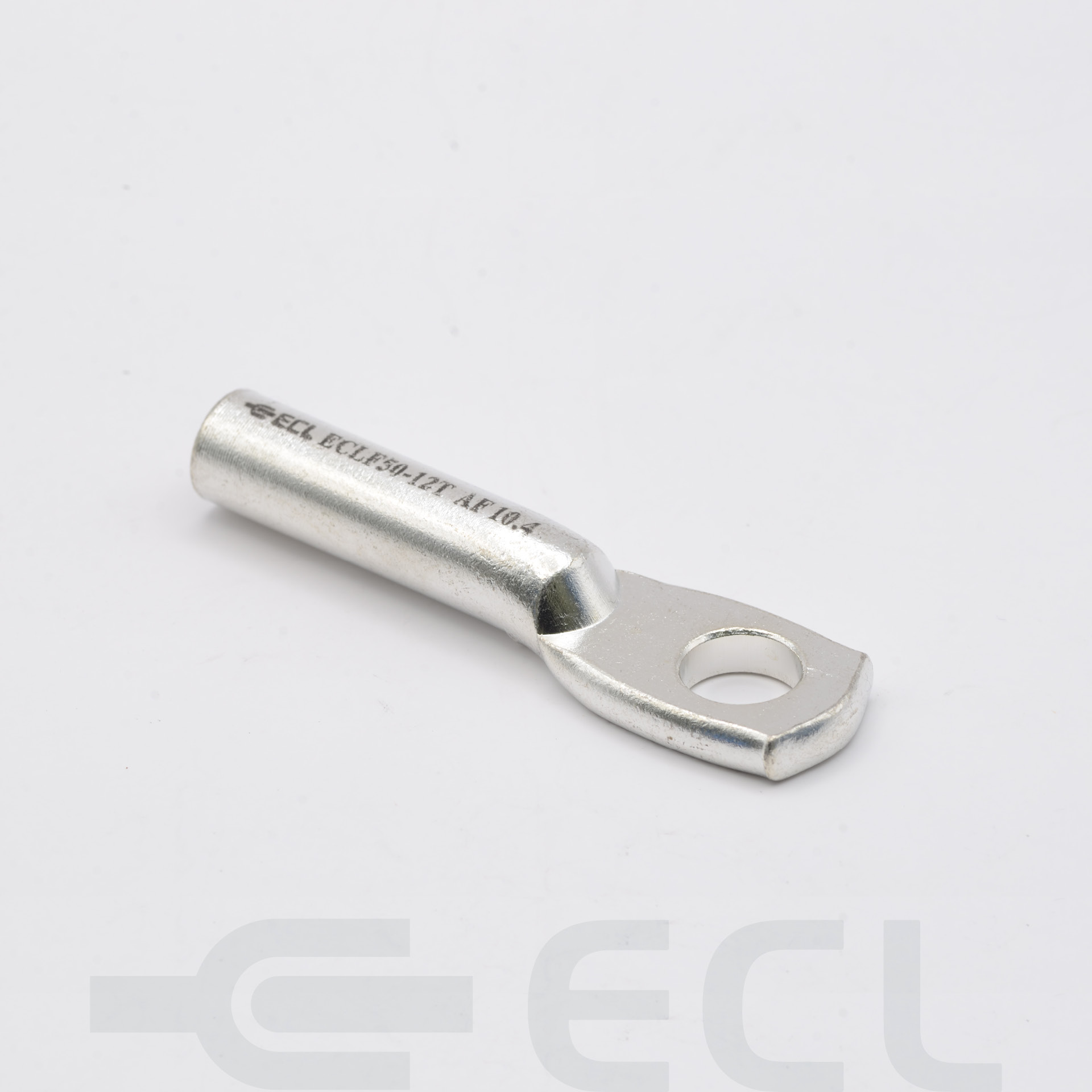

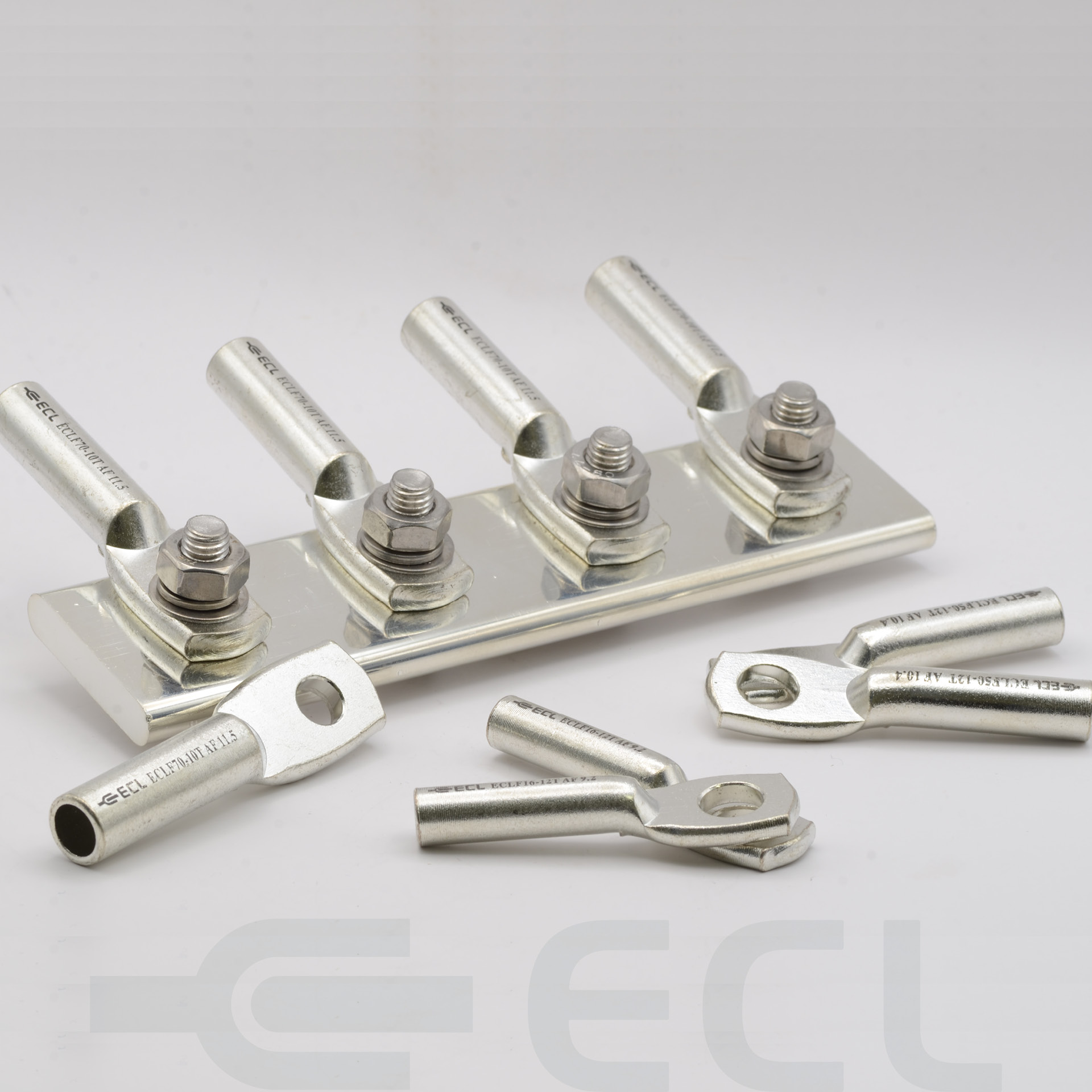

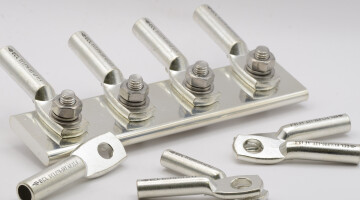

Copper Tinned Solid Forged Lugs
Copper Tinned Solid Forged Lugs are used for low and medium voltage high current applications.
Forged from solid copper rod and then electro tinned for high mechanical strength and waterblock construction, ensures reliable performance in demanding situations.
Contact the ECL team

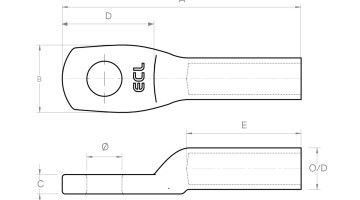

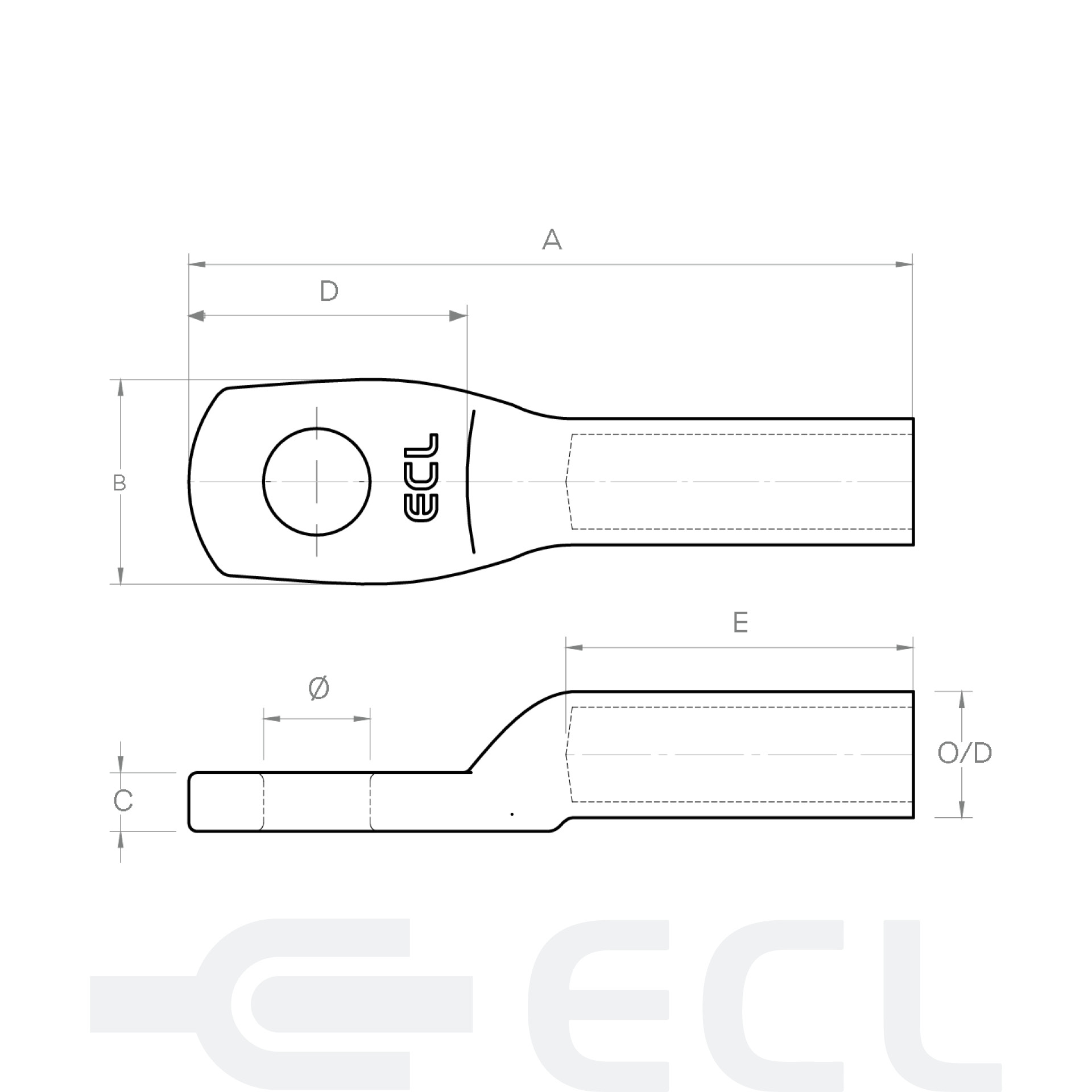

| Dimensions | Crimp Die Info | ||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Part Number | Stud Size mm | Cable Size | Crimp Die Info Die Part number | Crimp Die Info A/F mm | Dimensions O/D | Crimp Die Info Die Part number | Dimensions E | Stud Size mm | Crimp Die Info Die Part number | Stud Size mm | Stud Size mm | A | B | D | E | O/D | A/F mm | Die Part number | |
|
|
16mm² | 8 | 80 | 21 | 32 | 31 | 11.5 | 9.2 | D35CU | ||||||||||
|
|
16mm² | 10 | 80 | 21 | 32 | 31 | 11.5 | 9.2 | D35CU | ||||||||||
|
