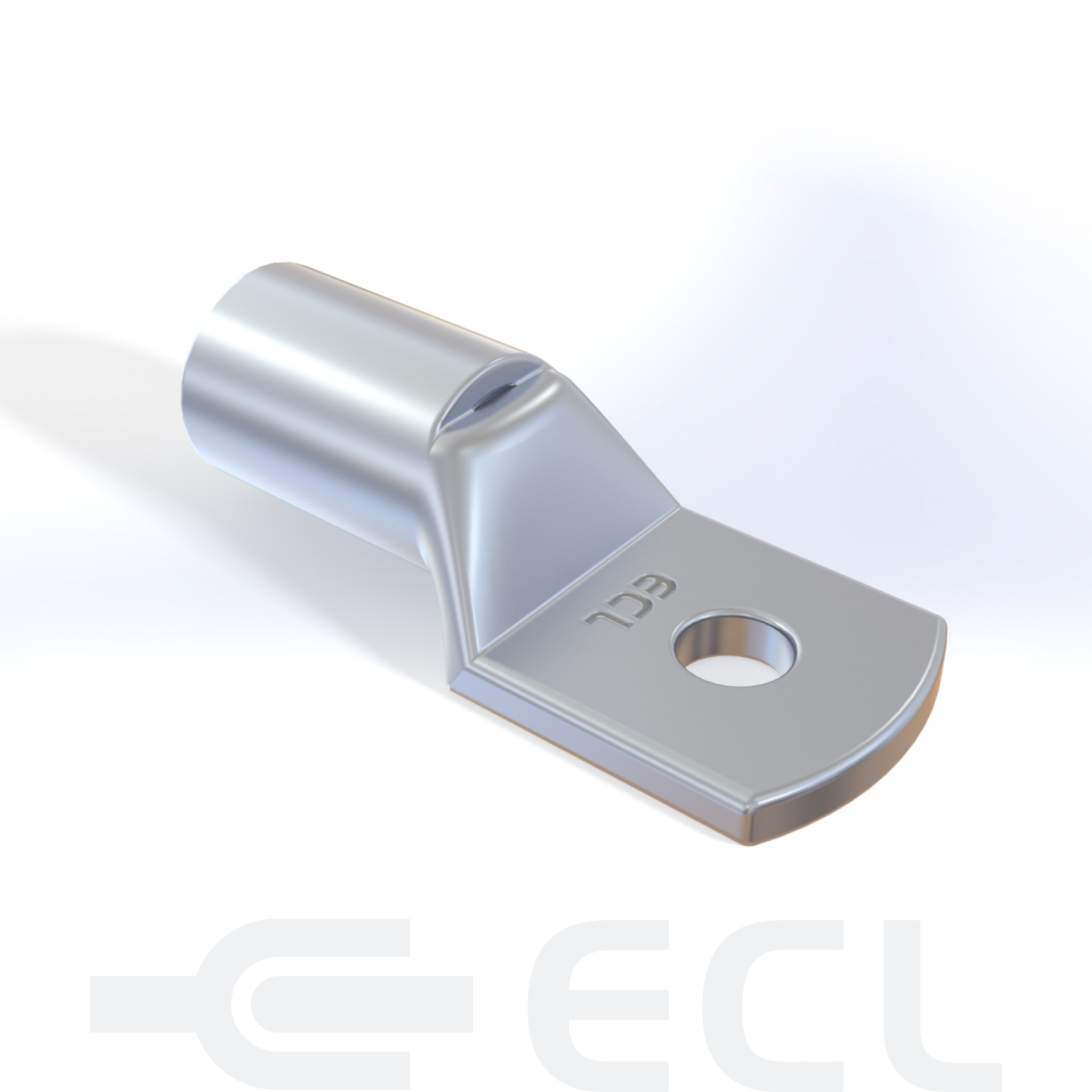

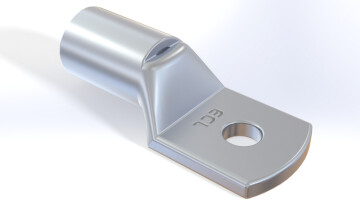

Copper Standard Crimp Lugs
ECL Copper Lugs are manufactured from 99.9% oxygen-free high conductivity copper and are electro tinned.
ECL Copper Lugs are crimped using standard tools and dies.
Conformant Standard: AS/NZS 4325.1:1995
Contact the ECL team

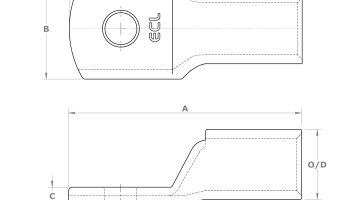

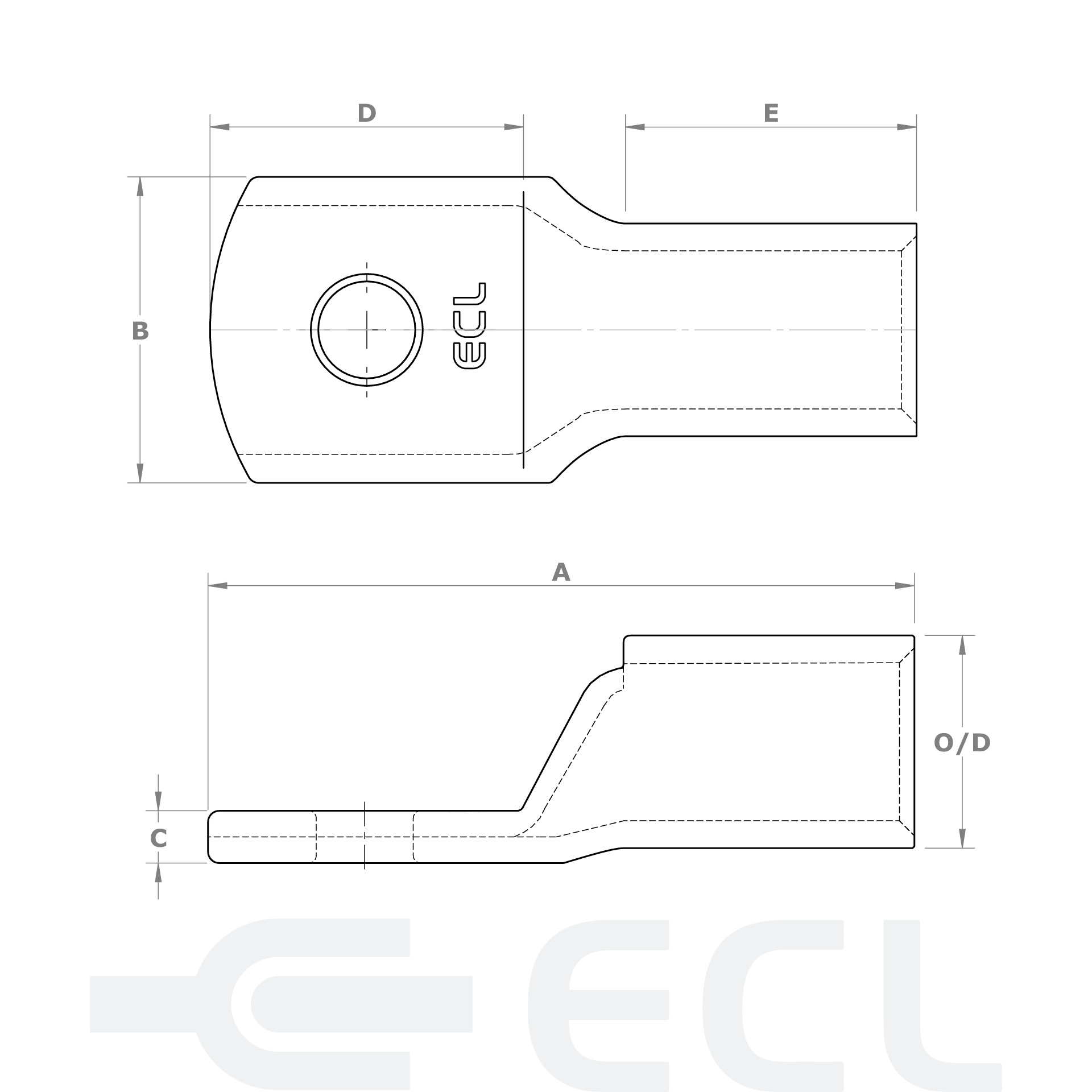

| Dimensions | Crimp Die Info | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Part Number | Cable Size | Stud Size mm | A | B | C | D | E | O/D | A/F mm | Die Part number | |
|
|
1.5mm² | 4 | 18.5 | 8 | 1 | 9 | 7.5 | 4 | - | - | |
|
|
1.5mm² | 5 | 18.5 | 8 | 1 | 9 | 7.5 | 4 | - | - | |
|
|
1.5mm² | 6 | 19.5 | 10 | 0.8 | 10 | 7.5 | 4 | - | - | |
|
