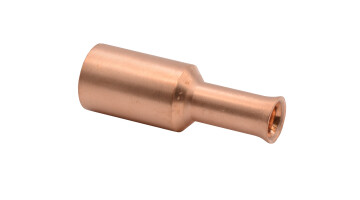

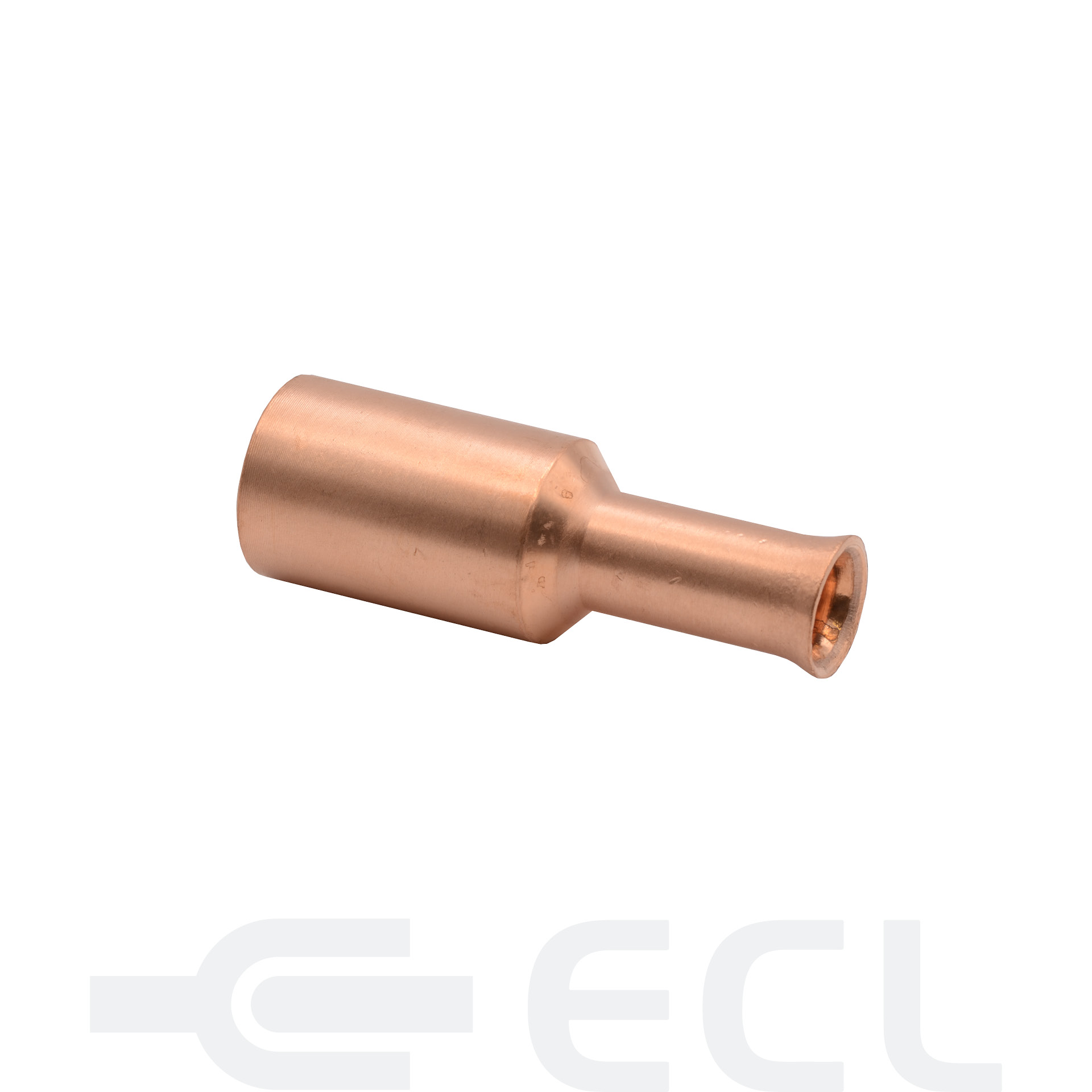

Copper Reducing Links Bellmouth
Copper Reducing Links Bellmouth are manufactured from solid copper high conductivity rod. Featuring a bellmouth cable entry, which provides ease of use with fine-stranded flexible cables.
Please be advised most sizes are custom manufactured and are not eligible for return or credit.
Contact the ECL team

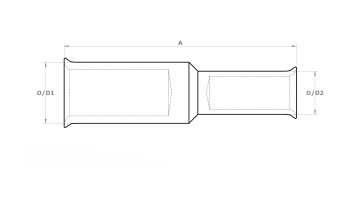

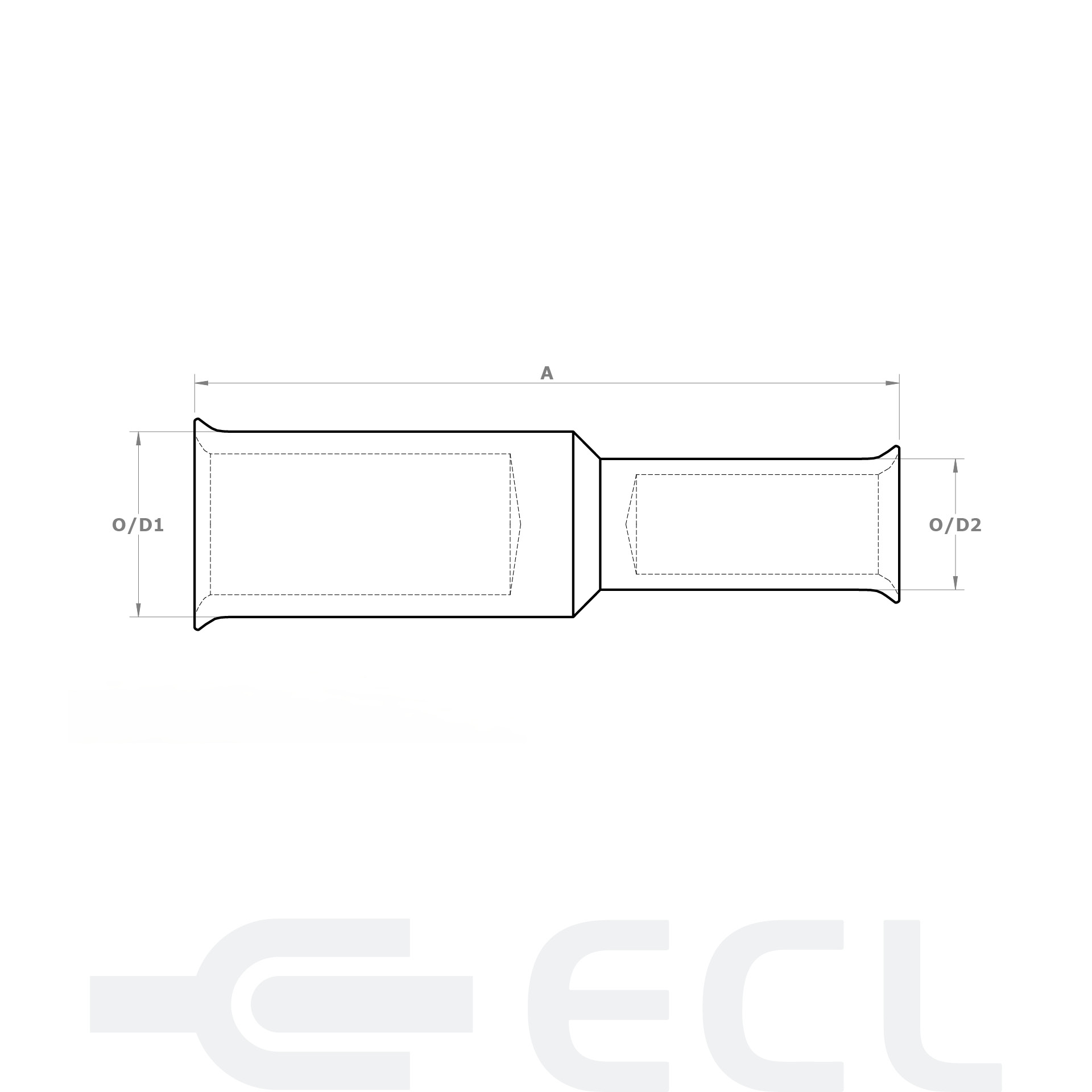

| Cable Size | Dimensions mm | Crimp Die Info - Large End | Crimp Die Info - Small End | |||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Part Number | Large End |
Small End |
A | O/D Large End |
O/D Small End |
A/F mm | Die Part number |
A/F mm | Die Part number | |
|
|
16mm² | 10mm² | 40 | 9.6 | 7.1 | 7.7 | D25CU (12T Crimp) | 5.7 | D10CU (12T Crimp) | |
|
|
25mm² | 10mm² | 40 | 9.5 | 7.1 | 7.7 | D25CU (12T Crimp) | 5.7 | D10CU (12T Crimp) | |
|
|
25mm² | 16mm² | 45 | 9.5 | 9.6 | 7.7 | D25CU (12T Crimp) | 7.7 | D25CU (12T Crimp) | |
|
|
35mm² | 10mm² | 45 | 11.5 | 7.1 | 9.2 | D35CU (12T Crimp) | 5.7 | D10CU (12T Crimp) | |
|
|
35mm² | 16mm² | 45 | 11.5 | 9.6 | 9.2 | D35CU (12T Crimp) | 7.7 | D25CU (12T Crimp) | |
|
|
35mm² | 25mm² | 45 | 11.5 | 9.6 | 9.2 | D35CU (12T Crimp) | 7.7 | D25CU (12T Crimp) | |
|
|
50mm² | 10mm² | 58 | 12.8 | 7.1 | 10.4 | D50CU (12T Crimp) | 5.7 | D10CU (12T Crimp) | |
|
|
50mm² | 16mm² | 58 | 12.8 | 9.6 | 10.4 | D50CU (12T Crimp) | 7.7 | D25CU (12T Crimp) | |
|
|
50mm² | 25mm² | 58 | 12.8 | 9.6 | 10.4 | D50CU (12T Crimp) | 7.7 | D25CU (12T Crimp) | |
|
|
50mm² | 35mm² | 58 | 12.8 | 11.5 | 10.4 | D50CU (12T Crimp) | 9.2 | D35CU (12T Crimp) | |
|
|
70mm² | 16mm² | 66 | 14.7 | 9.6 | 11.5 | D70CU (12T Crimp) | 7.7 | D25CU (12T Crimp) | |
|
|
70mm² | 25mm² | 66 | 14.7 | 9.6 | 11.5 | D70CU (12T Crimp) | 7.7 | D25CU (12T Crimp) | |
|
|
70mm² | 35mm² | 66 | 14.7 | 11.5 | 11.5 | D70CU (12T Crimp) | 9.2 | D35CU (12T Crimp) | |
|
|
70mm² | 50mm² | 66 | 14.7 | 12.8 | 11.5 | D70CU (12T Crimp) | 10.4 | D50CU (12T Crimp) | |
|
|
95mm² | 16mm² | 75 | 17.4 | 9.6 | 14.2 | D95CU (12T Crimp) | 7.7 | D25CU (12T Crimp) | |
|
|
95mm² | 25mm² | 75 | 17.4 | 9.6 | 14.2 | D95CU (12T Crimp) | 7.7 | D25CU (12T Crimp) | |
|
|
95mm² | 35mm² | 75 | 17.4 | 11.5 | 14.2 | D95CU (12T Crimp) | 9.2 | D35CU (12T Crimp) | |
|
|
95mm² | 50mm² | 75 | 17.4 | 12.8 | 14.2 | D95CU (12T Crimp) | 10.4 | D50CU (12T Crimp) | |
|
|
95mm² | 70mm² | 75 | 17.4 | 14.7 | 14.2 | D95CU (12T Crimp) | 11.5 | D70CU (12T Crimp) | |
|
|
120mm² | 16mm² | 84 | 20.0 | 9.6 | 16.5 | D120CU (12T Crimp) | 7.7 | D25CU (12T Crimp) | |
|
|
120mm² | 25mm² | 84 | 20.0 | 9.6 | 16.5 | D120CU (12T Crimp) | 7.7 | D25CU (12T Crimp) | |
|
|
120mm² | 35mm² | 84 | 20.0 | 11.5 | 16.5 | D120CU (12T Crimp) | 9.2 | D35CU (12T Crimp) | |
|
|
120mm² | 50mm² | 84 | 20.0 | 12.8 | 16.5 | D120CU (12T Crimp) | 10.4 | D50CU (12T Crimp) | |
|
|
120mm² | 70mm² | 84 | 20.0 | 14.7 | 16.5 | D120CU (12T Crimp) | 11.5 | D70CU (12T Crimp) | |
|
|
120mm² | 95mm² | 84 | 20.0 | 17.4 | 16.5 | D120CU (12T Crimp) | 14.2 | D95CU (12T Crimp) | |
|
|
150mm² | 16mm² | 88 | 22.5 | 9.6 | 18.3 | D150CU (12T Crimp) | 7.7 | D25CU (12T Crimp) | |
|
|
150mm² | 25mm² | 88 | 22.5 | 9.6 | 18.3 | D150CU (12T Crimp) | 7.7 | D25CU (12T Crimp) | |
|
|
150mm² | 35mm² | 88 | 22.5 | 11.5 | 18.3 | D150CU (12T Crimp) | 9.2 | D35CU (12T Crimp) | |
|
|
150mm² | 50mm² | 88 | 22.5 | 12.8 | 18.3 | D150CU (12T Crimp) | 10.4 | D50CU (12T Crimp) | |
|
|
150mm² | 70mm² | 88 | 22.5 | 14.7 | 18.3 | D150CU (12T Crimp) | 11.5 | D70CU (12T Crimp | |
|
|
150mm² | 95mm² | 88 | 22.5 | 17.4 | 18.3 | D150CU (12T Crimp) | 14.2 | D95CU (12T Crimp) | |
|
|
150mm² | 120mm² | 88 | 22.5 | 20.0 | 18.3 | D150CU (12T Crimp) | 16.5 | D120CU (12T Crimp) | |
|
|
185mm² | 25mm² | 93 | 24.2 | 9.6 | 20.0 | D185CU (12T Crimp) | 7.7 | D25CU (12T Crimp) | |
|
|
185mm² | 35mm² | 93 | 24.2 | 11.5 | 20.0 | D185CU (12T Crimp) | 9.2 | D35CU (12T Crimp) | |
|
|
185mm² | 50mm² | 93 | 24.2 | 12.8 | 20.0 | D185CU (12T Crimp) | 10.4 | D50CU (12T Crimp) | |
|
|
185mm² | 70mm² | 93 | 24.2 | 14.7 | 20.0 | D185CU (12T Crimp) | 11.5 | D70CU (12T Crimp) | |
|
|
185mm² | 95mm² | 93 | 24.2 | 17.4 | 20.0 | D185CU (12T Crimp) | 14.2 | D95CU (12T Crimp) | |
|
|
185mm² | 120mm² | 93 | 24.2 | 20.0 | 20.0 | D185CU (12T Crimp) | 16.5 | D120CU (12T Crimp) | |
|
|
185mm² | 150mm² | 93 | 24.2 | 22.5 | 20.0 | D185CU (12T Crimp) | 18.3 | D150CU (12T Crimp) | |
|
|
240mm² | 25mm² | 98 | 27.8 | 9.6 | 23.1 | D240CU (12T Crimp) / DCL240 (30T Crimp) | 7.7 | D25CU (12T Crimp) | |
|
|
240mm² | 35mm² | 98 | 27.8 | 11.5 | 23.1 | D240CU (12T Crimp) / DCL240 (30T Crimp) | 9.2 | D35CU (12T Crimp) | |
|
|
240mm² | 50mm² | 98 | 27.8 | 12.8 | 23.1 | D240CU (12T Crimp) / DCL240 (30T Crimp) | 10.4 | D50CU (12T Crimp) | |
|
|
240mm² | 70mm² | 98 | 27.8 | 14.7 | 23.1 | D240CU (12T Crimp) / DCL240 (30T Crimp) | 11.5 | D70CU (12T Crimp) | |
|
|
240mm² | 95mm² | 98 | 27.8 | 17.4 | 23.1 | D240CU (12T Crimp) / DCL240 (30T Crimp) | 14.2 | D95CU (12T Crimp) | |
|
|
240mm² | 120mm² | 98 | 27.8 | 20.0 | 23.1 | D240CU (12T Crimp) / DCL240 (30T Crimp) | 16.5 | D120CU (12T Crimp) | |
|
|
240mm² | 150mm² | 98 | 27.8 | 22.5 | 23.1 | D240CU (12T Crimp) / DCL240 (30T Crimp) | 18.3 | D150CU (12T Crimp) | |
|
|
240mm² | 185mm² | 98 | 27.8 | 24.2 | 23.1 | D240CU (12T Crimp) / DCL240 (30T Crimp) | 20.0 | D185CU (12T Crimp) | |
|
|
300mm² | 25mm² | 102 | 31.3 | 9.6 | 26.0 | D300CU (12T Crimp) / DCL300 (30T Crimp) | 7.7 | D25CU (12T Crimp) | |
|
|
300mm² | 35mm² | 102 | 31.3 | 11.5 | 26.0 | D300CU (12T Crimp) / DCL300 (30T Crimp) | 9.2 | D35CU (12T Crimp) | |
|
|
300mm² | 50mm² | 102 | 31.3 | 12.8 | 26.0 | D300CU (12T Crimp) / DCL300 (30T Crimp) | 10.4 | D50CU (12T Crimp) | |
|
|
300mm² | 70mm² | 102 | 31.3 | 14.7 | 26.0 | D300CU (12T Crimp) / DCL300 (30T Crimp) | 11.5 | D70CU (12T Crimp) | |
|
|
300mm² | 95mm² | 102 | 31.3 | 17.4 | 26.0 | D300CU (12T Crimp) / DCL300 (30T Crimp) | 14.2 | D95CU (12T Crimp) | |
|
|
300mm² | 120mm² | 102 | 31.3 | 20.0 | 26.0 | D300CU (12T Crimp) / DCL300 (30T Crimp) | 16.5 | D120CU (12T Crimp) | |
|
|
300mm² | 150mm² | 102 | 31.3 | 22.5 | 26.0 | D300CU (12T Crimp) / DCL300 (30T Crimp) | 18.3 | D150CU (12T Crimp) | |
|
|
300mm² | 185mm² | 102 | 31.3 | 24.2 | 26.0 | D300CU (12T Crimp) / DCL300 (30T Crimp) | 20.0 | D185CU (12T Crimp) | |
|
|
300mm² | 240mm² | 102 | 31.3 | 27.8 | 26.0 | D300CU (12T Crimp) / DCL300 (30T Crimp) | 23.1 | D240CU (12T Crimp) / DCL240 (30T Crimp) | |
|
|
400mm² | 25mm² | 106 | 34.8 | 9.6 | 28.1 | D400CU (12T Crimp) / DCL400 (30T Crimp) | 7.7 | D25CU (12T Crimp) | |
|
|
400mm² | 35mm² | 106 | 34.8 | 11.5 | 28.1 | D400CU (12T Crimp) / DCL400 (30T Crimp) | 9.2 | D35CU (12T Crimp) | |
|
|
400mm² | 50mm² | 106 | 34.8 | 12.8 | 28.1 | D400CU (12T Crimp) / DCL400 (30T Crimp) | 10.4 | D50CU (12T Crimp) | |
|
|
400mm² | 70mm² | 106 | 34.8 | 14.7 | 28.1 | D400CU (12T Crimp) / DCL400 (30T Crimp) | 11.5 | D70CU (12T Crimp) | |
|
|
400mm² | 95mm² | 106 | 34.8 | 17.4 | 28.1 | D400CU (12T Crimp) / DCL400 (30T Crimp) | 14.2 | D95CU (12T Crimp) | |
|
|
400mm² | 120mm² | 106 | 34.8 | 20.0 | 28.1 | D400CU (12T Crimp) / DCL400 (30T Crimp) | 16.5 | D120CU (12T Crimp) | |
|
|
400mm² | 150mm² | 106 | 34.8 | 22.5 | 28.1 | D400CU (12T Crimp) / DCL400 (30T Crimp) | 18.3 | D150CU (12T Crimp) | |
|
|
400mm² | 185mm² | 106 | 34.8 | 24.2 | 28.1 | D400CU (12T Crimp) / DCL400 (30T Crimp) | 20.0 | D185CU (12T Crimp) | |
|
|
400mm² | 240mm² | 106 | 34.8 | 27.8 | 28.1 | D400CU (12T Crimp) / DCL400 (30T Crimp) | 23.1 | D240CU (12T Crimp) / DCL240 (30T Crimp) | |
|
|
400mm² | 300mm² | 106 | 34.8 | 31.3 | 28.1 | D400CU (12T Crimp) / DCL400 (30T Crimp) | 26.0 | D300CU (12T Crimp) / DCL300 (30T Crimp) | |
|
|
500mm² | 50mm² | 110 | 39.0 | 12.8 | 31.0 | DCL500 (30T Crimp) | 10.4 | D50CU (12T Crimp) | |
|
|
500mm² | 70mm² | 110 | 39.0 | 14.7 | 31.0 | DCL500 (30T Crimp) | 11.5 | D70CU (12T Crimp) | |
|
|
500mm² | 95mm² | 110 | 39.0 | 17.4 | 31.0 | DCL500 (30T Crimp) | 14.2 | D95CU (12T Crimp) | |
|
|
500mm² | 120mm² | 110 | 39.0 | 20.0 | 31.0 | DCL500 (30T Crimp) | 16.5 | D120CU (12T Crimp) | |
|
|
500mm² | 150mm² | 110 | 39.0 | 22.5 | 31.0 | DCL500 (30T Crimp) | 18.3 | D150CU (12T Crimp) | |
|
|
500mm² | 185mm² | 110 | 39.0 | 24.2 | 31.0 | DCL500 (30T Crimp) | 20.0 | D185CU (12T Crimp) | |
|
|
500mm² | 240mm² | 110 | 39.0 | 27.8 | 31.0 | DCL500 (30T Crimp) | 23.1 | D240CU (12T Crimp) / DCL240 (30T Crimp) | |
|
|
500mm² | 300mm² | 110 | 39.0 | 31.3 | 31.0 | DCL500 (30T Crimp) | 26.0 | D300CU (12T Crimp) / DCL300 (30T Crimp) | |
|
|
500mm² | 400mm² | 110 | 39.0 | 34.8 | 31.0 | DCL500 (30T Crimp) | 28.1 | DCL400 (30T Crimp) | |
|
|
630mm² | 70mm² | 130 | 45.0 | 14.7 | 37.0 | DCL630 (30T Crimp) | 11.5 | D70CU (12T Crimp) | |
|
|
630mm² | 95mm² | 130 | 45.0 | 17.4 | 37.0 | DCL630 (30T Crimp) | 14.2 | D95CU (12T Crimp) | |
|
|
630mm² | 120mm² | 130 | 45.0 | 20.0 | 37.0 | DCL630 (30T Crimp) | 16.5 | D120CU (12T Crimp) | |
|
|
630mm² | 150mm² | 130 | 45.0 | 22.5 | 37.0 | DCL630 (30T Crimp) | 18.3 | D150CU (12T Crimp) | |
|
|
630mm² | 185mm² | 130 | 45.0 | 24.2 | 37.0 | DCL630 (30T Crimp) | 20.0 | D185CU (12T Crimp) | |
|
|
630mm² | 240mm² | 130 | 45.0 | 27.8 | 37.0 | DCL630 (30T Crimp) | 23.1 | D240CU (12T Crimp) / DCL240 (30T Crimp) | |
|
|
630mm² | 300mm² | 130 | 45.0 | 31.3 | 37.0 | DCL630 (30T Crimp) | 26.0 | D300CU (12T Crimp) / DCL300 (30T Crimp) | |
|
|
630mm² | 400mm² | 130 | 45.0 | 34.8 | 37.0 | DCL630 (30T Crimp) | 28.1 | DCL400 (30T Crimp) | |
|
|
630mm² | 500mm² | 130 | 45.0 | 39.0 | 37.0 | DCL630 (30T Crimp) | 31.0 | DCL500 (30T Crimp) | |
|
