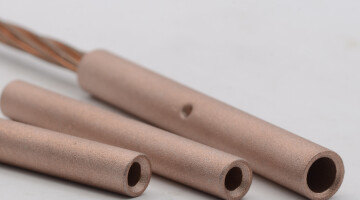

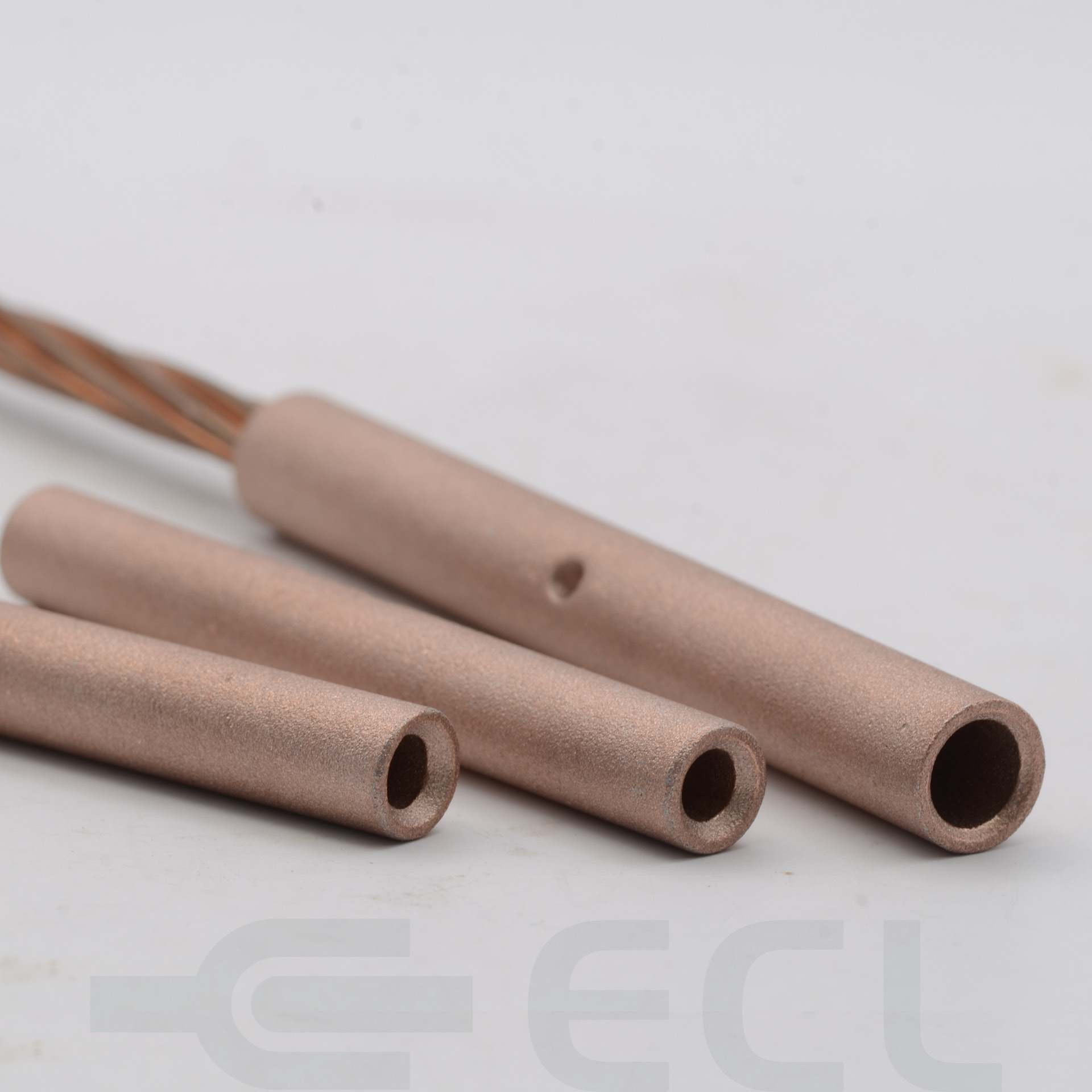

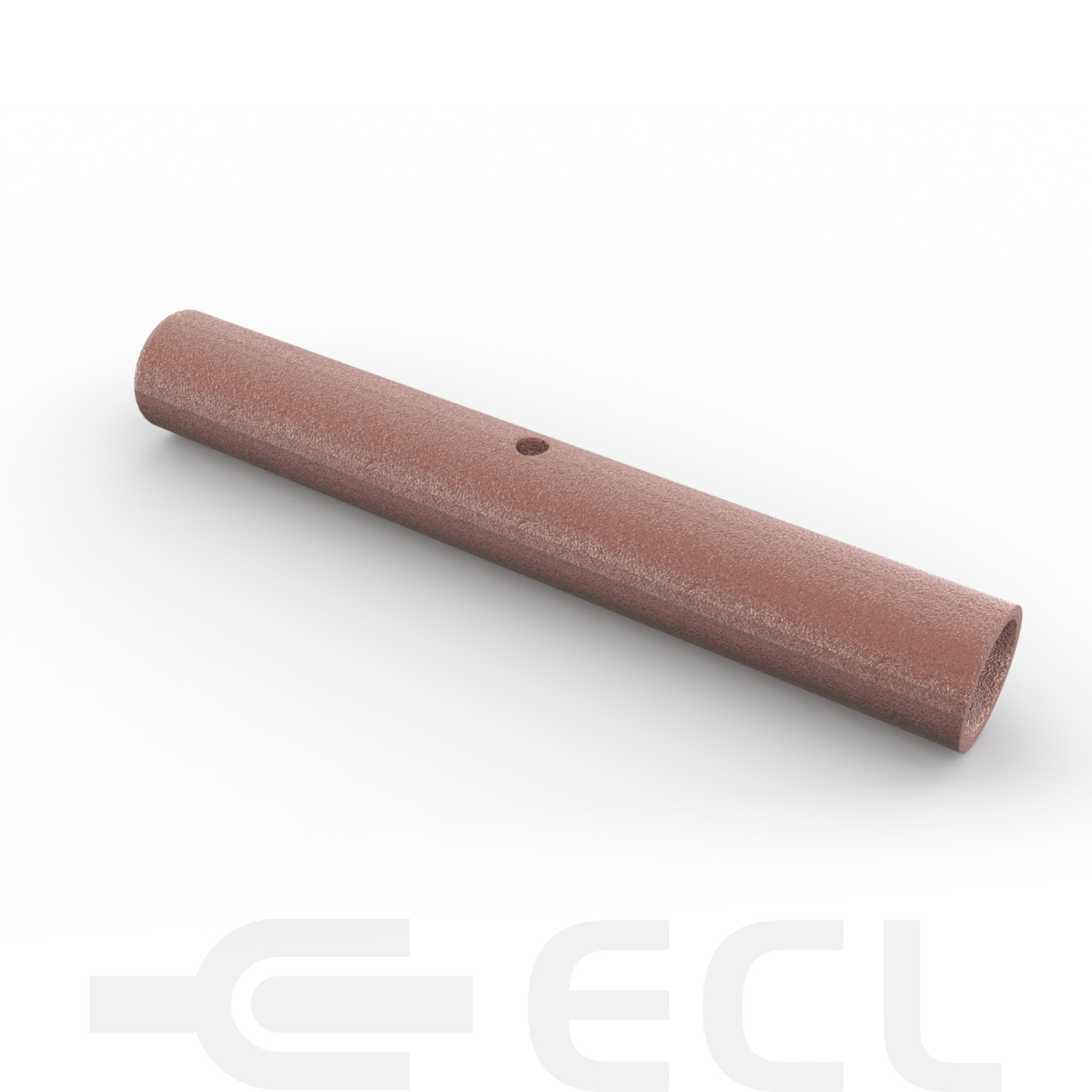

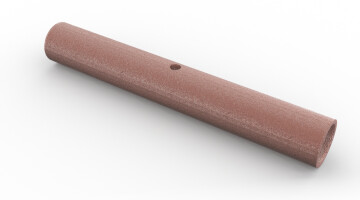

Copper Full Tension Sleeves - Metric
Copper Full Tension Sleeves are used for joining hard drawn overhead conductors. Manufactured from 99.9% high conductivity copper.
Crimp with traditional ‘Y’ or ‘R’ type groove crimpers.
Contact the ECL team

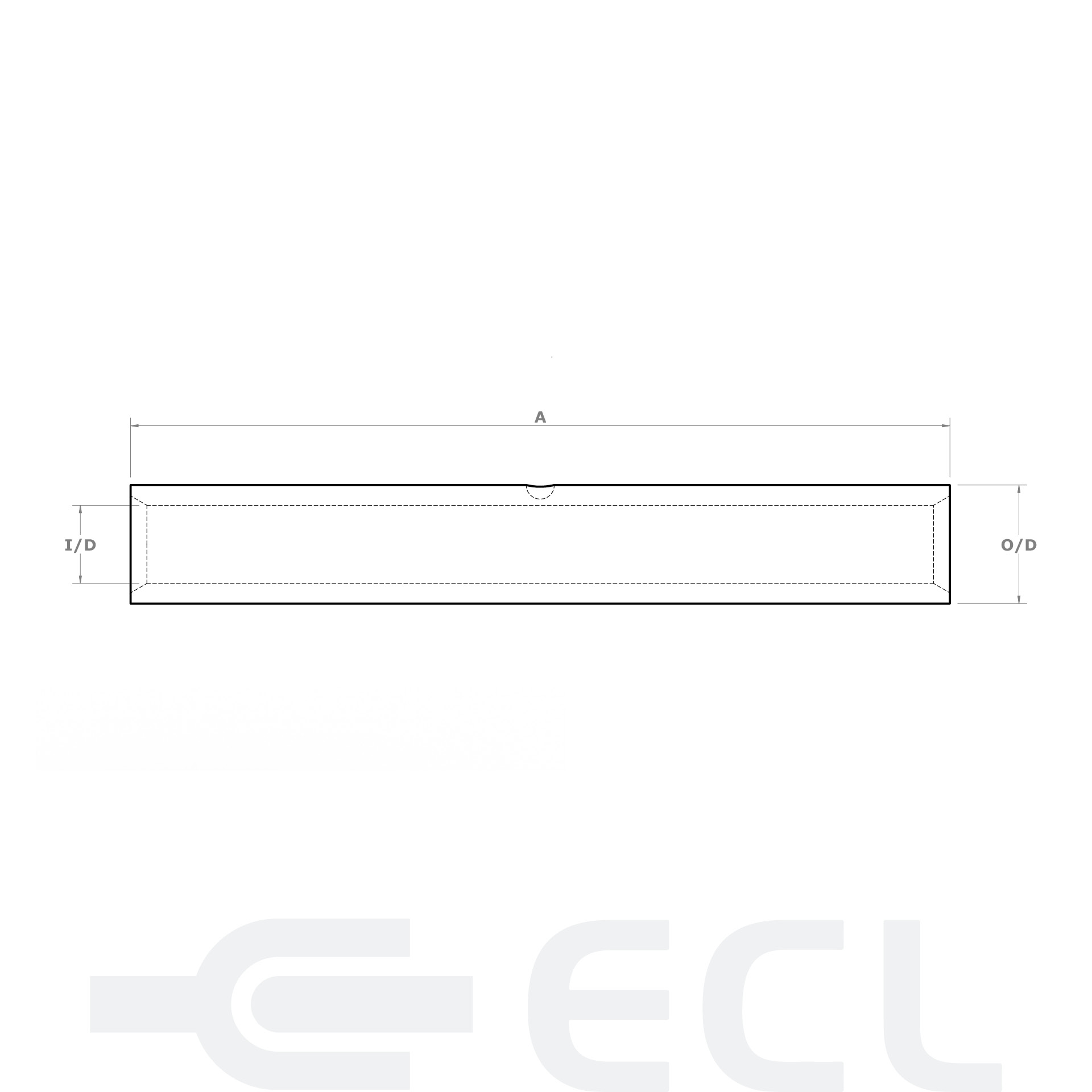

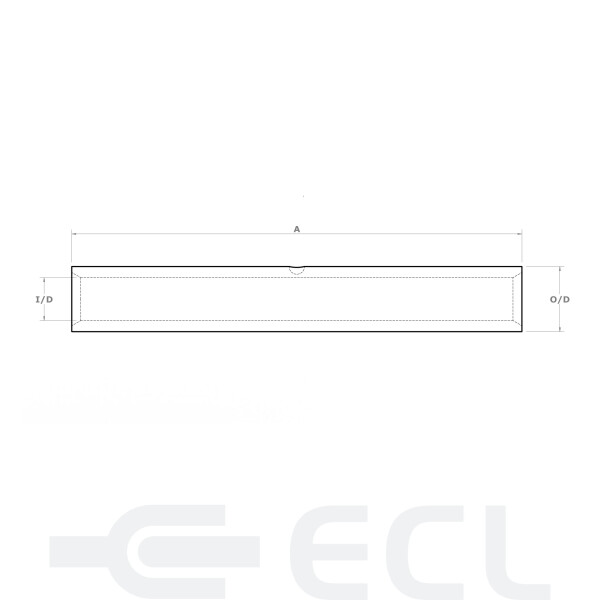

| Part Number | Nominal Conductor | Stranding No. and Dia | Sleeve O/D mm | Length mm | Tool Type and Groove | |
|---|---|---|---|---|---|---|
|
|
10.0mm² | 7/1.35 | 7.94 | 64 | Y-7.94 | |
|
|
16.0mm² | 7/1.70 | 7.94 | 64 | Y-7.94 | |
|
|
25.0mm² | 7/2.14 | 9.52 | 76 | R-9.52 | |
|
|
35.0mm² | 19/1.53 | 12.70 | 89 | R-12.70 | |
|
|
50.0mm² | 19/1.78 | 15.88 | 127 | R-15.88 | |
|
|
70.0mm² | 19/2.14 | 15.88 | 127 | R-15.88 | |
|
