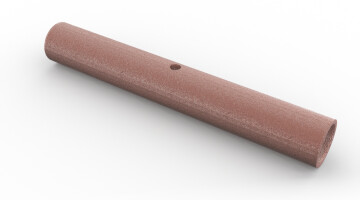

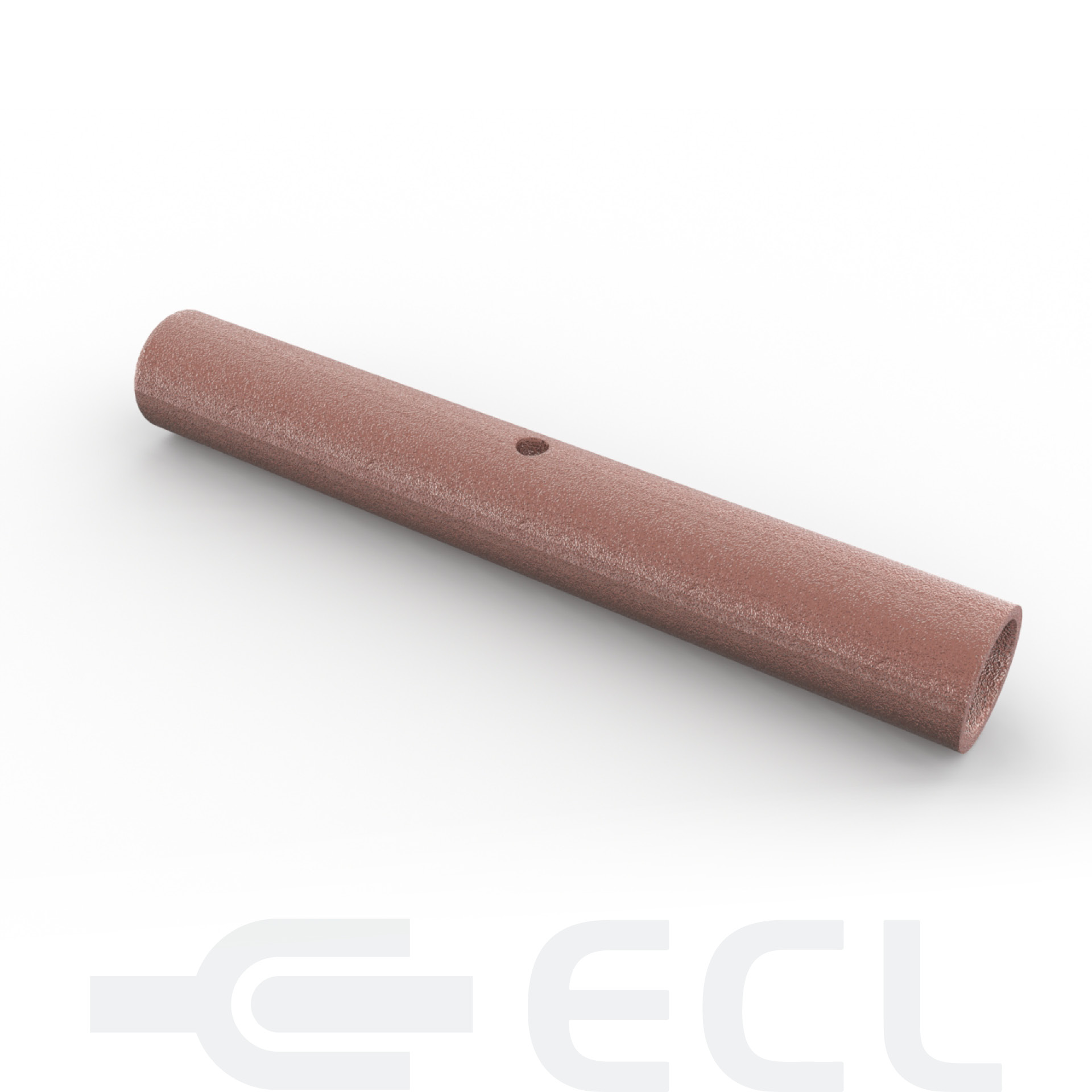

Copper Full Tension Sleeves - Imperial

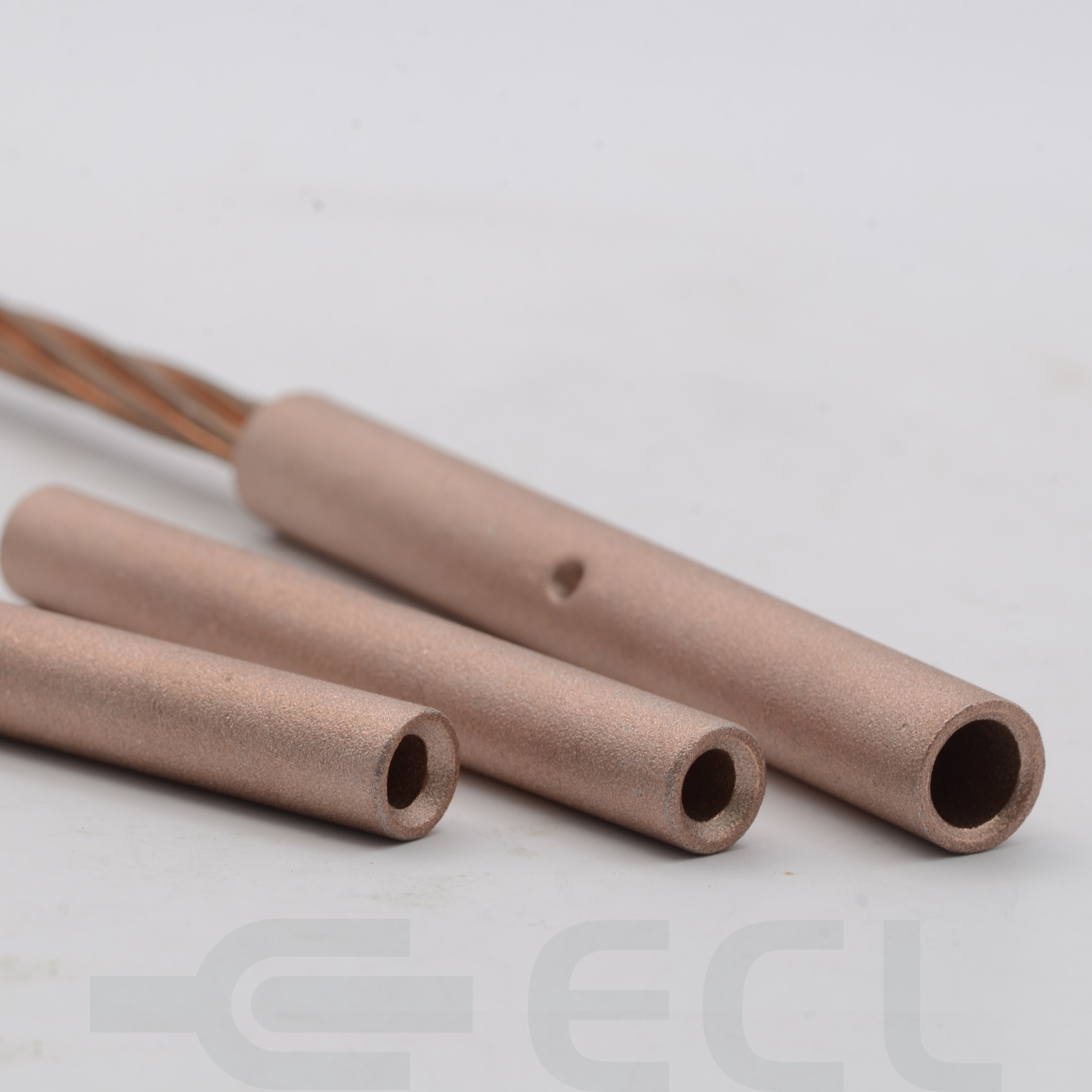

Copper Full Tension Sleeves are used for joining hard drawn overhead conductors. Manufactured from 99.9% high conductivity copper.
Crimp with traditional ‘Y’ or ‘R’ type groove crimpers.
Contact the ECL team

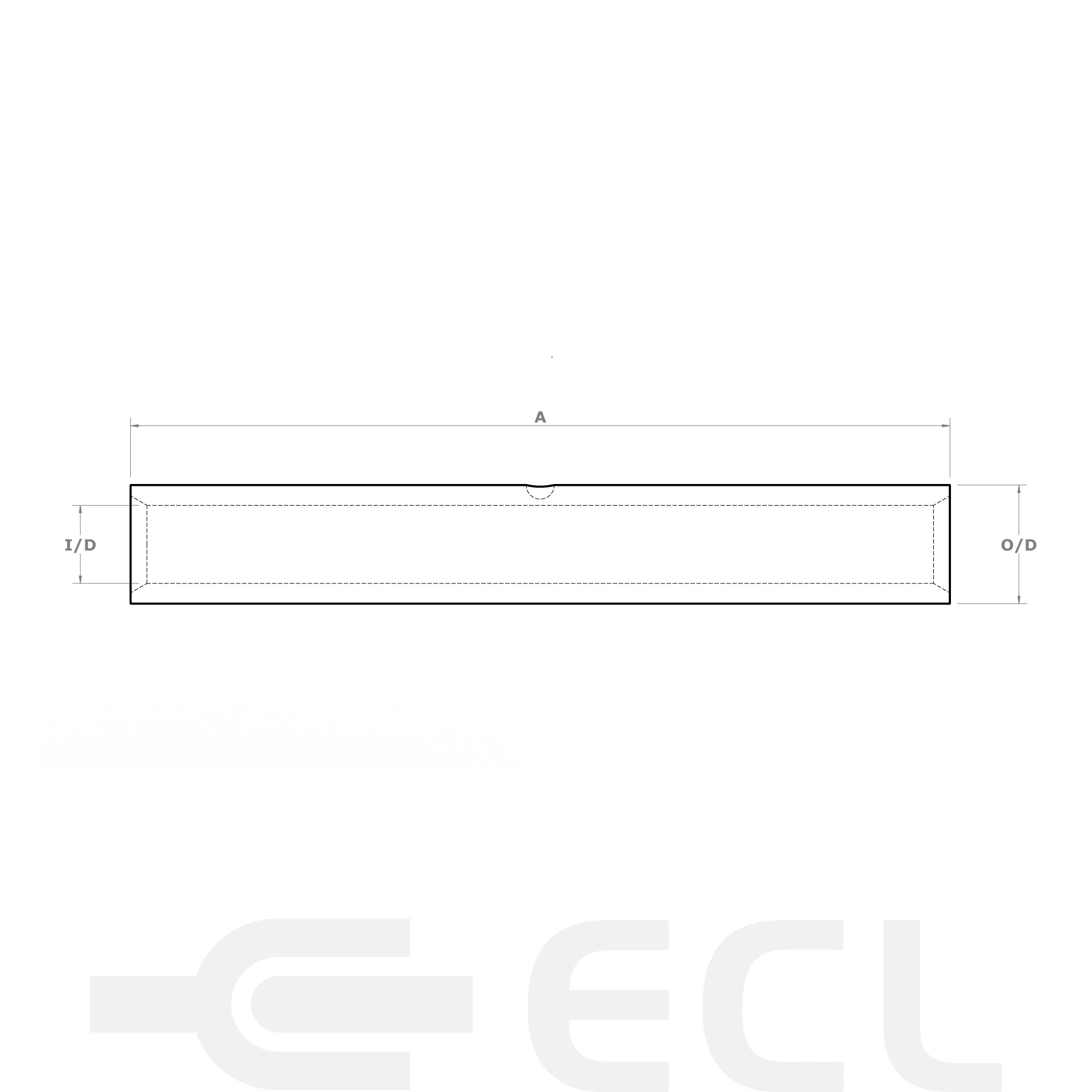

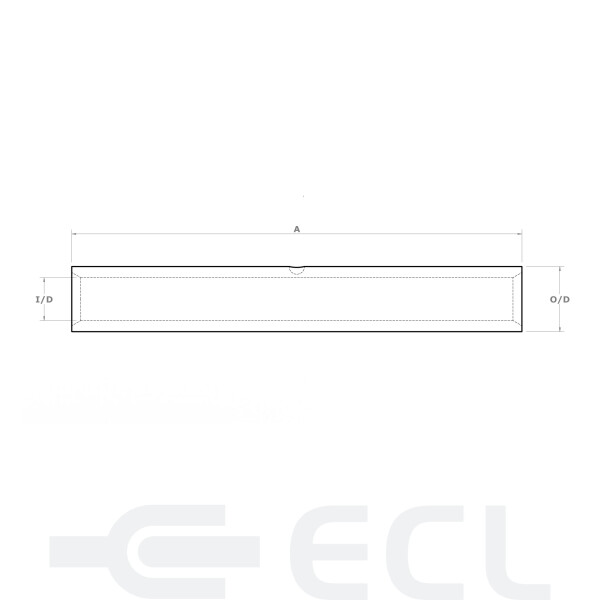

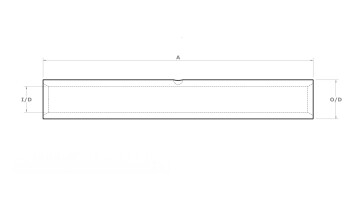

| Part Number | Nominal Conductor | Stranding No. and Dia | Sleeve O/D mm | Length mm | Tool Type and Groove | |
|---|---|---|---|---|---|---|
|
|
6.75mm² | 7/044 | 6.35 | 38 | Y-6.35 | |
|
|
9.43mm² | 7/052 | 7.94 | 64 | Y-7.94 | |
|
|
14.28mm² | 7/064 | 7.94 | 64 | Y-7.94 | |
|
|
25.5mm² | 19/052 | 9.52 | 76 | R-9.52 | |
|
|
39.65mm² | 19/064 | 12.70 | 89 | R-12.70 | |
|
|
65.1mm² | 19/083 | 15.88 | 127 | R-15.88 | |
|
