Copper Crimp Links

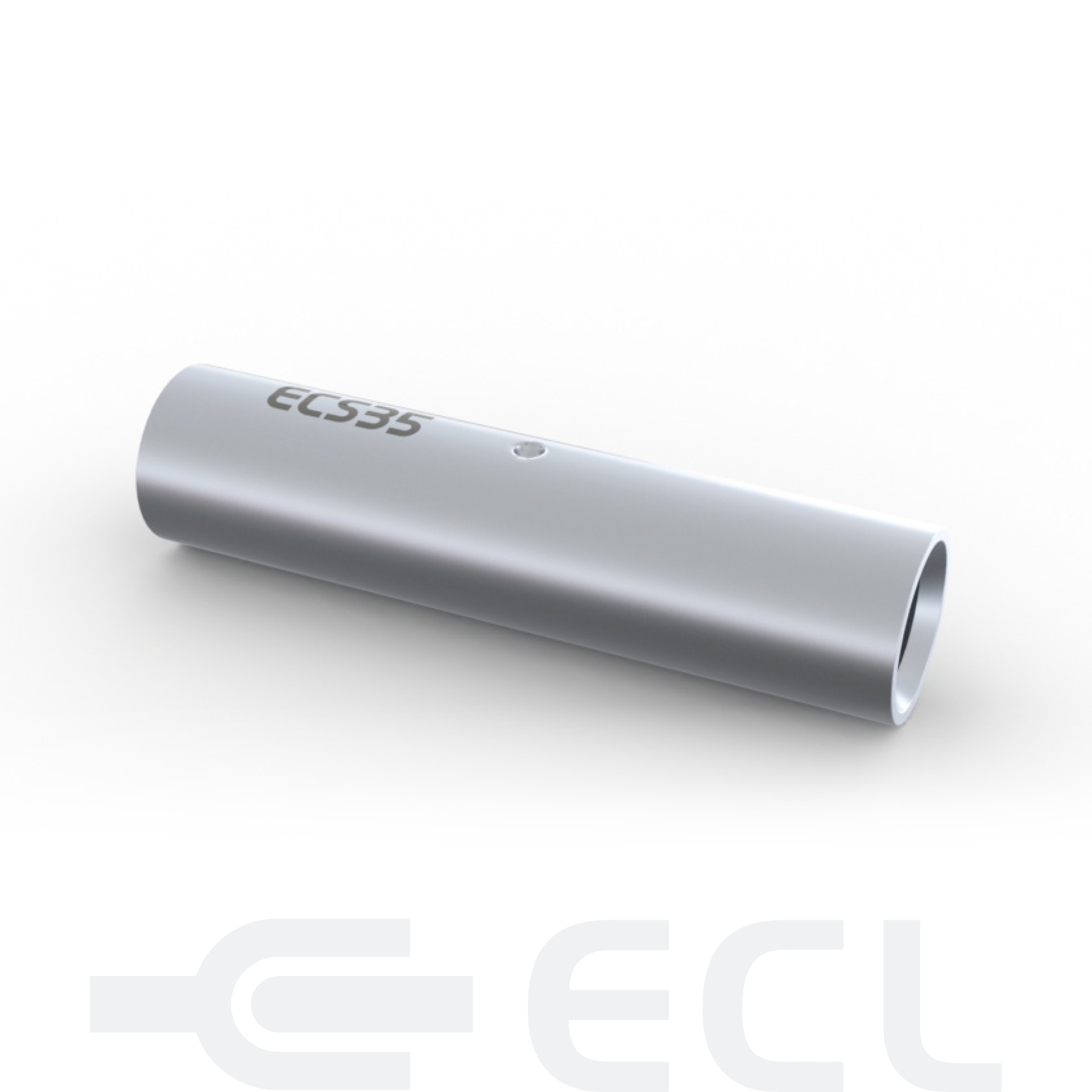

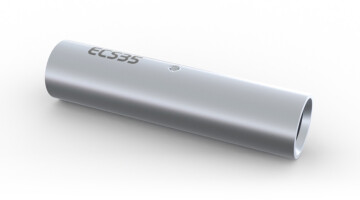

Manufactured from 99.95% pure copper tube for the best electrical performance, our links are designed for jointing of identical sized copper conductors.

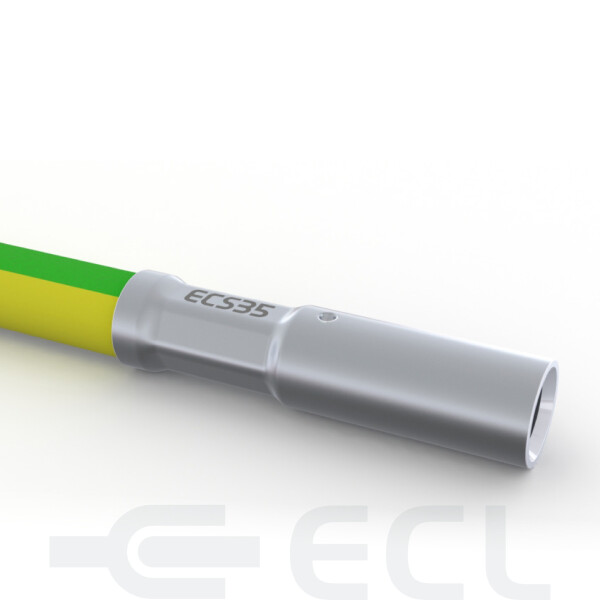

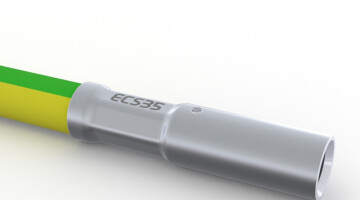

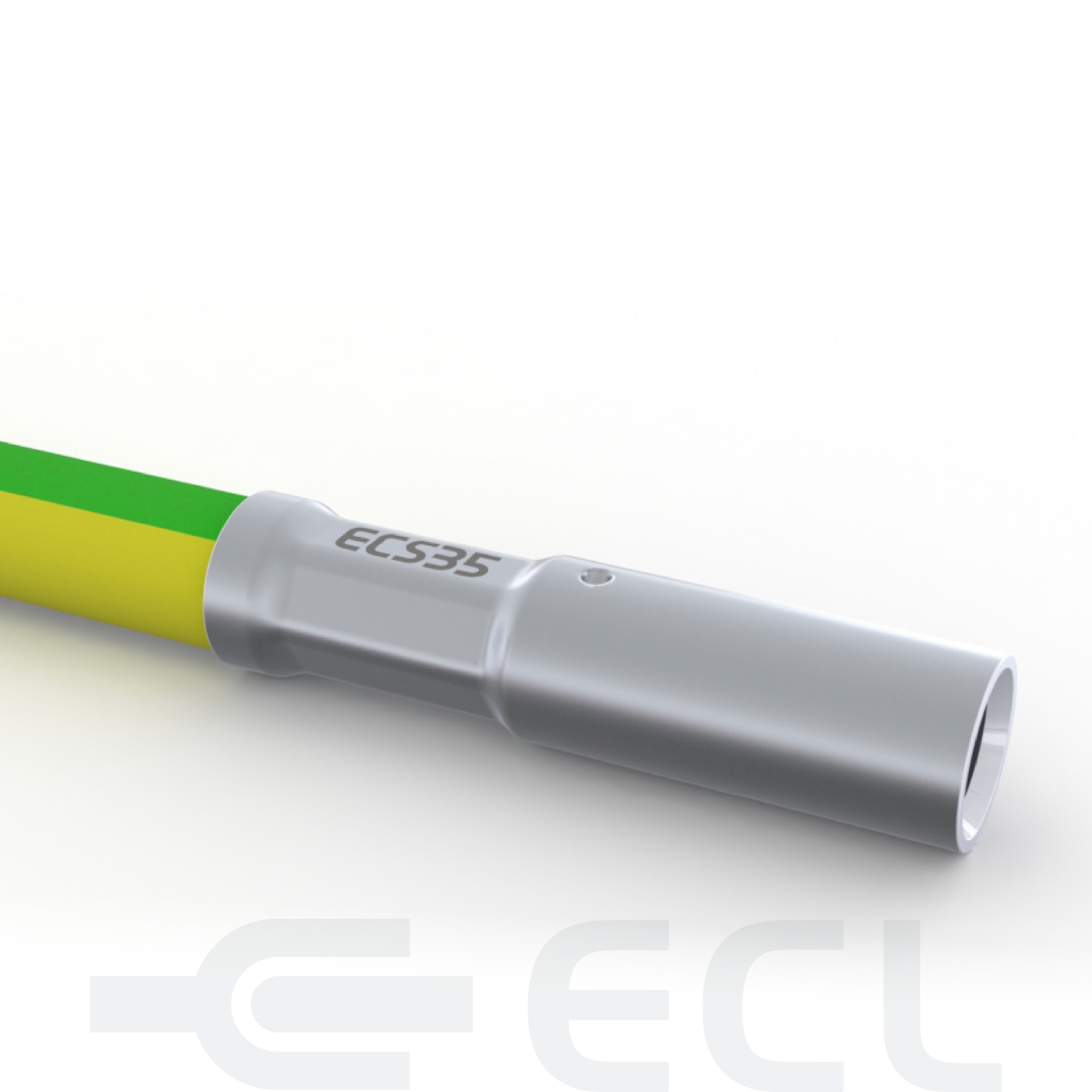

- Crimped using standard indent or hex die tooling.
- For special links e.g. imperial cables please contact us today.
- Bellmouth links for flexible cable are available on request.
For special lugs or other imperial sizes please
contact us
to discuss your requirement.

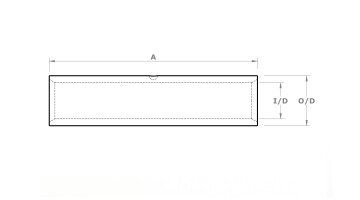

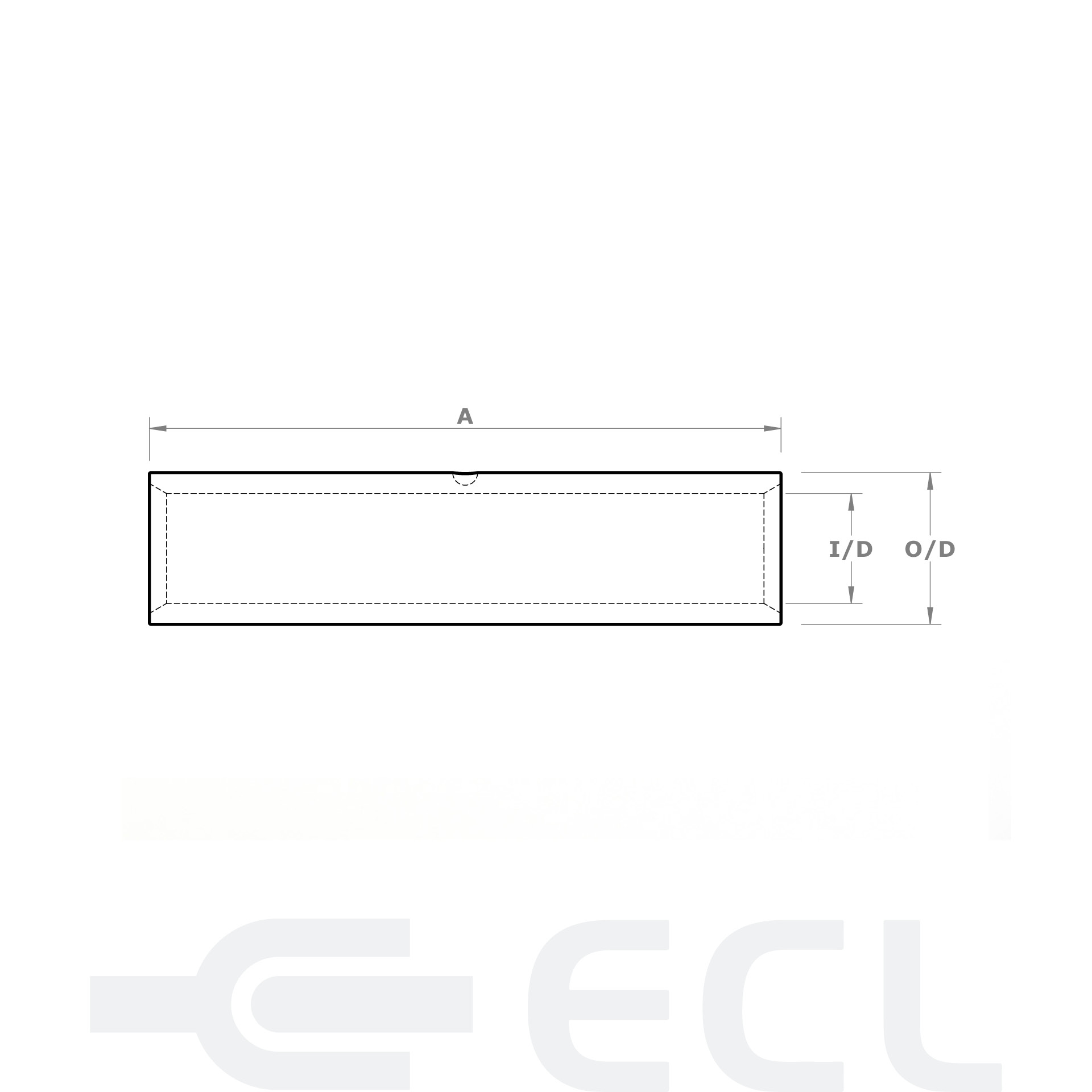

Part Number | Cable Size | Dimensions (mm) A | Pack Quantity | A/F Hex Die (mm) | |
---|---|---|---|---|---|
|
1.5mm | 22 | 100 | - |
|
|
2.5mm | 22 | 100 | - |
|
|
4mm | 22 | 100 | - |
|
|
6mm | 22 | 100 | 4.4 |
|
|
10mm | 22 | 100 | 5.7 |
|
|
16mm | 44 | 100 | 6.3 |
|
|
25mm | 48 | 50 | 7.7 |
|
|
35mm | 48 | 50 | 9.2 |
|
|
50mm | 48 | 50 | 10.4 |
|
|
70mm | 52 | 25 | 11.5 |
|
|
95mm | 54 | 1 | 14.2 |
|
|
120mm | 66 | 1 | 16.5 |
|
|
150mm | 66 | 1 | 18.3 |
|
|
185mm | 66 | 1 | 20 |
|
|
240mm | 91 | 1 | 23.1 |
|
|
300mm | 91 | 1 | 26 |
|
|
400mm | 91 | 1 | 28.1 |
|
|
500mm | 114 | 1 | 31 |
|
|
630mm | 114 | 1 | 37 |
|
