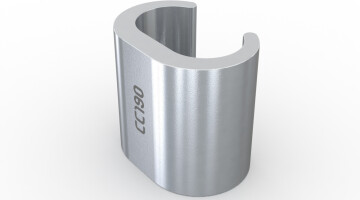

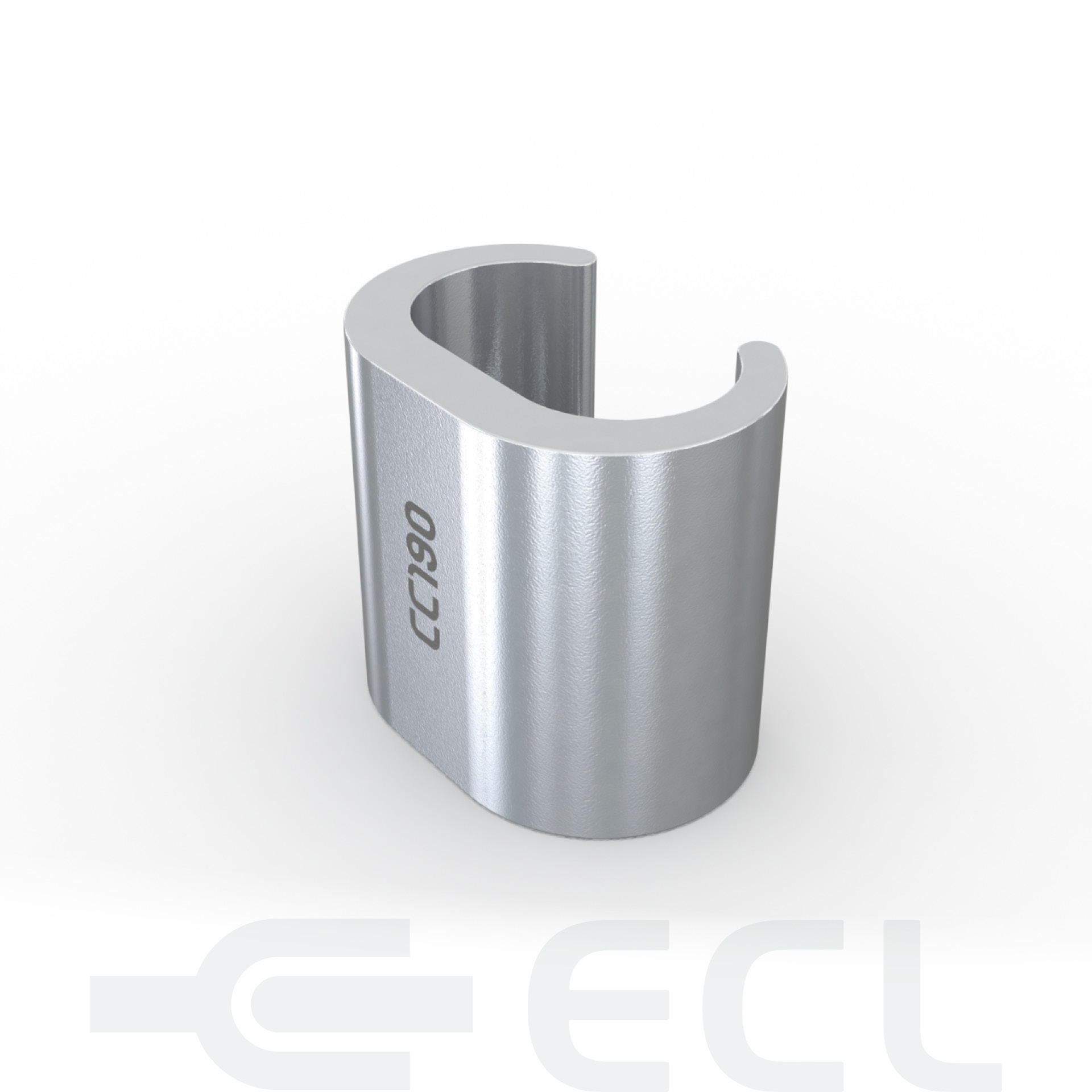

Copper C Connectors

Used for the interconnection of distribution earthing grids. Manufactured from high conductivity copper, with a durable tin plating.

Crimp using designated compression dies, as detailed in the chart below.

Refer to the provided chart to determine the specific C connector for your application.

Contact the ECL team

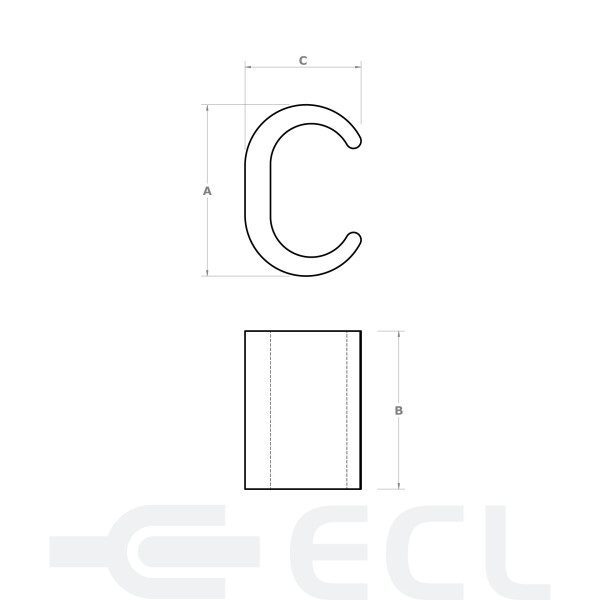

		Dimensions			Crimp Die Info
Part Number	Conductor Range	A	B	C	Compression Die
	14.5-16	11.8	13	7.8	DCT16	- + Part Number Conductor Range: A: B: C: Compression Die: - +
	16.5-20	12.8	13	9.7	DCT20	- + Part Number Conductor Range: A: B: C: Compression Die: - +
	21-26	14.7	16	10	DCT26	- + Part Number Conductor Range: A: B: C: Compression Die: - +
	27-44	19	20	14.4	DCT44	- + Part Number Conductor Range: A: B: C: Compression Die: - +
	45-60	21	22	15.4	DCT60	- + Part Number Conductor Range: A: B: C: Compression Die: - +
		33.9	24.8	21.2		- + Part Number Conductor Range: A: B: C: Compression Die: - +
	61-76	24.4	22	17.6	DCT76	- + Part Number Conductor Range: A: B: C: Compression Die: - +
	77-98	27.8	25	18.8	DCT98	- + Part Number Conductor Range: A: B: C: Compression Die: - +
	99-122	29.8	26	21.2	DCT122	- + Part Number Conductor Range: A: B: C: Compression Die: - +
	123-154	34	28	24.4	DCT154	- + Part Number Conductor Range: A: B: C: Compression Die: - +
	155-190	37	35	25.4	DCT190	- + Part Number Conductor Range: A: B: C: Compression Die: - +
	191-240	40	40	28.5	DCT240	- + Part Number Conductor Range: A: B: C: Compression Die: - +
	241-288	44.5	45	31.1	DCT288	- + Part Number Conductor Range: A: B: C: Compression Die: - +
	289-365	47.5	50	34	DCT365	- + Part Number Conductor Range: A: B: C: Compression Die: - +
