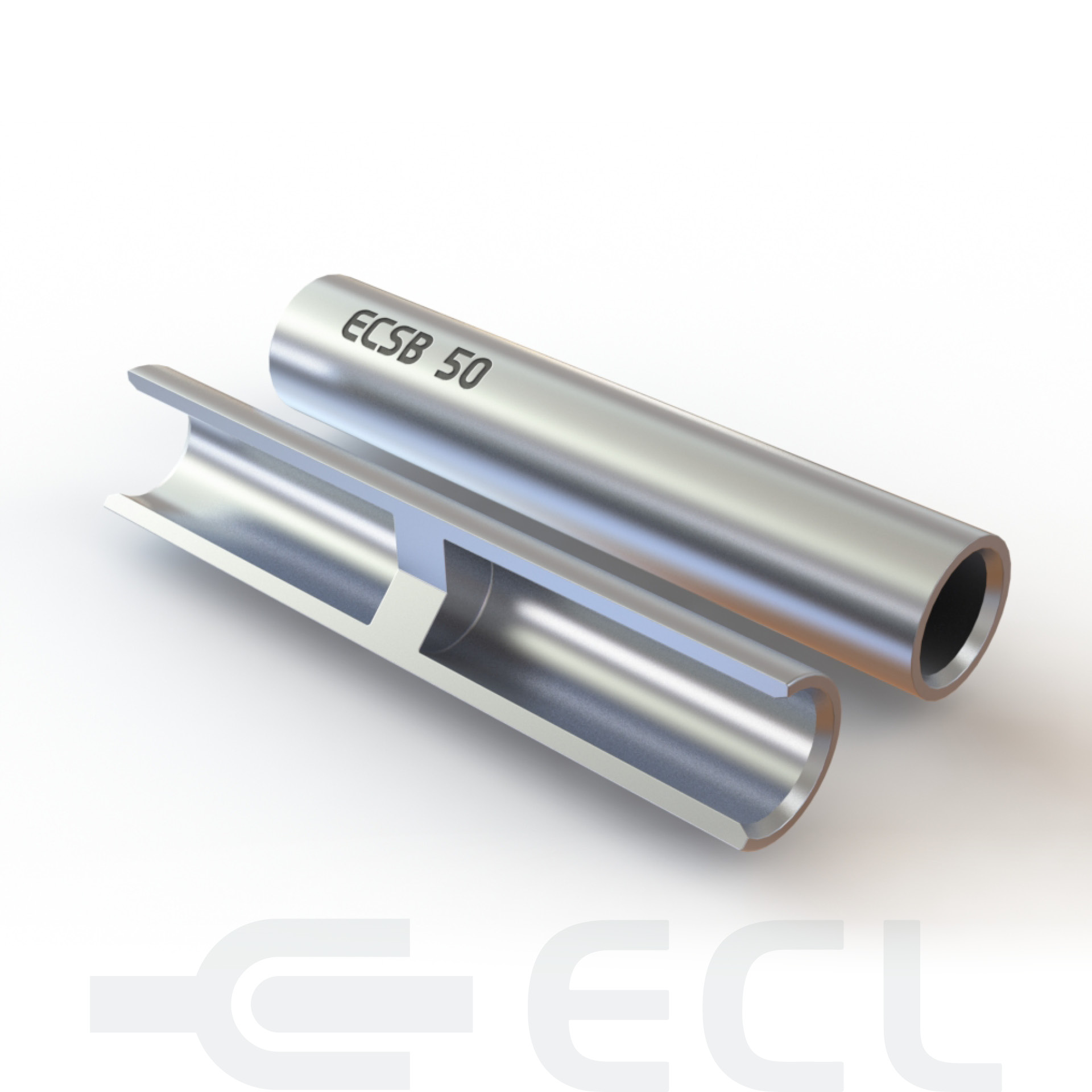

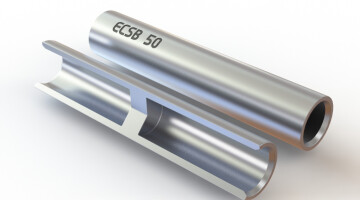

Copper Barrier Links

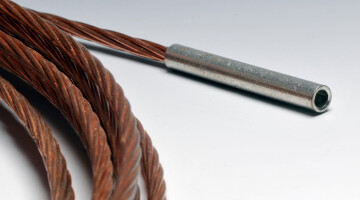

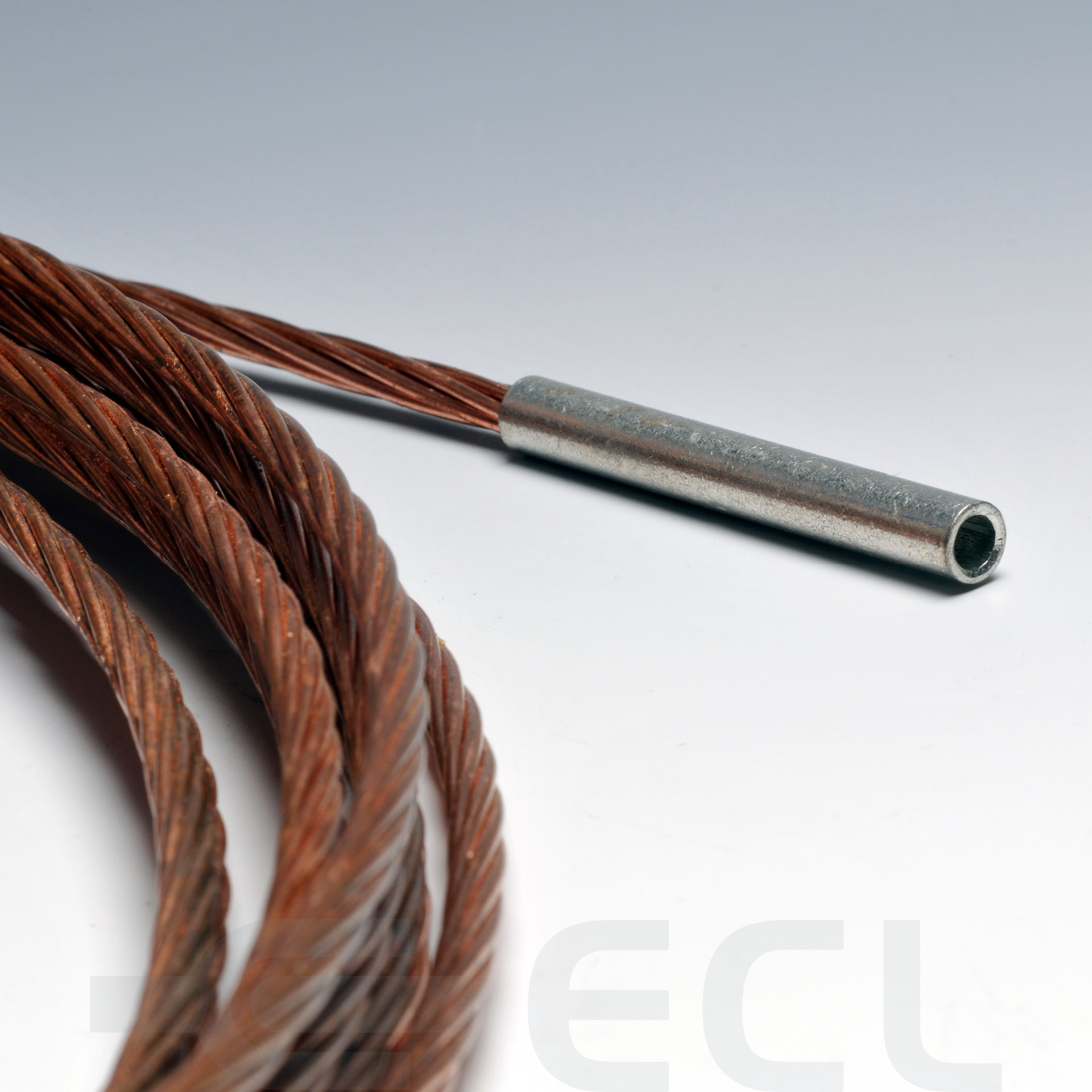

Manufactured from high conductivity copper, these links are designed to be used where a solid moisture block barrier is required in the joint between two copper cables.
- Can be crimped with standard NZ/Australian crimp tooling.
- For special links e.g. bellmouth or imperial cable, please contact us today.
For special lugs or other imperial sizes please
contact us
to discuss your requirement.

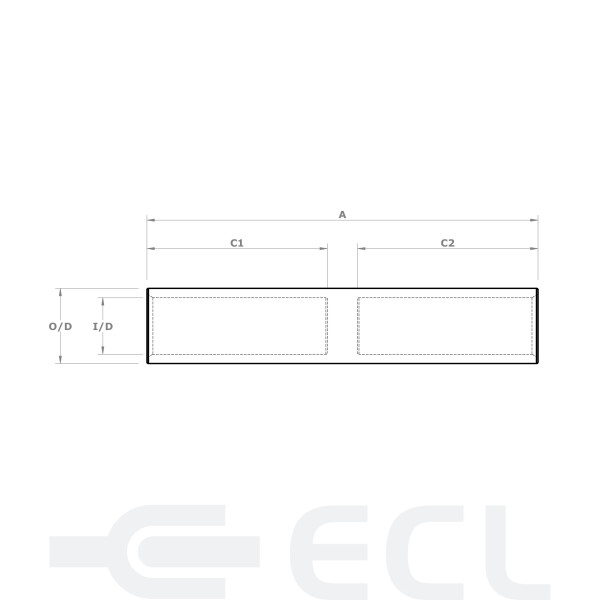

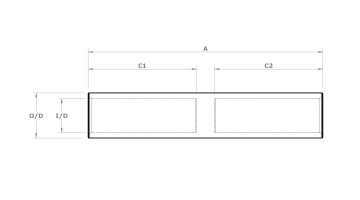

Part Number | Cable Size | Dimensions (mm) A | A/F Hex Die (mm) | |
---|---|---|---|---|
|
1.5mm | 23.5 | - |
|
|
2.5mm | 23.5 | - |
|
|
4.0mm | 23.5 | - |
|
|
6.0mm | 23.5 | - |
|
|
10mm | 50 | - |
|
|
16mm | 55 | 6.3 |
|
|
25mm | 60 | 7.7 |
|
|
35mm | 60 | 9.2 |
|
|
50mm | 65 | 10.4 |
|
|
70mm | 70 | 11.5 |
|
|
95mm | 80 | 14.2 |
|
|
120mm | 85 | 16.5 |
|
|
150mm | 85 | 18.3 |
|
|
185mm | 90 | 20 |
|
|
240mm | 105 | 23.1 |
|
|
300mm | 115 | 26 |
|
|
400mm | 145 | 28.1 |
|
|
500mm | 150 | 31 |
|
|
630mm | 150 | 37 |
|
