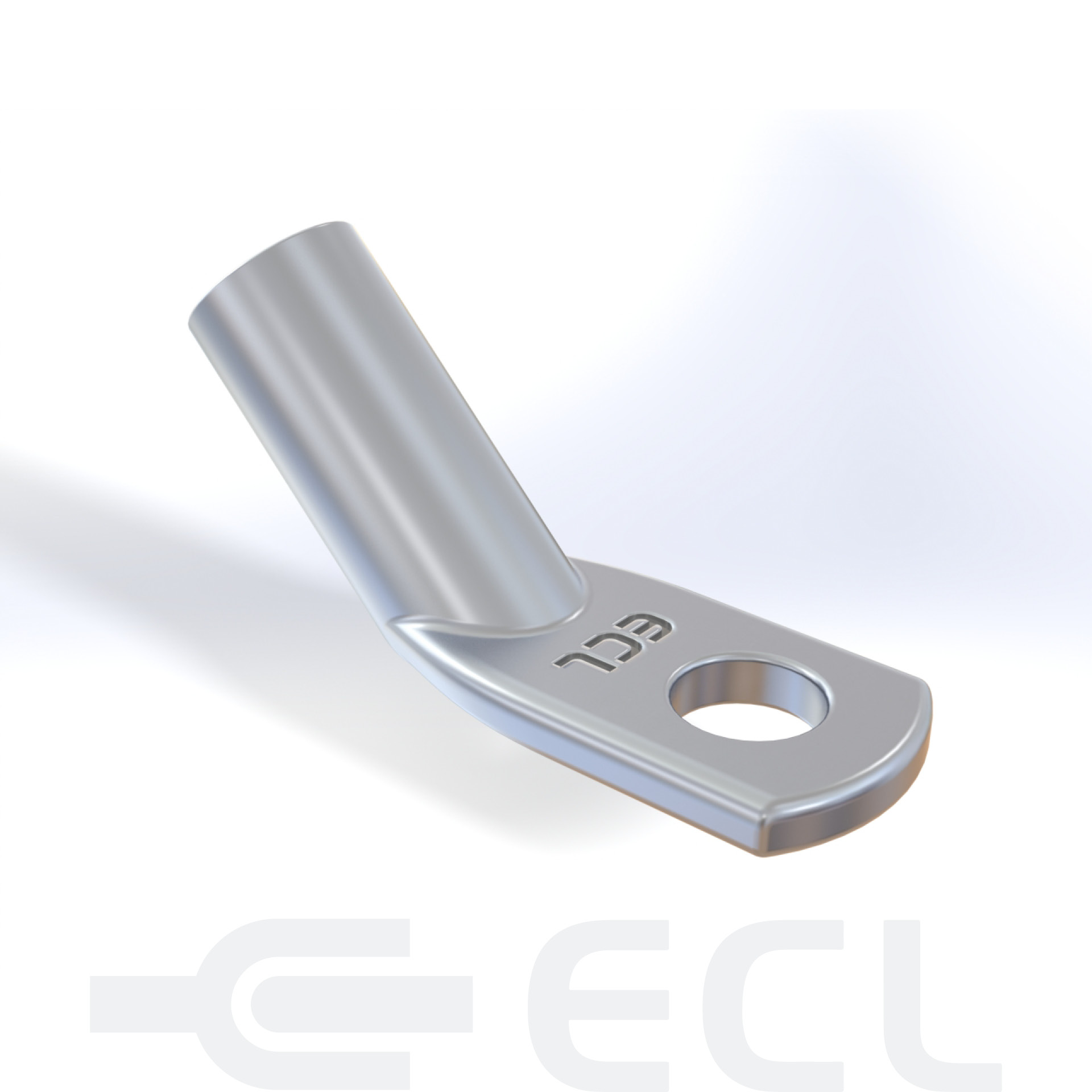

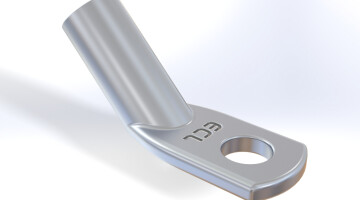

Copper 45 Degree Angle Lugs
45 Degree Angle Lugs are used for applications with limited connection space. Manufactured from high conductivity copper tube and electro-tinned.
Contact the ECL team

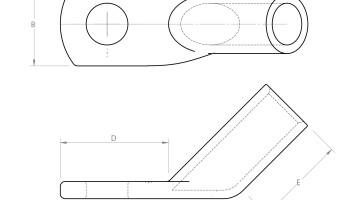

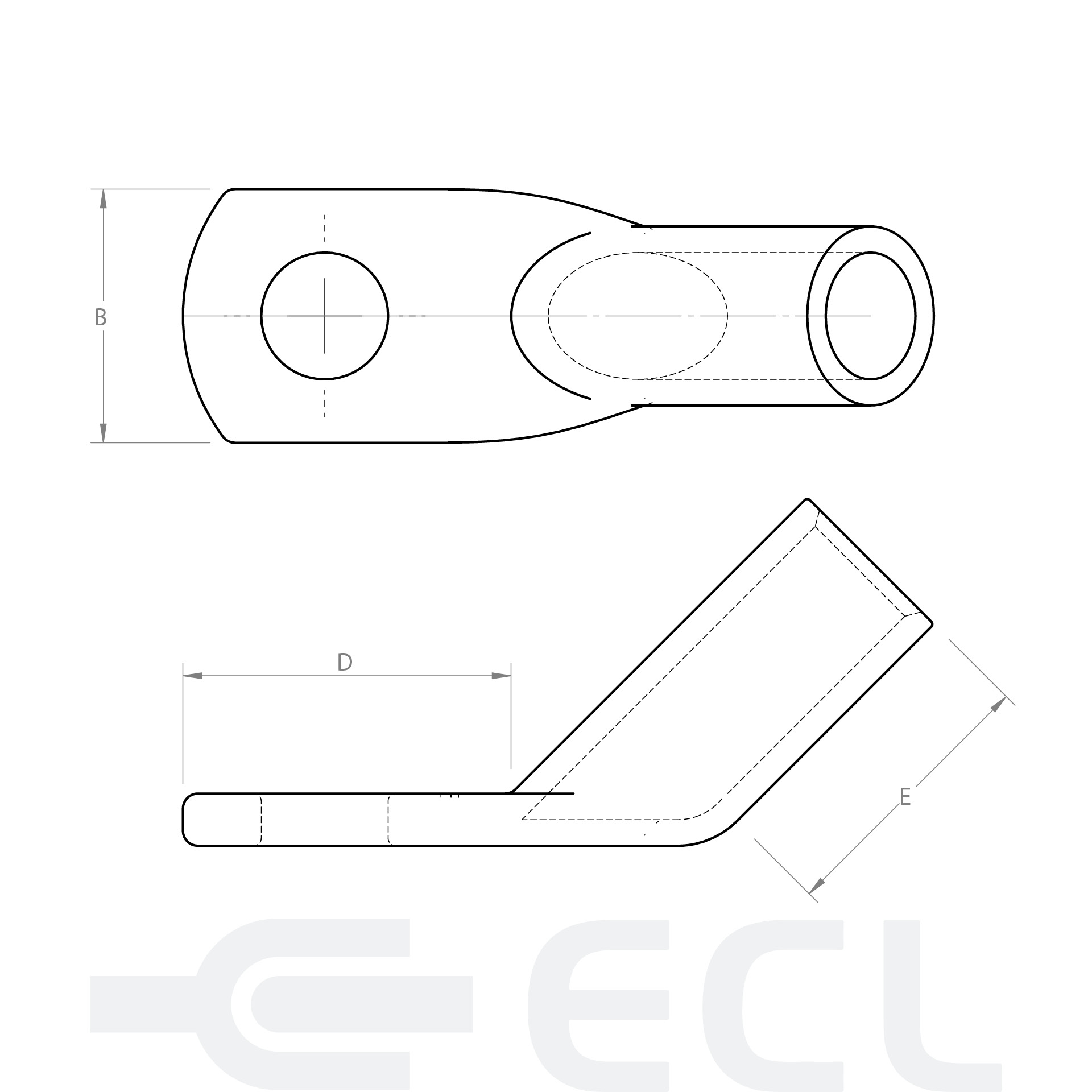

| Dimensions | Crimp Die Info | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Part Number | Cable Size | Stud Size mm | Dimensions B | Cable Size | Cable Size | Crimp Die Info A/F mm | Cable Size | Stud Size mm | B | D | E | A/F mm | |
|
|
10mm² | 5 | 12 | 17 | 10 | 5.7 | |||||||
|
|
10mm² | 6 | 13 | 17 | 10 | 5.7 | |||||||
|
|
10mm² | 8 | 13 | 17 | 10 | 5.7 | |||||||
|
