Cable Glands Unarmoured A2

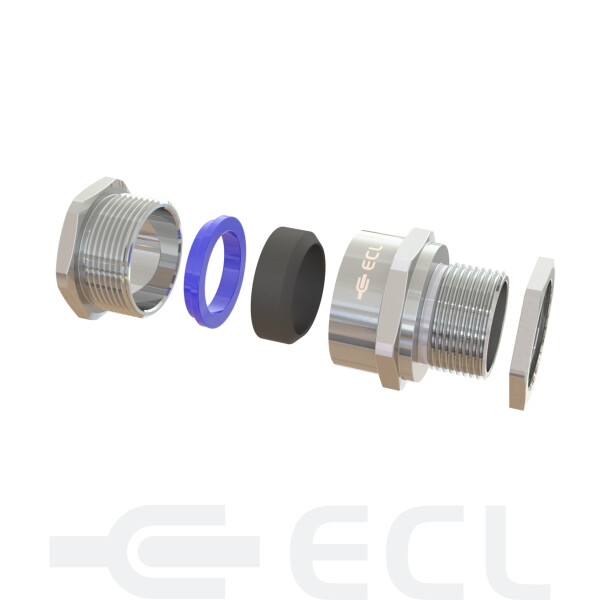

For general purpose use with XLPE and PVC cables offering effective cable retention for unarmoured cable. Manufactured in nickel plated brass they are suitable for arduous environment. The large cable range covered by each gland size reduces inventory and simplifies gland selection. Glands are supplied complete with locknut and are rated to IP68 if fitted with a gasket.

Technical Details:

Material:	Brass BS 2874 CZ121 Pb3
Application:	A2 compression type cable glands can be used indoors or outdoors, on all "unarmoured cable"
IP Rating:	IP66
Finish:	Nickel plated finish
Operating Temp:	Standard seals -20°C to 80°C

Contact the ECL team

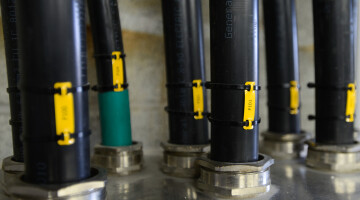

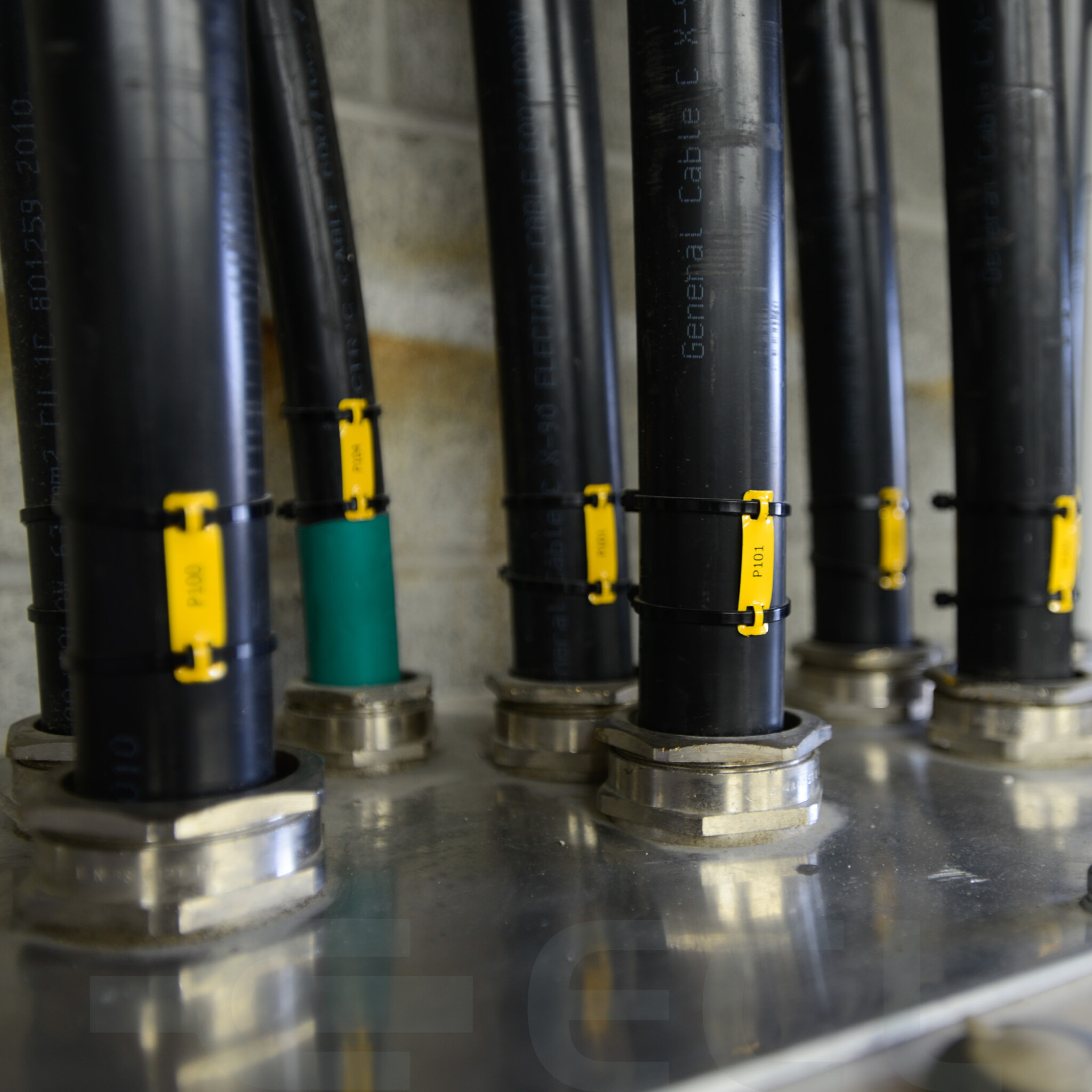

Stainless Steel Cable Glands Unarmoured A2 insitu

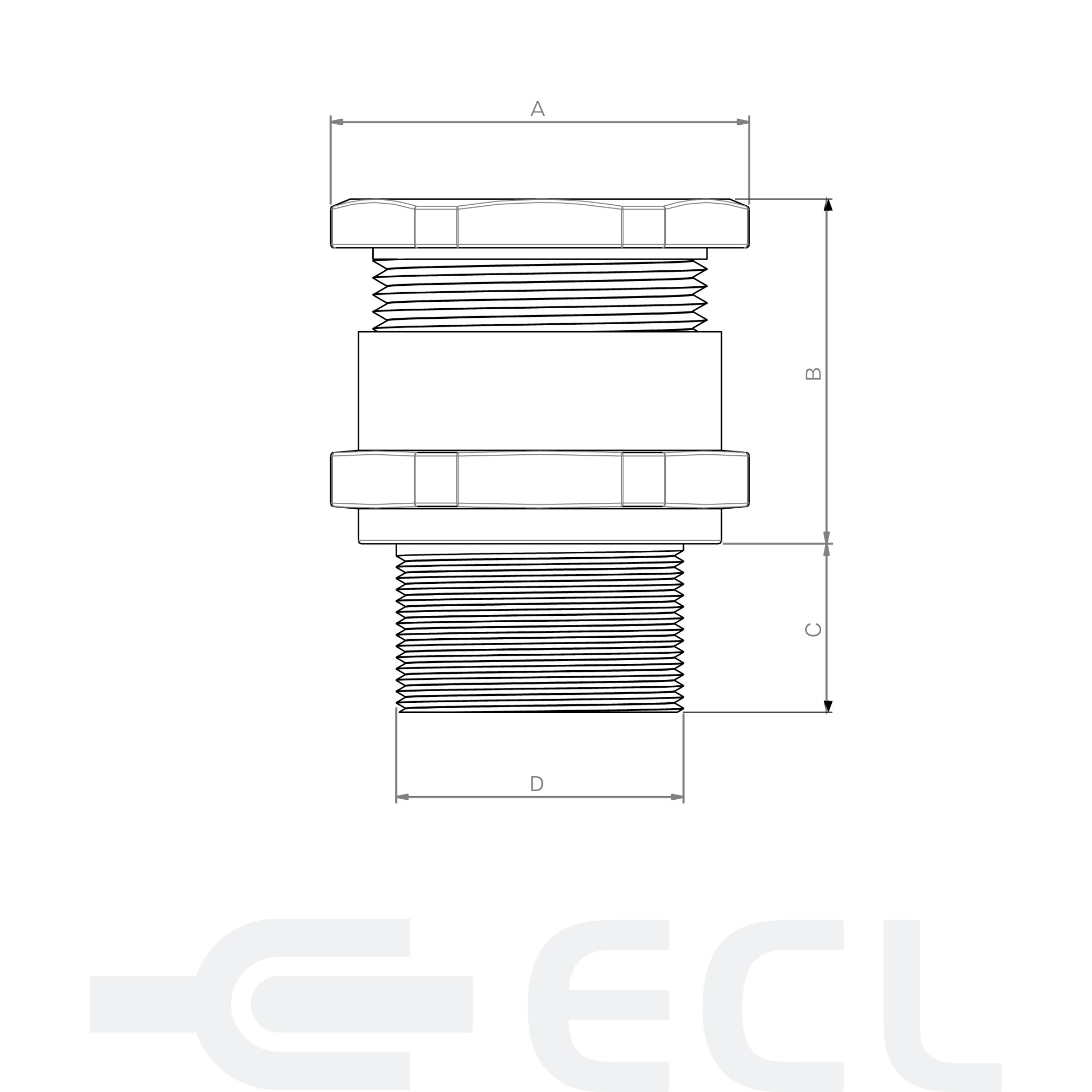

Part Number	Thread Size D	Thread Length mm C	Cable Diameter (min-max)	Dia Across Corners mm A	Dia Across Corners mm A
	M20	15	3.5-8.5mm	24.4	24.4	- + Part Number Thread Size D: Thread Length mm C: Cable Diameter (min-max): Dia Across Corners mm A: Dia Across Corners mm A: - +
	M20	15	8-11.5mm	26.5	26.5	- + Part Number Thread Size D: Thread Length mm C: Cable Diameter (min-max): Dia Across Corners mm A: Dia Across Corners mm A: - +
	M20	15	11-13.5mm	26.5	26.5	- + Part Number Thread Size D: Thread Length mm C: Cable Diameter (min-max): Dia Across Corners mm A: Dia Across Corners mm A: - +
	M25	15	13-19.5mm	39.9	39.9	- + Part Number Thread Size D: Thread Length mm C: Cable Diameter (min-max): Dia Across Corners mm A: Dia Across Corners mm A: - +
	M32	15	19-25.5mm	45.5	45.5	- + Part Number Thread Size D: Thread Length mm C: Cable Diameter (min-max): Dia Across Corners mm A: Dia Across Corners mm A: - +
	M40	15	25-32mm	55.4	55.4	- + Part Number Thread Size D: Thread Length mm C: Cable Diameter (min-max): Dia Across Corners mm A: Dia Across Corners mm A: - +
	M50	15	31.5-37mm	61	61	- + Part Number Thread Size D: Thread Length mm C: Cable Diameter (min-max): Dia Across Corners mm A: Dia Across Corners mm A: - +
	M50	15	36.5-43mm	65.5	65.5	- + Part Number Thread Size D: Thread Length mm C: Cable Diameter (min-max): Dia Across Corners mm A: Dia Across Corners mm A: - +
	M63	15	42.5-50mm	77.6	77.6	- + Part Number Thread Size D: Thread Length mm C: Cable Diameter (min-max): Dia Across Corners mm A: Dia Across Corners mm A: - +
	M63	15	49.5-55mm	83.2	83.2	- + Part Number Thread Size D: Thread Length mm C: Cable Diameter (min-max): Dia Across Corners mm A: Dia Across Corners mm A: - +
	M75	15	54.5-61mm	88.7	88.7	- + Part Number Thread Size D: Thread Length mm C: Cable Diameter (min-max): Dia Across Corners mm A: Dia Across Corners mm A: - +
	M75	15	60.5-67mm	94.2	94.2	- + Part Number Thread Size D: Thread Length mm C: Cable Diameter (min-max): Dia Across Corners mm A: Dia Across Corners mm A: - +
	M90	20	65-78mm	120.7	120.7	- + Part Number Thread Size D: Thread Length mm C: Cable Diameter (min-max): Dia Across Corners mm A: Dia Across Corners mm A: - +
	M100	24	76.5-90mm	125	125	- + Part Number Thread Size D: Thread Length mm C: Cable Diameter (min-max): Dia Across Corners mm A: Dia Across Corners mm A: - +
	M130	Available on request, please contact the ECL team				- + Part Number Thread Size D: Thread Length mm C: Cable Diameter (min-max): Dia Across Corners mm A: Dia Across Corners mm A: - +
