BREAK-SAFE
Load Break & Pick-up Tool
The patented BREAK-SAFE® is designed to add a functional and portable switch to a mechanical jumper. The BREAK-SAFE® has three operating functions:
- Load Break
- Continuous Current Duty
- Load Pick-Up
In order to keep personnel at a safe distance, the BREAK-SAFE® is operated with an insulated fibreglass hot stick for load break and load pick-up functions. The Yellow Safety Lock is also operated by a hot stick and helps prevent the tool from an unintended load break or pickup operation.

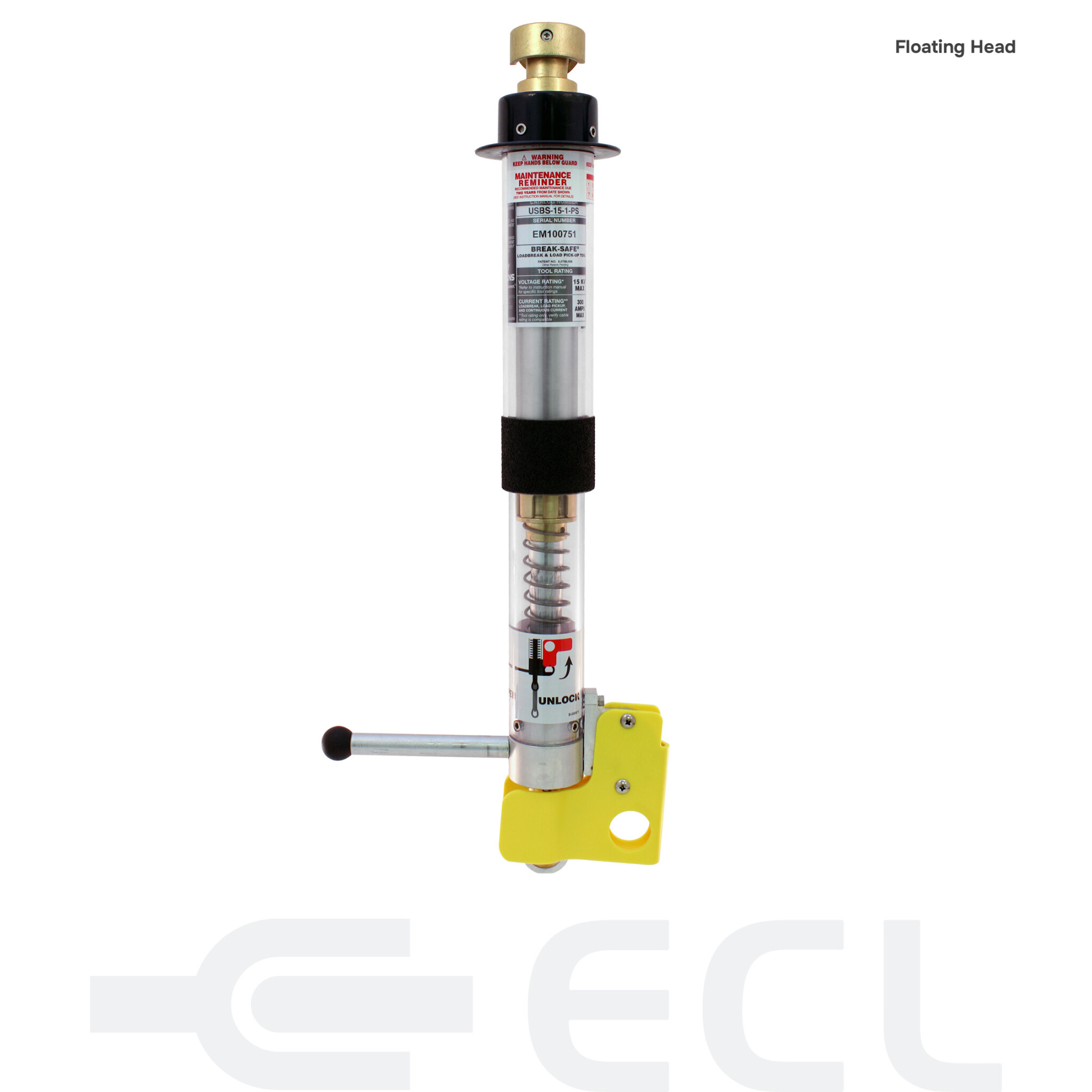

The BREAK-SAFE® is available in four models with either a Floating Head or a Duckbill:
- 15 kV / 300 amp
- 27 kV / 300 amp
- 38 kV / 300 amp
- 46 kV / 200 amp

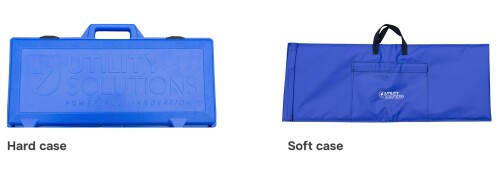

Accessories:
Accessories can be ordered separately on request, please contact the ECL team.
For special lugs or other imperial sizes please
contact us
to discuss your requirement.
Part Number | Description | System Voltage | Rating* | Closed Length mm | Open Length mm | Conductor Size | Diameter | Weight kg | |
---|---|---|---|---|---|---|---|---|---|
|
15 kV with floating head | 15 kV | 300 AMP | 609 | 711 | #6 Copper Min. Up to 954 ACSR. (28mm) Max | 63.5mm Dia | 3.3 |
![]() |
|
15 kV with floating head | 15 kV | 300 AMP | 711 | 813 | #6 Copper Min. Up to 954 ACSR. (28mm) Max | 63.5mm Dia | 2.8 |
![]() |
|
27 kV with floating head | 27 kV | 300 AMP | 711 | 851 | #6 Copper Min. Up to 954 ACSR. (28mm) Max | 63.5mm Dia | 3.5 |
![]() |
|
27 kV with floating head | 27 kV | 300 AMP | 813 | 953 | #6 Copper Min. Up to 954 ACSR. (28mm) Max | 63.5mm Dia | 3.2 |
![]() |
|
38 kV with floating head | 38 kV | 300 AMP | 838 | 1,041 | #6 Copper Min. Up to 954 ACSR. (28mm) Max | 63.5mm Dia | 3.8 |
![]() |
|
38 kV with floating head | 38 kV | 300 AMP | 940 | 1,143 | #6 Copper Min. Up to 954 ACSR. (28mm) Max | 63.5mm Dia | 3.5 |
![]() |
|
46 kV with floating head | 46 kV | 200 AMP | 1,078 | 1,359 | #6 Copper Min. Up to 954 ACSR. (28mm) Max | 63.5mm Dia | 4.6 |
![]() |
|
46 kV with floating head | 46 kV | 200 AMP | 1,181 | 1,460 | #6 Copper Min. Up to 954 ACSR. (28mm) Max | 63.5mm Dia | 4.3 |
![]() |
