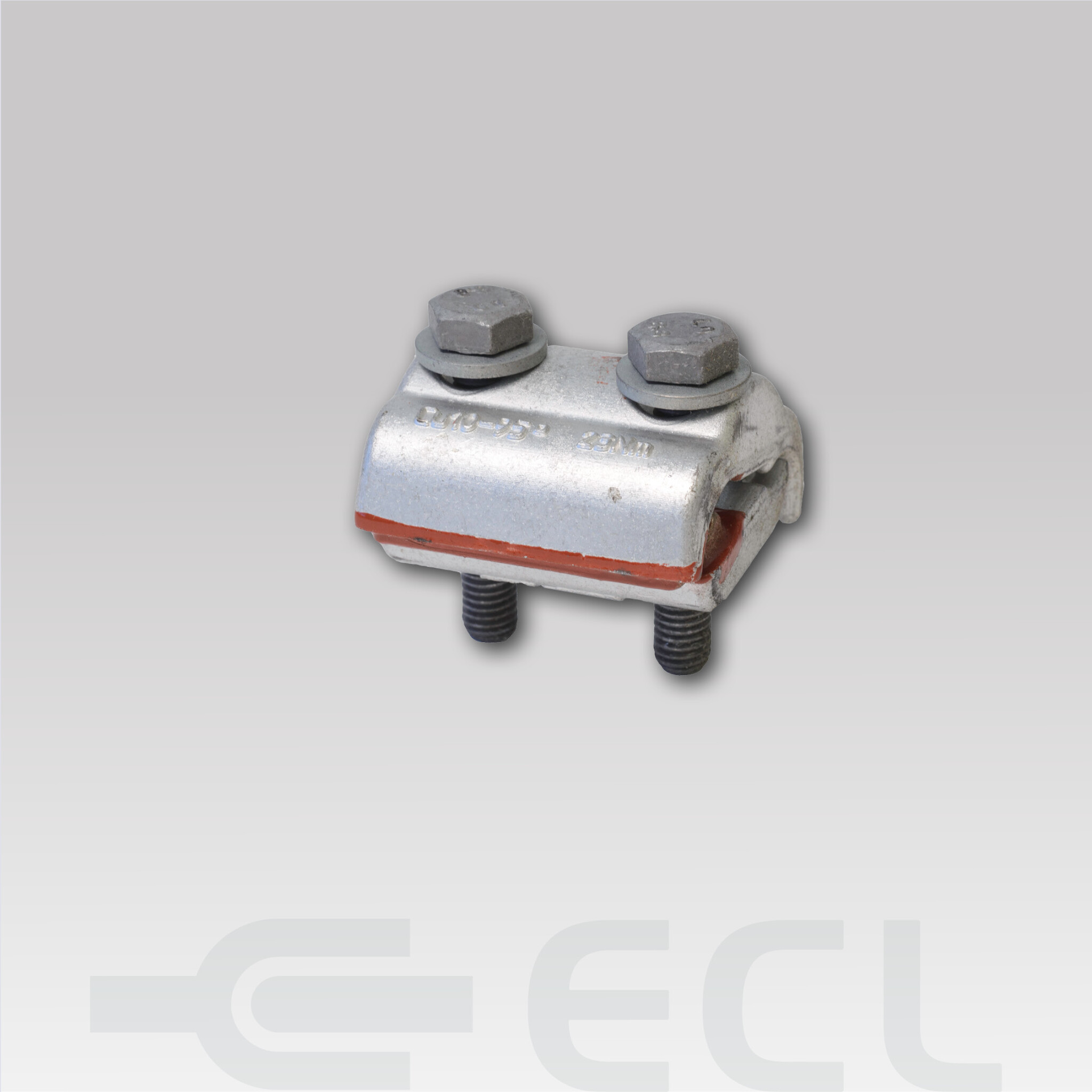

Bimetallic Parallel Groove Clamps
Used for connection of AL conductors, ACSR conductors with copper tap-off conductors.
| Material | High strength corrosion resistant aluminium alloy with hot forged bimetallic sheet, for copper tap-off |
| Bolts | Steel, 8.8, hot-dip galvanized |
| Nuts | Steel, 8, hot-dip galvanized |
Contact the ECL team
| Conductor Cross Section mm² | Conductor Diameter mm | ||||||
|---|---|---|---|---|---|---|---|
| Part Number | AL | ACSR | Cu | AL | Cu | Bolts | |
|
|
35-120 | 35/6 - 95/15 | 10-50 | 7.7 - 14.0 | 3.5 - 9.0 | 1 x M8 | |
|
|
16-70 | 16/2.5 - 70/12 | 6-50 | 5.1 - 12.5 | 1.6 - 7.5 | 2 x M8 | |
|
|
25-150 | 25/4 - 120/20 | 10-95 | 6.3 - 15.7 | 3.5 - 12.5 | 2 x M8 | |
|
|
35-185 | 35/6 - 150-25 | 35-185 | 7.5 - 17.5 | 7.5 - 17.5 | 3 x M10 | |
|
|
50-300 | 65/6 - 265-35 | 35-240 | 9.0 - 23.0 | 7.5 - 20.3 | 3 x M10 | |
|
